Page 1
1) USB charging connector
Only for the extra accessory
RX-100
2) V olume control
3) Low pass crossover control
(variable 50Hz - 100Hz)
8) Speaker Level output
(to satellite speakers)
9) ON/OFF indicator (Red)
10) Mains switch
11) Fuse ( T1AL)
12) Mains cord (230V)
WARNING !
To reduce the risk of electric shock, do not open or remove cover or back. Do not expose this appliance to rain or moisture. In case
of malfunction consult qualified service personel.
The exclamation point, within an equilateral triangle, is intended to alert
the user of the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
The lightning flash with arrowhead, within an equilateral
triangle, is intended to alert the user of the presence of
uninsulated "dangerous voltage" within the product´s
enclosure; that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
4) Phase switch
5) Standby switch
(Auto or ON)
6) Low level input (MONO)
from amplifier
7) Speaker Level input
(from amplifier)
English

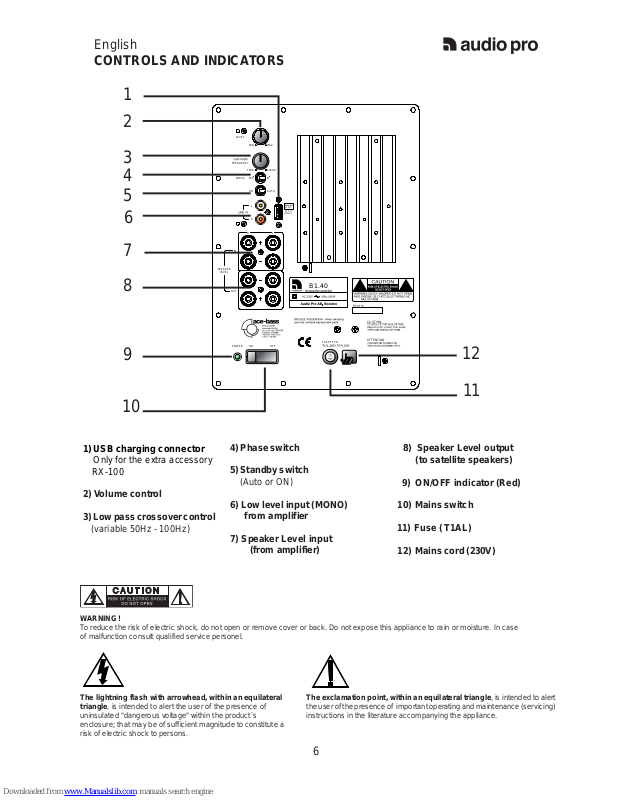

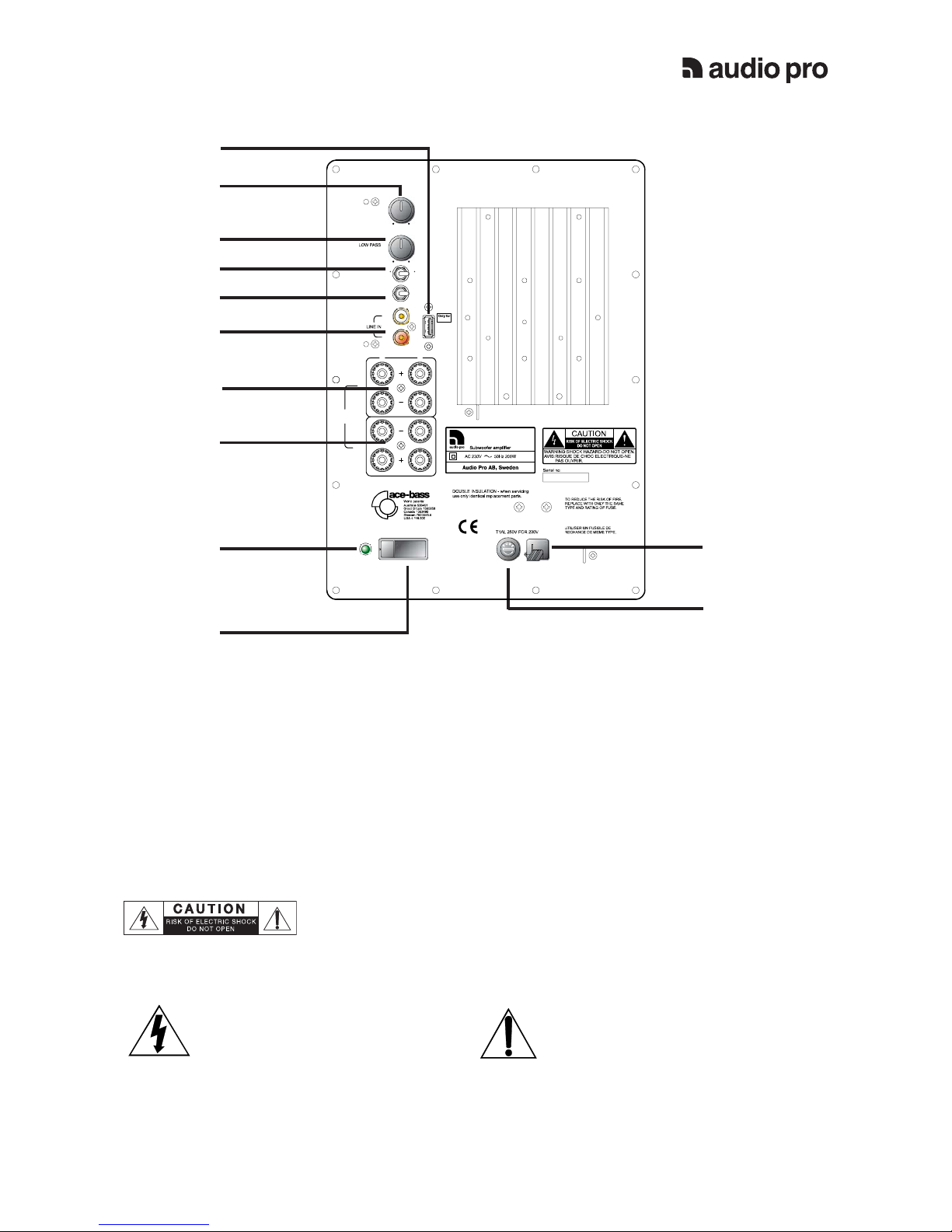

CONTROLS AND INDICAT ORS
6
1
2
7
8
9
10
12
11
F
U
S
E
FREQUENCY
FUSE TYPE:
POWER ON OFF
180 00
LEVEL
PHASE
AUTO
50HZ
MIN
ON
100HZ
MAX
CAUTION:
ATTENTION:
R
L
SPEAKER
LEVEL
IN
OUT
RL
B1.40
DC OUT
5V 250mA
RX-1 00
3
4
5
6
Page 2
English
2.2 T o Speaker output terminal (High level)
Connect speaker cables from the speaker terminals of your amplifier to the Speaker Level (7) input of the subwoofer.
Carefully check the polarity of the cables (+ to + and - to -). Connect both Left and Right channels. The satellite speakers
are connected to SPEAKER OUTPUT (8) on the subwoofer. Again, carefully check the polarity (+ to + etc).
In this installation, the satellite speakers HIPASS crossover frequency is automatically set to 100 Hz. If you want the
speakers to perform full frequency range, connect them to the main amplifier Speaker Output.
INSTRUCTIONS
Congratulations to your choise of Audio Pro subwoofer and to a new sound experience.
Audio Pro
subwoofer is a unique product built with advanced technique. It is very easy to
handle and install. It is equipped with the unique Audio Pro ace-bass technique that in combination
with the built-in amplifier, the long throw woofer and the extremely solid cabinet of fers a natural
and deep bass reproduction at sound levels you never thought existed.
The Audio Pro subwoofer offers extraordinary performance and lots of possibilities. In order
to get the most out of your new subwoofer, we recommend you to spend time and carefully read
these instructions before you connect and start up your system.
What is ace-bass ?
Normally , speaker design is bound to follow the laws of physics. The consequence will be, to get
deep bass, the speakerbox must be very large. With the ace-bass technique we can "change"
the laws of physics in the way that the driver believes it is placed in a much larger speaker box.
Furthermore, the ace-bass technology improves the driver performance. With the ace-bass
technique, we can design smaller subwoofers with deeper and cleaner bass.
2. INST ALLA TION
There are different methods to connect your subwoofer to a HiFi / Home Theater system. In the following we explain
2 different ways. NOTE! Do not connect the mains cord until all other installation is completed.
2.1 T o an amplifier / pre-amplifier with Subwoofer-out terminal.
Connect the enclosed cord from your amplifiers subwoofer-out terminal to LINE IN (6) on the subwoofer. (Also use the
enclosed Y adaptor for L and R inputs)
The audio signal is passing through the cord from the subwoofer-out terminal to the built-in amplifier. By using the
LOWP ASS control, the upper frequnency of the subwoofer can be variably selected from 50Hz - 100 Hz.
Note:
Connect the satellite speakers to the main amplifier speaker terminals.
1. UNP ACKING
Carefully unpack the Audio Pro subwoofer and check for any damages. If possible, keep the cartonbox if future
transportation is needed.
Y ou should immediately contact your dealer if the subwoofer is damaged .
7
Page 3
8
English

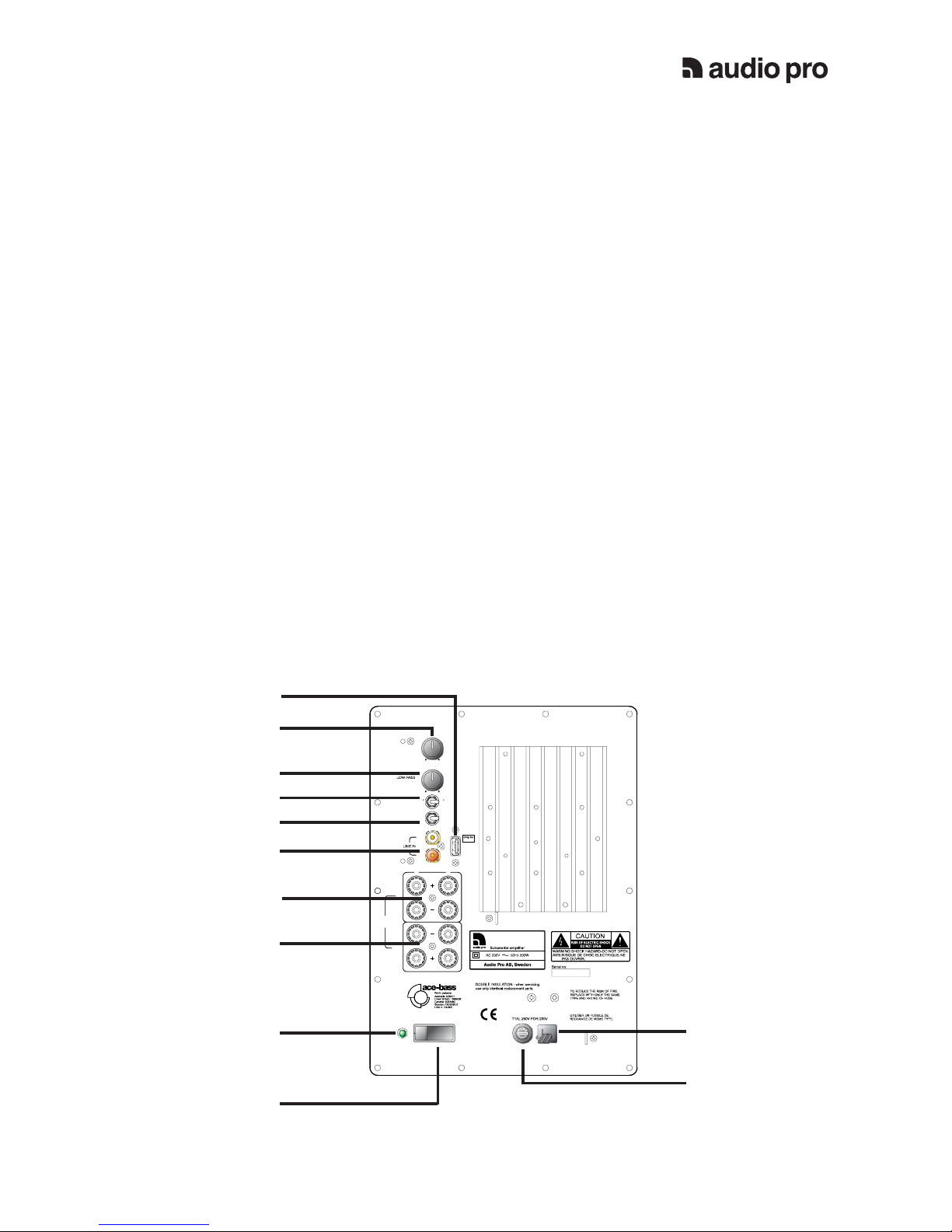

3. FUNCTIONS
Power switch (10):
To switch the subwoofer amplifier to ON or OFF
mode. Make sure it is turned OFF during installation.
Turn OFF the subwoofer when it will not be used for a
longer period of time.
Standby switch (5):
In Auto mode: The amplifier goes automatically into
standby mode if no signal been detected in 20 minutes. If goes on automatically if signal is detected.
In ON mode: The amplifier will be constanly ON.
Main Power indicator: (9)
The red indicator shows the operation status of the
subwoofer. Red light - subwoofer is on or in standby
mode.
Power indicator: (Blue on front)
The blue indicator shows the operation status. Blue
light - the subwoofer is on.
V olume control (2):
The sound level of the subwoofer can be adjusted. Use
the Level control carefully, remember that
program material may contain very high energy .
LowPass (3):
The Lowpass crossover frequency can be adjusted
variably between 50 and 100Hz. This gives you a
unique possibility to perfectly match the Subwoofer to
your satellite speakers. The lowest frequencies will be
reproduced only by the subwoofer.
Phase adjustment (4):
The placement of the subwoofer can have effect on the
phase between subwoofer and satellites. With the
phase adjustment the phase can be switched 180
degrees.
USB charging (1)
With the accessory RX-100, audio signal can be
received wirelessly from another unit equipped with the
transmitter TX-100. RX-100 is powered by this USB
charging connector. An audio cable is connected from
RX-100 to LINE IN.
TX-100 and RX-100 are extra accessories. Please
refer further to the manuals of TX/RX-100.
1
2
7
8
9
10
12
11
F
U
S
E
FREQUENCY
FUSETYPE:
POWER ON OFF
180 00
LEVEL
PHASE
AUTO
50HZ
MIN
ON
100HZ
MAX
CAUTION:
ATTENTION:
R
L
SPEAKER
LEVEL
IN
OUT
RL
B1.40
DC OUT
5V250mA
RX-100
3
4
5
6
Page 4
4. PLACEMENT
5. TROUBLESHOOTING
If you should face any problem with the subwoofer function, please check following points.
If the problem remains after checking these
points, please contact your dealer.
1. Check that all connections have been made
properly. Check if any of the cables are
damaged or short-cirquit.
2. Audio Pro subwoofers has a sophisticated
overload protection. This protects your
subwoofer from damages caused by to high
volume setting.
Your Audio Pro subwoofer is designed to
produce music information in the frequency
range below 100 Hz. The human ear is being
devoided the ability to localize sound of these
low frequencies why the placement of the subwoofer is not critical. Audio Pro subwoofers
steep lowpass filters make the placement
easier to fit into your listening room. However
you can use the nature of the acoustic laws in
the following ways:
1. To get the most amplification of the room itself,
place the subwoofer close to a corner at a
distance of about 10 cm from the walls. If you
get to much bass, move the subwoofer slightly
out from the corner or adjust the level.
2. By experimenting with the placement of the
subwoofer, you can optimize the sound quality.
One good rule is to place the subwoofer at the
same wall as the satellite speakers.
3. Never cover the subwoofer or place it where the
built-in amplifier will be covered.
6. TECHNICAL SPECIFICATIONS
Amplifier(RMS):.....................................250 Watt
Woofer:................................................................10"
Frequency range:....................................25-100Hz
Lowpass filter:.............50 - 100Hz, 24dB/octave
Highpass filter:.....................100Hz, 6dB/octave
Dimensions: (W).................................355 mm
(H)....................380 mm + 35 mm
(D)..................................355 mm
Weight:(net):...............................................16,6 Kg
Specifications may be changed without notice, Audio Pro
follows a policy of continous advancement in development
English
9
