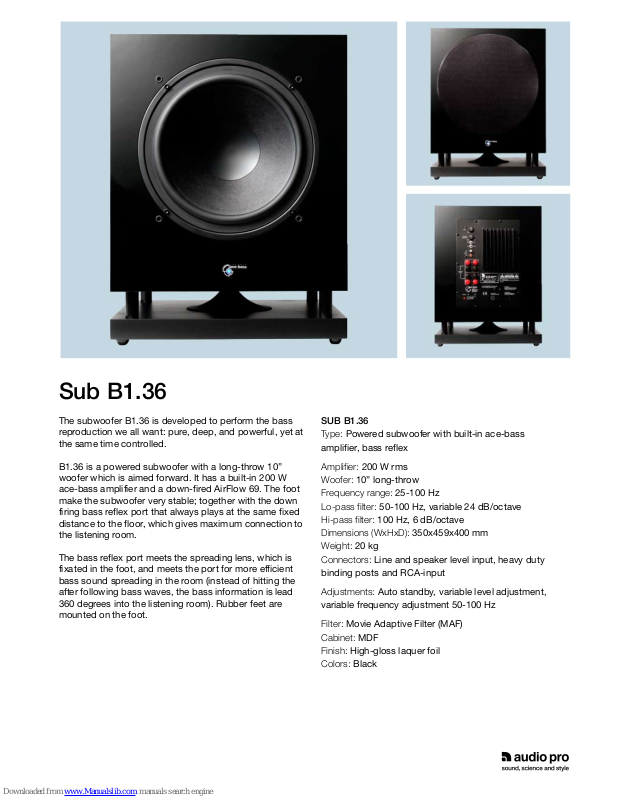

Sub B1.36
The subwoofer B1.36 is developed to perform the bass
reproduction we all want: pure, deep, and powerful, yet at
the same time controlled.
B1.36 is a powered subwoofer with a long-throw 10”
woofer which is aimed forward. It has a built-in 200 W
ace-bass amplifier and a down-fired AirFlow 69. The foot
make the subwoofer very stable; together with the down
firing bass reflex port that always plays at the same fixed
distance to the floor, which gives maximum connection to
the listening room.
The bass reflex port meets the spreading lens, which is
fixated in the foot, and meets the port for more efficient
bass sound spreading in the room (instead of hitting the
after following bass waves, the bass information is lead
360 degrees into the listening room). Rubber feet are
mounted on the foot.
SUB B1.36
Type: Powered subwoofer with built-in ace-bass
amplifier, bass reflex
Amplifier: 200 W rms
Woofer: 10” long-throw
Frequency range: 25-100 Hz
Lo-pass filter: 50-100 Hz, variable 24 dB/octave
Hi-pass filter: 100 Hz, 6 dB/octave
Dimensions (WxHxD): 350x459x400 mm
Weight: 20 kg
Connectors: Line and speaker level input, heavy duty
binding posts and RCA-input
Adjustments: Auto standby, variable level adjustment,
variable frequency adjustment 50-100 Hz
Filter: Movie Adaptive Filter (MAF)
Cabinet: MDF
Finish: High-gloss laquer foil
Colors: Black
