PROFESIONNAL AMPLIFIER
CLIMAX 3200 DSP
USER MANUAL
POWER SUPPLY
Ensure that the insource voltage (AC outlet) matches the voltage rating of the product. Failure to do so could
result in damage to the product and possibly the user. Unplug the product before electrical storms occur and
when unused for long periods of time to reduce the risk of electric shock or fire.
2
EXTERNAL CONNECTION
Always use proper ready-made insulated mains cabling (power cord). Failure to do so could result in
shock/death or fire. If in doubt, seek advice from a registered electrician.
FUSE
To prevent fire and damage to the product, use only the recommended fuse type as indicated in this manual. Do
not short-circuit the fuse holder. Before replacing the fuse, make sure that the product is OFF and disconnected
from the ACD outlet.
PROTECTIVE GROUND
Before turning the unit on, make sure that it is connected to Ground.This is to prevent the risk of electric shock.
Never cut internal or external Ground wires. Like wise, never remove Ground wiring from the Protective Ground
Terminal.
OPERATING SAFETY INSTRUCTIONS
Read these instructions. Follow all instructions. Keep these instructions. Do not discard. Heed all warnings. Only
use attachments/accessories specified by the manufacturer.
This symbol indicates that the disposal of this product is submitted to local regulations. Please
contact your local dealer.
DISPOSAL
Important Safety Instructions
This symbol, wherever used, alerts you to the presence of un-insulated and dangerous voltages
within the product enclosure. These are voltages that may be sufficient to constitute the risk of
electric shock or death.
This symbol, wherever used, alerts you to important operating and maintenance instructions.
DO NOT REMOVE ANY COVERS
Within the product are areas where high voltages may present. To reduce the risk of electric shock do not
remove any covers unless the AC mains power cord is removed. Covers should be removed by qualified service
personnel only. No user serviceable parts inside.
POWER CORD AND PLUG
Do not tamper with the power cord or plug. These are designed for your safety. Do not remove Ground
connections! If the plug does not fit your AC outlet seek advice from a qualified electrician. Protect the power
cord and plug from any physical stress to avoid risk o electric shock. Do not place heavy objects on the power
cord. This could cause electric shock or fire?
SERVICING
Refer all servicing to qualified service personnel only. Do not perform any servicing then those instructions
contained within this User’s Manual
3
1. Introduction ………………………………………………………………………….. 4
2. Mains Features ……………...………………………….…………………………… 4
3. Controls ..……………………………….…………..……………………………….. 5
4. Settings and DSP Functions ....……………………….………….……………….. 9
5. Remote Control ……………………………………………………………………. 12
6. Connections ……..…………………………………...……………………………. 20
7. Technical Specifications ……………………………………...……..……………. 23
8. Warranty ……………………………………………...…………………………….. 23
Index
Introduction
4
Thank you for purchasing the Audiopole CLIMAX 3200 DSP. This class-H DSP amplifier is designed for high
power touring or fixed installations. The device delivers 2 x 1600 W RMS /4 Ohms and 3200 W RMS /8 Ohms in
"Bridge” mode. Equipped with a 24-bit DSP, the amplifier handles the functions of limitation, equalization,
filtering, and delay necessary for the use of speaker systems.
In addition to his remote control capabilities the CLIMAX 3200 DSP has quick access buttons on the front panel
allowing immediate modification of specific settings. A large backlit LCD screen provides real time information of
the amplifier status. It is associated with LEDs displaying the dynamic settings of amplification.
A USB slot on the front panel enables a direct connection on to a PC for programming with a graphical display
of parameters. On the real panel the device is equipped with RS-485 interface of RJ45 connectors for
networking with remote control up to 250 amplifiers.
• 2 x 1600 W /4 Ohms, 2 x 915 W /8 Ohms
• 3200 W /8 Ohms (BRIDGE mode)
• Class-H circuitry
• DSP : Delay, X-Over, EQ, Limiter, Polarity.
• 3 modes: STEREO - BRIDGE - PARALLEL
• XLR balanced inputs
• SPEAKON outputs
• DSP Programming via USB slot
• RS-485 interface : remote control up to 250 amplifiers
• 2U
• 11 kg
1
Main Features
2
Controls
5
3
A - Front panel
1- POWER
Power ON/OFF switch.
By default, when the device is switched on for the first time, both channels activate in MUTE mode. To change,
refer to page 11, paragraph 3.
2 - OUTPUT
The LED brightness is proportional to the output current. It becomes visible when the current exceeds 1A.
3 - SIG
The green LED is illuminated when the voltage level at the output reaches approx. 4 V. This value corresponds
to a power of 4 W at 4 Ohms. The red LED is illuminated when the device is in Protect Mode (Mute).
4 - SAT
The red LEDs are illuminated if any section of the power amplifier’s output are within 3dB of clipping. However,
Leds blinking are acceptable. Constantly lit, it is advisable to reduce the amplifier volume.
5 & 6 - Volume controls and DSP settings
These buttons are coders wheels and push buttons. They control the volume and the DSP settings.
Volume control:
The input level can be adjusted by rotating the CHA and CHB knob.
Parameters control:
After selecting a function(11), press to navigate through the LCD screen, turn the button to modify a setting and
confirm by pressing it once again.
7 - LCD screen
The LCD screen displays current and important amplifier information (Gain, Temperature, Mode…).
8 - USB slot
DSP programming via USB slot.
Controls
6
3
9 - LED Informations
10 - EDIT / MUTE
Pressing the button activates the channel in MUTE mode and turns the red LED on. Holding the buttons for
more than 3 seconds activates the channel in Edit mode allowing the parameter setting.
11 - DSP Functions
X-OVER : Crossover setting
EQ : EQ setting
LIMITER : Limiter setting
POLARITY : Polarity (phase) setting
GAIN : Gain setting
DELAY : Delay setting
LOAD : Load store settings
SAVE : Save the current settings
SYSTEM : System Menu
Clip display
Level display
Signal display
Edit display
Mute display
12 - POWER CONNECTOR
CEI power socket. Before any connections make sure that the power cable is not damaged. The
connection to the mains supply must have an earth connection. The mains voltage supplied must conform with
the electrical characteristics of the appliance.
13 - COOLING FAN VENT
Do not obstruct the air vents of the amplifier cooling. Any impediment to the free movement of air in the
amplifier may cause a failure not covered by the warranty.
14 - SPEAKER OUTPUTS
SPEAKON outputs.
15 - GROUND LIFT
Switch to right to disconnect the chassis from ground if necessary to eliminate hum caused by ground loops.
16 - GAIN SELECTOR
26 dB and 32 dB voltage gain setting along with 1.4V sensitivity setting.
17 - LIMITER
Three modes :
Right position:
Clip Limiter: FAST
Fast Attack
Middle position:
Clip Limiter : SLOW
Slow Attack
Left position:
Clip Limiter : OFF
Controls
7
3
B - Back panel
18 - HPF 1, HPF 2 :
Channel 1 & 2 High Pass Filter
Right Middle Left
19 - PC INPUT CONNECTOR
The amplifier can be controlled and programmed with a PC iva a RS-485 interface and the dedicated software.
The control distance works up to 1000 m. DSP controls equalizer, crossover, delay, opposite phase, limiter,
stereo, bridge, mono… All changes made will be apply in real time (see page 12).
20 - RJ45 connector to an other CLIMAX 3200 DSP
Up to 250 amplifiers can be simultaneously controlled when they are linked together.
21-22 - INPUTS
XLR balanced female inputs
23-24 - Link XLR
XLR balanced male inputs for signal redistribution to others amplifiers
Controls
8
3
Low frequency response curves
Parameters and DSP Settings
9
4
Parameter setting
Pressing the « Mute/Edit » key for more than three seconds activates the edit mode.
Green display of the relevant channel lights up, and relevant channel turns into the parameter setting (channel
default setting is « input mute »).
Short press a function key (11) to activate the relevant parameter setting menu. Turn coder for parameter
setting, and short press the coder switch (5) or (6) to confirm the relevant parameter.
a) POLARITY
Settings :
• 0° [+]
• 180° [-]
b) DELAY
From 0 to 1000 ms:
• 21 µs steps between 0 and 10 ms,
• 84 µs steps between 10 et 20 ms,
• 0.5 ms beyond 20 ms.
c) LIMITER
Settings :
• THRESH: -20 dBu ~ +20 dBu
• ATTACK: 0,3 ms ~ 100 ms
• RELEASE: x 2, x 4, x 6, x 8, x 16, x 32
(Multiple of Attack time)
d) X-OVER HPF & LPF
Settings :
• High Pass range: 20 Hz ~ 20 kHz
• Low Pass range: 20 Hz ~ 20 kHz
• Filter type: Linkwitz Riley, Bessel, Butterworth
• Slope: 12 dB, 18 dB, 24 dB, 48 dB
e) EQ
Settings (x 6 EQ1 ~ EQ6)
Parametric :
Frequency band: 20 Hz ~ 20 kHz
Gain: - 20 dB ~ + 20 dB
Bandwidth: 0.05 dB/Oct. ~ 3 dB/Oct.
Lo Shelf, Hi-Shelf:
Frequency band: 20 Hz ~ 20 kHz
Gain: - 20 dB ~ + 20 dB
Slope: + 6 dB, + 12 dB
10
f) LOAD
Load setting configuration previously saved in a memory unit.
g) SAVE
Save up to 30 different setting configurations.
To erase a configuration, press SAVE more than 3seconds :
4
Parameters and DSP Settings
11
h) SYSTEM
1 - Device ID Setup
2 - Password setting
3 - Power On setup (Mute)
4 - LCD backlight setup
5 - Work mode Stereo / Parallel / Bridge
6 - Current Program
7 - System information
4
Parameters and DSP Settings
12
5
Remote Control
1 - PC connection
CLIMAX 3200 DSP use advanced long-distance remote control technology; it can set all the function and control
by connection software. Short distance can be control by connecting through USB or RS-485 slot. RS-485 can
control up to 250 amplifiers.
Example A (for a single amplifier)
Install the driver first before connecting to the computer.
13
5
Remote Control
Example B (Up to 250 amplifiers)

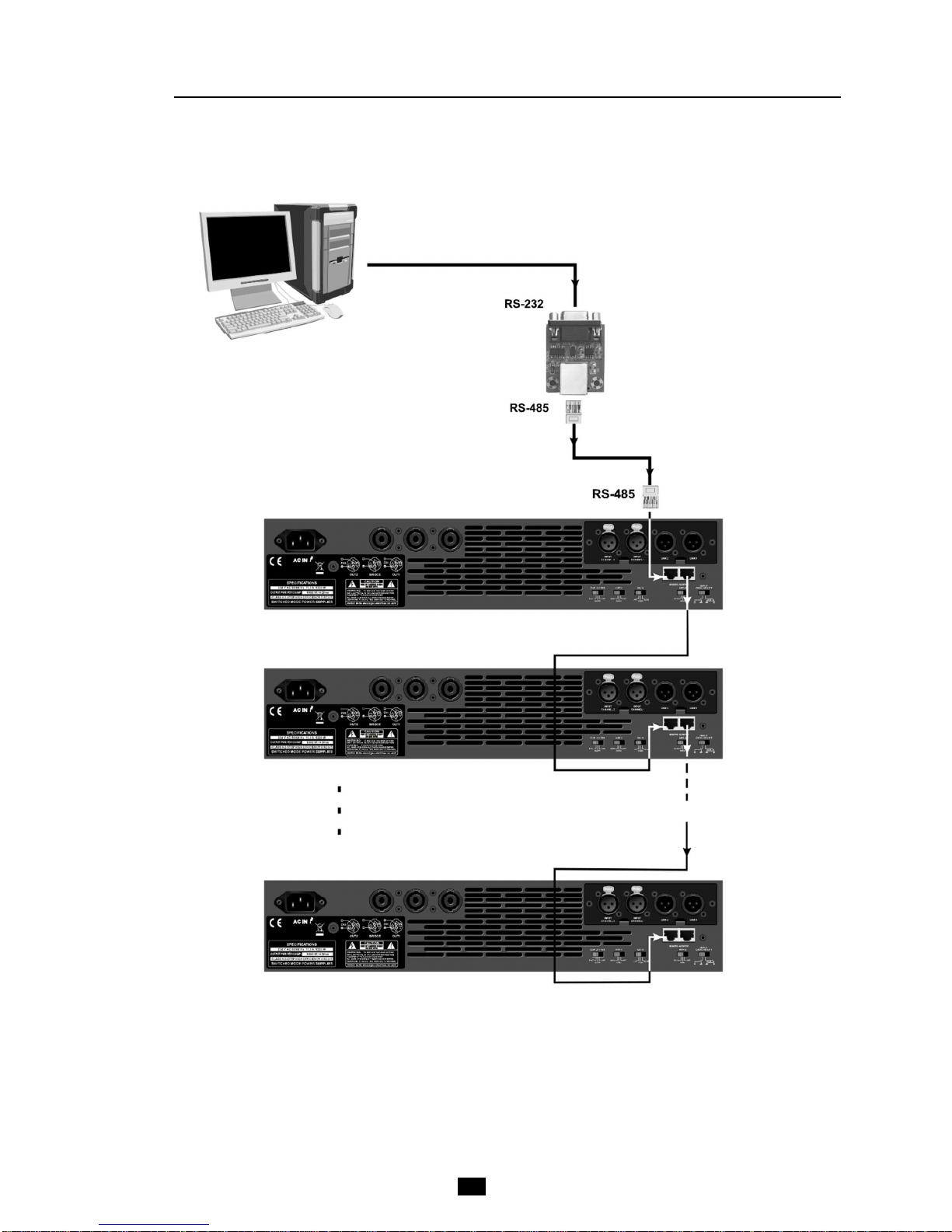

RS-232 connection
14
5
Remote Control
Example C (Up to 250 amplifiers)
USB Connection
USB / RS-485
Converter
15
5
Remote Control
2 - Software
A. Display option
B. Select display channel
C. Signal display
D. Mute ON/OFF
E. Channel select switching
F. Connected products ID
G. Connection
H. Save / Read program
I. Copy
J. Mode (Stereo / Parallel / Bridge)
K. Products selection (ID)
L. Current using program and series number
M. Signal edit
N. EQ edit
COM select
Device select
(Same as the product ID)
Search connected products ID
Communication way
Connection After selected, display shows as below:
16
5
Remote Control
Program After selected, display shows as below:
1. To edit only one configuration, follow this procedure :
• Press A, edit the configuration
• Press B
or
• Press E, edit the configuration
• Press F
By default the PC configurations are stored in the directory root 'music '. Files must be save in DIA
format.
2. To edit all the configurations (30 groups), follow this procedure :
• Press D, then edit the configuration
• Press G
or
• Press C
3. To erase a configuration
• Select configuration A
• Press B
Recall program from device
Store program to device
Store all program to device
Recall all program from device
Recall program from PC
Store program to PC
Store all program to PC
17
5
Remote Control
Copy function
Copy parameters from one channel to an other one
Mode selection : Stereo / Parallel / Bridge
Change current device ID
Copy
Mode
Device
18
5
Remote Control
3 - SIGNAL Settings
a) Gain
Gain adjustment from -59 dB to +6 dB, ± 0.5 dB step.
b) Delay
Delay adjustment from 0 to 1000 ms.
Value can be displayed in Feet (Ft) or meter (M).
c) Polarity
Polarity adjustment (phase): [+] corresponds to 0°, [-] corresponds to 180°.
d) X-OVER
HPF Type, LPF Type: Linkwist Riley, Bessel, Butterworth.
Freq: Cutoff frequency from 20 Hz to 20 kHz.
Slope: 12 dB, 18 dB, 24 dB.
e) Limiter
Threshold: From -20 dBu to +20 dBu.
Attack: From 0.3 ms to 100 ms.
Release: x 2, x 4, x 6, x 8, x 16, x 32.
19
Remote Control
4 - EQ settings
a) Parameter
Low-shelf or Hi-shelf.
b) Hz: Frequency from 20 Hz to 20 kHz.
c) Oct: From 0.05 to 3 (parametric filter) / Slope: +6 dB, +12 dB (Lo-shelf / Hi-shelf).
d) dB: Gain from -20 dB to +20 dB.
e) Bypass
EQ ON/OFF.
5
20
6
Connections

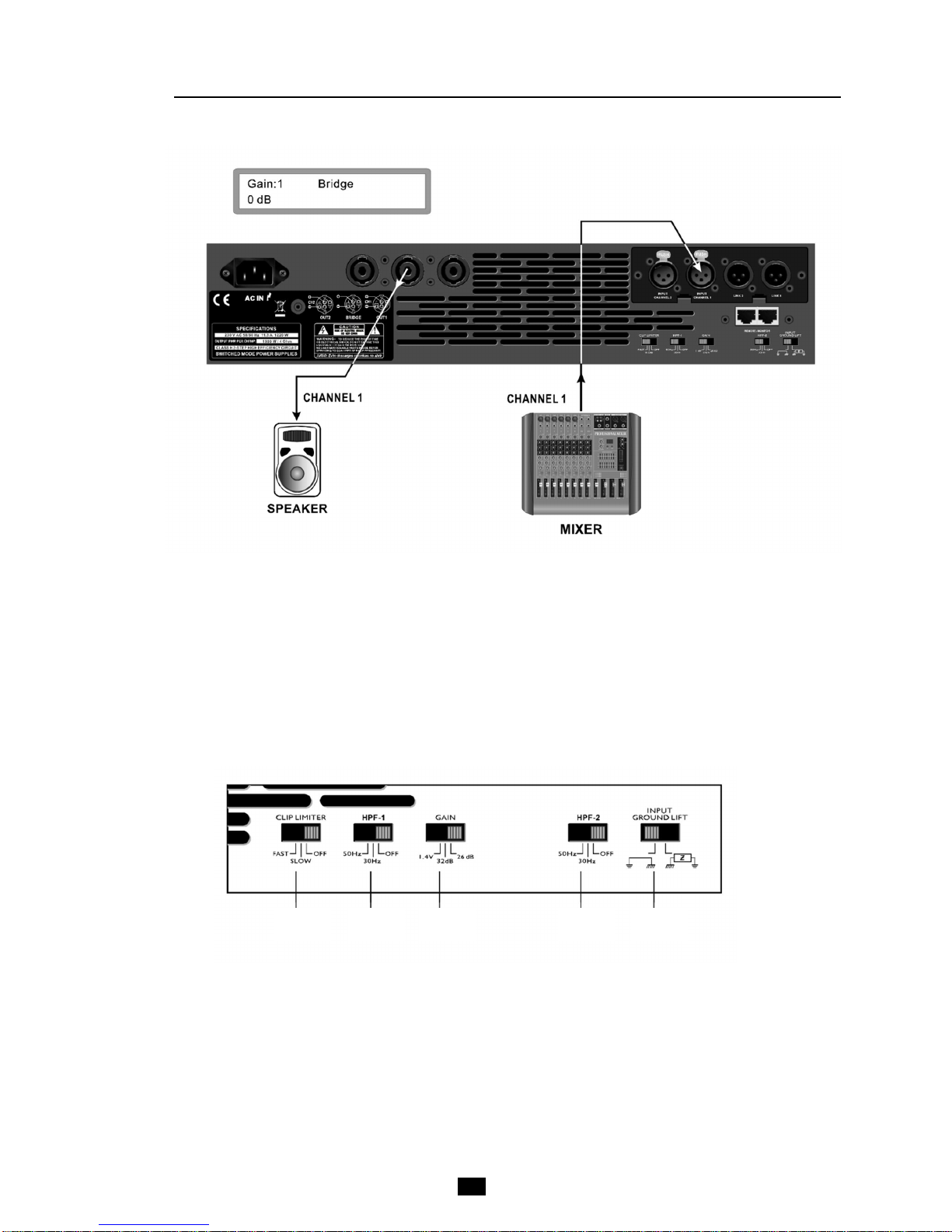

1 - Inputs
Before any connection, turn the amplifier off. Check the operating mode (Stereo / Parallel / Bridge) and adapt the
connections of the inputs and outputs accordingly.
Pin 1 = Ground
Pin 2 = Hot
Pin 3 = Cold
2 - Outputs
SPEAKON outputs :
Channel1 : Pin 1+ : Channel 1 signal, Pin 1- : Channel 1 ground
Bridge output : Pin 1+ : Channel 1 signal, Pin 1- Channel 2 signal
Channel 2 output : Pin 1+ : Channel 2 signal, Pin 1- : Channel 2 ground
21
6
Connections
3 - Modes
2 Channels Mode (Stereo)
2 Channels Mode (Bypass)
Parallel Mono Mode (Parallel)
22
6
Connections
Bridge Mono Mode (Bridge)
4 - Factory settings
Caution ! Bridge mode impedance must not drop below 8 Ohms.
CLIMAX 3200 DSP is configured with the following factory rear panel settings:
15 INPUT GROUND LIFT
16 GAIN: -26 dB
17 CLIP LIMITER: OFF
18 HPF-1 et HPF-2: OFF
151617 18 18
23
7
Warranty
9
Technical Specifications
This device is warranted parts and labor against any manufacturing defects for a period of two years from the
date of purchase by the first user.
Conditions
1. The unit has been installed and implemented by observing the safety instructions in this operating manual.
2. The device was not diverted from its destination, either voluntary or accidental, and suffered no
deterioration or modification other than those described here or explicitly authorized by AUDIOPOLE.
3. All modifications or repairs have been carried out by an authorized service station.
4. The defective product must be returned with the dealer who made the sale or to an authorized service
station with proof of purchase.
5. The device was properly packaged to avoid damage in transport.
4 Ohms: 1600 W
8 Ohms: 915 W
8 Ohms : 3200 W (BRIDGE mode)
Cir cuitry Class -H
THD+N < 0.01 %
S/N rati o > 111 dB
Slew r ate 40 V / µs
Dam ping factor > 400
Operating Modes STEREO / PARALLEL / BRIDGE
Input Im pedance 14 kΩ Balanced
Input Sensitivity 1.4 V, 32 dB, 26 dB
Frequen cy respon se 20 Hz ~ 20 kHz ( ± 0.2 dB)
DSP 24 bits
Contro ls
Gain -59 dB ~ +6 dB
EQ x 6 Gain: ± 20 dB, Bandwith: 0.05/oct ~ 3/oct - Lo-Shelf, Hi-Shelf: Gain: ± 20 dB, Slope: +6 dB, +12 dB
X-Over HPF & LPF Range: 20 ~ 20 kHz, Lin-Ril, Bessel, Butter W., Slope: 12, 18, 24, 48 dB
Delay 0 ~ 1000 ms
Limiter -20 dBu ~ +20 dBu, Attack: 0.3 ms ~ 100 ms , Relase: 2x , 4x , 6x , 8x , 16x , 32x
Polarity [+] , [-]
Input connectors XLR Balanced
Output co nnectors Speakon
Protections Inrush-current, temperature, output DC, pow er transistor, output over current, mains fuses
Indicato rs
LEDs for Signal, Clip, Output current and faults. LED-meter for Input signal, Limiter and Cilp.
LEDs for Mute & Edit
Cooli ng Front to back v ia 3 v ariable-speed fans
Power supply ~ 220-230 V, 50/60 Hz
Dim ension s (L x D x H) 482 x 389 x 88 mm
Net weigh t 11 kg
Power (per chan nel)
22, rue Édouard Buffard, Z.A.C. de la Charbonnière, Montévrain - 77771 Marne-la-Vallée Cedex 4 - France
Tél : + 33 (0)1 60 54 32 00 - Fax : + 33 (0) 1 60 54 31 90 - www.audiopole.fr, www.audiopole-pa.com
Loading...
