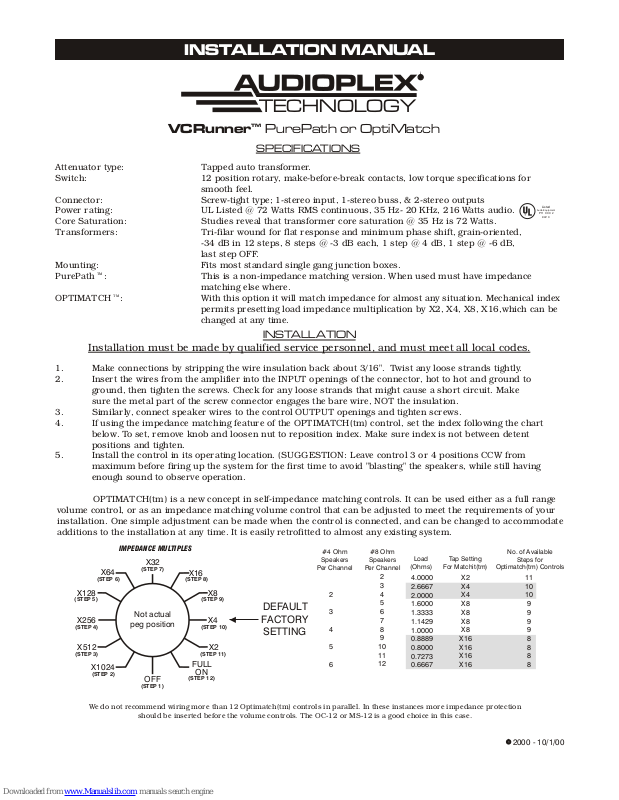

Page 1
INSTALLATION MANUAL
TECHNOLOGY
VCRunner PurePath or OptiMatch
Attenuator type: Tapped auto transformer.
Switch: 12 position rotary, make-before-break contacts, low torque specifications for
smooth feel.
Connector: Screw-tight type; 1-stereo input, 1-stereo buss, & 2-stereo outputs
Power rating: UL Listed @ 72 Watts RMS continuous, 35 Hz- 20 KHz, 216 Watts audio.
Core Saturation: Studies reveal that transformer core saturation @ 35 Hz is 72 Watts.
Transformers: Tri-filar wound for flat response and minimum phase shift, grain-oriented,
-34 dB in 12 steps, 8 steps @ -3 dB each, 1 step @ 4 dB, 1 step @ -6 dB,
last step OFF.
Mounting: Fits most standard single gang junction boxes.
PurePath : This is a non-impedance matching version. When used must have impedance
OPTIMATCH : With this option it will match impedance for almost any situation. Mechanical index
TM
TM
matching else where.
permits presetting load impedance multiplication by X2, X4, X8, X16,which can be
changed at any time.
Installation must be made by qualified service personnel, and must meet all local codes.
TM
SPECIFICATIONS
INSTALLATION
Listed
Audio Equipment
P11 CCC 2
94V 0
1. Make connections by stripping the wire insulation back about 3/16". Twist any loose strands tightly.
2. Insert the wires from the amplifier into the INPUT openings of the connector, hot to hot and ground to
ground, then tighten the screws. Check for any loose strands that might cause a short circuit. Make
sure the metal part of the screw connector engages the bare wire, NOT the insulation.
3. Similarly, connect speaker wires to the control OUTPUT openings and tighten screws.
4. If using the impedance matching feature of the OPTIMATCH(tm) control, set the index following the chart
below. To set, remove knob and loosen nut to reposition index. Make sure index is not between detent
positions and tighten.
5. Install the control in its operating location. (SUGGESTION: Leave control 3 or 4 positions CCW from
maximum before firing up the system for the first time to avoid "blasting" the speakers, while still having
enough sound to observe operation.
OPTIMATCH(tm) is a new concept in self-impedance matching controls. It can be used either as a full range
volume control, or as an impedance matching volume control that can be adjusted to meet the requirements of your
installation. One simple adjustment can be made when the control is connected, and can be changed to accommodate
additions to the installation at any time. It is easily retrofitted to almost any existing system.
X128
(STEP 5)
X256
(STEP 4)
X512
(STEP 3)
IMPEDANCE MULTIPLES
X64
(STEP 6)
X1024
(STEP 2)
X32
(STEP 7)
Not actual
peg position
OFF
(STEP 1)
X16
(STEP 8)
FULL
ON
(STEP 12)
X8
(STEP 9)
X4
(STEP 10)
X2
(STEP 11)
DEFAULT
FACTORY
SETTING
#4 Ohm
Speakers
Per Channel
2
3
4
5
6
#8 Ohm
Speakers
Per Channel
2
3
4
5
6
7
8
9
10
11
12
Load
(Ohms)
4.0000
2.6667
2.0000
1.6000
1.3333
1.1429
1.0000
0.8889
0.8000
0.7273
0.6667
Tap Setting
For Matchit(tm)
X2
X4
X4
X8
X8
X8
X8
X16
X16
X16
X16
No. of Available
Steps for
Optimatch(tm) Controls
11
10
10
9
9
9
9
8
8
8
8
We do not recommend wiring more than 12 Optimatch(tm) controls in parallel. In these instances more impedance protection
should be inserted before the volume controls. The OC-12 or MS-12 is a good choice in this case.
2000 - 10/1/00
Page 2
RECEIVER /AMPLIFIER
WIRING DIAGRAM
OUTPUT
TO SPEAKER
PAIR ONE
OUTPUT
TO SPEAKER
PAIR TWO
OUTPUT
TO SPEAKER
PAIR ONE
OUTPUT INPUT
L+ R+L- R- L+ R+L- R-
L+
OUTPUT
L-
R-
R+
R+
R-
INPUT
L-
L+
BUSS
TO NEXT VOLUME
CONTROL
OUTPUT
TO SPEAKER
PAIR TWO
OUTPUT INPUT
L+ R+L- R- L+ R+L- R-
L+
OUTPUT
L-
R-
R+
VCRunner VCRunner
Not more than 2 pair of 8 Ohm speakers on the VCRunner .
R+
R-
INPUT
L-
L+
BUSS
TO NEXT VOLUME
CONTROL
TM
OUTPUT
TO SPEAKER
PAIR ONE
OUTPUT INPUT
L+ R+L- R- L+ R+L- R-
Standard Volume Control
WARRANTY
Your AUDIOPLEX TECHNOLOGY Stereo Speaker Volume Control is covered by a Lifetime warranty against
any defects in workmanship and materials. Any defects will be remedied without charge for labor or parts.
Damage incurred by shipping or accident is not considered to be a defect, and not covered by this warranty.
AUDIOPLEX TECHNOLOGY is not responsible for defective operation caused by abuse or by modification or service
by any unauthorized person or agency.
The product must be properly installed and operated according to instructions for the warranty to apply. Any
necessary servicing must be done by AUDIOPLEX TECHNOLOGY. The product must be returned expenses prepaid,
with written authorization from the company. The product must be shipped with the proof of purchase and in the
original carton and packing material to avoid damage. This warranty gives you specific legal rights. You may have
other rights which vary from state to state.
2000 - 10/1/00
