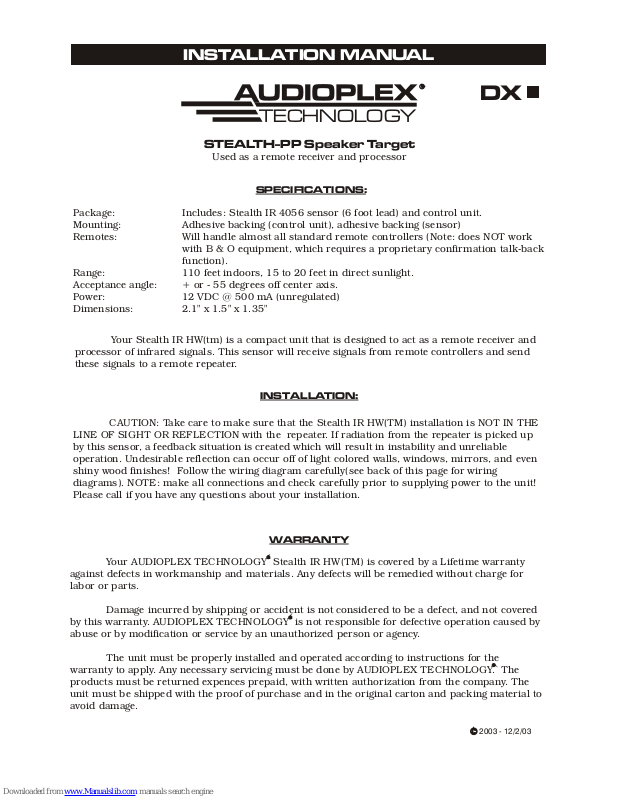

Page 1
INSTALLATION MANUAL
DX
TECHNOLOGY
STEALTH-PP Speaker Target
Used as a remote receiver and processor
SPECIFICATIONS:
Package: Includes: Stealth IR 4056 sensor (6 foot lead) and control unit.
Mounting: Adhesive backing (control unit), adhesive backing (sensor)
Remotes: Will handle almost all standard remote controllers (Note: does NOT work
with B & O equipment, which requires a proprietary confirmation talk-back
function).
Range: 110 feet indoors, 15 to 20 feet in direct sunlight.
Acceptance angle: + or - 55 degrees off center axis.
Power: 12 VDC @ 500 mA (unregulated)
Dimensions: 2.1" x 1.5" x 1.35"
Your Stealth IR HW(tm) is a compact unit that is designed to act as a remote receiver and
processor of infrared signals. This sensor will receive signals from remote controllers and send
these signals to a remote repeater.
INSTALLATION:
CAUTION: Take care to make sure that the Stealth IR HW(TM) installation is NOT IN THE
LINE OF SIGHT OR REFLECTION with the repeater. If radiation from the repeater is picked up
by this sensor, a feedback situation is created which will result in instability and unreliable
operation. Undesirable reflection can occur off of light colored walls, windows, mirrors, and even
shiny wood finishes! Follow the wiring diagram carefully(see back of this page for wiring
diagrams). NOTE: make all connections and check carefully prior to supplying power to the unit!
Please call if you have any questions about your installation.
Your AUDIOPLEX TECHNOLOGY Stealth IR HW(TM) is covered by a Lifetime warranty
against defects in workmanship and materials. Any defects will be remedied without charge for
labor or parts.
Damage incurred by shipping or accident is not considered to be a defect, and not covered
by this warranty. AUDIOPLEX TECHNOLOGY is not responsible for defective operation caused by
abuse or by modification or service by an unauthorized person or agency.
The unit must be properly installed and operated according to instructions for the
warranty to apply. Any necessary servicing must be done by AUDIOPLEX TECHNOLOGY. The
products must be returned expences prepaid, with written authorization from the company. The
unit must be shipped with the proof of purchase and in the original carton and packing material to
avoid damage.
WARRANTY
2003 - 12/2/03
Page 2
WIRING DIAGRAMS
(NOTE: 12 volt power supply and IRBug/IRFlood are supplied with IRTarget packages only)
DX
FOR INSTALLATIONS USING AUDIOPLEX TECHNOLOGY INFRARED EQUIPMENT
STEALTH SENSOR EYE
Using IRTarget Direct Wired to Emitter (no connector device)
WARNING
DO NOT CUT OR EXTEND SENSOR EYE CABLE!
PLUG IN ONLY TO AUDIOPLEX STEALTH PROCESSOR
Using IRStation / IRZ-1/ Niles / Xantech Connector Blocks
STEALTH SENSOR EYE
YELLOW
BLACK
RED
COLOR BAND
X40
X56
PLASMA
CONNECTED
IR TARGETS
IN PARALLEL
RED 12V (B+)
BLACK GROUND (GD)
YELLOW SIGNAL
SIGNAL
GROUND (GD)
12V (B+)
ROOM 2ROOM 3
RED
BLUE
GREEN
TM
MAY BE
TO OTHER
TM
IRStation (Back View)
Termination Block
IR-TB
V
G
S
T
V
G
S
T
IRBug/IRFlood or
Emitter Plate
GD
S
WHITE STRIPED
In-wall version shown, chassis version also available
IRStation (Front View)
SYS-TAT(optional)
T
S
G
V
T
S
G
V
T
S
G
V
T
SIGNAL
S
GROUND
G
12 VDC
V
T
S
G
V
T
S
G
V
ROOM 4ROOM 5ROOM 6
out to emitters
12 vdc power supply
Note: Stealth eye plugs are quad (four bands)
IRBug or IRFlood Emitters are mono (one band).
12 VDC POWER SUPPLY
PLASMA PROOF
ACTUAL SIZE
TEST
12 vdc system status(optional)
1/8" test input connector
NILES is a registered trademark of Niles Audio Corporation, Inc.
XANTECH is a registered trademark of Xantech Corporation.
Rear View: note plastic wire tie down
404 GWH P.O. BOX 440 MELVIN VILLAGE, N.H. 03850 1-800-257-2077 FAX: 1-603-544-8901
be sure white cap on plug is flush with brass tube.
Front View
AUDIOPLEX TECHNOLOGY
2003 - 12/2/03
When plugging sensor into connector,
This will ensure proper connection.
