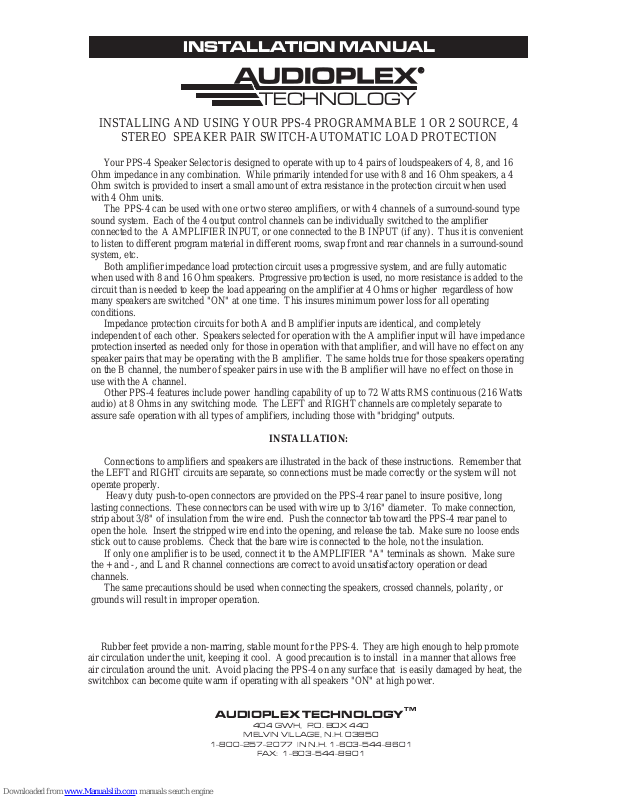

Audioplex PPS-4 Installation Manual

INSTALLATION MANUAL

TECHNOLOGY

INSTALLING AND USING YOUR PPS-4 PROGRAMMABLE 1 OR 2 SOURCE, 4

STEREO SPEAKER PAIR SWITCH-AUTOMATIC LOAD PROTECTION

Your PPS-4 Speaker Selector is designed to operate with up to 4 pairs of loudspeakers of 4, 8, and 16
Ohm impedance in any combination. While primarily intended for use with 8 and 16 Ohm speakers, a 4
Ohm switch is provided to insert a small amount of extra resistance in the protection circuit when used
with 4 Ohm units.

The PPS-4 can be used with one or two stereo amplifiers, or with 4 channels of a surround-sound type
sound system. Each of the 4 output control channels can be individually switched to the amplifier
connected to the A AMPLIFIER INPUT, or one connected to the B INPUT (if any). Thus it is convenient
to listen to different program material in different rooms, swap front and rear channels in a surround-sound
system, etc.

Both amplifier impedance load protection circuit uses a progressive system, and are fully automatic
when used with 8 and 16 Ohm speakers. Progressive protection is used, no more resistance is added to the
circuit than is needed to keep the load appearing on the amplifier at 4 Ohms or higher regardless of how
many speakers are switched "ON" at one time. This insures minimum power loss for all operating
conditions.

Impedance protection circuits for both A and B amplifier inputs are identical, and completely
independent of each other. Speakers selected for operation with the A amplifier input will have impedance
protection inserted as needed only for those in operation with that amplifier, and will have no effect on any
speaker pairs that may be operating with the B amplifier. The same holds true for those speakers operating
on the B channel, the number of speaker pairs in use with the B amplifier will have no effect on those in
use with the A channel.

Other PPS-4 features include power handling capability of up to 72 Watts RMS continuous (216 Watts
audio) at 8 Ohms in any switching mode. The LEFT and RIGHT channels are completely separate to
assure safe operation with all types of amplifiers, including those with "bridging" outputs.

INSTALLATION:

Connections to amplifiers and speakers are illustrated in the back of these instructions. Remember that
the LEFT and RIGHT circuits are separate, so connections must be made correctly or the system will not
operate properly.

Heavy duty push-to-open connectors are provided on the PPS-4 rear panel to insure positive, long
lasting connections. These connectors can be used with wire up to 3/16" diameter. To make connection,
strip about 3/8" of insulation from the wire end. Push the connector tab toward the PPS-4 rear panel to
open the hole. Insert the stripped wire end into the opening, and release the tab. Make sure no loose ends
stick out to cause problems. Check that the bare wire is connected to the hole, not the insulation.

If only one amplifier is to be used, connect it to the AMPLIFIER "A" terminals as shown. Make sure
the + and -, and L and R channel connections are correct to avoid unsatisfactory operation or dead
channels.

The same precautions should be used when connecting the speakers, crossed channels, polarity, or
grounds will result in improper operation.

Rubber feet provide a non-marring, stable mount for the PPS-4. They are high enough to help promote
air circulation under the unit, keeping it cool. A good precaution is to install in a manner that allows free
air circulation around the unit. Avoid placing the PPS-4 on any surface that is easily damaged by heat, the
switchbox can become quite warm if operating with all speakers "ON" at high power.

AUDIOPLEX TECHNOLOGY

404 GWH, P.O. BOX 440

MELVIN VILLAGE, N.H. 03850

1-800-257-2077 IN N.H. 1-603-544-8601

FAX: [phone]

TM

OPERATION:

The PPS-4 front panel buttons all operate in the same manner push to turn ON, push again to turn

,

OFF. The switch is ON when pushed in closest to the front panel.

Select the desired location by pushing the OFF-ON button for those locations in to ON. If two
amplifiers are used, choose the one wanted by operating the A-B switch for each location in for the B
amplifier, or out for A.

WARRANTY:

Your AUDIOPLEX TECHNOLOGY(tm) PPS-4 Speaker Selector Switch is covered by a LIFETIME
warranty against any defects in workmanship and materials. Any defects will be remedied without charge
for labor or parts.

Damage incurred by shipping or accident is not considered to be a defect, and not covered by this
warranty. AUDIOPLEX TECHNOLOGY(tm), is not responsible for defective operation caused by abuse
or by modification or service by any unauthorized person or agency.

The unit must be properly installed and operated according to instructions for the warranty to apply.
Any necessary servicing must be done by AUDIOPLEX TECHNOLOGY(tm). The product must be
returned expenses prepaid, with written authorization from the company. The product must be shipped
with the proof of purchase and in the original carton and packing material to avoid damage. This warranty
gives you specific legal rights. You may have other rights which vary from state to state.

PPS-4, 4/96

WIRING DIAGRAM

+R -

-L+

AMPLIFIER B

+R -

OUTPUT

L+ L- R- R+

-L+

OUTPUT

L+ L- R- R+

AMPLIFIER A

OUTPUT

L+ L- R- R+

OUTPUT

L+ L- R- R+

+R - +R -

INPUT B

L+ L- R- R+

INPUT A

L+ L- R- R+

-L+ -L+

SPKR. PAIR 1

SPKR. PAIR 2

SPKR. PAIR 3 SPKR. PAIR 4
