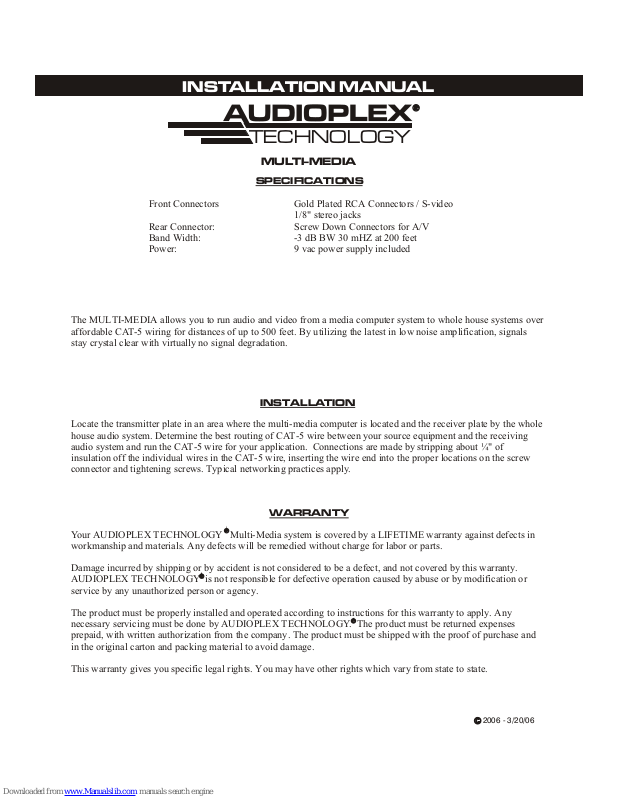

Page 1
INSTALLATION MANUAL
TECHNOLOGY
MULTI-MEDIA
SPECIFICATIONS
Front Connectors Gold Plated RCA Connectors / S-video
1/8" stereo jacks
Rear Connector: Screw Down Connectors for A/V
Band Width: -3 dB BW 30 mHZ at 200 feet
Power: 9 vac power supply included
The MULTI-MEDIA allows you to run audio and video from a media computer system to whole house systems over
affordable CAT-5 wiring for distances of up to 500 feet. By utilizing the latest in low noise amplification, signals
stay crystal clear with virtually no signal degradation.
INSTALLATION
Locate the transmitter plate in an area where the multi-media computer is located and the receiver plate by the whole
house audio system. Determine the best routing of CAT-5 wire between your source equipment and the receiving
audio system and run the CAT-5 wire for your application. Connections are made by stripping about ΒΌ" of
insulation off the individual wires in the CAT-5 wire, inserting the wire end into the proper locations on the screw
connector and tightening screws. Typical networking practices apply.
WARRANTY
Your AUDIOPLEX TECHNOLOGY Multi-Media system is covered by a LIFETIME warranty against defects in
workmanship and materials. Any defects will be remedied without charge for labor or parts.
Damage incurred by shipping or by accident is not considered to be a defect, and not covered by this warranty.
AUDIOPLEX TECHNOLOGY is not responsible for defective operation caused by abuse or by modification or
service by any unauthorized person or agency.
The product must be properly installed and operated according to instructions for this warranty to apply. Any
necessary servicing must be done by AUDIOPLEX TECHNOLOGY. The product must be returned expenses
prepaid, with written authorization from the company. The product must be shipped with the proof of purchase and
in the original carton and packing material to avoid damage.
This warranty gives you specific legal rights. You may have other rights which vary from state to state.
2006 - 3/20/06
Page 2
MULTI-MEDIA

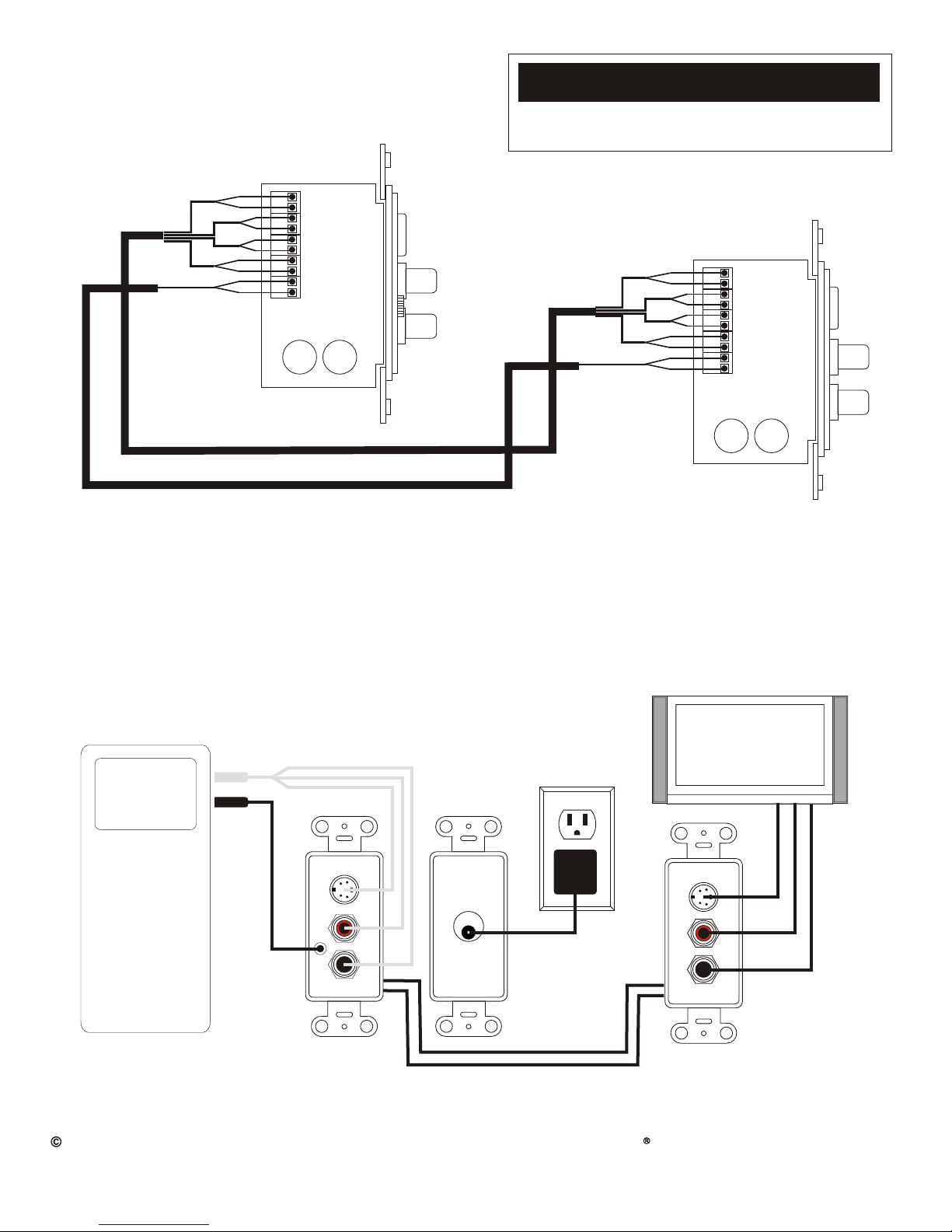

WIRING CHART
TRANSMITTER*
ORANGE
ORANGE/WHITE
GREEN
GREEN/WHITE
BLUE
BLUE/WHITE
BROWN
BROWN/WHITE
AC 1
AC 2
CAT-5 1
CAT-5 2
PATENT APPLIED FOR
*IMPORTANT
Please note that the wire locations are different
on the transmitter and video receiver plates.
RECEIVER*
ORANGE
ORANGE/WHITE
GREEN/WHITE
GREEN
BLUE
BLUE/WHITE
BROWN/WHITE
BROWN
AC 1
AC 2
COMPUTER LOCATION
1/8" to 1/8" stereo cable recommended
1/8" stereo "y" to RCA optional
MULTI-MEDIA
COMPUTER
TYPICAL MULTI-MEDIA APPLICATION
TRANSMITTER
PLATE
CAT-5 WIRE
RECEIVER PLATE
2006 - 8/4/06
404 GWH PO BOX 440 MELVIN VILLAGE NH 03850 800-257-2077 E-MAIL: [email protected]
AUDIOPLEX TECHNOLOGY
