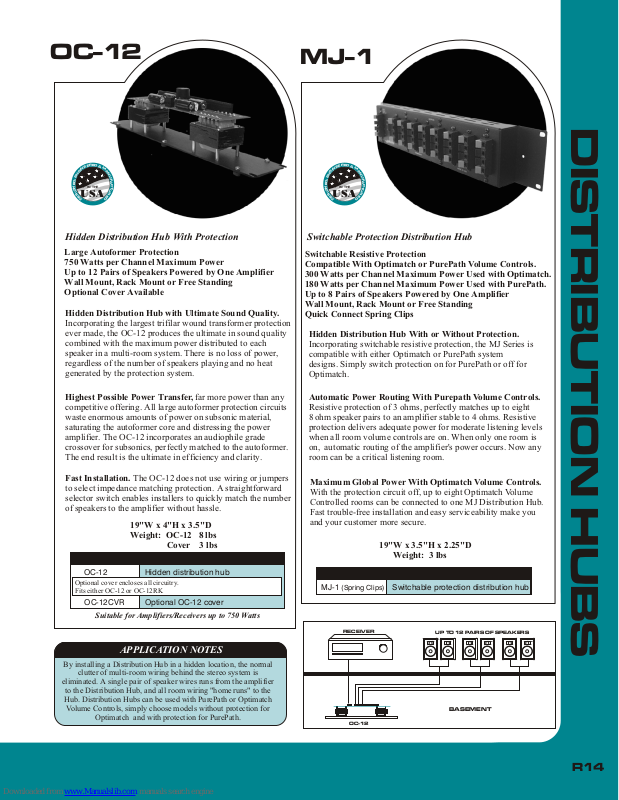

OC-12
MJ-1
DISTRIBUTION HUBS
E
D
R
&
E
E
M
N
I
A
G
N
N
E
,
D
E
N
G
I
S
U
F
A
T
IN THE
U
R
E
USA
E
D
D
C
Hidden Distribution Hub With Protection
Large Autoformer Protection
750 Watts per Channel Maximum Power
Up to 12 Pairs of Speakers Powered by One Amplifier
Wall Mount, Rack Mount or Free Standing
Optional Cover Available
Hidden Distribution Hub with Ultimate Sound Quality.
Incorporating the largest trifilar wound transformer protection
ever made, the OC-12 produces the ultimate in sound quality
combined with the maximum power distributed to each
speaker in a multi-room system. There is no loss of power,
regardless of the number of speakers playing and no heat
generated by the protection system.
Highest Possible Power Transfer, far more power than any
competitive offering. All large autoformer protection circuits
waste enormous amounts of power on subsonic material,
saturating the autoformer core and distressing the power
amplifier. The OC-12 incorporates an audiophile grade
crossover for subsonics, perfectly matched to the autoformer.
The end result is the ultimate in efficiency and clarity.
E
D
R
&
E
E
M
N
I
A
G
N
N
E
,
D
E
N
G
I
IN THE
S
E
USA
E
D
D
U
F
A
C
T
U
R
Switchable Protection Distribution Hub
Switchable Resistive Protection
Compatible With Optimatch or PurePath Volume Controls.
300 Watts per Channel Maximum Power Used with Optimatch.
180 Watts per Channel Maximum Power Used with PurePath.
Up to 8 Pairs of Speakers Powered by One Amplifier
Wall Mount, Rack Mount or Free Standing
Quick Connect Spring Clips
Hidden Distribution Hub With or Without Protection.
Incorporating switchable resistive protection, the MJ Series is
compatible with either Optimatch or PurePath system
designs. Simply switch protection on for PurePath or off for
Optimatch.
Automatic Power Routing With Purepath Volume Controls.
Resistive protection of 3 ohms, perfectly matches up to eight
8 ohm speaker pairs to an amplifier stable to 4 ohms. Resistive
protection delivers adequate power for moderate listening levels
when all room volume controls are on. When only one room is
on, automatic routing of the amplifier's power occurs. Now any
room can be a critical listening room.
Fast Installation. The OC-12 does not use wiring or jumpers
to select impedance matching protection. A straightforward
selector switch enables installers to quickly match the number
of speakers to the amplifier without hassle.
19"W x 4"H x 3.5"D
Weight: OC-12 8 lbs
Cover 3 lbs
OC-12 Hidden distribution hub
Optional cover encloses all circuitry.
Fits either OC-12 or OC-12RK
OC-12CVR
Optional OC-12 cover
Suitable for Amplifiers/Receivers up to 750 Watts
APPLICATION NOTES
By installing a Distribution Hub in a hidden location, the normal
clutter of multi-room wiring behind the stereo system is
eliminated. A single pair of speaker wires runs from the amplifier
to the Distribution Hub, and all room wiring "home runs" to the
Hub. Distribution Hubs can be used with PurePath or Optimatch
Volume Controls, simply choose models without protection for
Optimatch and with protection for PurePath.
Maximum Global Power With Optimatch Volume Controls.
With the protection circuit off, up to eight Optimatch Volume
Controlled rooms can be connected to one MJ Distribution Hub.
Fast trouble-free installation and easy serviceability make you
and your customer more secure.
19"W x 3.5"H x 2.25"D
Weight: 3 lbs
MJ-1 (Spring Clips) Switchable protection distribution hub
RECEIVER
OC-12
UP TO 12 PAIRS OF SPEAKERS
BASEMENT
R14
