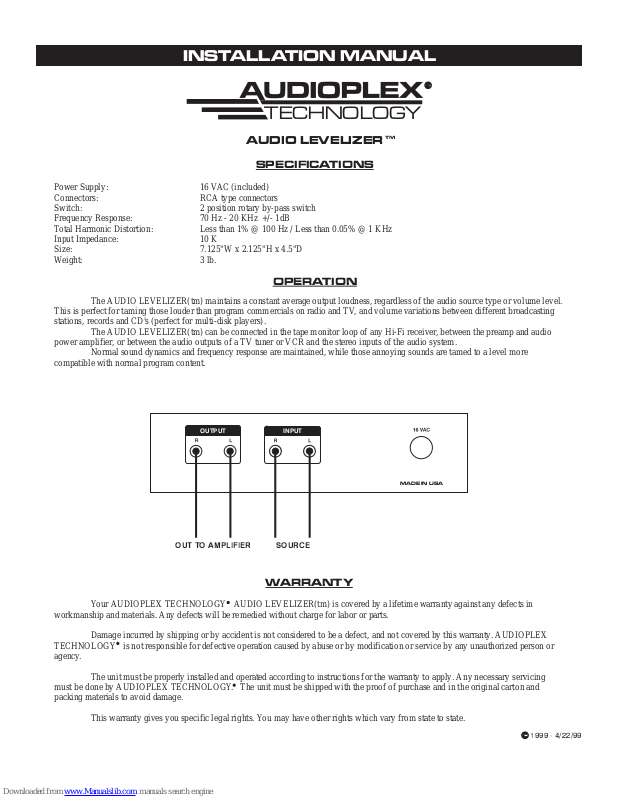

INSTALLATION MANUAL
TECHNOLOGY
AUDIO LEVELIZER
TM
SPECIFICATIONS
Power Supply: 16 VAC (included)
Connectors: RCA type connectors
Switch: 2 position rotary by-pass switch
Frequency Response: 70 Hz - 20 KHz +/- 1dB
Total Harmonic Distortion: Less than 1% @ 100 Hz / Less than 0.05% @ 1 KHz
Input Impedance: 10 K
Size: 7.125"W x 2.125"H x 4.5"D
Weight: 3 lb.
OPERATION
The AUDIO LEVELIZER(tm) maintains a constant average output loudness, regardless of the audio source type or volume level.
This is perfect for taming those louder than program commercials on radio and TV, and volume variations between different broadcasting
stations, records and CD's (perfect for multi-disk players).
The AUDIO LEVELIZER(tm) can be connected in the tape monitor loop of any Hi-Fi receiver, between the preamp and audio
power amplifier, or between the audio outputs of a TV tuner or VCR and the stereo inputs of the audio system.
Normal sound dynamics and frequency response are maintained, while those annoying sounds are tamed to a level more
compatible with normal program content.
OUTPUT
INPUT
MADE IN USA
SOURCEOUT TO AMPLIFIER
WARRANTY
Your AUDIOPLEX TECHNOLOGY AUDIO LEVELIZER(tm) is covered by a lifetime warranty against any defects in
workmanship and materials. Any defects will be remedied without charge for labor or parts.
Damage incurred by shipping or by accident is not considered to be a defect, and not covered by this warranty. AUDIOPLEX
TECHNOLOGY is not responsible for defective operation caused by abuse or by modification or service by any unauthorized person or
agency.
The unit must be properly installed and operated according to instructions for the warranty to apply. Any necessary servicing
must be done by AUDIOPLEX TECHNOLOGY. The unit must be shipped with the proof of purchase and in the original carton and
packing materials to avoid damage.
This warranty gives you specific legal rights. You may have other rights which vary from state to state.
1999 - 4/22/99
