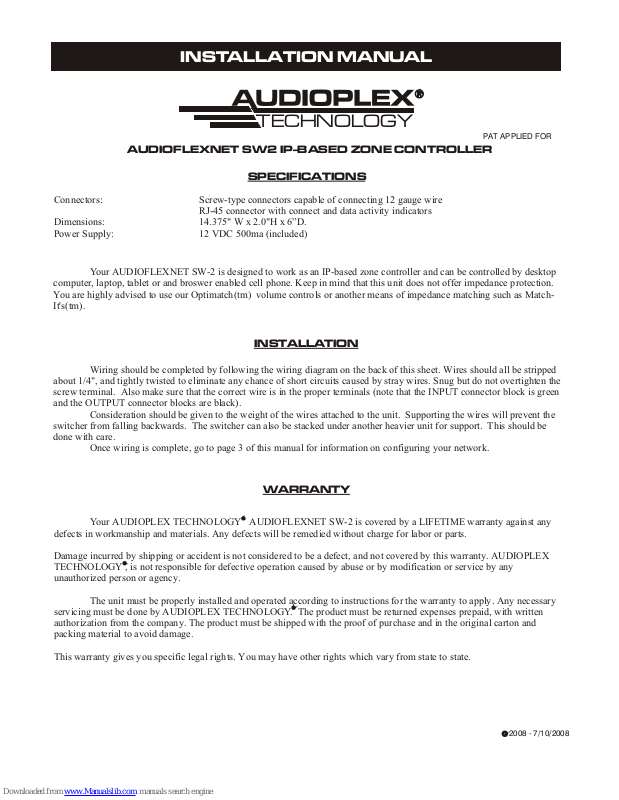

Page 1
INSTALLATION MANUAL
TECHNOLOGY
PAT APPLIED FOR
AUDIOFLEXNET SW2 IP-BASED ZONE CONTROLLER
SPECIFICATIONS
Connectors: Screw-type connectors capable of connecting 12 gauge wire
RJ-45 connector with connect and data activity indicators
Dimensions: 14.375" W x 2.0"H x 6”D.
Power Supply: 12 VDC 500ma (included)
Your AUDIOFLEXNET SW-2 is designed to work as an IP-based zone controller and can be controlled by desktop
computer, laptop, tablet or and broswer enabled cell phone. Keep in mind that this unit does not offer impedance protection.
You are highly advised to use our Optimatch(tm) volume controls or another means of impedance matching such as MatchIt's(tm).
INSTALLATION
Wiring should be completed by following the wiring diagram on the back of this sheet. Wires should all be stripped
about 1/4", and tightly twisted to eliminate any chance of short circuits caused by stray wires. Snug but do not overtighten the
screw terminal. Also make sure that the correct wire is in the proper terminals (note that the INPUT connector block is green
and the OUTPUT connector blocks are black).
Consideration should be given to the weight of the wires attached to the unit. Supporting the wires will prevent the
switcher from falling backwards. The switcher can also be stacked under another heavier unit for support. This should be
done with care.
Once wiring is complete, go to page 3 of this manual for information on configuring your network.
WARRANTY
Your AUDIOPLEX TECHNOLOGY AUDIOFLEXNET SW-2 is covered by a LIFETIME warranty against any
defects in workmanship and materials. Any defects will be remedied without charge for labor or parts.
Damage incurred by shipping or accident is not considered to be a defect, and not covered by this warranty. AUDIOPLEX
TECHNOLOGY , is not responsible for defective operation caused by abuse or by modification or service by any
unauthorized person or agency.
The unit must be properly installed and operated according to instructions for the warranty to apply. Any necessary
servicing must be done by AUDIOPLEX TECHNOLOGY. The product must be returned expenses prepaid, with written
authorization from the company. The product must be shipped with the proof of purchase and in the original carton and
packing material to avoid damage.
This warranty gives you specific legal rights. You may have other rights which vary from state to state.
2008 - 7/10/2008
Page 2
STEREO RECEIVER
12VDC
ETHERNET
OUT TO
NETWORK
L+ L- R- R+
INPUT
Note: INPUT connector block is green
OUTPUT connector blocks are black
OUTPUT OUTPUT
L+ L- R- R+ L+ L- R- R+
OUTPUT
L+ L- R- R+
DVD DOLBY DIGITAL
L+ L- R- R+
OUTPUT
L+ L- R- R+
OUTPUT
L+ L- R- R+
OUTPUT
L+ L- R- R+
WIRING
DIAGRAM
OUTPUT
L+ L- R- R+
OUTPUT
L+ L- R- R+
OPTIONAL
IMPEDANCE
MATCHING
VOLUME
CONTROLS
OPTIONAL
IMPEDANCE
MATCHING
VOLUME
CONTROLS
2008 - 7/10/2008 PATENT APPLIED FOR
Page 3
CONFIGURATION
Warning: Each AudioFlex device should be installed on the network one at a time. Install the first device and note it’s
physical location in the building. Assign it a name by using the configuration web page on the AudioFlex device
(config.htm). Install the next device and move on configuring the rest.
Each device is shipped with a label that contains the following information:
MAC address
Initial IP address
Unit ID label (editable by user) Via a configuration page. I.e. AudFlx1
As by default DHCP (explained below) is enabled, the easiest way to find the IP address assigned by a DHCP serving unit is
to access it’s configuration page. Many routers, cable modems and wireless WiFi routers have built-in DHCP capability. See
the manufacturers instructions on how to access a list of attached devices for these products.
Example IP Address screen.
Attached Devices
#
1
2
3
4
5
6
7
8
IP Address
192.168.0.2
192.168.0.5
192.168.0.6
192.168.0.7
192.168.0.8
192.168.0.9
192.168.0.15
192.168.0.17
Device Name
Server1
desktop
desktop2
desktop3
laptop1
laptop2
cell
mediaserver
MAC Address
00:09:6a:b4:19:3b
00:19:23:c3:7d:3e
00:o5:3b:2a:c4:f3
00:06:3b:0a:c3:f9
00:12:d5:d3:1f:4b
00:e7:18.44.70.26
00:1b:b6:g3:4a:f2
00:04:b4:7d:e3:c4
DHCP: DHCP is a networking protocol that allows for a unique IP address to be assigned dynamically to each device on a
particular network. In order for DHCP to work, there must be a DHCP server enabled on the network. The default setting is
DHCP enabled.
IP Address: All devices on a network must have a unique IP address. The default IP address for the AudioFlex device is
192.168.1.101. IP addresses in the range 192.168.0.0 through 192.168.255.255 are reserved for private networks and
therefore, will likely be used for the Audioflex device.
Netmask: The netmask is used when translating an IP address from a local network to a different network over the internet.
The default value is 255.255.255.0. If the device is only being accessedfrom the local network, then the default value
generally does not need to be changed.
2008 - 7/10/08
