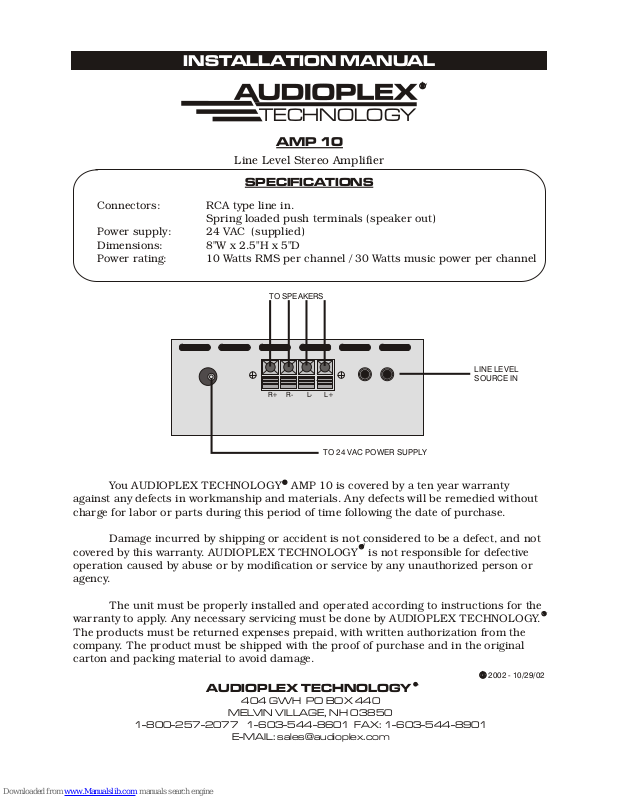

Page 1
INSTALLATION MANUAL
TECHNOLOGY
AMP 10
Line Level Stereo Amplifier
SPECIFICATIONS
Connectors: RCA type line in.
Spring loaded push terminals (speaker out)
Power supply: 24 VAC (supplied)
Dimensions: 8"W x 2.5"H x 5"D
Power rating: 10 Watts RMS per channel / 30 Watts music power per channel
TO SPEAKERS
LINE LEVEL
SOURCE IN
R+ R- L- L+
TO 24 VAC POWER SUPPLY
You AUDIOPLEX TECHNOLOGY AMP 10 is covered by a ten year warranty
against any defects in workmanship and materials. Any defects will be remedied without
charge for labor or parts during this period of time following the date of purchase.
Damage incurred by shipping or accident is not considered to be a defect, and not
covered by this warranty. AUDIOPLEX TECHNOLOGY is not responsible for defective
operation caused by abuse or by modification or service by any unauthorized person or
agency.
The unit must be properly installed and operated according to instructions for the
warranty to apply. Any necessary servicing must be done by AUDIOPLEX TECHNOLOGY.
The products must be returned expenses prepaid, with written authorization from the
company. The product must be shipped with the proof of purchase and in the original
carton and packing material to avoid damage.
2002 - 10/29/02
AUDIOPLEX TECHNOLOGY
404 GWH PO BOX 440
MELVIN VILLAGE, NH 03850
1-800-257-2077 1-603-544-8601 FAX: 1-603-544-8901
E-MAIL: [email protected]
