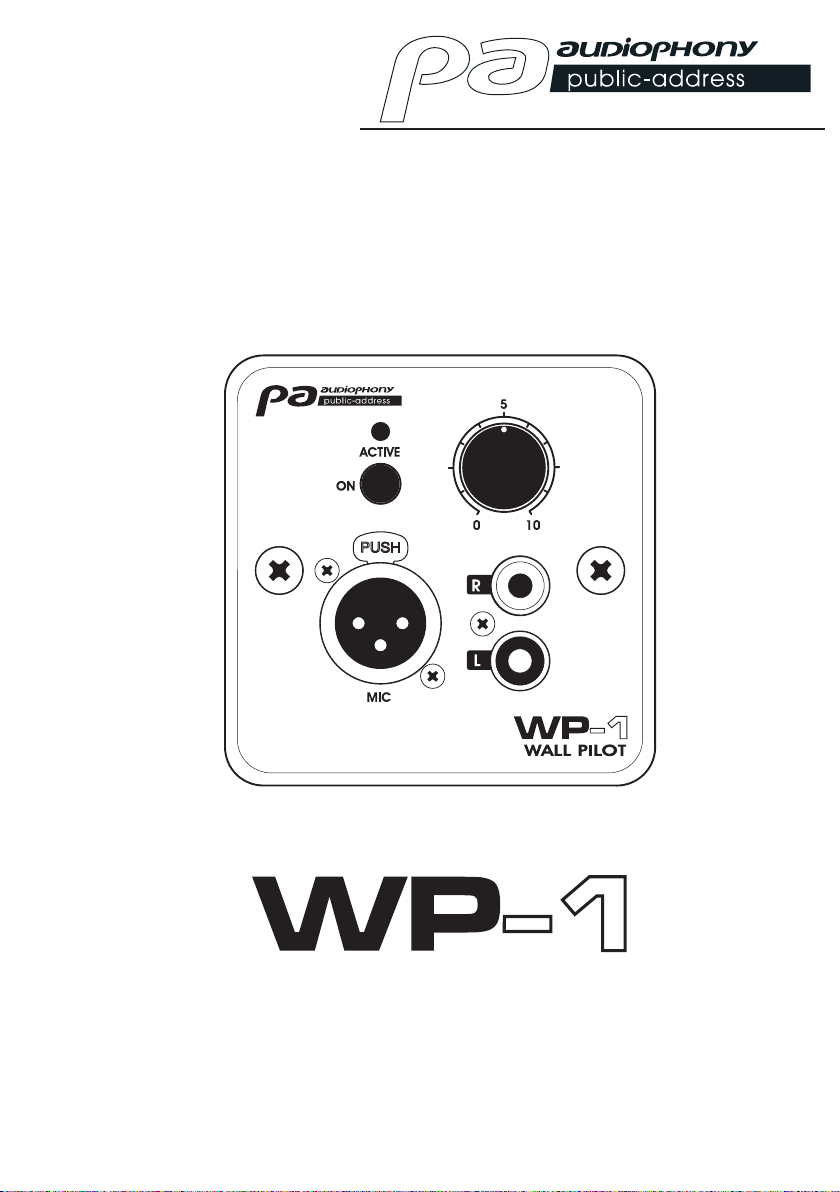

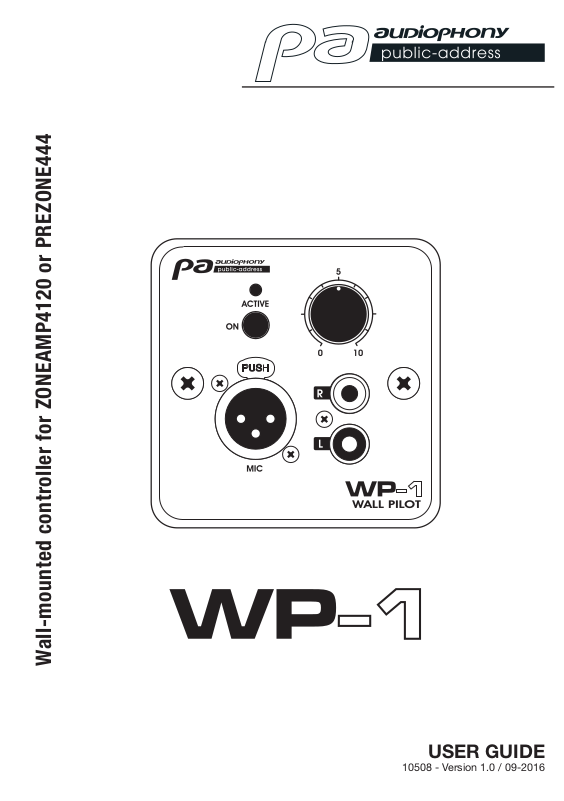

Page 1
Wall-mounted controller for ZONEAMP4120 or PREZONE444
USER GUIDE
10508 - Version 1.0 / 09-2016
Page 2
1 - Safety information
Important safety information
This unit is intended for indoor use only. Do not use it in a wet,
or extremely cold/hot locations. Failure to follow these safety instructions could result in fire, electric shock, injury, or damage to
this product or other property.
Any maintenance procedure must be performed by a CONTEST
authorised technical service. Basic cleaning operations must thoroughly follow our safety instructions.
This product contains non-isolated electrical components. Do not
undertake any maintenance operation when it is switched on as it
may result in electric shock.

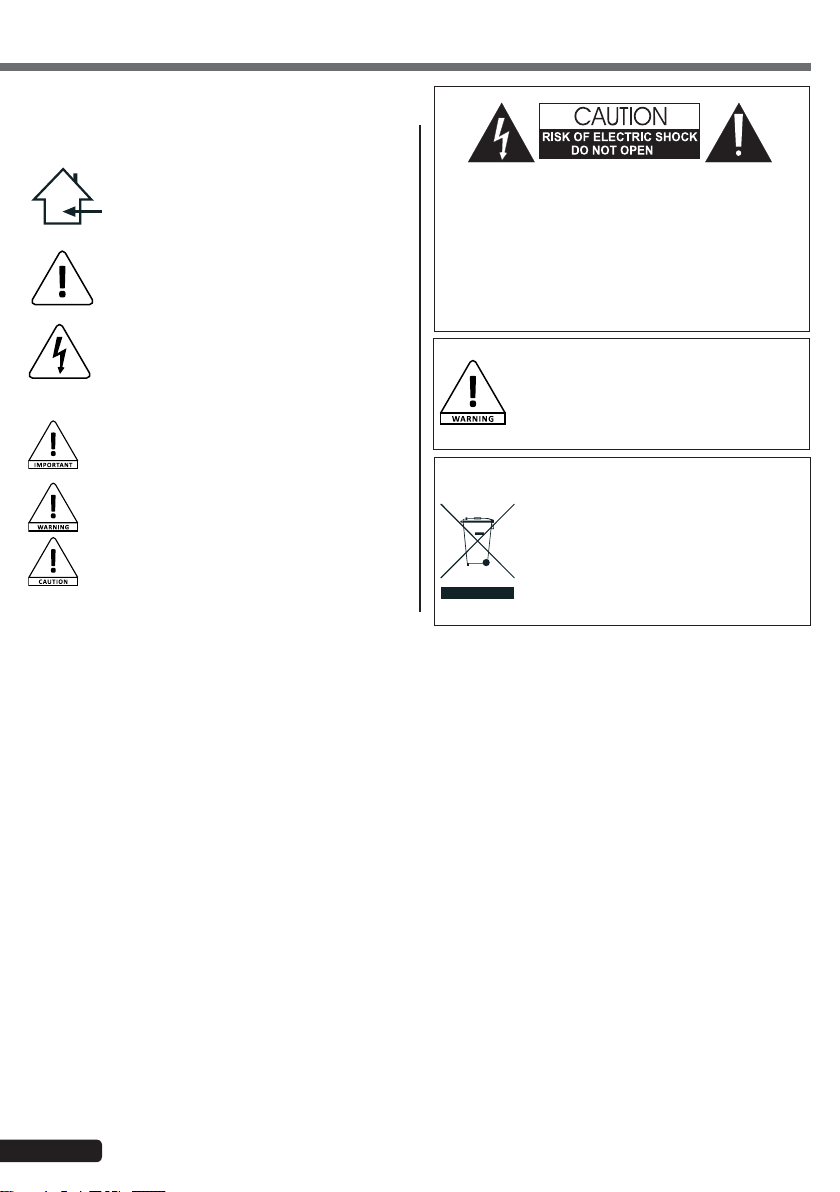

Symbols used
This symbol signals an important safety precaution.
WP-1
- Wall-mounted controller for ZONEAMP4120 or PREZONE444
WARNING : This unit contains no user-serviceable parts. Do not
open the housing or attempt any maintenance by yourself. In the
unlikely even your unit may require service, please contact your
nearest dealer.
In order to avoid any electrical malfunction, please do not use any
multi-socket, power cord extension or connecting system without
making sure they are perfectly isolated and present no defect.
Niveaux sonores
Les systèmes de sonorisation sont capables de délivrer un
niveau sonore (SPL) nuisible à la santé humaine. Les niveaux
de pression sonore apparemment non critiques peuvent
endommager l’audition si la personne y est exposée sur une
longue période.
Ne pas stationner à proximité immédiate des enceintes
acoustiques en fonctionnement.
The WARNING symbol signals a risk to the user’s physical integrity.
The product may also be damaged.
The CAUTION symbol signals a risk of product deterioration.
Instructions and recommendations
1 - Please read carefully :
We strongly recommend to read carefully and understand the safety instructions before
attempting to operate this unit.
2 - Please keep this manual :
We strongly recommend to keep this manual with the unit for future reference.
3 - Operate carefully this product :
We strongly recommend to take into consideration every safety instruction.
4 - Follow the instructions:
Please carefully follow each safety instruction to avoid any physical harm or property
damage.
5 - Avoid water and wet locations :
Do not use this product in rain, or near washbasins or other wet locations.
6 - Installation :
We strongly encourage you to only use a fixation system or support recommended
by the manufacturer or supplied with this product. Carefully follow the installation
instructions and use the adequate tools.
Always ensure this unit is firmly fixed to avoid vibration and slipping while operating
as it may result in physical injury.
7 - Ceiling or wall installation :
Please contact your local dealer before attempting any ceiling or wall installation.
8 - Ventilation :
The cooling vents ensure a safe use of this product, and avoid any overheating risk.
Do not obstruct or cover these vents as it may result in overheating and potential
physical injury or product damage. This product should never been operated in a
closed non-ventilated area such as a flight case or a rack, unless cooling vents are
provided for the purpose .
Page 2
Recycling your device
9 - Heat exposure :
Sustained contact or proximity with warm surfaces may cause overheating and product
damages. Please keep this product away from any heat source such as a heaters,
amplifiers, hot plates, etc...
10 - Electric power supply :
This product can only be operated according to a very specific voltage. These
information are specified on the label located at the rear of the product.
11 - Power cords protection:
Power-supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to cords at
lugs, convenience receptacles and the point where they exit from the fixture.
12 - Cleaning precautions :
Unplug the product before attempting any cleaning operation. This product should be
cleaned only with accessories recommended by the manufacturer. Use a damp cloth
to clean the surface. Do not wash this product.
13 - Long periods of non use :
Disconnect the unit’s main power during long periods of non use.
14 - Liquids or objects penetration :
Do not let any object penetrate this product as it may result in electric shock or fire.
Never spill any liquid on this product as it may infiltrate the electronic components
and result in electric shock or fire.
15 - This product should be serviced when :
Please contact the qualified service personnel if :
- The power cord or the plug has been damaged.
- Objects have fallen or liquid has been spilled into the appliance.
- The appliance has been exposed to rain or water.
- The product does not appear to operate normally.
- The product has been damaged.
16 - Inspection/maintenance :
Please do not attempt any inspection or maintenance by yourself. Refer all servicing
to qualified personnel.
17 - Operating environment :
Ambient temperature and humidity: +5 - +35°C, relative humidity must be less than
85% (when cooling vents are not obstructed).
Do not operate this product in a non-ventilated, very humid or warm place.
• As HITMUSIC is really involved in the environmental cause,
we only commercialise clean, ROHS compliant products.
• When this product reaches its end of life, take it to a
collection point designated by local authorities. The separate
collection and recycling of your product at the time of disposal
will help conserve natural resources and ensure that it is
recycled in a manner that protects human health and the
environment.
Page 3
WP-1
p
- Wall-mounted controller for ZONEAMP4120 or PREZONE444
2 - Introduction
The WP-1 was clearly thought-out for professional installations, and allows you to either connect an external
player or microphone to a channel.
Volume controls are directly accessible on the controller, which is powered by the amplifier via RJ45 cables.
3 - Specifications
• 1 XLR Mic input (front)
• 1 RCA Line input (front)
• 1 RJ45 output (rear)
• Volume settings at the front
• ON/OFF Switch
• LED VU meter
• 15V, DC power supply via RJ45 cable from your ZONEAMP4120 or PREZONE444
• Operating range between WP-1 et the zone mixer: 200 metres with category 6 cable.
• Frequency response: 20 Hz - 20 kHz
• T.H.D (1 kHz nominal power): < 0.1%
• Dimensions: 80 x 80 x 50 mm
• Weight: 0.2kg

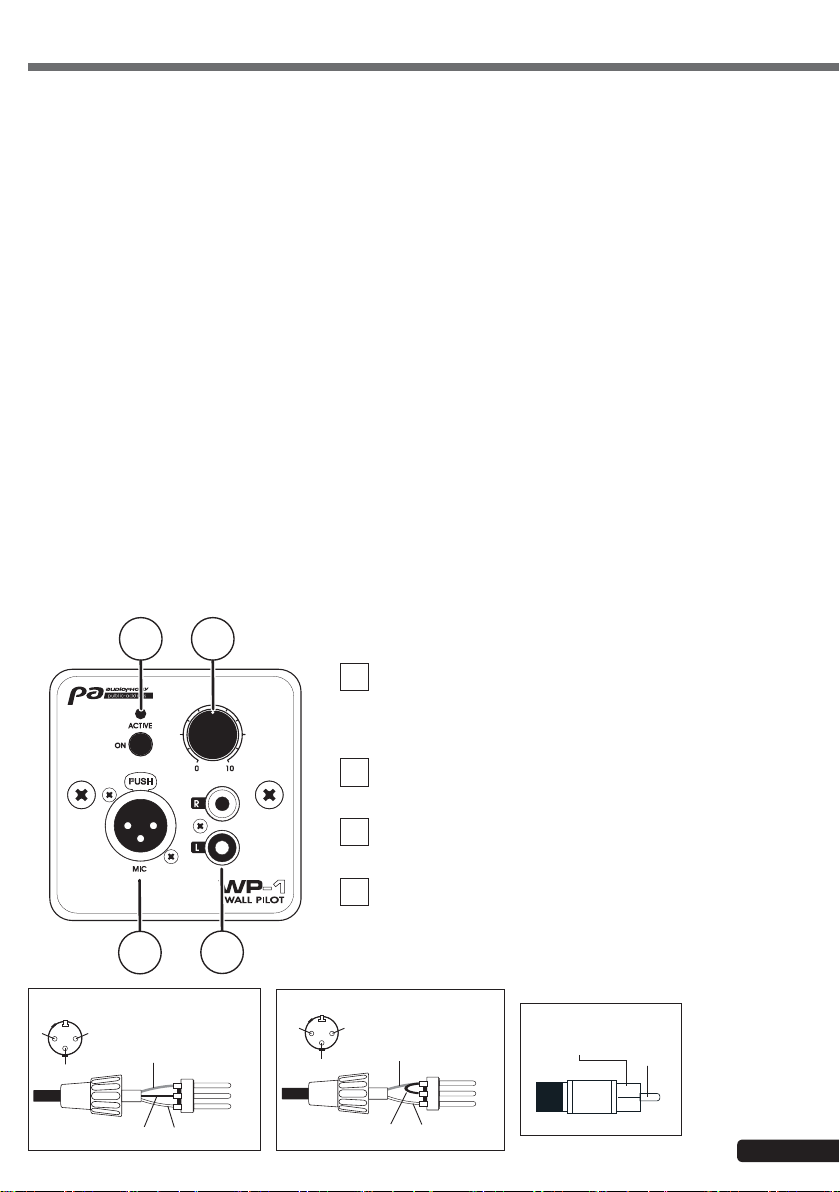

4 - Description and connectors
1
3
3 = Coldspot (-)
2
1
4
Balanced
1 = Ground
2
3
2 = Hotspot (+)
1
3
Shunt between
1 et 3
1
ACTIVE LED and ON button
ON Button allows you to activate your WP-1. Once activated, the
ACTIVE LED will light up in orange. If your WP-1 is connected to an
amplifier, this LED will light up in green.
2
Volume control knob
Allows you to adjust the output level.
3
L and R inputs
Allow you to connect a line-level device such as a cd player, etc.
4
Microphone input
Input via balanced XLR.
Allows you to connect a dynamic microphone.
Unbalanced
2
1 = Ground
ins
2 = Hotspot (+)
Unbalanced RCA
Sleeve
Ground / Shield
Center
Signal
Page 3
Page 4

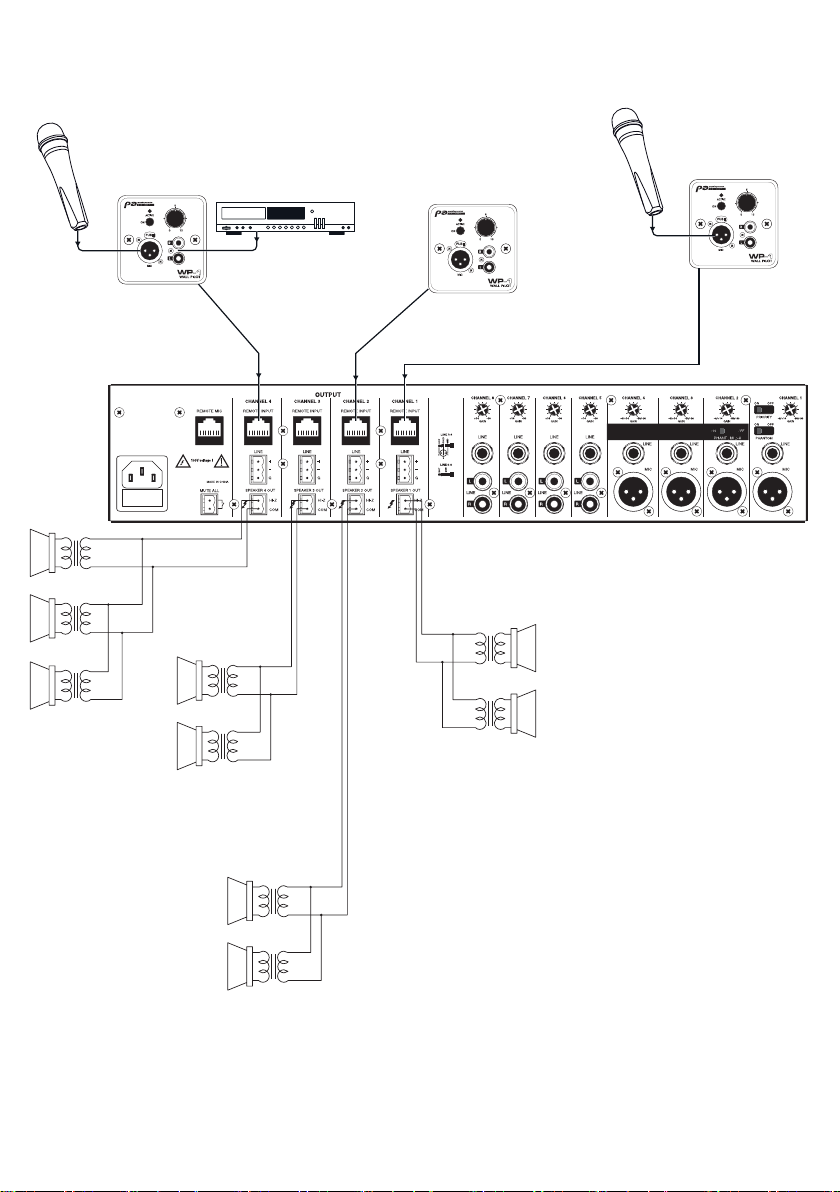

5 - Possible setup
Microphone
WP-1to power up and
control zone 4
CD player
WP-1 to control 2
Microphone
WP-1 to power
up and control
zone 1
ZONEAMP4120
100V line-level zone
4 speakers
100V line-level zone
3 speakers
100V line-level zone
2 speakers
Because AUDIOPHONY® takes the utmost care in its products to make sure you only get the best possible quality, our products are
subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ
from the illustrations.
Make sure you get the latest news and updates about the AUDIOPHONY® products on www.audiophony.com
AUDIOPHONY® is a trademark of HITMUSIC S.A. - Zone Cahors sud - 46230 FONTANES - FRANCE
100V line-level zone
1 speakers
