Page 1
V1
CVX100
R1
1K6
R2
432KR3470RC1100uf25V
R4
47K2W
R5
1K6
C2
0.47uf1000V
R6
532K
9
7
1
2
8
V2
CVX120
R8
681R
C6
100uf40V
R9
68K2W
C3
22uF450V
C7
0.47uf1000V
R10
280K
R11
500R2W
OPTX1
1001
R14
1K 25W
C8
47uf250V
R12
22R 6W
R13
22R 6W
C
D
0
8A B
RV1
50KLog
R7
15K2W
P1

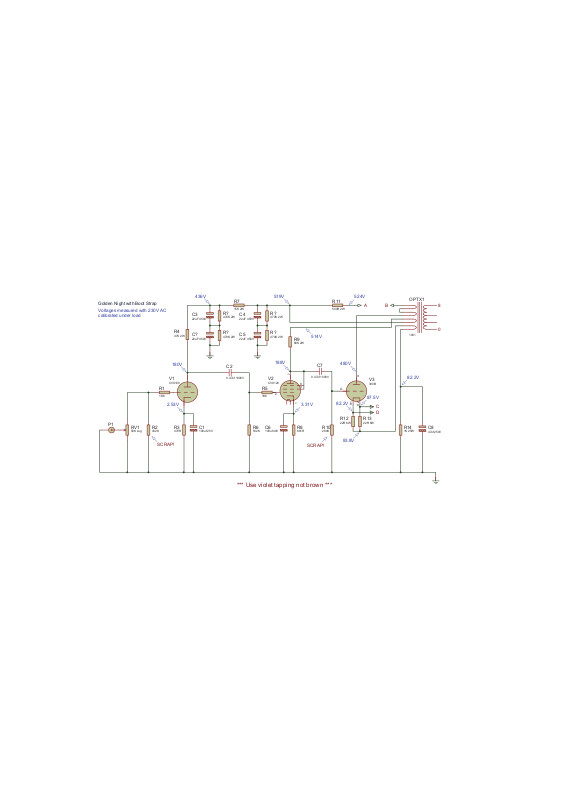

Golden Night with Boot Strap
A
G
H2
H1
V3
300B
436V
180V
2.53V
519V
188V
3.31V
524V
83.8V
87.5V
82.2V
Voltages measured with 230V AC
calibrated under load
480V
82.2V
514V
C5
22uF450V
R?
470K2W
R?
470K2W
C4
22uF450V
C?
22uF450V
R?
470K2W
R?
470K2W
SCRAP!
SCRAP!
*** Use violet tapping not brown ***
Page 2
D1
IN4007
D4
IN4007
D3
IN4007
D2
IN4007
R100
470K2W
R101
470K2W
C100
180uf350V
C101
180uf350V
R102
100R7W
R103
470K2W
R104
470K2W
C102
180uf350V
C103
180uf350V
FS1
T500mA,250V
0V
400V,0.3A
366V,0.3A
PSU Golden Night
R105
100R7W
R106
470K2W
R107
470K2W
C104
180uf350V
C105
180uf350V
R108
470R10W
C106
180uf350V
C107
180uf350V
R109
470K2W
R110
470K2W
A
B
TR1
TI-66066B
3 1
42
BR1
KBPC806
C108
4700uf16V
R111
0.56R10W
R112
0.56R10W
C110
4700uf16V
C
D
120V
0V
120V
0V
To CVX100and CVX120
heaters
6.4V3A
0V
6.4V3A
0V
6.4V1.5A
0V
543V 533V 524V 483V
88.2V
81.2V
87.5V
82.2V
C109
4700uf16V
R113
22R 2W
SW2
SPST
MainsEarth
J?
ChassisGround
R114
22R 2W
GND
