Audio enhancement CAE-20W, ULTIMATE II, ULTIMATE IISE, INNOVATOR, ACHIEVER Instruction Manual

Product Instruction

Manual

2

Table of Contents

Introduction……………………………………………….
CE Declaration……………………………………………
Safety Instructions……………………………………….
Explanation of Symbols………………………………….
Achiever Operating Controls…………………………….
Ultimate II Operating Controls…………………………..
Ultimate IISE Operating Controls……………………….
Innovator Operating Controls……………………………
Receiver RC-07 Operating Controls……………………..

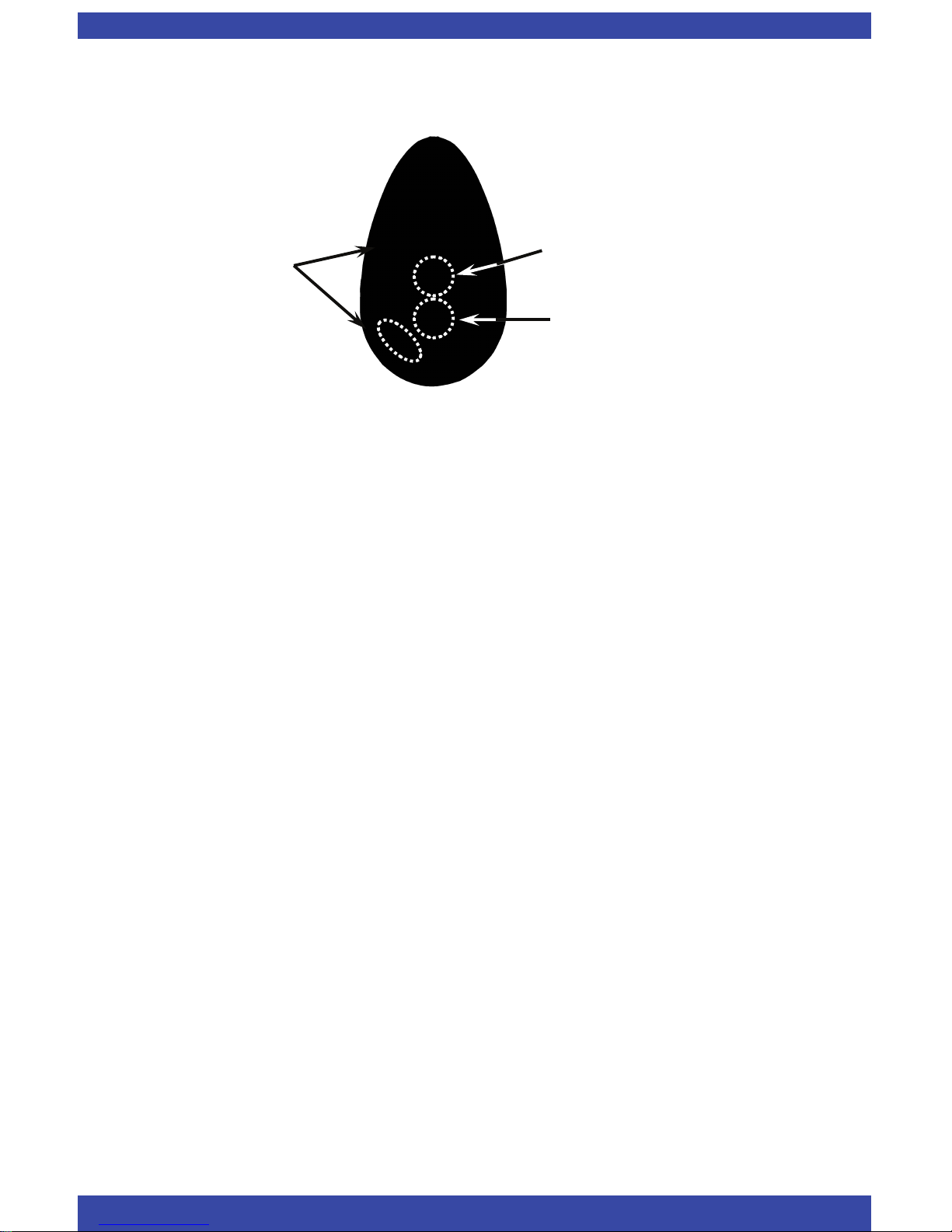

Student Microphone Operating Controls………………..
Teacher Microphone Operating Controls……………….
Charging the Battery in the microphones ……………….
SoloSolution Operating Controls………………………..

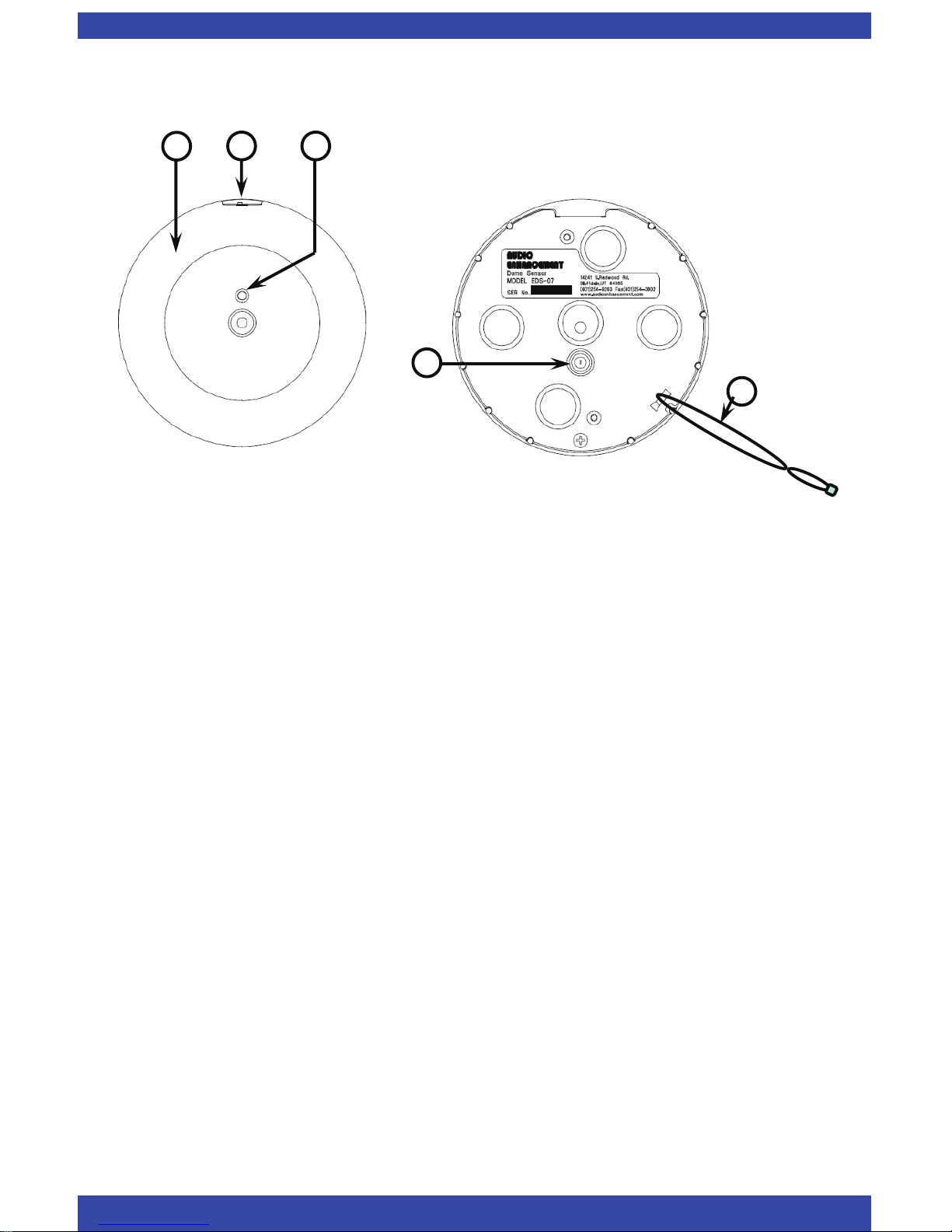

EDS-07 IR Dome Sensor Operating Controls………….

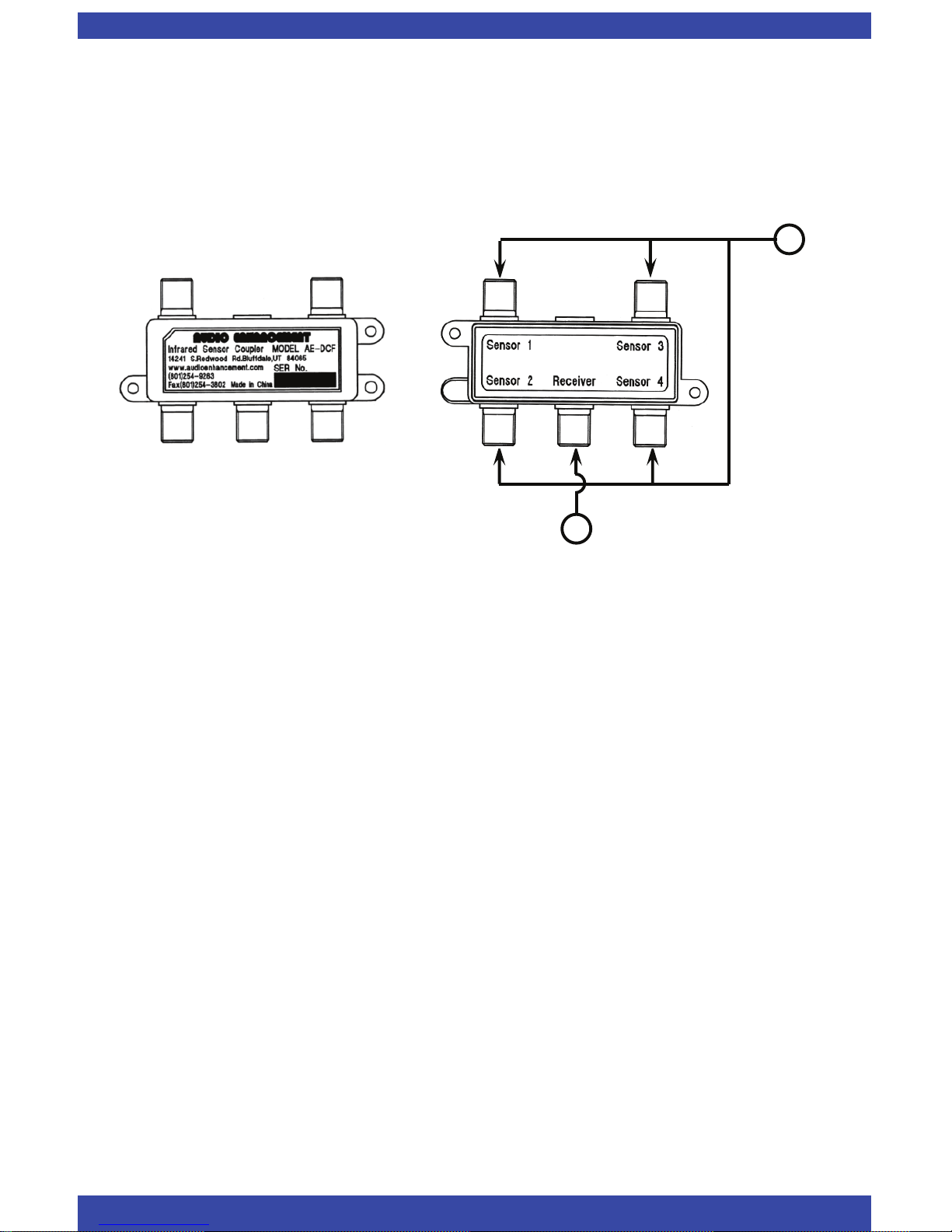

AE-DCF Dome Sensor Coupler………………………..
Operating Procedure………………..…………………...
Remote Volume Control..……………………………….

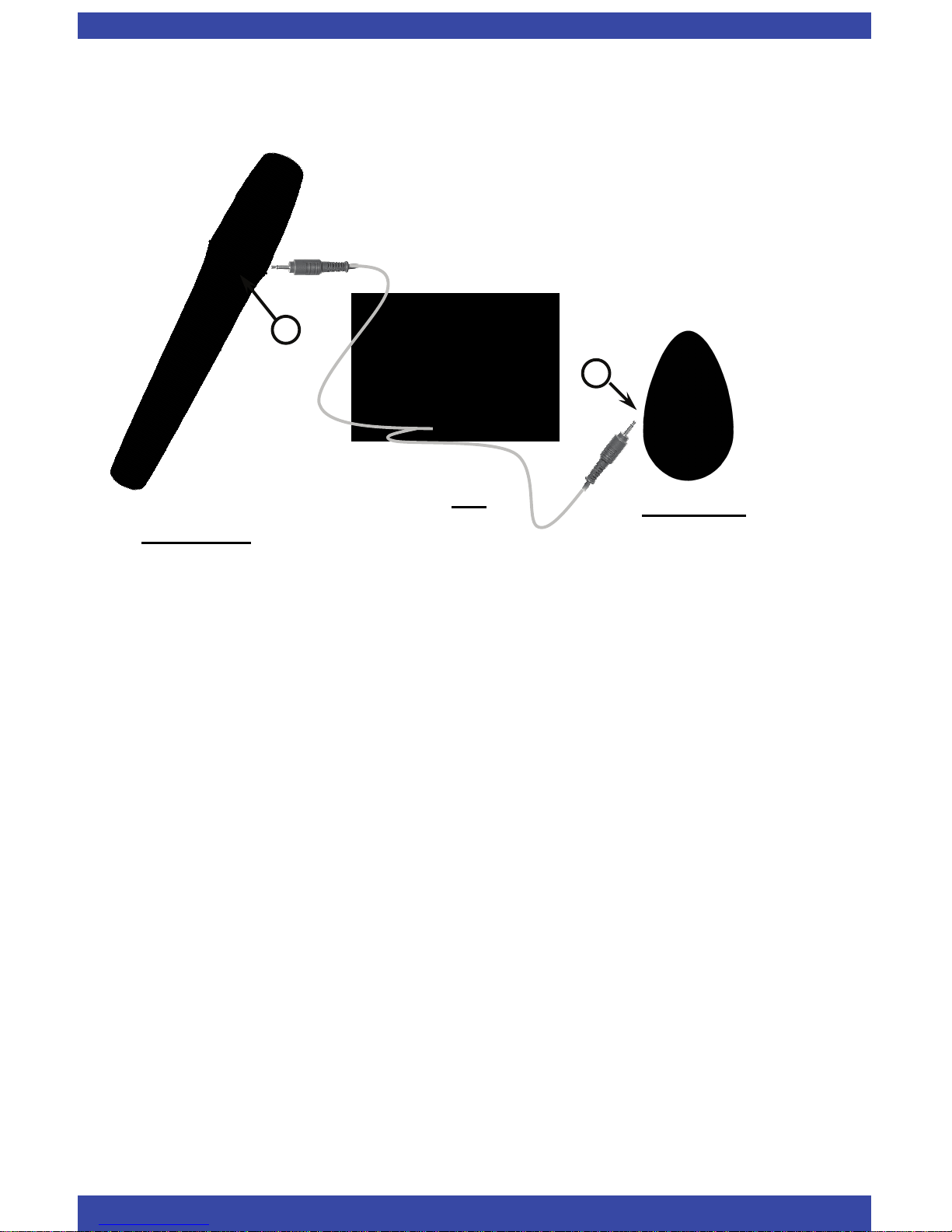

Using the microphones as a transmitter………..………..

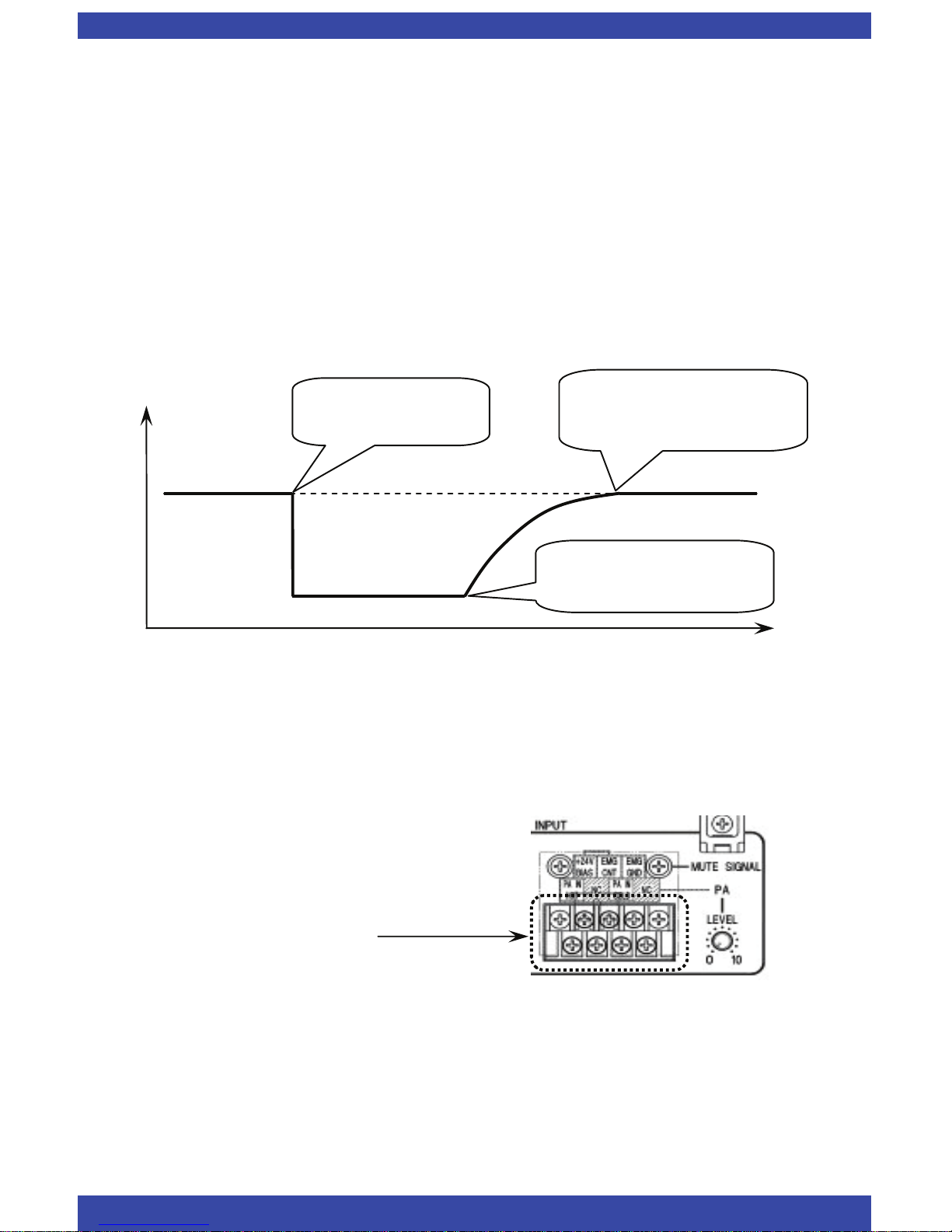

Setting the Aux Mute………………………..……………

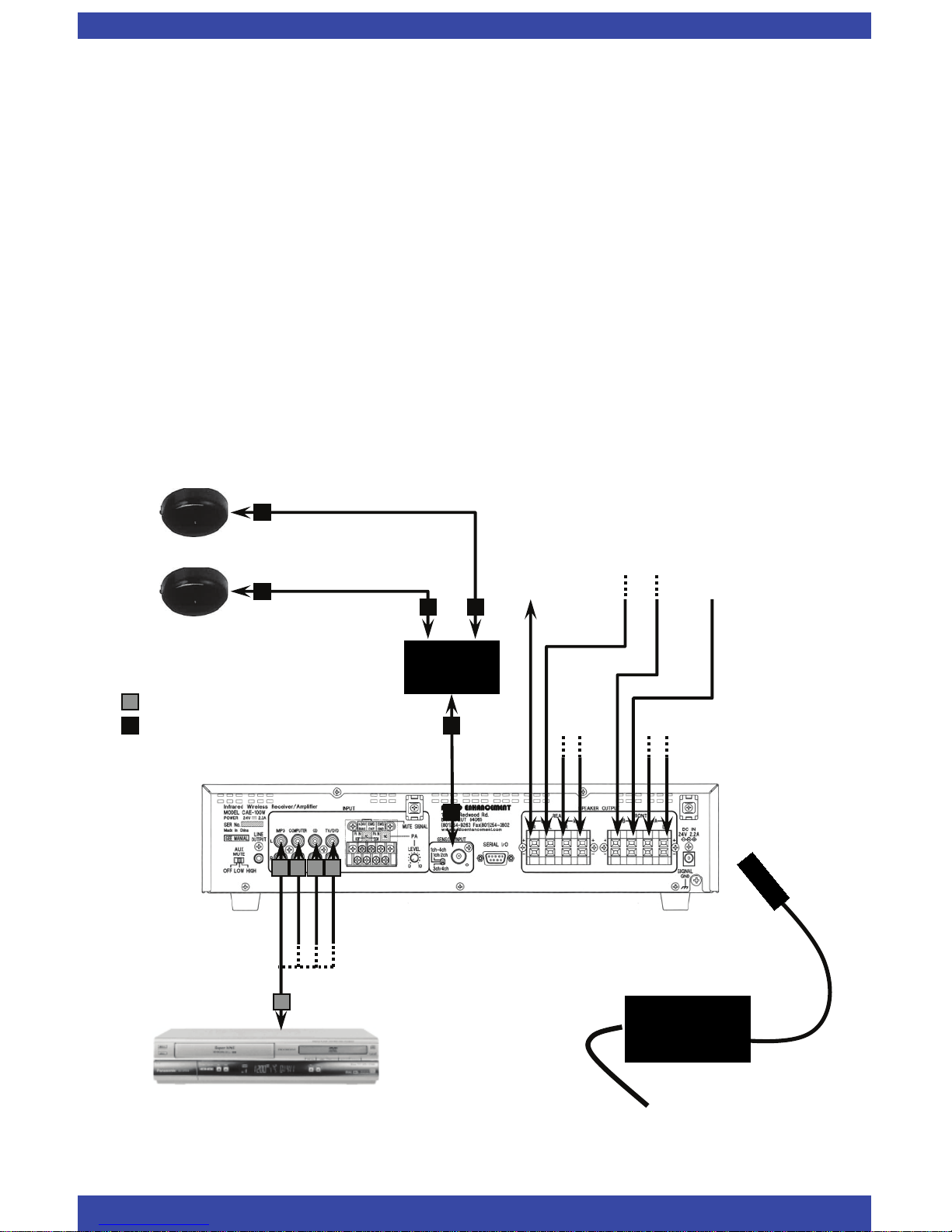

Wiring Connections and Installation………….…………

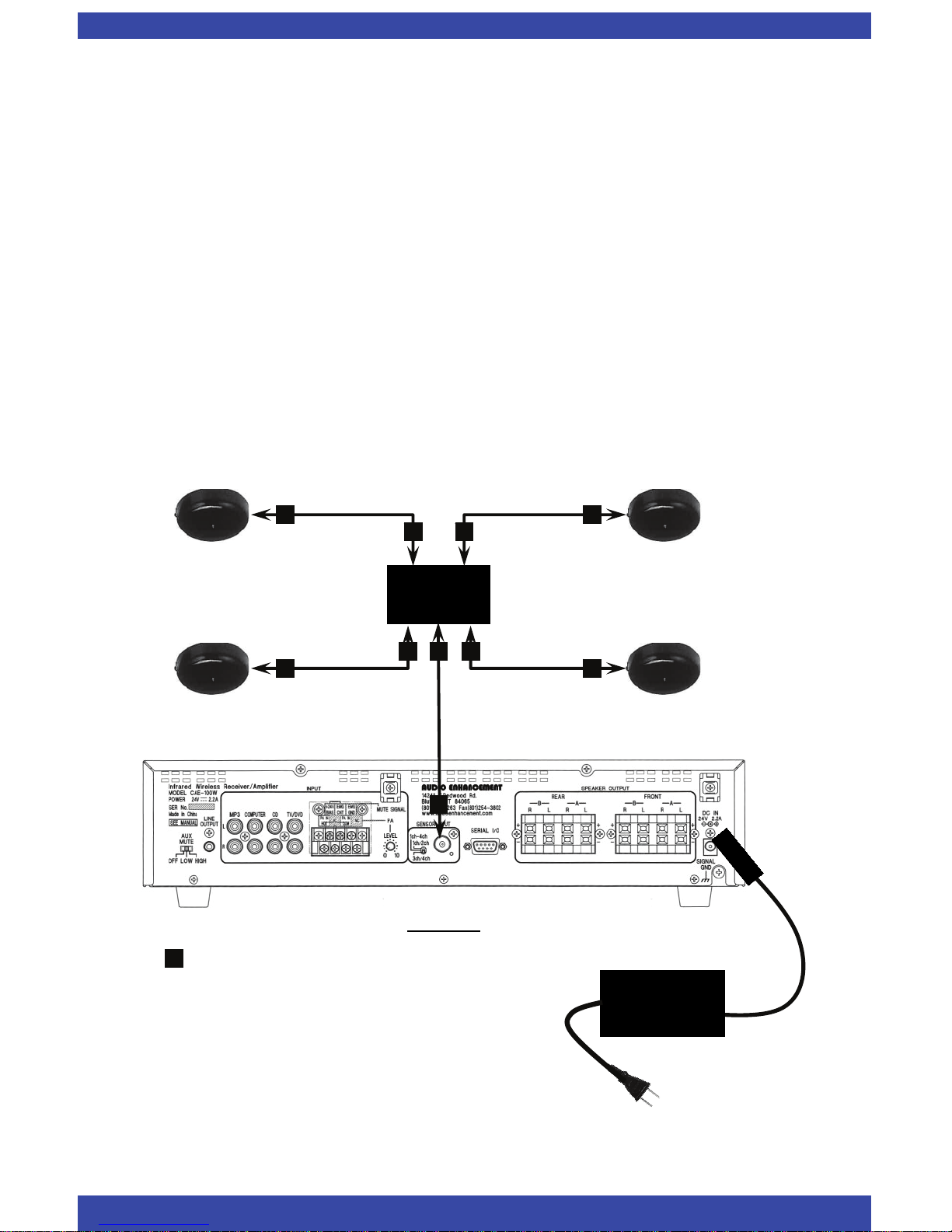

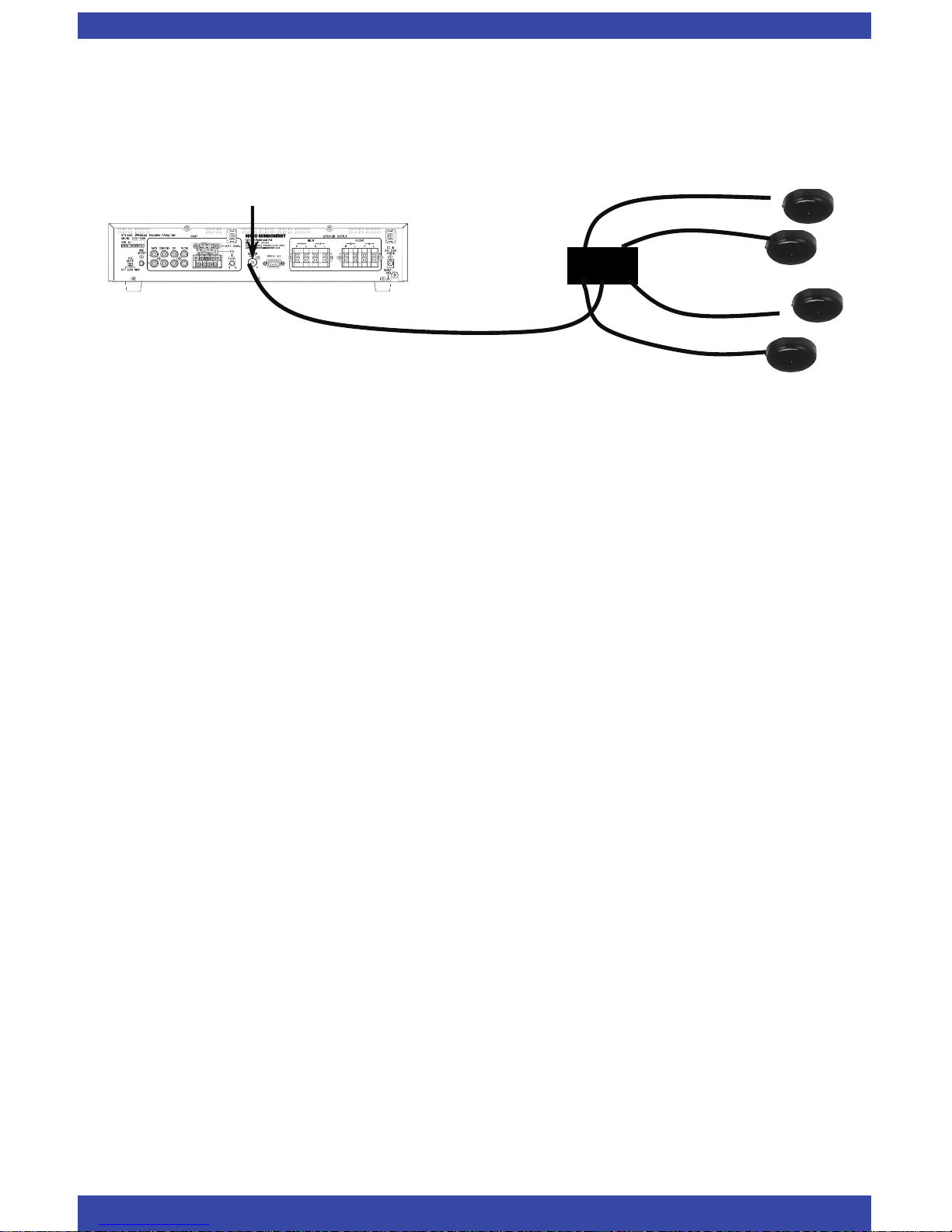

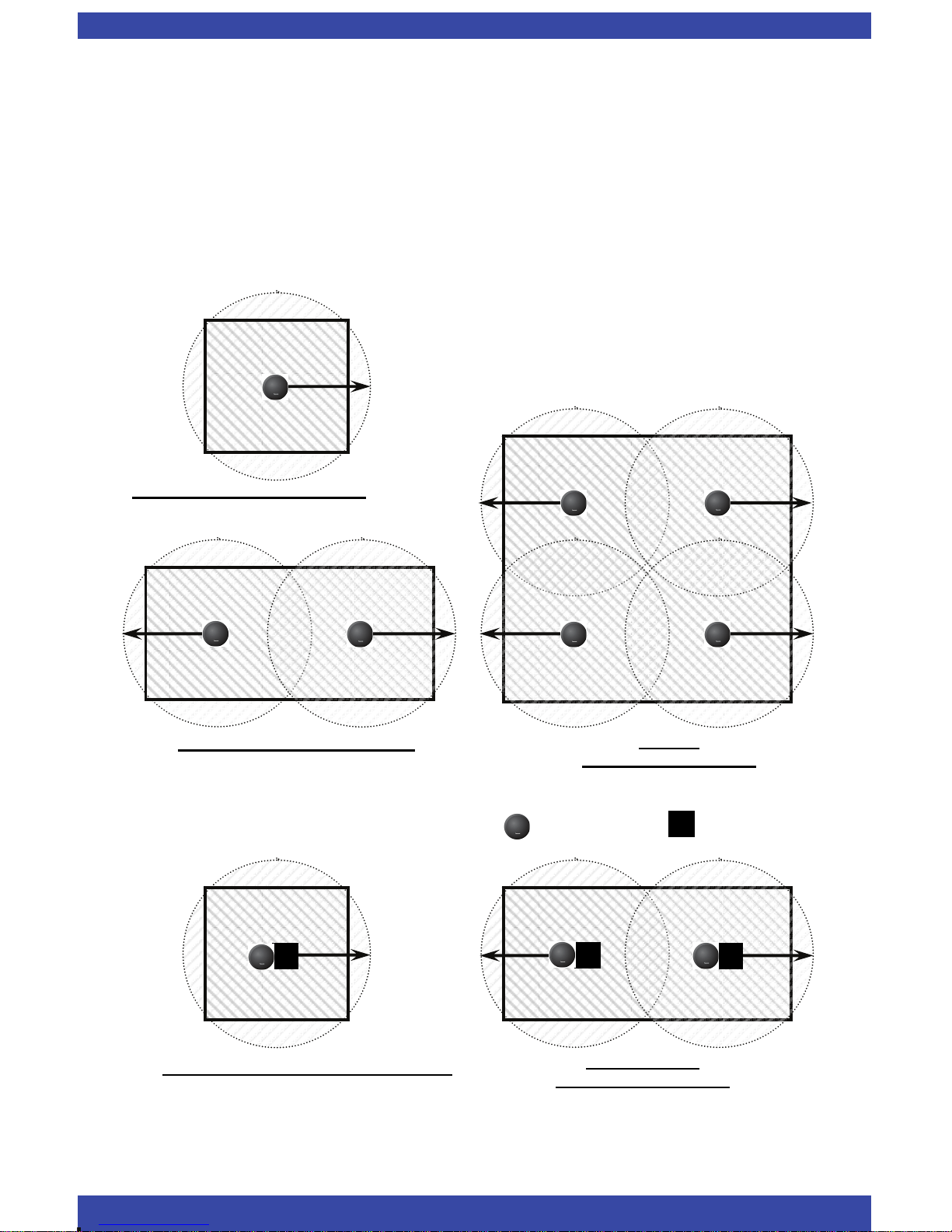

EDS-07 Dome Sensor Wiring and Placement…………..

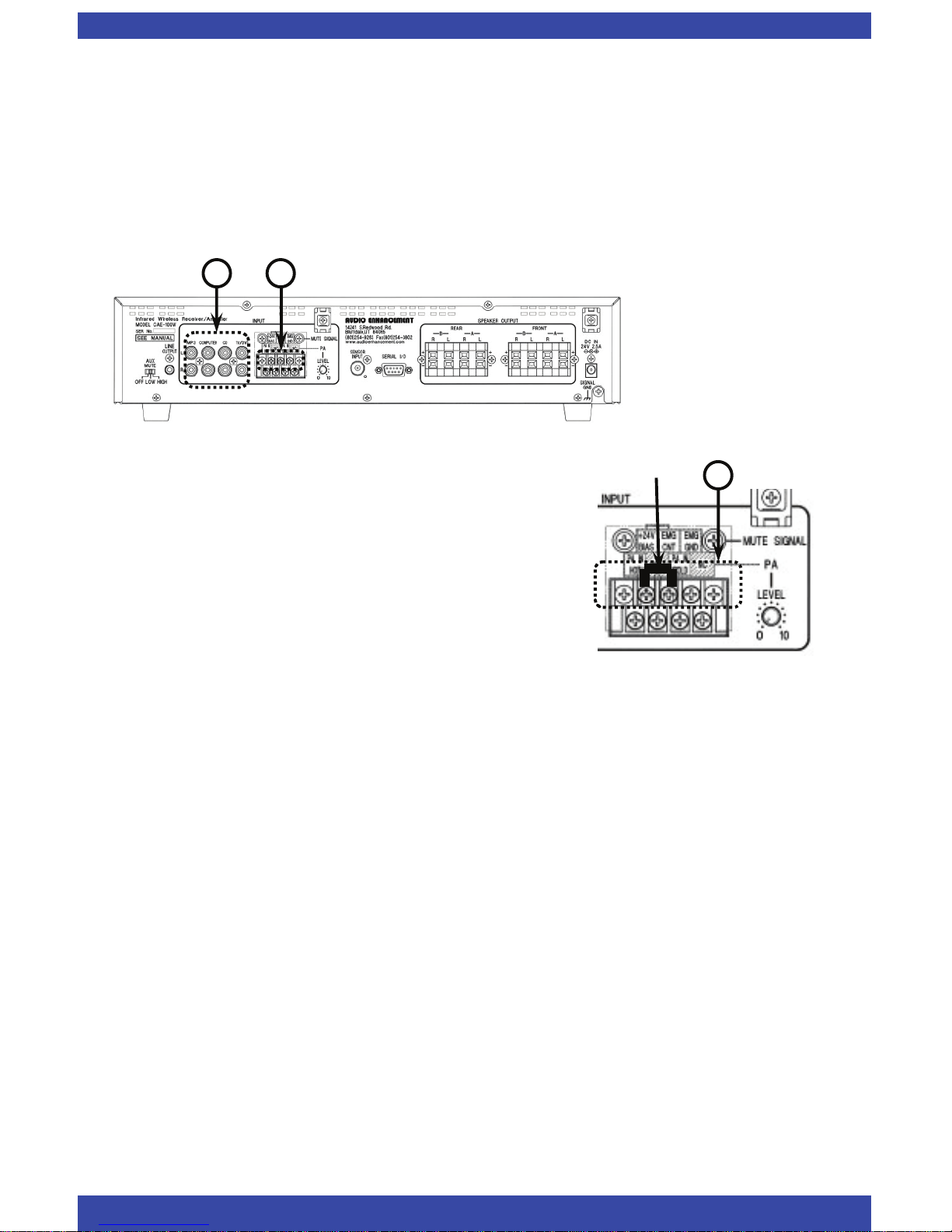

Setting the PA Aux Mute.……………………………….
Setting the EMG Aux Mute……………………………..
Fuse Part Numbers …………………………………...…..
Precautions for Installation.……………………………..

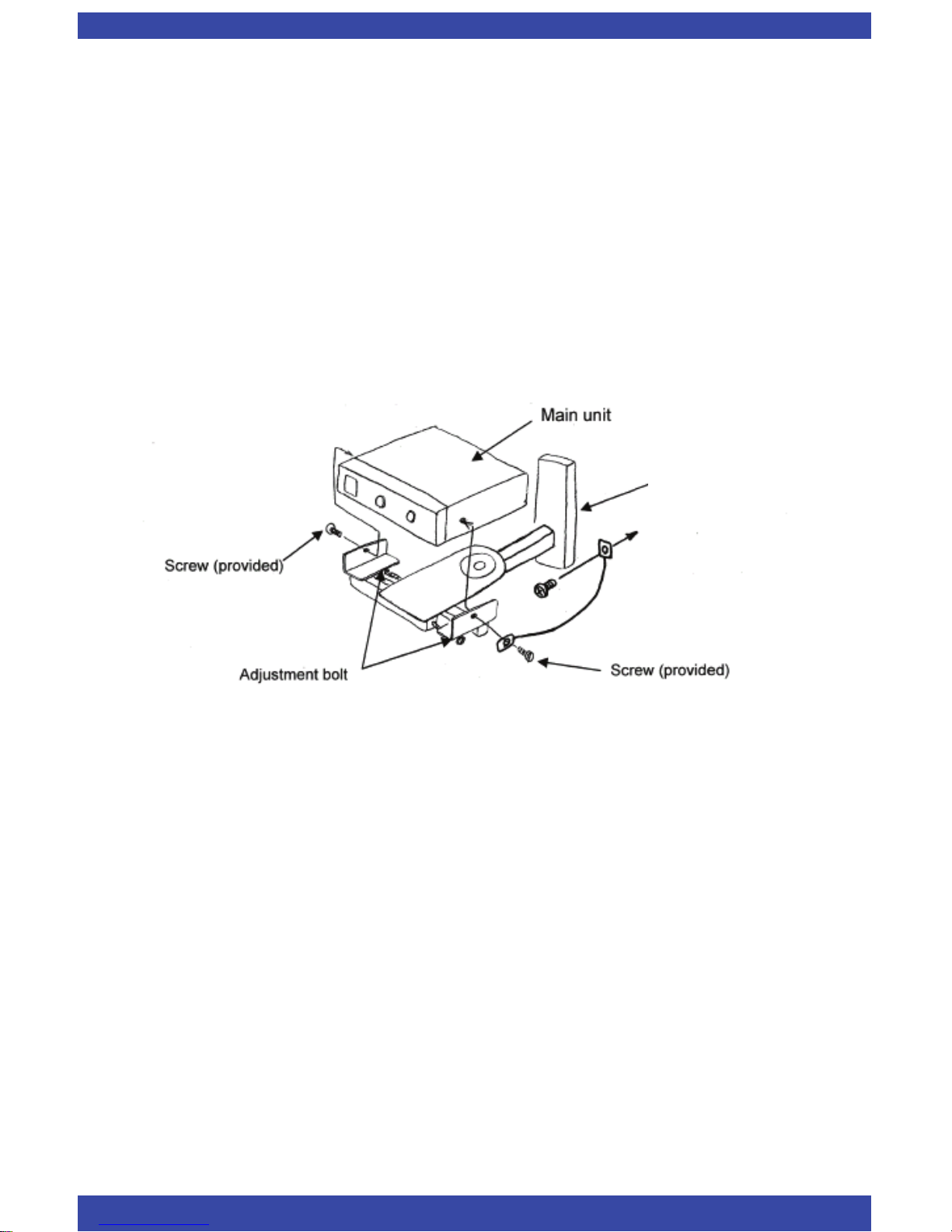

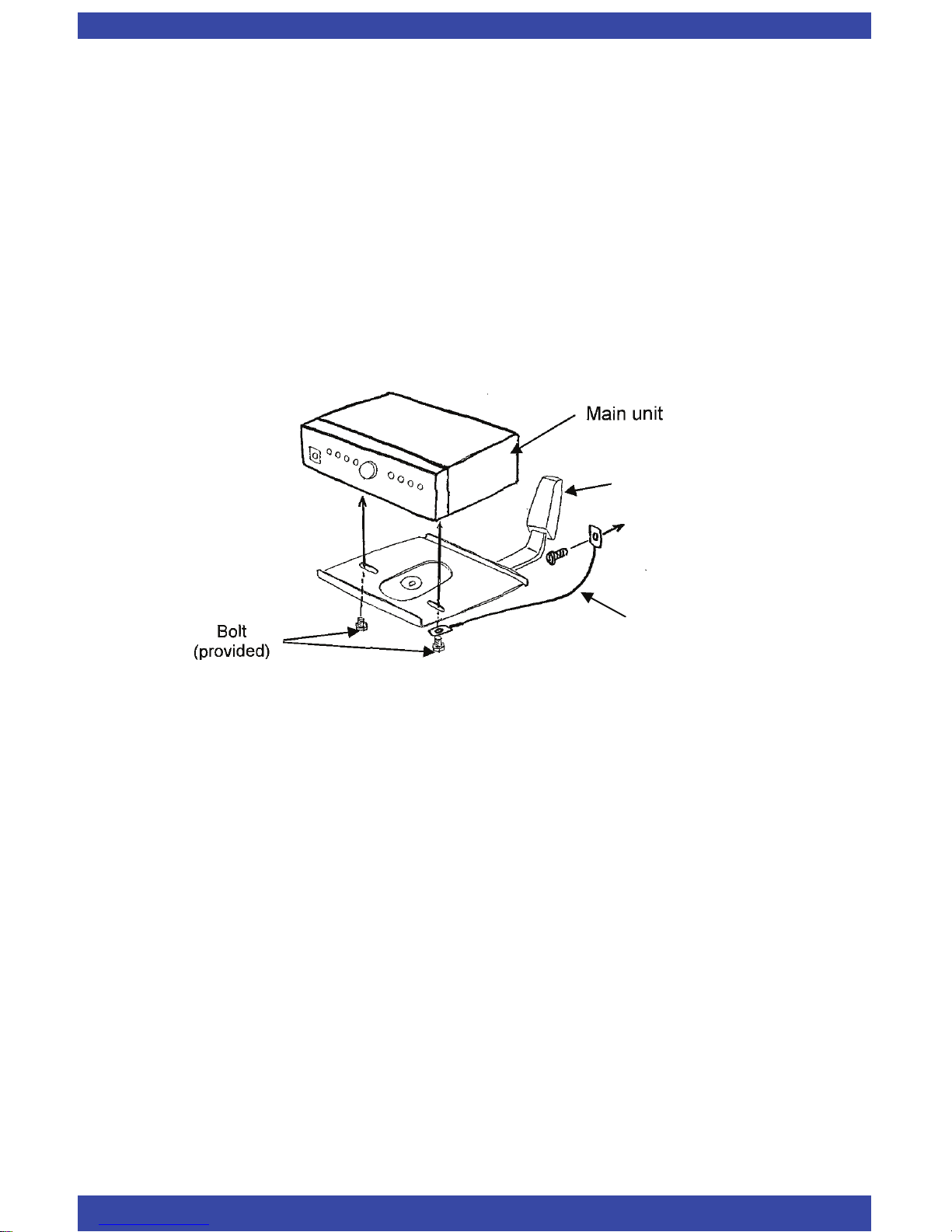

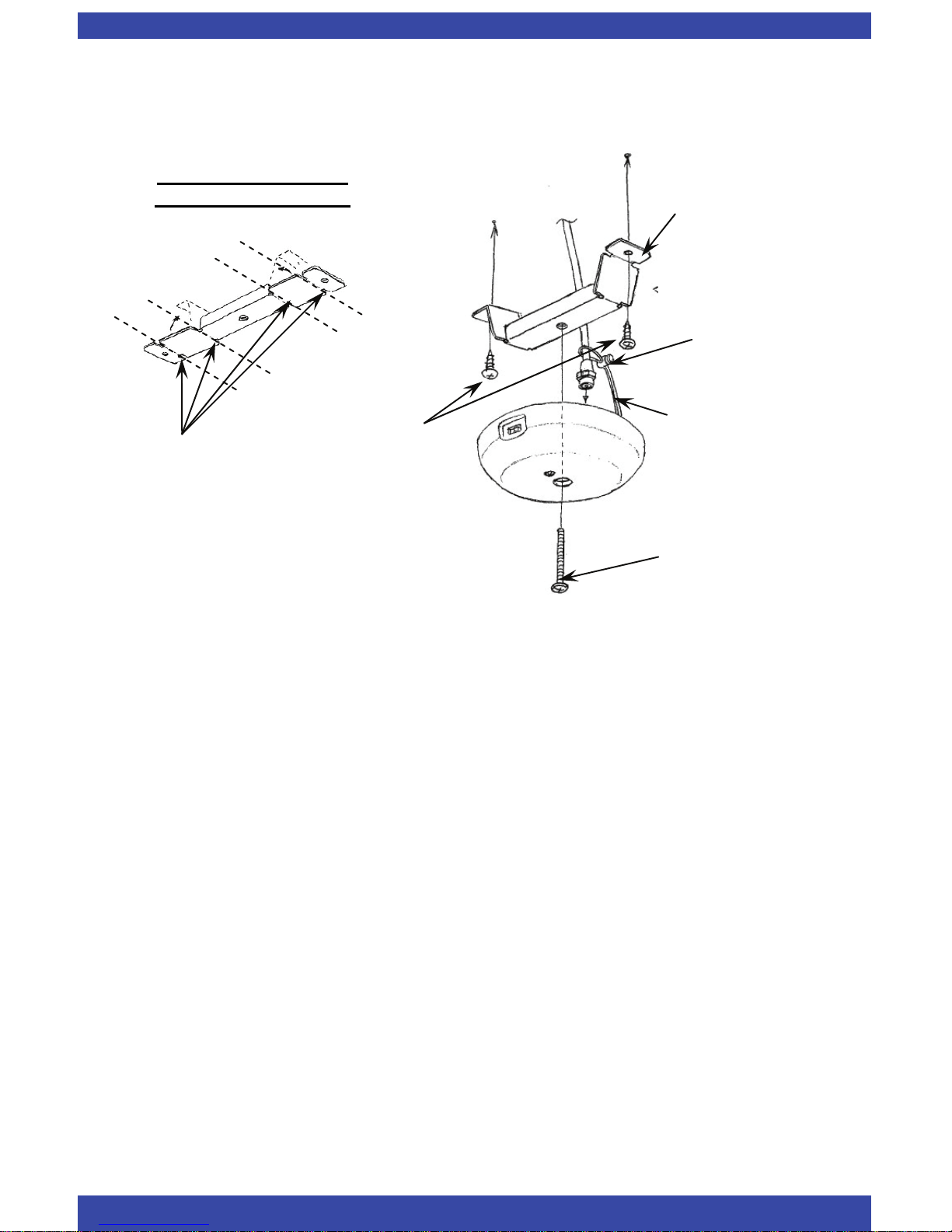

Installing the Bracket……………………………………..
Fuse Part Numbers………………………………………
Teachers Check list………………..…………………….
Troubleshooting…………………………...……………..

Page 4-5
Page 6-7
Page 8-9
Page 10
Page 11-12
Page 13-14
Page 15-17
Page 18-19
Page 20-21
Page 22
Page 23
Page 24
Page 25
Page 26
Page 27
Page 28
Page 29
Page 30
Page 31
Page 32-42
Page 43-44
Page 45-46
Page 47
Page 48
Page 49-52
Page 53
Page 54
Page 55
Page 56-57

3

Table of Contents

Repair Form …………………………………………….
Power Cords for EU…………………………………….
Safety Instructions for EU………………………………
WEEE Fitting…...……………………………………….
Warranty………………………………………………….

Page 58
Page 59-60
Page 61
Page 62
Page 63

4

Introduction

AUDIO ENHANCEMENT has been creating technologically ad­vanced products that exceed expectations for over 25 years.
They are designed by caring professionals for those who teach
and those who will become the future leaders of America. Se­lecting the infrared classroom sound amplification system is the
most important step to improve the learning environment.

Your infrared classroom system represents a breakthrough in
classroom amplification. It assures you the clarity and interfer­ence free performance you expect; trouble free performance
with unlimited numbers of systems used in the same building.

Please read through this manual before installing and using the
IR systems and refer to it often to become familiar with class­room sound amplification systems. Our staff is available to an­swer any questions that may arise; call 1-800-383-9362.

5

Introduction

When asked to rank the importance of nine different
types of equipment used in classroom instruction,

34% of the teachers in general education ranked class-

room amplification most important , even over the

overhead projector, which came in second at 18% and the
computer at 16%! (1)

45% of the school day is spent by children engaged in

listening activities. (2)

90% of a very young child’s knowledge is attributed to

incidental reception of a conversation around them. (3)

1. Allen, L. (1993). Promoting the usefulness of classroom amplification
equipment. Educational Audiology Monograph 3, 32-34.

2. Berg, F.S. (1987). Facilitating classroom listening: A handbook for teachers of
normal and hard of hearing students. Boston: College-Hill Press/Little, Brown.

3. Flexer, Carol (1993). “Classroom Management of Children with Hearing Loss:
Preferential Seating is NOT enough” presentation. San Francisco, CA 8/14/93.

6

CE Declaration

English

We declare under our sole responsibility that the product to which this declara­tion relates is in conformity with the standards or other normative documents
following the provisions of Directives 2006/95/EC and 2004/108/EC.

German

Wir erklären in alleiniger Verantwortung, daß das Produkt, auf das sich diese
Erklärung bezieht, mit der folgenden Normen oder normativen Dokumenten
übereinstimmt. Gemäß den Bestimmungen der Richtlinie 2006/95/EC und
2004/108/EC.

French

Nous déclarons sous note seule responsabilité que le produit auquel se rèfére las
présente déclaration est conforme aux normes ou autres documents normatifs
conformé ment aux dispositions des directives 2006/95/EC and 2004/108/EC.

Spanish

Nosotros declaramos bajo nuestra única responsabilidad que el producto a que
hace referencia esta declaración está conforme con las normas u otros docu­mentos normativos siguiendo las estipulaciones de las directivas 2006/95/CE y
2004/108/CE.

Italian

Noi dichiariamo sotto nostra esclusiva responsabilità che il prodotto a cui si
riferisce la presente dichiarazione risulta confrome ai seguenti standard o altri
documenti normativi confromi alle disposizioni delle direttive 2006/95/CE e
2004/108/CE.

Dutch

Wij verklaren als enige aansprakelijke, dat het product waarop deze verklaring
betrekking heeft, voldoet aan de volgende normen of andere normatieve
documenten, overeenkomstig de bepalingen van Richtlijnen 2006/95/EC en
2004/108/EC.

Danish

Vi erklærer os eneansvarlige for, at dette produkt, som denne deklaration
omhandler, er i overensstemmelse med standarder eller andre normative
dokumenter i følge bestemmelserne i direktivene 2006/95/EC og 2004/108/EC.

7

CE Declaration

Swedish

Vi deklarerar härmed värt fulla ansvar för att den produkt till vilken denna
deklaration hänvisar är i överensstämmelse med standarddokument, eller andra
normativa dokument som framställs i direktiv nr. 2006/95/EC och 2004/108/
EC.

Finnish

Ilmoitamme yksinomaisella vastuullamme, että tuote, jota tämä ilmoitus
koskee, noudattaa seuraavia standardeja tai muita ohjeellisia asiakirjoja, jotka
noudattavat direktiivien 2006/95/EC ja 2004/108/EC säädöksiä.

Norwegian

Vi erklærer oss alene ansvarlige for at produktet som denne erklaeringen
gjelder for, er i overensstemmelse med følgende normer eller andre
normgivende dokumenter som følger bestemmelsene i direktivene 2006/95/EC
og 2004/108/EC.

8

Safety Instructions

WARNING:

• To reduce the risk of fire or electric shock, do not expose this re-

ceiver/amplifier to rain or moisture.

• The apparatus should not be exposed to dripping or splashing water.

Objects filled with liquids should not be placed on or next to the appa­ratus.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer‘s
instructions.

8) Do not use near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polar­ized plug has two blades with one wider than the other. A grounding-type plug has
two blades and a third grounding prong. The wide blade or the third prong are pro­vided for your safety. If the provided plug does not fit into your outlet, consult an elec­trician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, con­venience receptacles and the points where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufac­turer, or sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-overs.

13) Unplug this apparatus during lightning storms or when unused for long periods of
time.

14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is dam­aged, liquid has been spilled or objects fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.

9

Safety Instructions

WARNING:

• This apparatus must be earthed.

• Apparatus shall be connected to a main socket outlet with a protective

earthing connection.

• The mains plug or an appliance coupler shall remain readily operable.

• To prevent fire or electric shock hazard, do not expose this apparatus

to rain or moisture.

• The apparatus should not be exposed to dripping or splashing and that
no objects filled with liquids, such as vases, should be placed on the
apparatus.

• All work related to the installation of this product should be made by
qualified service personnel or system installers.

• For PERMANENTLY CONNECTED APPARATUS provided nei­ther with an all-pole MAINS SWITCH nor an all-pole circuit breaker,
the installation shall be carried out in accordance with all applicable
installation rules.

• The connections should comply with local electrical code.

• When the equipment is not used, make sure to contact your dealer and

remove it.

CAUTION:

Before attempting to connect or operate this product, please read the label
on the bottom (CAE-20W).

10

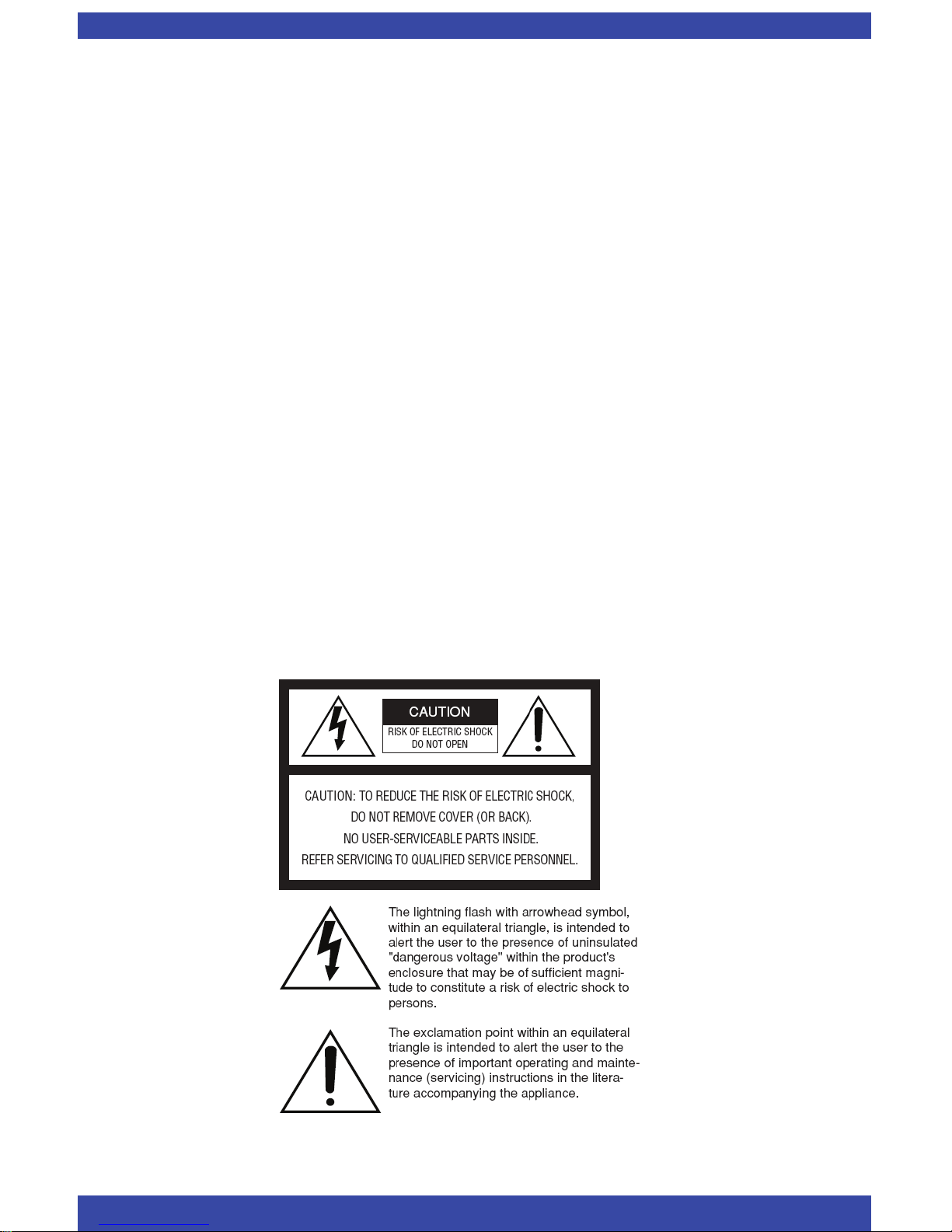

Explanation of Symbols

220 - 240 Vac. A.C. Power Only

50 to 60 Hz Rated Mains Frequency

Explanation of Symbols

The date or a dating code not exceeding any three consecutive months of
manufacture. The dating code shall be in an established alphanumeric code
affirmed by the manufacturer. The coding system shall have a minimum 10
year repetition cycle.

11

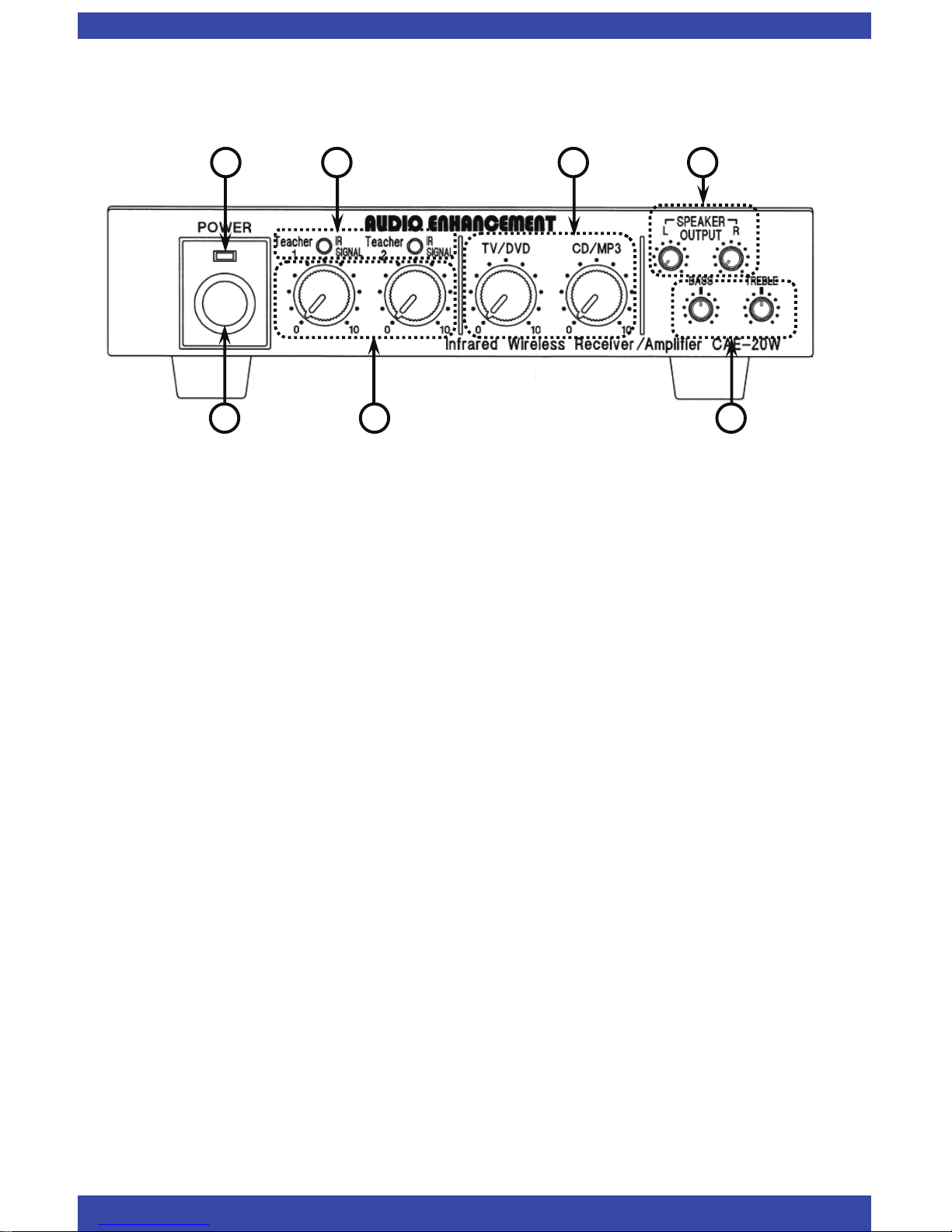

Operating Controls

ACHIEVER

(1)Power switch. Turns the power on/off.

(2) Power indicator. Lights "green" when the power is turned ON.

(3) Infrared Microphone Volume Control [ Teacher 1 and 2 ]. This control is used to
adjust the level of the infrared microphones.

(4) Infrared Signal Indicator [ Teacher 1 and 2］. Lights "green" when the infrared
wireless receiver is receiving a signal.

(5) Auxiliary Input volume [ TV/DVD and CD/MP3］.This Control adjusts the vol­ume of the auxiliary inputs connected to the input terminals (11).

(6) Equalizer [ BASS, TREBLE］. The Bass and Treble controls allow the teacher
to have control over the quality of his or her voice. This adjustment is made by ad-

justing the "BASS" low-range or "TREBLE" high-range until the desired sound qual­ity is achieved.

(7) Speaker output volume ［SPEAKER L, R ].Output levels from each pair of
speakers are adjustable with this volume

●AC adapter. Use the “3A-621DA24” AC adapter provided to supply power to the
"Achiever".

1

2

3

4

5

6

7

Front View

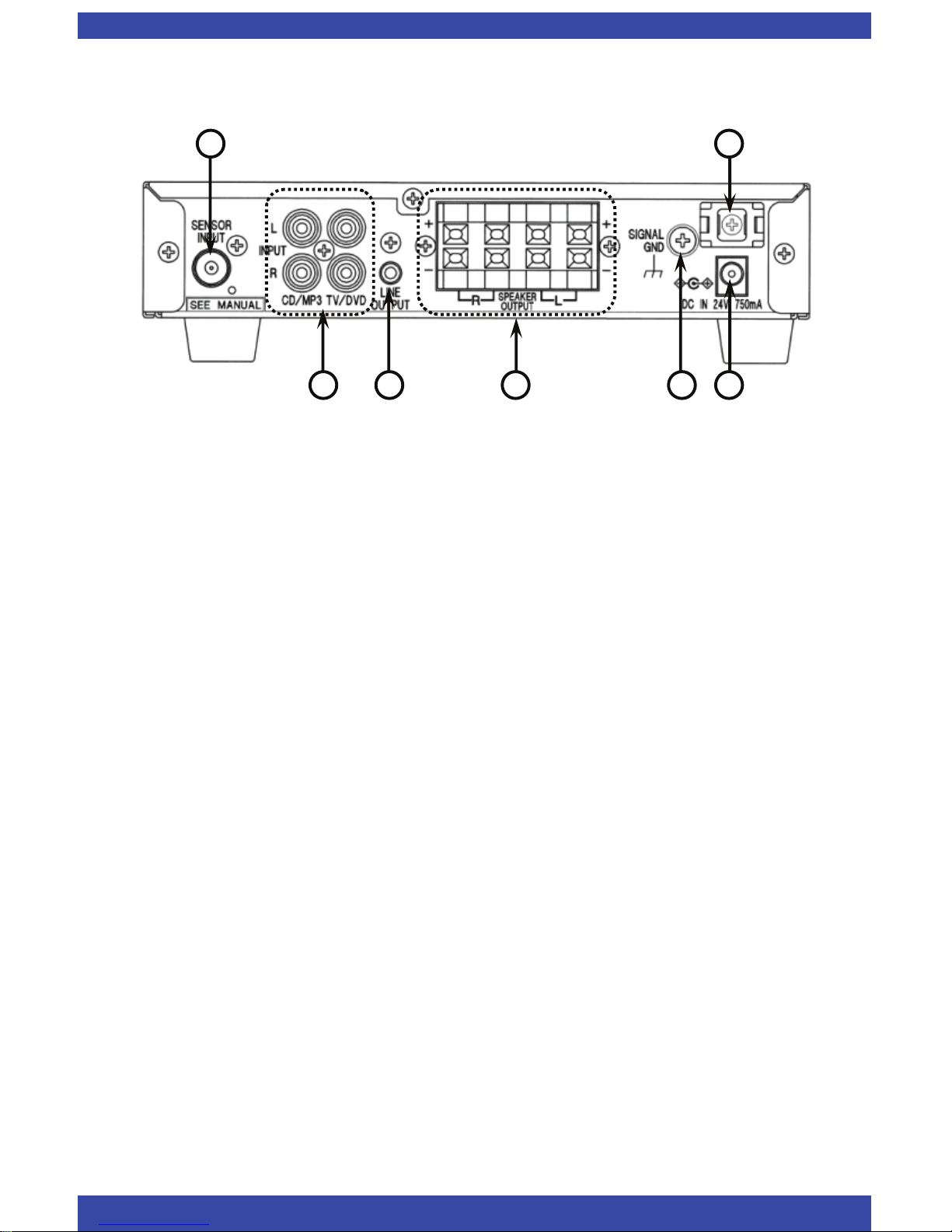

12

Operating Controls

ACHIEVER

Rear View

(9) DC power terminal. The AC adapter provided supplies 24 V DC power.

(10) Sensor input terminal. Connection via F-connector and coaxial cable for the
infrared sensors. It also supplies power to the sensors (24 V).

(11) Input terminal ［TV/DVD, CD/MP3］. Connection s for TV/DVD, and CD/
MP3.

(12) Line output terminal. Provides a line level output for connection of personal
FM system, recording devices, or video conferencing systems. All input signals,
including microphones an auxiliary inputs are mixed and provided at the line out­put terminal.

(13) Speaker output terminals. Connections for the speakers (8 Ohms).

(A) Ground screw ［SIGNAL GND］
(B) Mount for cable clamp - Used to bundle cables and speaker wires with tie-

wraps.

■IDENTIFICATION
The vender’s name, the model number and the nature of supply are marked on

bottom of the apparatus.

10

11

12 13

9

A

B

13

Operating Controls

ULTIMATE II

(1) Power switch. Turns the power on/ of f.

(2) Power indicator. Lights "green" when the power is turned ON.

(3) Infrared Microphone Volume Control [Teacher 1 and 2]. This control is used to ad-

just the level of the infrared microphones.

(4) Infrared Signal Indicator ［Teacher 1 and 2]. Lights "green" when the infrared

wireless receiver is receiving a signal.

(5) Auxiliary Input volume ［TV/DVD, CD, COMPUTER, and MP3]. This Control

adjusts the volume of the auxiliary inputs connected to the input terminals (11).

(6) Master volume. Adjusts overall level of the system.

(7) Equalizer ［LOW, MID, HIGH]. The 3-Band Equalizer allows the teacher to have
control over the quality of his or her voice. This adjustment is made by adjusting

"LOW", "MID", or "HIGH“ controls until the desired sound quality is achieved .

(8) Speaker output volume ［FRONT L/R, REAR L/R ］

The level from each speaker can be independently adjusted with these controls.

●AC adapter. Use the “3A-901DA24-048” AC adapter provided to supply power to the

"Ultimate II".

1

2

3

4

7

6

5

8

14

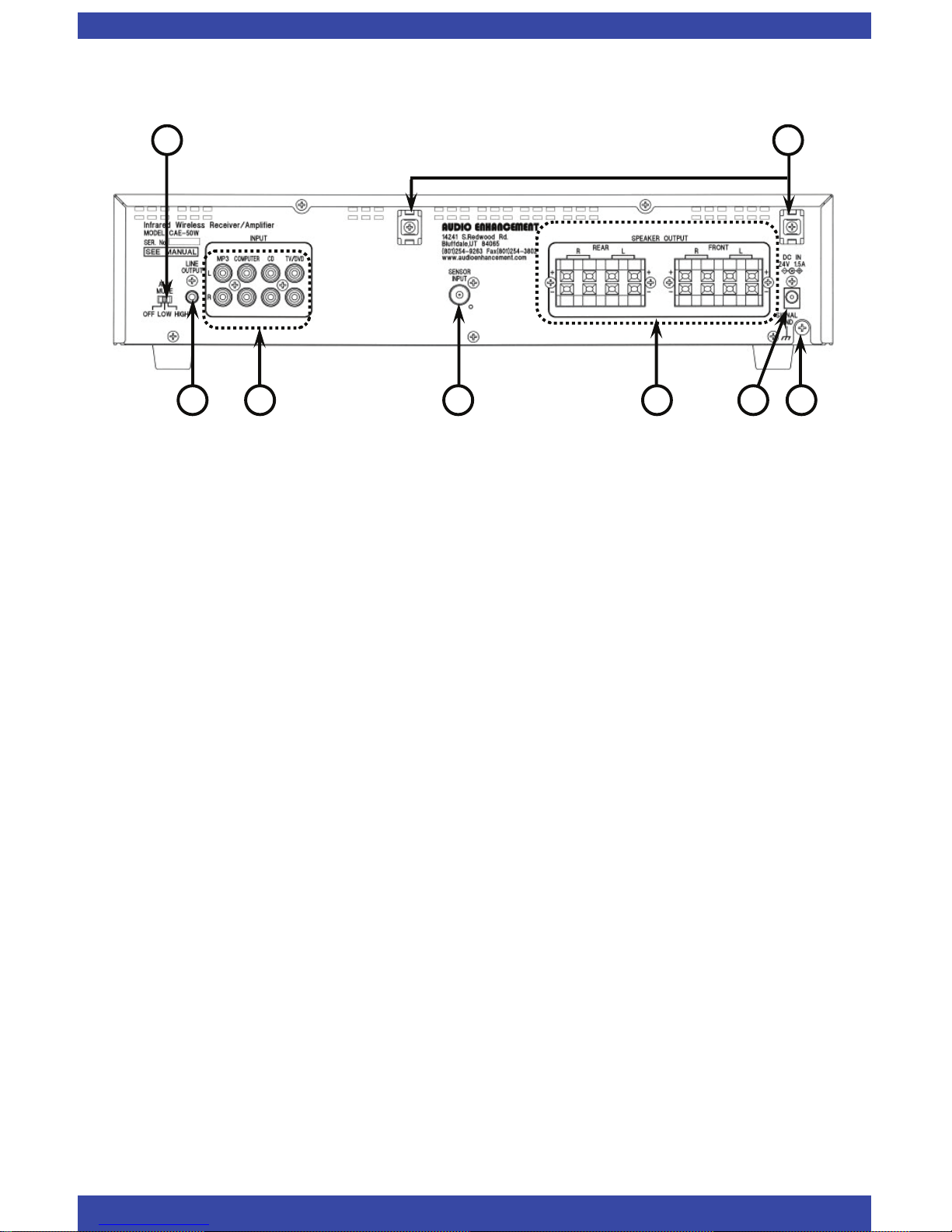

Operating Controls

ULTIMATE II

(9) DC power terminal. The AC adapter provided supplies 24 V DC power.

(10) Sensor input terminal. Connection via F-connector and coaxial cable for the infrared
sensors. It also supplies power to the sensors (24 V).

(11) Input terminal [TV/DVD, CD, COMPUTER, MP3].Connections for TV/DVD, CD,
COMPUTER, and MP3.

(12) Line output terminal. Provides a line level output for connection of personal FM sys­tem, recording devices, or video confere ncing systems. All input signals, including micro­phones an auxiliary inputs are mixed and provided at the line output terminal.

(13) AUX mute setting switch [OFF/LOW/HIGH］The Aux mute switch allows selection
of whether or not the teachers voice mutes the auxiliary inputs when he or she speak s . The

‘off’ setting provides for no muting. The Low setting provides for a standard level of at­tenuation. The High setting provides for a faster attenuation. Set the switch to ‘low’ for
normal operation

(14) Speaker output terminal. Connections for the speakers (8 Ohms).

(A) Ground screw ［SIGNAL GND］
(B) Mount for cable clamp - Used to bundle cables and speaker wires with tie-wraps.

13

12 11 10 14 9 A

B

15

Operating Controls

ULTIMATE IISE

(1) Power switch. Turns the power on/ of f.
(2) Power indicator. Lights "green" when the power is turned ON.
(3) Infrared Microphone Volume Control [Teacher 1 and 2]. This control is used to ad-

just the level of the infrared microphones.

(4) Infrared Signal Indicator [Teacher 1 and 2]. Lights "green" when the infrared wire-

less receiver is receiving a signal.

(5) Feedback blocker indicator (orange) ［Teacher 1 and 2], l ight s orange when the

feedback blocker is activated.

(6) Auxiliary Input volume [TV/DVD, CD, COMPUTER, and MP3]. This Control ad-

justs the volume of the auxiliary inputs connected to the input terminals.

(7) Master volume. Adjusts all input volumes (3, 6) together.
(8) Equalizer [LOW, MID, HIGH]. The 3-Band Equalizer allows the teacher to have

control over the quality of his or her voice. This adjustment is made by adjusting
"LOW", "MID", or "HIGH“ controls until the desired sound quality is achieved .

(9) Speaker output volume ［FRONT L/R, REAR L/R ］
The level from each speaker can be independently adjusted with these controls.

16

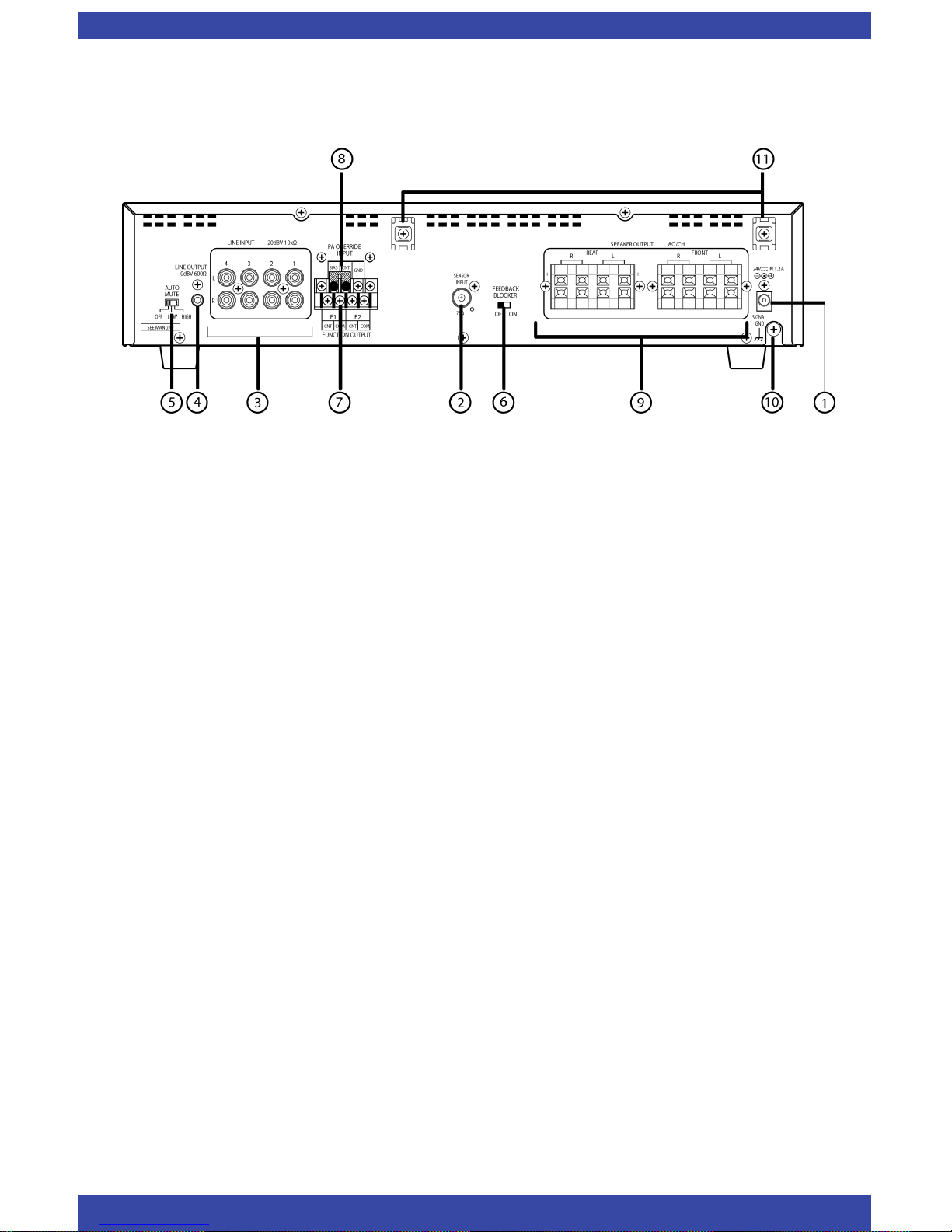

Rear Panel Connections

ULTIMATE IISE

(1) DC power supply terminal [24 V IN, 1.2 A] Connect the specified AC adaptor

(accessory), and it supplies 24 V DC power.
(2) Sensor input terminal [SENSOR INPUT 75Ω
(3) Line input terminals - [LINE INPUT 1,2,3,4 –20dBV 10k Ohm] Connect exter-

nal audio device (such as DVD etc).
(4) Line Output terminals [LINE OUTPU T 0dBV 600 Ohm]. Connect to recording

or external audio device. Output jack is 3.5mm Tip/Sleeve (monaural).
(5) Auto mute switch [AUTO MUTE OFF/LOW/HIGH] When activated, the mi-

crophone can interrupt the external audio device by reducing its volume. Detec-

tion sensitivity is controlled by the “LOW” an d “HIGH” setting.
(6) Feedback blocker switch [FEEDBACK BLOCKER OFF/ON] Turn this switch

OFF to disable feedback blocker. Defa ul t is OFF .
(7) Function terminals [PA OVERRIDE INPUT, BIAS/CNT/GND] See “Function”

Page.
(8) Jumper pin—Used to set up Enable/Disable of the PA override function. Default

setting is Disable
(9) Speaker Output terminals - Use speakers with impedance of 8 Ohms. Two

speakers can be connected each of the four amplifiers.
(10) Ground screw [SIGNAL GND] - When the amplifier is used with a combina-

tion of external devices, connect the earth terminal of each device to reduce the

difference in potentials between devices.
(11) Mount for cable clamp.

17

“F” Function

ULTIMATE IISE

Amplifier Function Output Connections

Function Outputs are opto-isolated
and are the equivalent of an “Open
Collector” NPN transistor that can handle a
maximum of 30Vdc at 20mA. The “CNT”
terminal is the collector and the “COM” is the
emitter.

Function Action Description

F1 Function - The F1 function activation provides for a momentary (300 ms) activation
of the F1 “CNT and ”COM” terminals every time the “F” button is pressed. If the “F”
button is pressed and held in F1 function, it will provide a 300ms activation every
600ms. A 300ms ON followed by a 300ms OFF, repeating until the “F” button is re­leased.

F2 Function - The F2 function activation will cause the “F2” “CNT and ”COM” ter­minals to activate and remain activated until the receiver is powered OFF or the re­ceiver does not receive an “F2” signal from the microphone for 3 minutes.

The F2 transmission from a microphone can only be terminated by
turning the microphone power OFF.

Setting the Function Channel on the Teacher
microphone

1. Remove the battery cover of the microphone. Pull the
battery cover in the arrow direction while pressing the
“A” portion with both right and left thumbs to remove
the cover.

2. Set the transmitting channel and assign function F1 or
F2 with the Channel select control. To set the transmit­ting channels and assign functions to the function button,
use the small channel setting screwdriver (microphone's
accessory) to turn the channel select switch until it clicks
in place.

3. F2 is the Security Alert function. Typically this is the
function selected on the Teachers microphone. Channel
1 is normally used for the Teachers microphone as well.
Set the switch to CH 1 in the F2 (white background) area
of the switch.

F1 is the momentary activation function.
Set the Channel selector switch to the de­sired channel in the black background area
of the label.

18

Operating Controls

INNOVATOR

(1) Power switch
Turns the power on/off.

(2) Power indicator
Lights "green" when the power is turned ON.

(3) Infrared Microphone Volume Control [Teacher 1 to 4]
This control is used to adjust the level of the infrared microphones.

(4) Infrared Signal Indicator ［Teacher 1 to 4］
Lights "green" when the infrared wireless receiver is receiving a signal.

(5) Auxiliary Input volume ［TV/DVD, CD, COMPUTER, and MP3］

This Control adjusts the volume of the auxiliary inputs connected to the input
terminals (11).

(6) Master volume
Adjusts overall level of the system.

(7) Equalizer ［LOW, MID, HIGH］
The 3-Band Equalizer allows the teacher to have control over the quality of his or

her voice. This adjustment is made by adjusting "LOW", "MID", or "HIGH“ controls
until the desired sound quality is achieved.

(8) Speaker output volume ［FRONT A L/R, FRONT B L/R, REAR A L/R, REAR B
L/R ］The level from each speaker can be independently adjusted with these controls .

●AC adapter
Use the “PW-150A2-1Y-240E” AC adapter prov ided to supply power to the
"Innovator amplifier".

1 2 3

4 5 6

7

8

Front View

19

Operating Controls

INNOVATOR

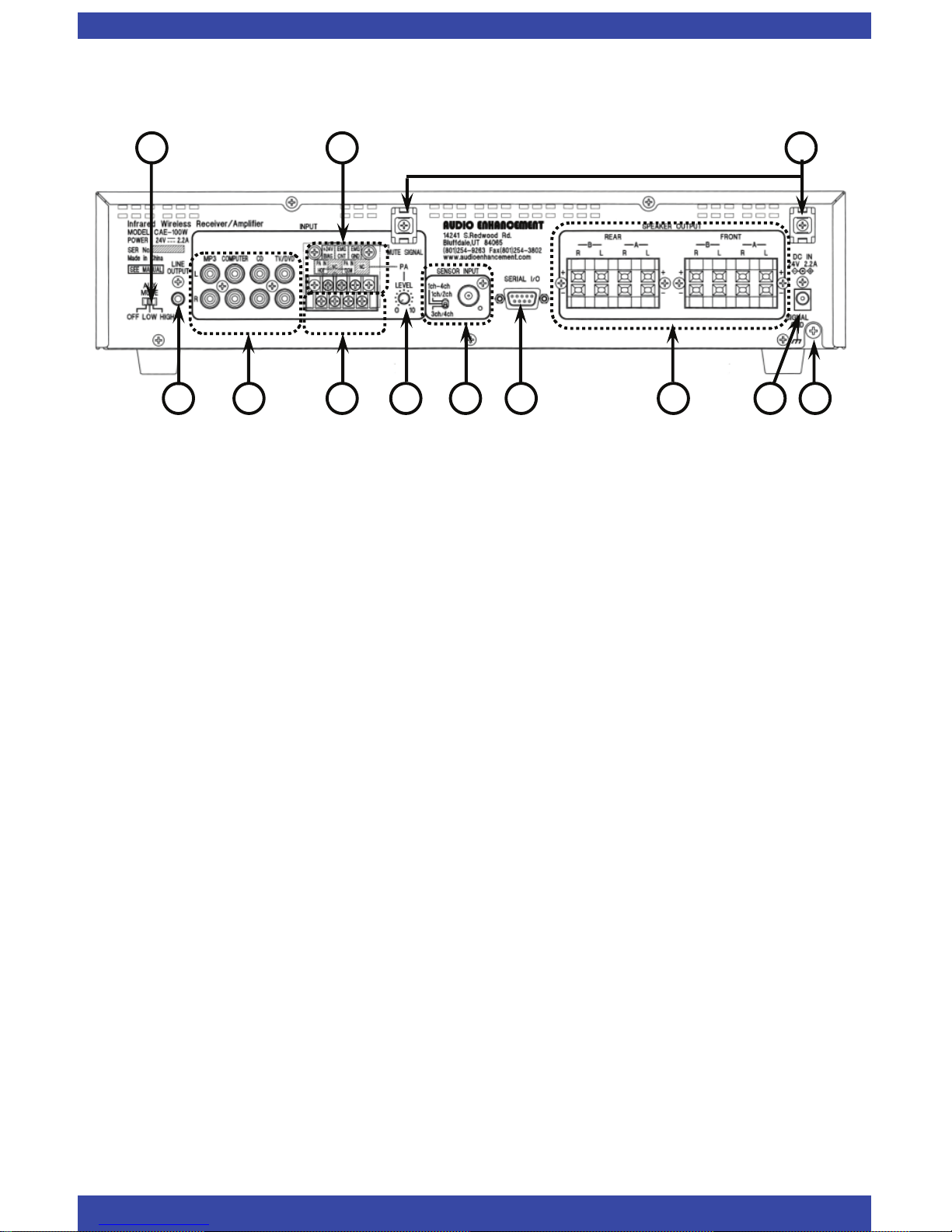

9) DC power terminal
The AC adapter provided s up pli e s 24 V DC po wer .
(10) Sensor input terminal

Connection via F-connector and coaxial cable for the infrared wireless sensors.
It also supplies power to the sensors (24 V).

(11) Input terminal ［TV/DVD, CD, COMPUTER, MP3］
Connections for TV/DVD, CD, COMPUTER, and MP3.

(12) Line output terminal
Provides a line level output for connection of personal FM system, recording de­vices, or video conferencing systems. All input signals, including microphones an auxil­iary inputs are mixed and provided at the line output terminal.

(13) AUX mute setting switch ［OFF/LOW/HIGH］
The Aux mute switch allows selection of whether or not the teachers voice mutes

the auxiliary inputs when he or she speaks. The ‘off’ setting provides for no muting. The
Low setting provides for a standard level of attenuation. The High setting provides for a
faster attenuation. Set the switch to ‘low’ for normal operation.
(14) Speaker output terminal
Connections for the speakers (8 Ohms).

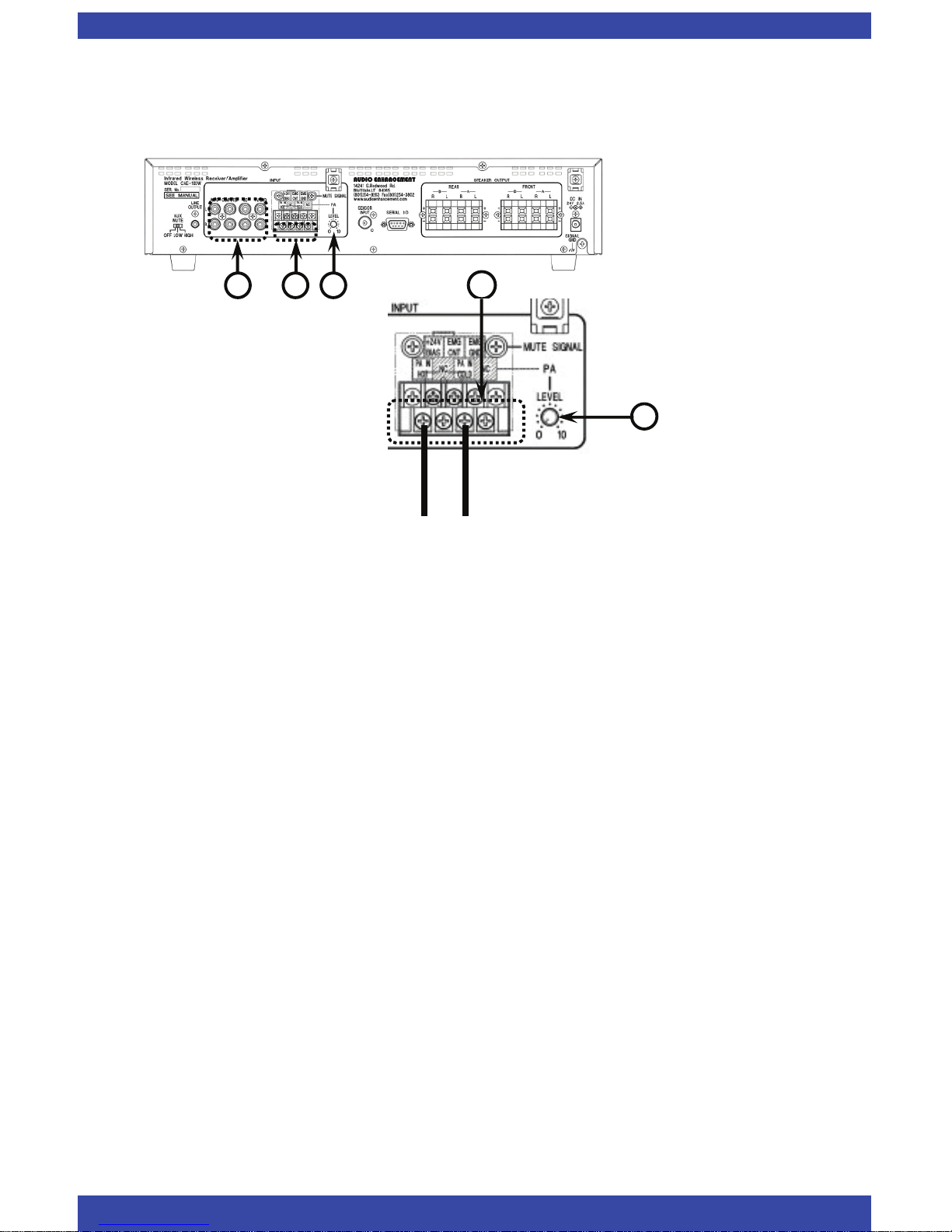

(15) PA input terminal
When public announcements are input into the system they are played through the
speakers. The user can also select to reduce the auxiliary input levels during PA an­nouncements by switching the EMG input Terminal (17).
(16) PA input volume
Adjusts the level of the PA system being played through the speakers
(18) Serial transmission terminal (RS-232)
Provides for remote control of system from a computer

(A) Ground screw ［SIGNAL GND］
(B) Mount for cable clamp - Used to bundle cables and speaker wires with tie-wraps.

12 11

13 17

15

16

10

18 14 9

A

B

Rear View

20

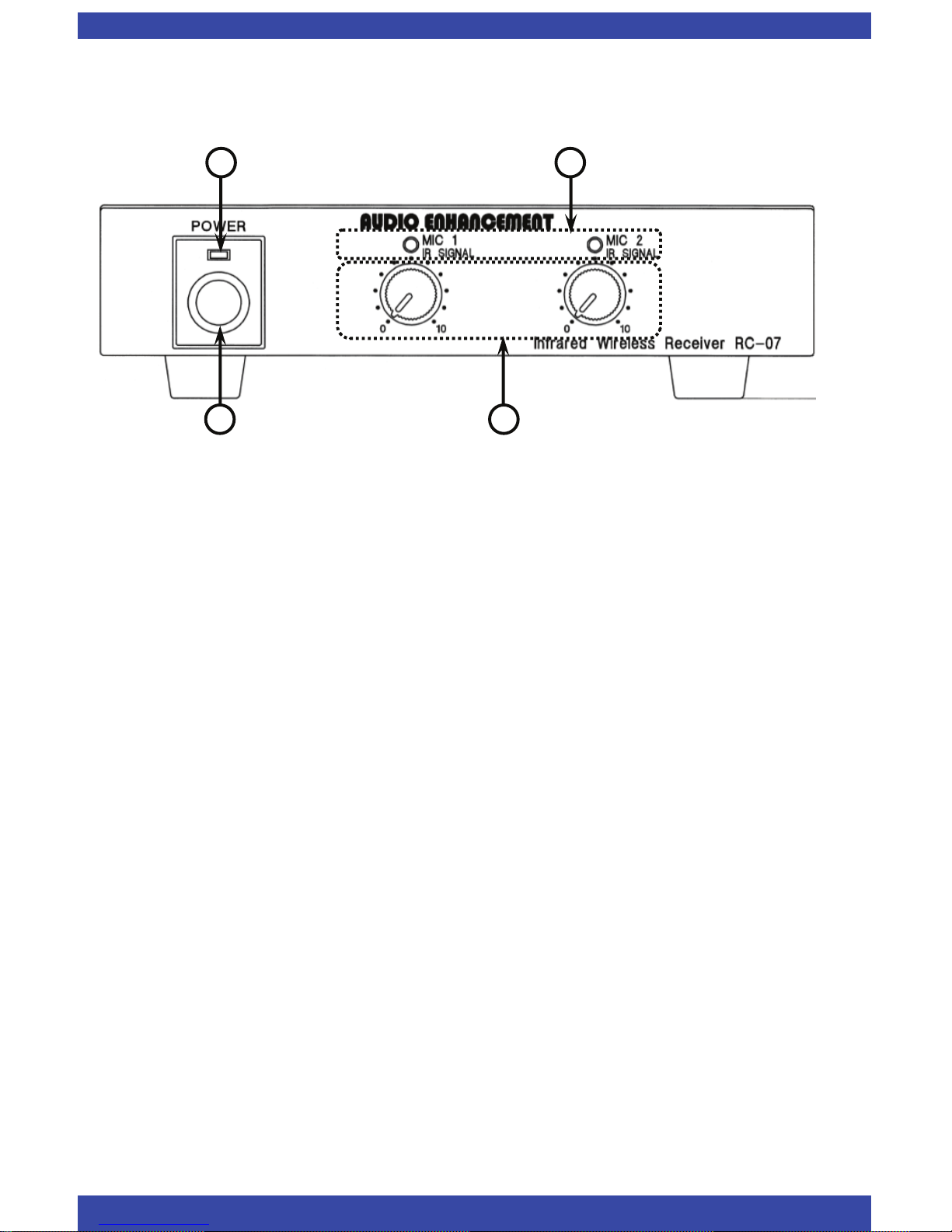

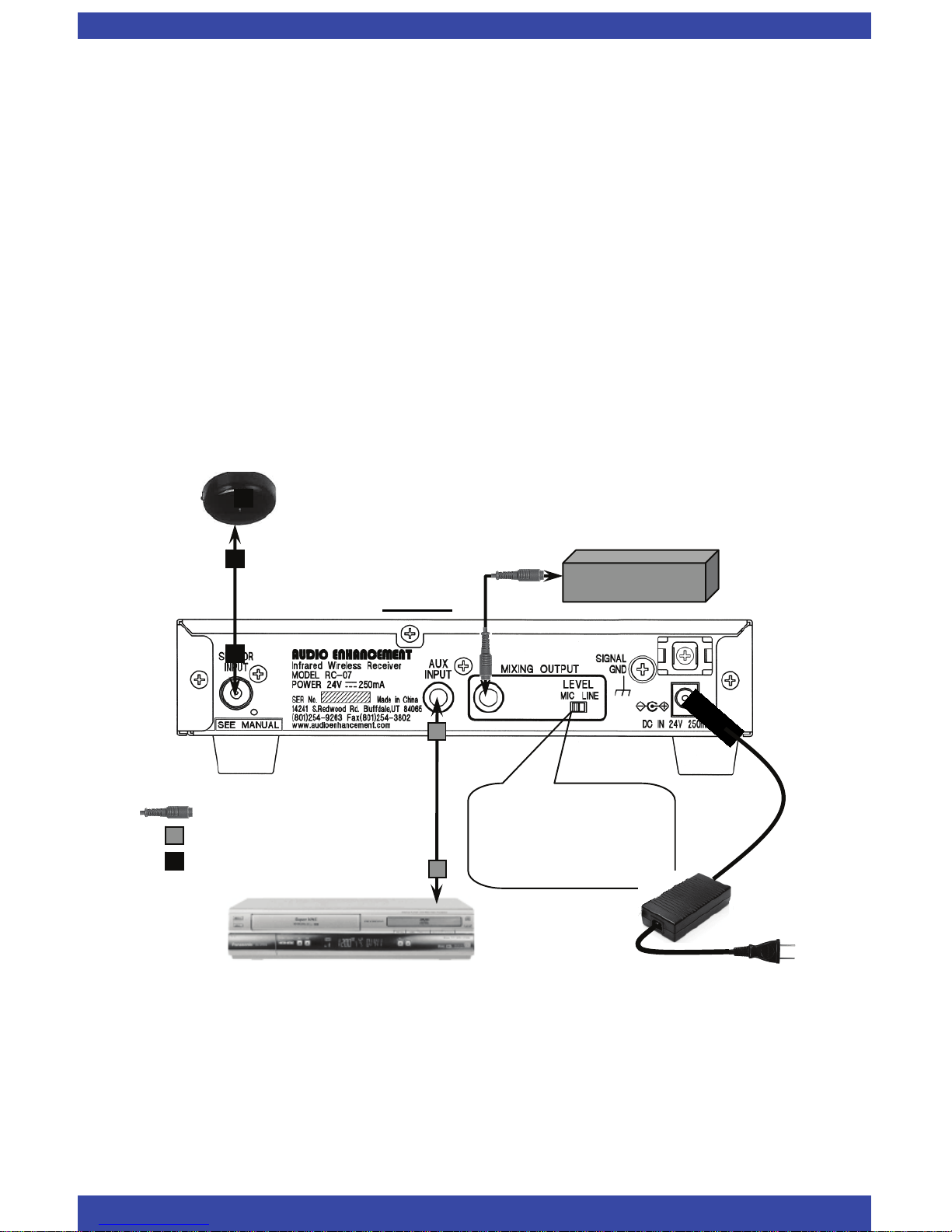

Operating Controls

RC-07 Infrared Receiver

(1) Power switch
Turns the power on/off.

(2) Power indicator
Lights "green" when the power is turned ON.

(3) Infrared Microphone Volume Control [Teacher 1 and 2]
This control is used to adjust the level of the infrared microphones.

(4) Infrared Signal Indicator ［MIC 1 IR SIGNAL, MIC 2 IR SIGNAL］

Lights "green" when the infrared wireless receiver is receiving a signal.

●AC adapter
Use the “3A-621DA24” AC adapter provided to supply power to the "RC-

07".

Front View

2 4

1

3

21

Operating Controls

RC-07 Infrared Receiver

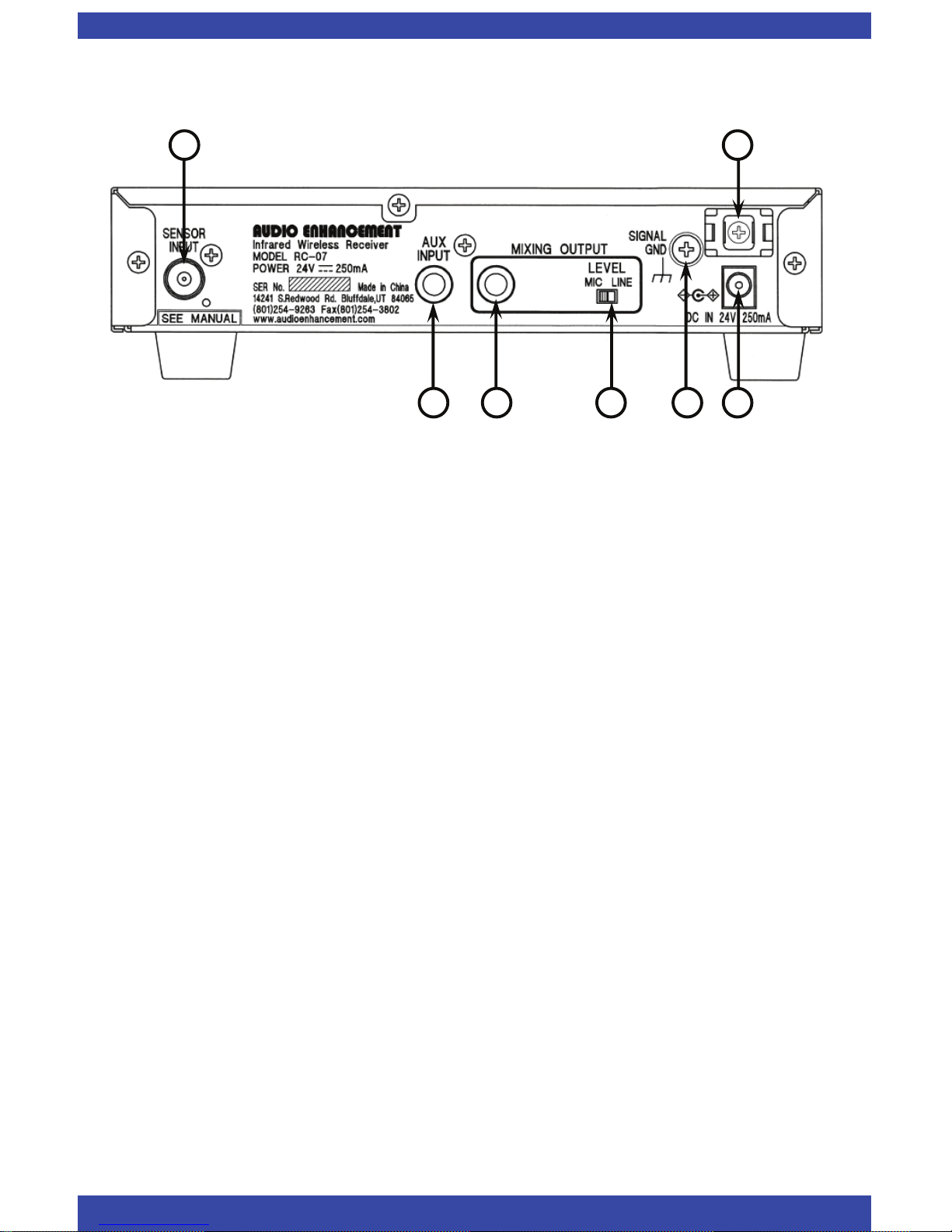

(9) DC power terminal
The AC adapter provided s up pli e s 24 V DC po wer .

(10) Sensor input terminal

Connection via F-connector and coaxial cable for the infrared sensors.
It also supplies power to the sensors (24 V).

(11)AUX input terminal
Connections for TV/DVD, CD, COMPUTER, and MP3 etc.

(12) Mixing output terminal
Provides selectable line level or microphone level signal for input into extern al
amplifier. Output provides mixed signal from both infrared microphone and auxiliary
input.

(13) Output Level Selection
Allows selection of either line level or microphone level output

(A) Ground screw ［SIGNAL GND］
(B) Mount for cable clamp - Used to bundle cables and speaker wires with tie-wraps.

10

11 12 13

9

A

B

22

(1A) Momentary power switch– Push to Talk.
(1B) Continuous power switch– Slide up to lock on
and then talk.
(2) Power indicator –lights "green" when the power is
turned either momentary or continuous.
(3) Microphone (audio pickup ) - speak into this
part of the microphone.
(4) Infrared signal emitters — the infrared signal
is broadcast from multiple infrared signal emitters.
(5) Battery case— Slide the battery cover down to
remove.
(6) Charging terminal—charging input for charging

the batteries with the AC Adapter or the battery
charger

(7) Charging indicator—The charging indicator pro-

vides a "red" light to indicate the following con­ditions when the power switch is off and the mi-

crophone is being charged.
Charging: Solid steady ON
Finished Charging: OFF
Charging error (trying to charge an alka-

line battery : Flashing very fast
(8) External Auxiliary input terminal (on the side) -
Used to connect a CD or MP3 player or other device.
Allows the user to wirelessly connect a source to the
system.
(9) Single “AA” NiMH rechargeable battery or non­rechargeable Alkaline battery.
(10) Channel assignment switch. Channel switch
(inside the battery case) - Set the channel of the infra­red wireless microphone to the desired channel.

◎ Channels 1 or 2 for use with Achiever,

Ultimate II, Innovator. Channels 1 through
4 for use with Innovator..

●Uses two Panasonic NIMH AA rechargeable batter-

1B

9

7

3

4
8

2

10

5

6

Operating Controls

STUDENT MICROPHONE

1A

To change the battery:

1. Slide the rear cover(5)
down towards the bottom
of the microphone.

2. Replace battery with a
standard “AA” NiMH
rechargeable.

Note: A standard “AA”
Alkaline cell can be used
on a temporary basis.

23

(1) Power/Mute switch: Turns the power on/off. Press and hold to turn on/off. Press momentary to

mute.
(2) Power indicator—Lights green when the power is turned ON.
(3) Microphone (audio pickup) - Speak into this part of the microphone.
(4) Infrared signal emitter The infrared signals are broadcast from multiple IR signal emitters.
(5) Battery case cover (on the back) Slide it down to remove. Requires 1 “AA” NiMH rechargeable

battery or 1 non-rechargeable Alkaline battery.
(6) Charging terminal Charging input for charging the batteries with the AC charger.
(7) Charging indicator—The charging indicator provides a "red" light to indicate the following con­ditions when the power switch is off and the microphone is being charged.
Charging: Solid Steady ON
Finished Charging: OFF
Charging error (trying to charge an alkaline battery : Flashing very fast
(8) External Auxiliary input terminal (on the side)

Used to connect a CD or MP3 player or other device. Allows the user to wirelessly connect a

source to the system.
(9) External Microphone input accepts lavaliere or headband microphones.
(10) Channel assignment switch. Channel switch (inside the battery case) - Set the channel of the
infrared wireless microphone to the desired channel.

◎ Channels 1 or 2 for use with Achiever, Ultimate II and Innovator. Channels 1 through 4

for use with Innovator. (See Page #17 for addition Channel Setting Information)

(11) UP/DOWN Remote volume contol buttons for Own (Teacher), Other(Student), and Line

sources.
(12) SELECT button –Selects which source will be controled by the remote buttons (Own, Other,

Line).
(13) Source SELECT indicators. Show which source (Own, Other, Line) is currently selected for

remote control.
(14) ‘F’ Function button—Press to activate the selected Function ‘F1’ or ‘F2’. See ‘Function’ page

on the Utlimate IISE for information on setting the Function. The ‘Own’, ‘Other’ and ‘Line’

LEDs will flash when the ‘F’ button is pressed when set to F1. These three LEDs will come on

and stay on when the ‘F’ button is pressed when set to F2. In the F2 mode the ‘F’ button must

be pressed and held for three seconds in order to activate. It can only be reset by powering off

the microphone.

Operating Controls

TEACHER MICROPHONE

4

6

3

2

5

8

1

7

Front View

10

9

11

12

13

Rear View

14

To change the battery:

1. Slide the rear cover(5)
down towards the bottom
of the microphone.

2. Replace battery with a
standard “AA” NiMH
rechargeable.

Note: A standard “AA”
Alkaline cell can be used
on a temporary basis.

24

1. Plug the charger into the wall (1) to the AC mains.

2. Connect the charging plug(s) (3) to the microphone(s)

3. The red Charging LED (4) should come on and stay on during the charging proc­ess. It will extinguish when charging is completed.

4. A flashing red Charging LED indicates a charging problem. It will flash if an
attempt is made to charge an Alkaline battery.

Charging the Microphone Battery

1

3

4

3

2

2

25

(1) Power switch. Turns the power on/off.
(2) Power Indicator. Lights “amber” whe n the power is turned ON.
(3) Infrared Microphone Volume Control [Teacher 1 and 2]. These controls

are used to adjust the level of the Teacher/Student microphones.

(4) Infrared Signal Indicator [Teacher 1 and 2]. Lights “green” when the

infrared wireless receiver is receiving a signal from a microphone.

(5) Auxiliary Input volume Controls [TV/DVD and CD/MP3]. These con-

trols adjust the volume of the auxiliary inputs connected to the input

connectors.
(6) Connector for AC adapter. Use adapter “3A-621DA24”.
(7) Auxiliary line level input connectors. 3.5mm stereo mixed-to-mono.
(8) Line level output. 3.5mm stereo (mono source).
(9) Line level output level control.

1

Operating Controls

SoloSolution

3 5

2

4

6 7 8 9

26

Operating Controls

EDS-07 IR SENSOR

1

3 4

2

5

Rear View

Front View

(1) Infrared sensor cover
Protects sensor and allows IR light to enter. – Power supplied by the receiver.

(2) Sensor connection terminal
Provides connection to the sensor input terminal of the infrared wireless receiver
via F-connectors and coaxial cable. Power for the sensor is supplied from the receiver
through the coaxial cable.

(3) Frequency selection switch ［1/2, 3/4］
Switches between [1/2]: 1ch and 2ch or [3/4]: 3ch and 4ch by changing the recep-

tion frequency.

(4) Power indicator

* Lights "green" when the frequency switch is set to [A], 1 and 2 ch.
* Lights "orange" when the frequency switch is set to [B], 3 and 4 ch.

(5) Anchor strap
Attached to the coaxial cable to prevent the sensor from falling.

27

Operating Controls

AE-DCF Coupler

(1) Infrared Sensor Connections ［F-connector］
Connect Infrared Sensors via F-connector and coaxial cable.

(2) Infrared Receiver Connection ［F-connector］
Mixed infrared sensor output provides signals from the vari-

ous infrared sensors. Connect to the sensor input terminal of the
infrared wireless receiver via F-connectors and coaxial cable.

Rear View Front View

2

1

28

Operating Procedur e

Example: Innovator

Example: Student Microphone

1. Turn the power switch on the receiver to “ON”.
(2) The power indicator lights “green”.

2. Turn the power switch (7)on the infrared wireless microphone to “ON”.
The power indicator (8) on the microphone lights “green”.

3. Adjust the volume of the system

1. Adjust the master volume (6) on the receiver to the 12-O-Clock Position

2. Adjust the level of the appropriate infrared microphone (3).

3. Adjust the level of the appropriate auxiliary input (5) to desired playback level.

◎Turn the off the power of the infrared wireless microphone and the receiver
when you are done using them.

2

1

3

6

5

7

8

8

7

Example: Teacher Microphone

29

Using the Remote Volume Control

The volume level of the infrared wireless microphones and the auxiliary inputs
can be controlled from the teardrop infrared wireless transmitter. To control the
level infrared wireless microphones and the signal level from the auxiliary in­puts.

First adjust the volume to an appropriate level with the controls that are part of
the receiver/amplifier system. Once the initial volume levels are set, the teacher
can then adjust the level of the his or her “OWN” microphone, the “OTHER”
infrared wireless microphone in the classroom, or the auxiliary “LINE” input
volume level. (The Teardrop teacher’s microphone is the only microphone that
has infrared remote control of the receiver\amplifier.)

●Adjusting the level of the audio signal output from the receiver.

1. Select the source to be controlled by pressing the “SELECT” button.
Select whether to adjust the volume of your "OWN“ microphone or the
"OTHER“ microphone or the “LINE” by selecting “OWN” ,
“OTHER” or “LINE” by pressing the “SELECT” switch" until the blue
LED is lit for the desired source.

2. Once the desired source is selected Press the volume up/down buttons.
To increase the volume level press the "“ button.
To decrease the volume level press the "" button.

【notes】

The Level is adjusted in 2dB steps from +6dB to –16dB
These electronic adjustments are automatically reset to ‘0’ when the
receiver/amplifier is turned off.
The control switch for aux “LINE” inputs does not work for the Achiever
amplifier and 2 channe l receiver (RC-07). It does work on the Ultimate II,
Innovator, and SoloSolution

Press the “SELECT”
button until the blue
LED is lit over the de­sired source.

Press to INCREASE the vol­ume of the selected source.

Press to DECREASE the
volume of the selected
source.

30

Using the Microphone as a Transmitter

(8) External input terminal on the side of the microphone.

The infrared wireless microphone can be used as a transmitter by connecting a
portable CD player or other device to the external input terminal.

1. (8) Connect an external device to the external input terminal
Connect the portable CD or MP3 player to the external input terminal (8)

with a 3.5 Stereo mini plug.

【Note】
◎The microphone element is muted when a plug is inserted into the external

input terminal.

Handheld

Teardrop

CD

8

8

31

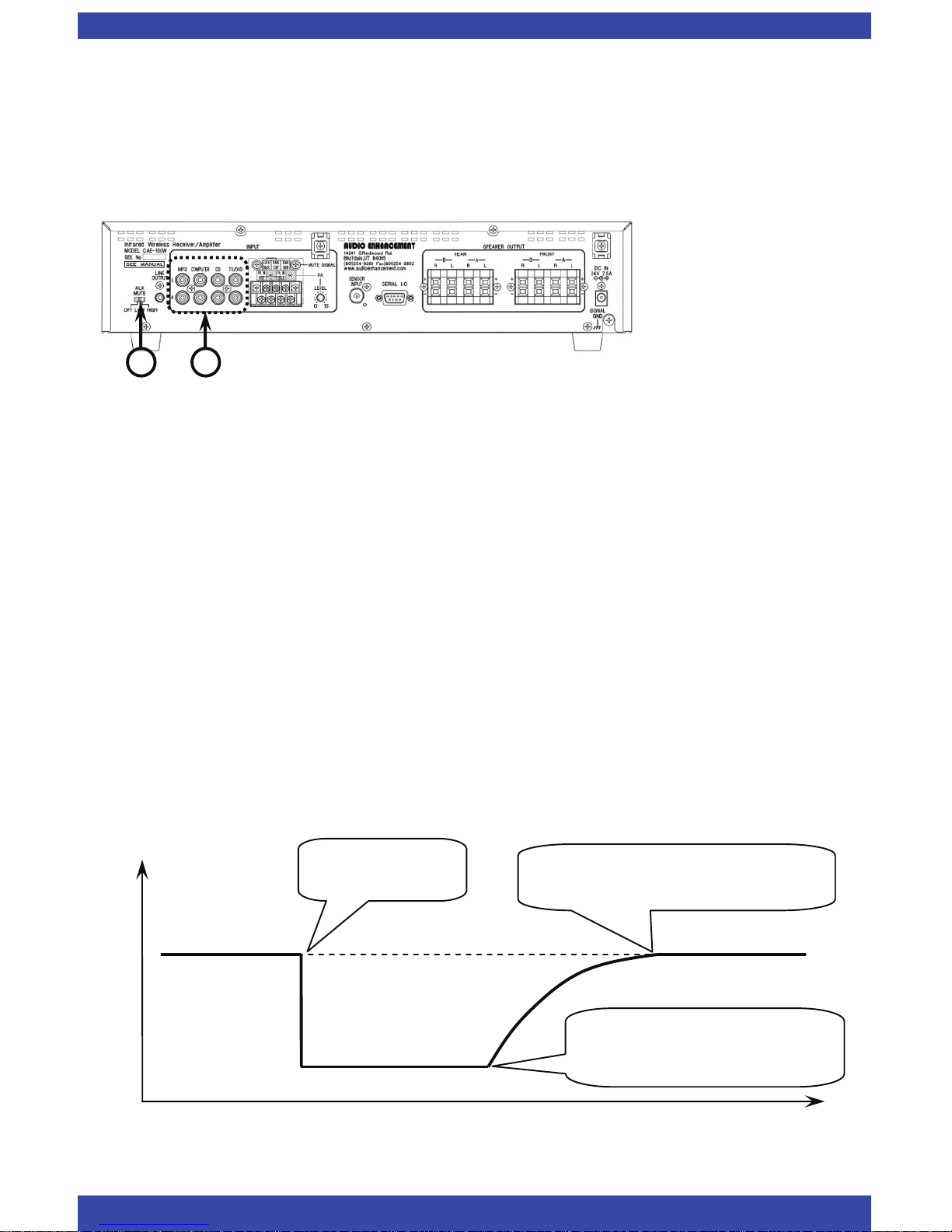

Setting the Aux Mute

(11) Input terminal

(13) AUX mute
setting switch

●Setting the Mute for the Audio Input of the Infrared Wireless Microphone Reduces the volume of the auxiliary
inputs when the teacher speaks into the infrared wireless microphone.

●Set the "(13) AUX MUTE" switch to activate this function.
 "OFF" position

・The auxiliary inputs are not muted when the teacher speaks into the infrared wire­less microphone.

◎"LOW" and "HIGH" positions
・Reduces the volume of the auxiliary inputs while the teacher is speaking into the

infrared wireless microphone. The Low setting provides for a standard level of attenuation.
The High setting provides for a faster attenuation. Set the switch to ‘low’ for normal opera­tion.

13

11

[Notes]

◎If extraneous sounds are causing the auxiliary inputs to mute at unwanted times,
set the "(13) AUX MUTE" switch in the "LOW“ position. This setting will require that a

sound source be closer to the microphone to activate the muting function.

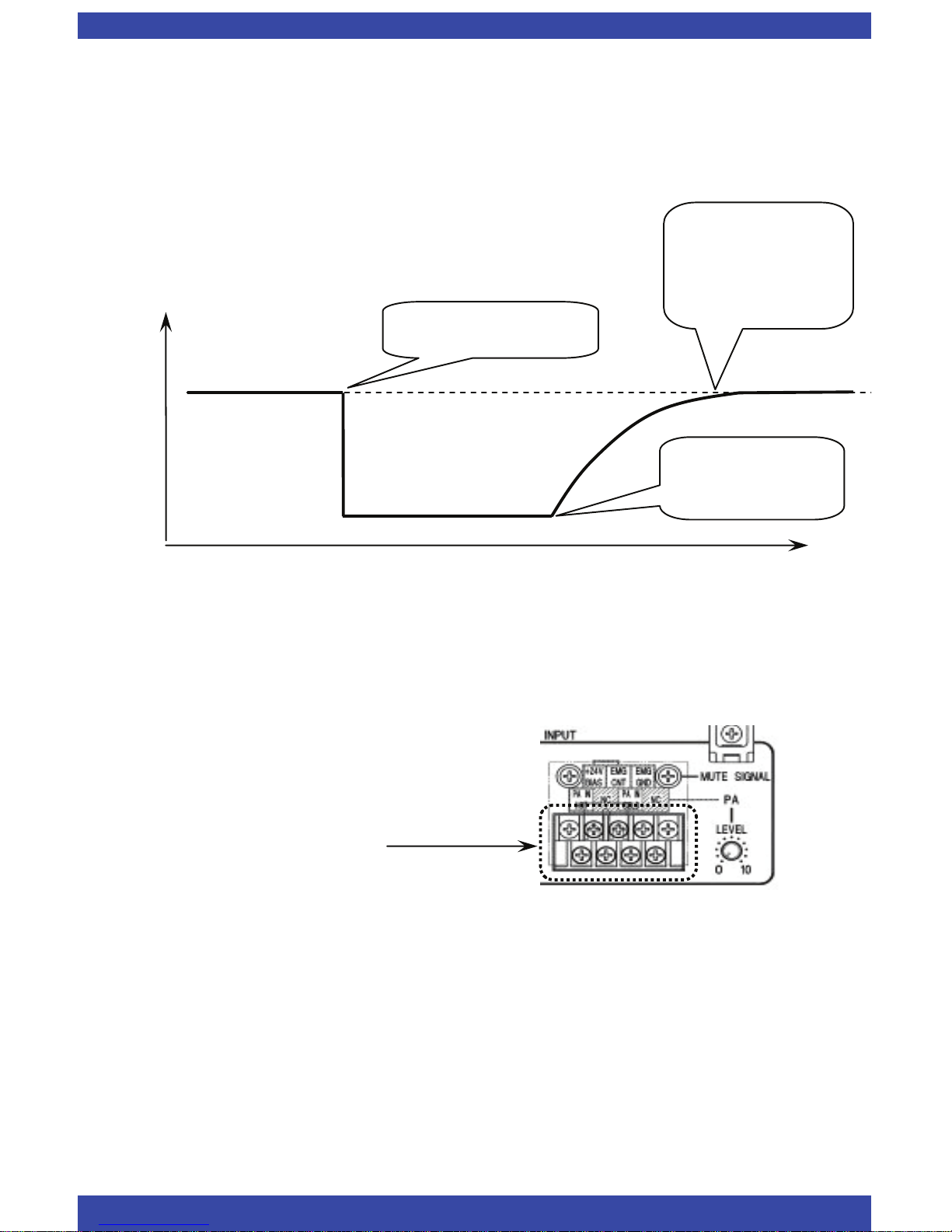

The Mute functions work as depicted below:

Muting of auxiliary

input starts

Muting function ends when

teacher stops speaking into the

microphone

Time

Volume

Auxiliary Input

level

Auxiliary input

levels reduced by

12 dB

Auxiliary Input volume returns to original

level after approximately 2 seconds

32

Installation

This connection diagram is an example of using 3 to 4 infrared wireless mi­crophones with the "Innovator" infrared r eceiver/amplifier. When using only
two microphones, one of the “EDS-07”sensors and the “AE-DCF” mixer are
not necessary. In that case, set the "frequency selector switch" on the sensor
according to the microphone channels being used.
 If you are connecting the "Ultimate II“ receiver amplifier, one or two infra­red wireless microphones can be used. With this configuration one of the
"EDS-07" sensors and the "AE-DCF" mixer are not necessary. With this con­figuration, set the "frequency selector switch" on the sensor to 1/2: 1ch and
2ch.

Innovator

EDS-07

DVD recorder

Specified AC adapter

PW-150A2-1Y-240E

Coaxial cable

Pin plug (stereo type)
F-connector

Coaxial cable

Coaxial cable

AE-DCF

1/2: 1ch/2ch

3/4: 3ch/4ch

Bundle the cables with tie wraps and
fasten them to the "mount for the cable clamp".

AC 120 V
50/60 Hz

33

Installation

Ultimate II

DVD recorder etc.

Specified AC adapter

3A-901DA24-048

・・・ Pin plug
・・・ F-connector

Coaxial

cable

1/2: 1ch/2ch
setting

Bundle the cables with tie wraps
and fasten them to the "mount for
the cable clamp".

■Connections
◎Remove the AC power cord from the power outlet when connecting the

system.

◎Use the specified AC adapter.

●Basic Connections for the "Ultimate"
◎This connection diagram is an example of using 1 or 2 infrared wireless

microphones with the "Ultimate II" infrared wireless receiver/amplifier.
With this configuration set the "frequency selector switch" on the sensor to
1/2: 1ch/2ch.

AC 120V
50/60 HZ

34

Installation

Achiever

DVD recorder etc.

Specified AC adapter

3A-621DA24

・・・ Pin plug
・・・ F-connector

Coaxial

cable

1/2: 1ch/2ch
setting

Bundle the cables with tie wraps
and fasten them to the "mount for
the cable clamp".

■Connections
◎Remove the AC power cord from the power outlet when connecting the

system.

◎Use the specified AC adapter.

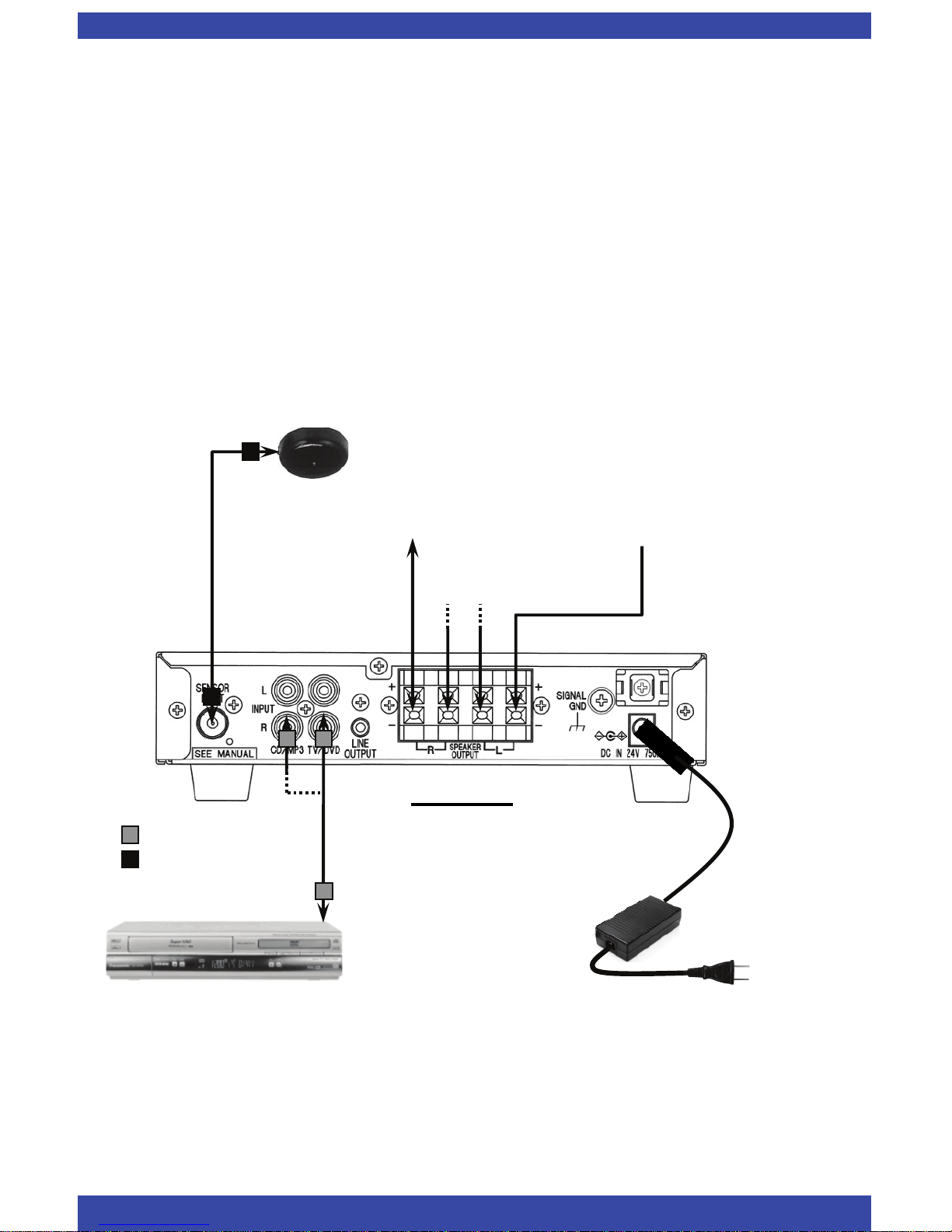

●Basic Connections for the "Achiever"
◎This connection diagram is an example of using 1 or 2 infrared wireless

microphones with the "Achiever" infrared wireless receiver/amplifier. With
this configuration set the "frequency selector switch" on the sensor to 1/2:
1ch/2ch.

AC 120V
50/60 HZ

35

Installation

RC-07

EDS-07

DVD recorder etc.

Specified AC adapter

3A-621DA24

・・・ Pin plug
・・・ F-connector

Coaxial

cable

1/2: 1ch/2ch setting

Bundle the cables with tie wraps and fasten
them to the "mount for the cable clamp.”

・・・ TS phone

Amplifier

Switch the level to
"MIC/LINE" according
to the type of input on
the amplifier.

■Connections

◎Remove the AC power cord from the power outlet when connecting the sys-

tem.

◎Use the specified AC adapter.

●Basic Connections for the "RC-07"
◎This connection diagram is an example of using 1 or 2 infrared wireless micro-

phone with the "RC-07" infrared receiver. With this configuration set the
"frequency selector switch" on the sensor to 1/2: 1ch/2ch.

AC 120V
50/60 HZ

36

Installation

Innovator

EDS-07

Coaxial cable

F-connector

Coaxial cable

Coaxial cable

AE-DCF

1/2: 1ch/2ch

1/2: 1ch/2ch

EDS-07

3/4: 3ch/4ch

3/4: 3ch/4ch

EDS-07 EDS-07

Coaxial cable Coaxial cable

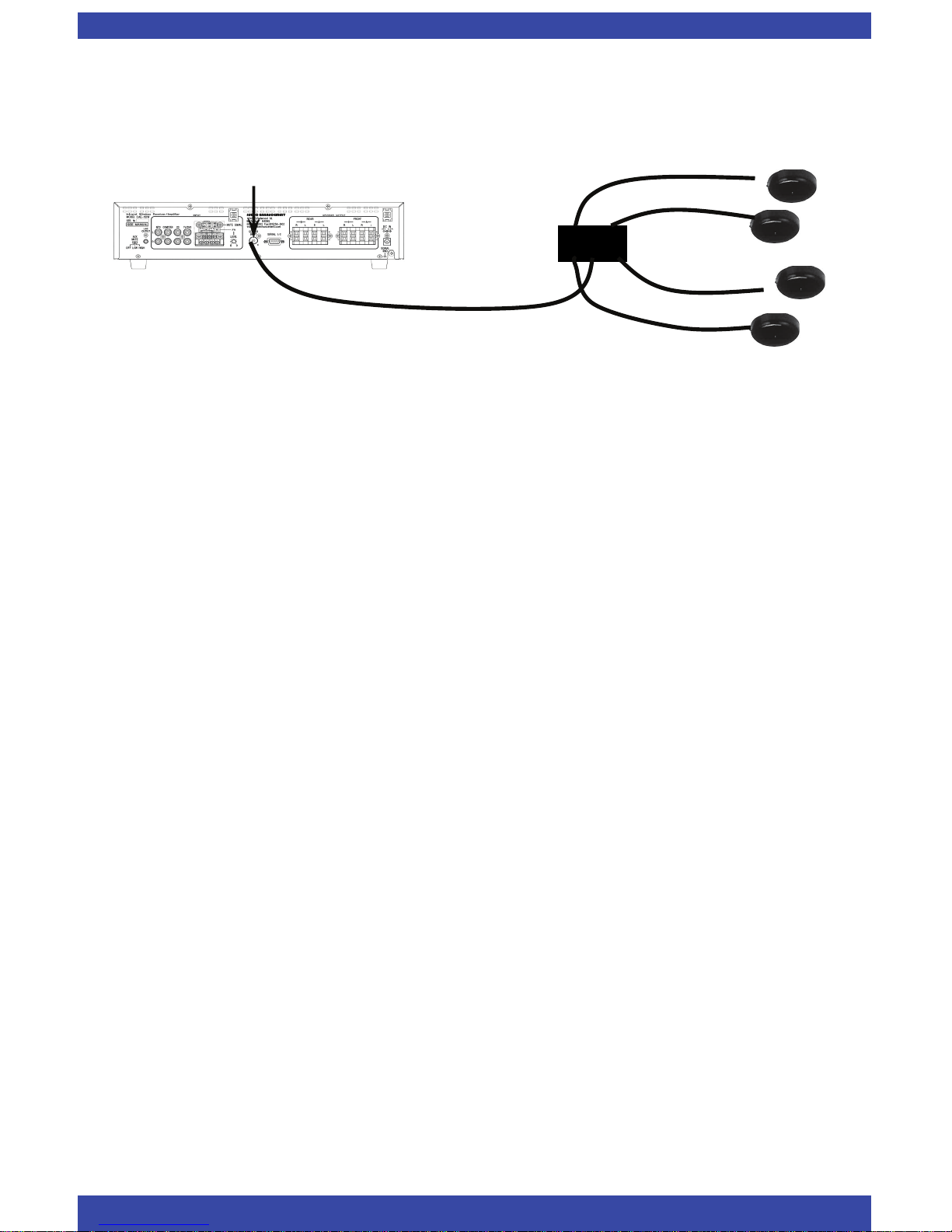

●For Reception in Large Areas

This connection diagram is an example using from 3 to 4 infrared wire­less microphones with the "Innovator“ receiver/amplifier. For reception in large ar­eas, add two "EDS-07" sensors as shown below.
Up to 4 "EDS-07" sensors can be added to any receiver/amplifier. With
this configuration, set all the "frequency selector switches" to 1/2: 1ch/2ch.

Specified AC adapter

PW-150A2-1Y-240E

AC 120
50/60 HZ

37

Installation

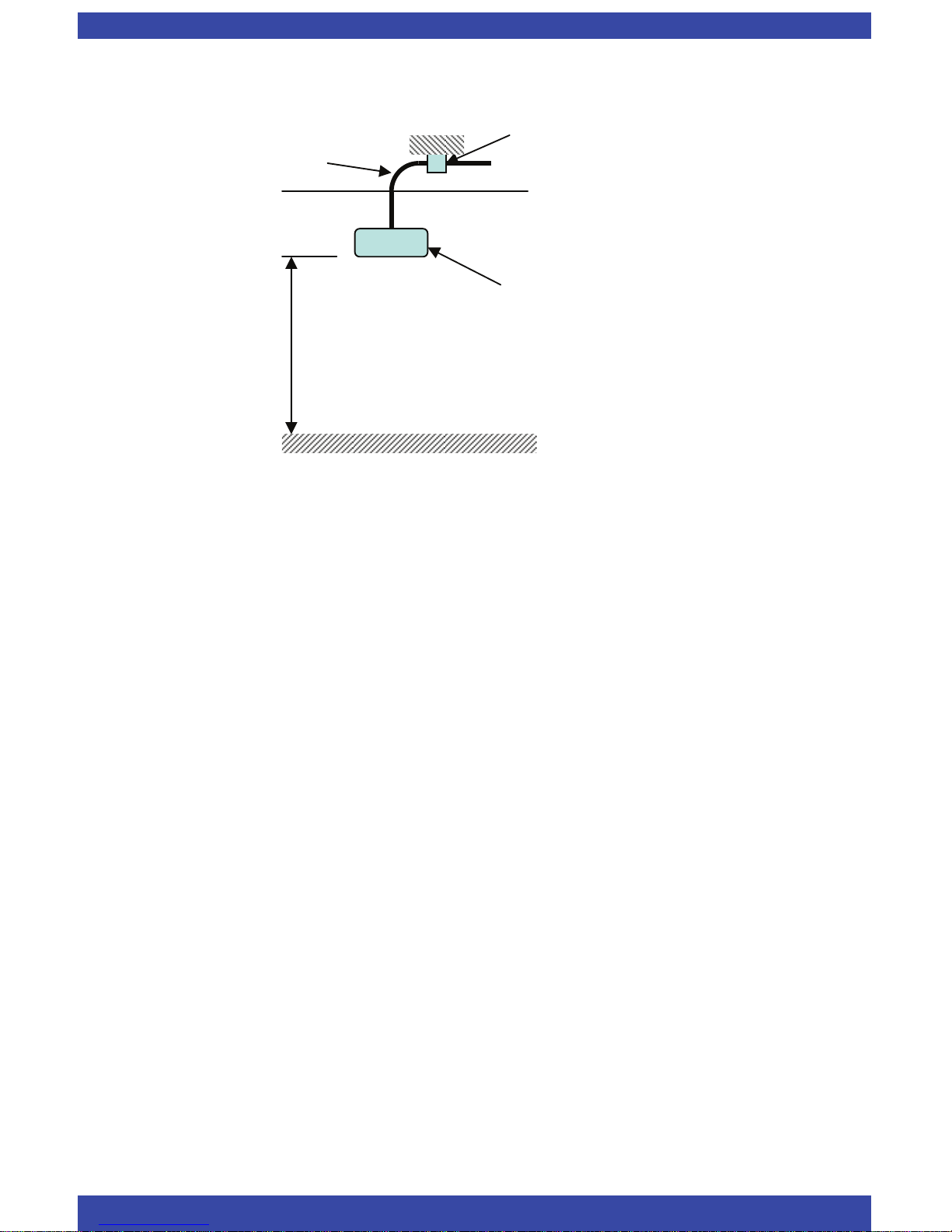

●Precautions for Installing the Sensors
◎Install the infrared sensors in a position that allows them to receive the infrared signal

regardless of the teachers movement around the classroom.
◎Do not install the sensors in direct sunlight or directly in front of strong lighting fix-

tures.

In particular, in case of the sensor is installed near by a window. Even if the sensor is
not in direct sunlight, reflections from sunlight may reduce the effective range of the
sensor. Install the infrared sensor as far away as possible (more than 5 meters) from a
window. In spite of installed far away more than 5 meters from the windows, the effec­tive range of the sensor is not improved, try to install more and more far away from a
windows, or try to use curtains or blinds for protection from the sun .

Caution: Possible Interference from Plasma Screens
Plasma screens can generate signals that interfere with IR audio systems. To

reduce interference, choose a plasma display which is equipped with an optical IR filter.
If this is not an option, please install IR sensor with the guidelines on page 38 in mind.

More than two meters

Floor

Ceiling

Sensor

Coaxial cable

Fix coaxial cable

38

Installation

●Precautions for Installing the Sensors

・Install the infrared sensor in a position from which the screen of the plasma

display cannot be seen, in other words, in the zone which is crosswise direction
or behind from plasma display, and install the infrared sensor as far away as pos­sible (more than 10 meters) from the plasma display.

・Keep the infrared microphone and the photoreceptor sensor as close as
possible (less than 3 meters).
・Please use the infrared microp ho ne ke epi n g no screen (include human

body ) between the infrared microphone and the photoreceptor sensor.
◎Install the infrared sensor as far away as possible (more than 1 meter)

from fluorescent lighting.
◎The sensors may not operate if there is a strong source of electro-

magnetic noise (i.e. fluorescent lighting ballasts) causing interference. Install the
sensor far enough away from the noise source.

◎The sensors are designed for ceiling-heights from two to four meters
(6 to 12 feet). If the ceiling height exceeds this height the effective range of the

sensor may be reduced.

Caution: Attach the coaxial cable used to connect the infrared sensor to the re­ceiver to structure above the ceiling. This will prev ent the sensor from falling
should the screws come out. (Refer to diagram on page 34)

39

Installation

Anchor strap

Coaxial cable

Adjuster

Ceiling panel

Installation bracket

Installation screw

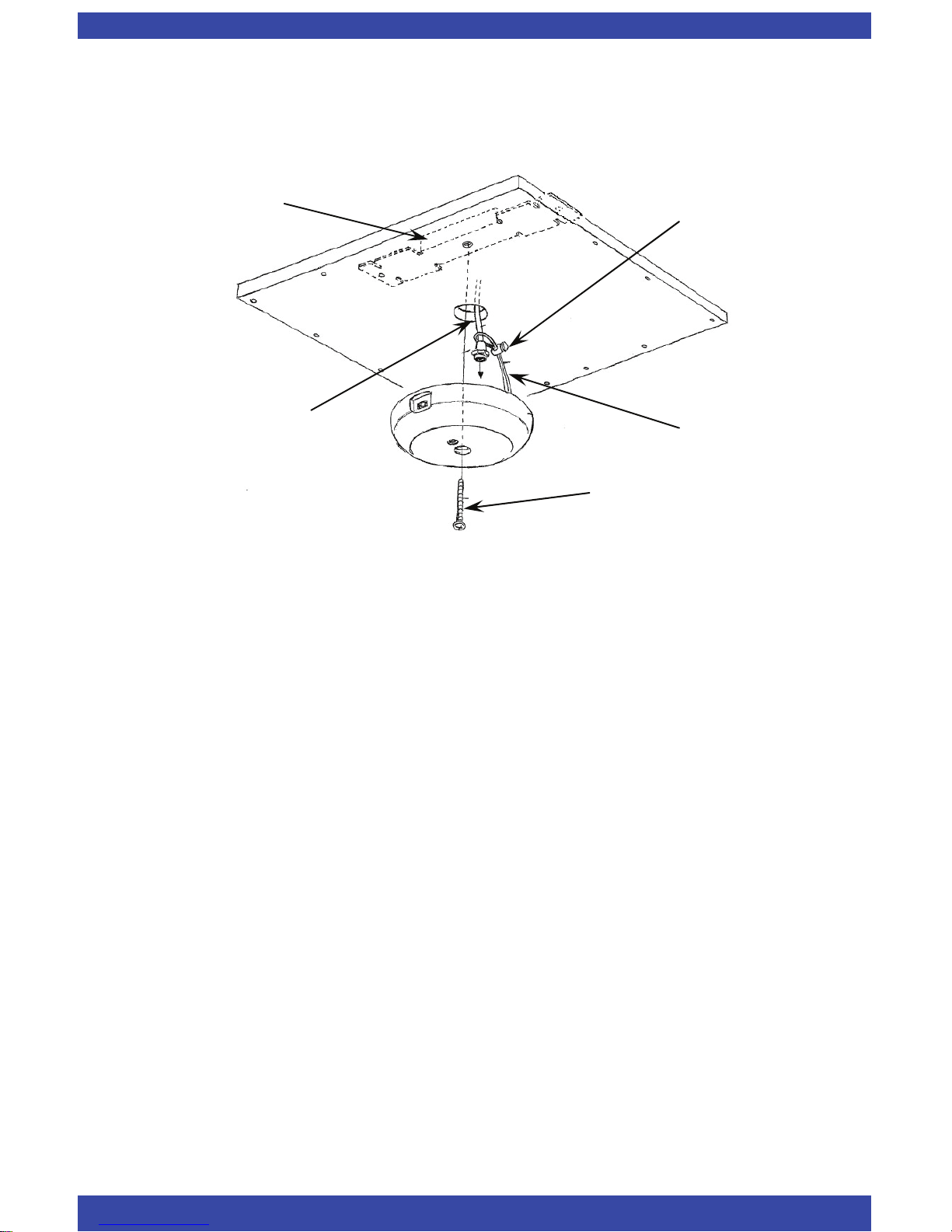

●Installing the Sensors: Part 1

Install the sensors as shown below if the coaxial cables have been routed through
the ceiling and the ceiling panels can be removed.

1. Cut a hole in the ceiling panel.
Remove the ceiling panel and cut a hole about φ30 mm in it and pull the cable

through it.

2. Attach the anchor strap.
Put coaxial cable through the anchor strap and tighten the adjuster.

3. Install the sensor.
Push the coaxial cable and the safety strap back into the hole.
Put the screw through the sensor and screw it into the installation bracket.

Tighten the screw.

4. After installation, make sure nothing is loose.
Do a visual check and make sure that nothing is unsteady and the screws are

tight.

40

Installation

Installation Bracket:

Diagram for bending

Bend it according to the

grooves.

Anchor strap

Coaxial cable

Adjuster

Ceiling panel Installation-

bracket

Installation

screw

Screws

●Installing the Sensors: Part 2

If the coaxial cables cannot be routed through the ceiling, you can install the
sensors as shown below if the ceiling panels cannot be removed.

1. Bend the installation bracket. Bend the installation bracket as shown in the
diagram above.

2. Attach the installation bracket to the ceiling. Attach the installation bracket
to the ceiling with the screws.

3. Attach the anchor strap. Put coaxial cable through the anchor strap and
tighten the adjuster.

4. Install the sensor. Put the screw through the sensor and screw it into the instal-
lation bracket. Tighten the screws.

5. After installation, make sure nothing is loose. Do a visual check and make
sure that nothing is unsteady and the screws are tight.

Caution: The screws for attaching the installation bracket to the ceiling panel are
not provided. Procure these screws separately according to the material, construction
and weight of the ceiling panel.

41

Installation

Receiving from1ch/2ch(3ch/4ch)

●Range and Expansion of the Sensor Reception

◎One dome type infrared sensor has a practical range of approximately 24’.
◎Use the "AE-DCF" mixer to increase the number of sensors to cover a larger room.

A total of four sensors can be added by using the "AE-DCF"

Approximately 24’

Room

For one photoreceptor sensor

For four

photoreceptor sensors

For two photoreceptor sensors

Receiving from 1ch to 4ch

For one set of photoreceptor sensors

For two sets of

photoreceptor sensors

： 1ch/2ch setting

： 3ch/4ch setting

Room

Room

Room Room

Approximately 24’

Approximately 24’

Approximately 24’

Approximately 24’

Approximately 24’

Approximately 24’

Approximately 24’

Approximately 24’

Approximately 24’

42

Installation Coaxial Cables

INNOVATOR

Coaxial cable ：Ｄ

AE-DCF

EDS-07

Coaxial cable ：Ａ

Coaxial cable ：Ｂ

Coaxial cable ：Ｅ

Infrared sensor connector

Coaxial cable ：

●The following types and lengths of coaxial cables are recommended:
Use the following lengths and types of coaxial cables to connect the main unit and

the sensors.

◎Coaxial cable length ・・・・・・・・・ Less than 300’
◎Coaxial cable type ・・・・・ RG6

●When using the "AE-DCF" sensor coupler
Keep the total length of coaxial cable from the main unit to the coupler "coaxial

cable length: A" and from the coupler to each sensor "coaxial cable length: B to
E" within a range of 300 feet.

【Caution】

Keep the differences of the length among cables from AE-DCF to EDS-07
(among cables B to E) less than 36’.

43

Installation Coaxial Cables

INNOVATOR

Coaxial cable ：Ｄ

AE-DCF

Coaxial cable : A

Coaxial cable ：Ｂ

Coaxial cable: Ｅ

Infrared sensor connector

Coaxial cable C

◎Part 1 [Good example]

Coaxial cable length: If A = 120’, B = 24’, C = 12’, D = 18’, E = 30’
【Results】

Coaxial cable: B to E are less than 36’, and the cable length of "A: 120’ + E:
30’ = 150‘ “, therefore, there is no problem with a cable lengths. ( It is within a range of
300’. )

◎Part ２ [Good example]

Coaxial cable length: If A = 180’, B = 90’ , C = 105’, D = 75’, E = 99’
【Results】

Coaxial cable: the length of cables B to E: “ (maximum:105’ ) –
(minimum:75’) = 30’ ”,therefore,
there is no problem with a cable length. ( It is within a range of 36’. )
The cable length of "A: 180’ + C: 105’ = 285‘ “, therefore, there is no problem with
a cable
length. ( It is within a range of 300’. )

◎Part ３ [Bad example]

Coaxial cable length: If A = 150’, B = 120’, C = 135’, D = 150’, E = 165’
【Results】

Coaxial cable: the length of cables B to E: “ (maximum:165’ ) –(minimum:120’)
=30’ ”,
therefore, there is a problem with a cable length. ( It is over the range of 36’.)
The cable length of "A: 150’ +E: 165’ = 315‘; therefore, there is a problem with a
cable length. (It is over the range of 300’).

44

Setting the PA Aux Mute

Caution : Wiring for the PA Input are fixed to the screw terminals.
The torque for the screws is 0.98 N・m}0.1 N・m

(10kgf・cm}1 kgf・cm)

Be sure to switch the amplifier off before connecting the wires.
Carefully check the polarities before connecting it. Connection
to the wrong polarity will cause trouble.

Screw terminals

Muting of auxiliary input

Mute finished when

inputs turned off

Time

Volume

Auxiliary Input

Level

Auxiliary input

levels reduced by

12 dB

Auxiliary Input
volume returns
to original level

after approximately

10 seconds

(Continued from previo us page)

The mute function works as shown below:

45

Setting the PA Aux Mute

(11) Auxiliary Inputs

(15) PA input terminal

(16) PA input volume

PA cold signal PA hot signal

●Setting the Mute for the PA Input

The Auxiliary Muting function reduces the volume of the audio signals that are
coming into the auxiliary input terminals every time an announcement over the PA
system is made. This is accomplished by wiring the high impedance signal (70 or 25
Volt) from the PA system to the PA input terminals.

Adjust the audio level of the PA system that is connected to the ‘hot’ and ‘common’
terminals of the PA input terminal (15) with the PA input volume (16), as shown in
the diagram.

【notes】
The AUX mute for the PA input terminal operates independently from the

teacher voice mute settings.
Every time the PA system is activated, the announcement is reproduced
by all of the speakers attached to the main unit.

(Continue to next page)

11

15 16

15

16

46

Setting the EMG Aux Mute

To activate the mute function, use a terminal
jumper to connect the "+24 V BIAS“ terminal
(17) and the "EMG CNT“ terminal. With the
jumper in place, the auxiliary inputs will be
muted when a page is received. To deactivate
the muting function, connect the EMG termi­nal to the "EMG GND" terminal as shown
in the diagram at right.

●Setting the Emergency Mute Function
The Emergency Mute Function (EMG) (17) allows selection of
whether or not the audio level of the auxiliary inputs (11) is muted when a
page is received from the PA system.

【notes】
The AUX mute for the PA input terminal operates independently from the

teacher voice mute settings.

(Continue to next page)

(11) Input terminal
(17) EMG input
terminal

17 11

Jumper

17

47

Setting the EMG Aux Mute

Caution : Wiring for the ENG Input are fixed to the screw terminals.

The torque for the screws is 0.98 N・m±0.1 N・m (10 kgf・cm±1 kgf・cm)

Muting of auxiliary

input starts

Muting finished when

inputs turned off

Time

Volume

Auxiliary Input

Level

Auxiliary input

levels reduced by

12 dB

Auxiliary Input volume re-

turns to original level after

approximately 2 seconds

(Continued from previo us page)

The mute function works as shown below:

Be sure to switch the amplifier off before connecting the wires.
Carefully check the polarities before connecting it. Connection to the
wrong polarity will cause trouble.

Screw terminals

48

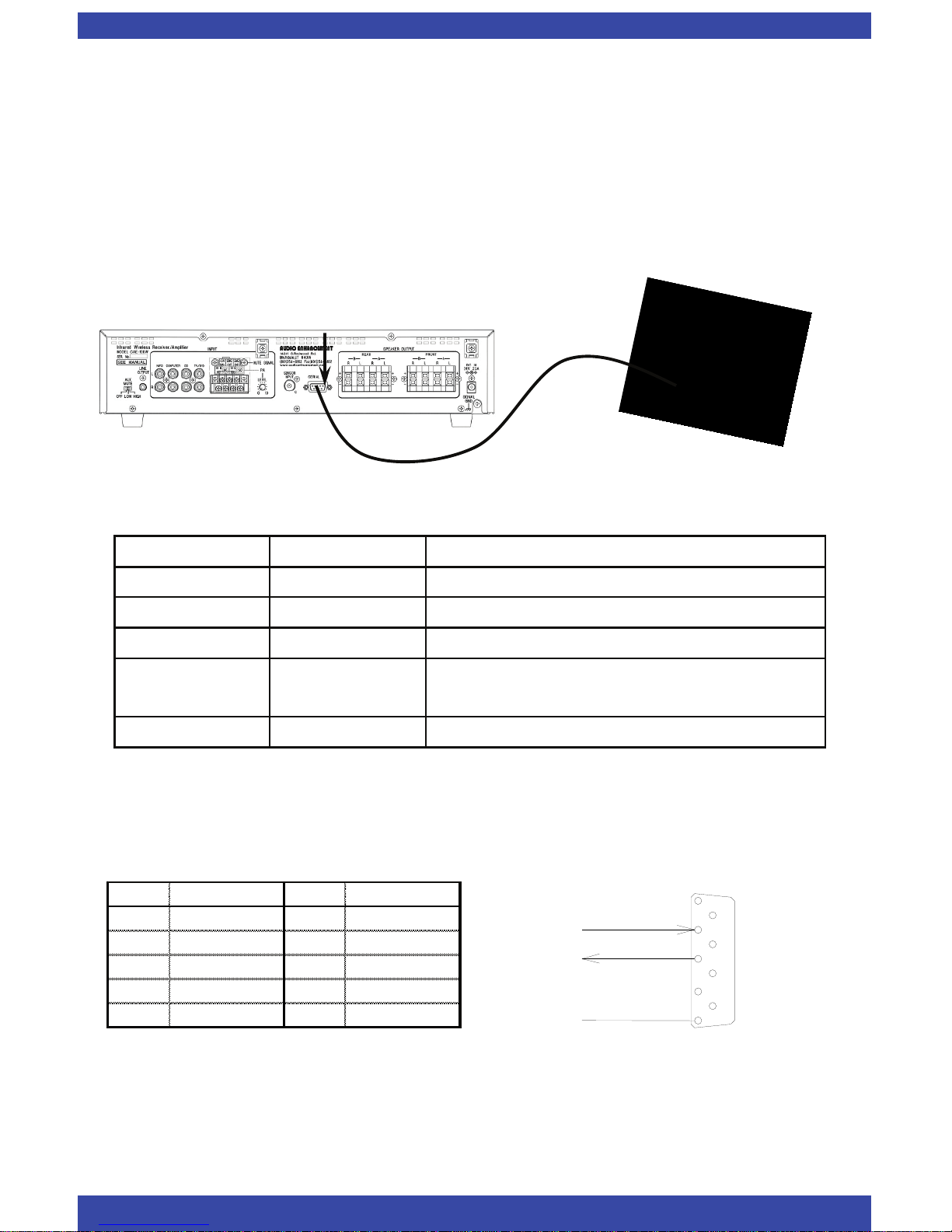

About External Control

Cable

Innovator

(18) Serial transmission
terminal

The Audio levels of the "Innovator“ can be remotely controlled by connecting it to a
personal computer via a serial port. The microphone levels can be controlled independ­ently, the auxiliary inputs are controlled as a single mixed signal.

●About connections

Connect the "CAE-100W" and the personal computer with a cable as shown below.

●Serial transmission connection (RS232C) specifications

The "INNOVATOR" specifications are shown below.

Signal Level Contents Description
Sync.method Asynchronous Synchronizes every 1 character (8 bits)
Baud rate 9600bps Data transfer speed
Parity None Error detection method

Character length 8bits Number of bit composing 1 character
Stop bit 1bit Uses stop bit when asynchronous method

Cable Type : Cross
Maximum Cable Length less than 15m (40 feet)

PIN NAME PIN NA ME

1 N.C. (DCD) 6 N.C. (DSR)
2 RXD 7 N.C. (RTS)
3 T XD 8 N.C. (CTS)
4 N.C. (DTR) 9 N.C. (RI)
5 GND ---

●Information about Connectors

RXD

GND

TXD

1

9

2

4

5

3

6

7

8

[notes]
◎Contact your local representative for additional information on controlling

the Innovator from computer via the RS-232C input

Personal computer or

AV controller

49

Precautions for Installation

● Precautions for Installing the Infrared Receiver and Infrared Receiver/Amplifier

◎Infrared Receiver and Infrared Receiver / Amplifier will produce small amounts of heat.
Provide a minimum of 10 cm when installing the amplifier close to the ceiling or wall.

 Infrared Receiver and Infrared Receiver / Amplifier are for indoor use only.

They cannot be installed and used in any of the situations below:

・In a place where they can get wet.
・Where chemicals are used including under the eaves (ex. pool)
・Places that contain high amounts of steam, oil, or a flammable atmosphere.
・Places where radiation, such as X-ray or high radio waves magnetism are present.
・On the ocean, beach or place where corrosive gas, such as hot spring is present.
・In a place where high levels of vibration are present such as on a vehicle, or marine ves

sel.
◎When using the provided bracket, note the following points.

・Select a sturdy wall to install.
・Insure that the appropriate fasteners or screws are used, and that they are rated appro

priately for the load they will be required to carry.
・Insure that all the all directions from the manufacturer of the anchor, fastener or screw

are followed.

・Do a visual check and make sure that nothing is unsteady and the screws are tight.
◎Note the following points when tightening bolts and screws.
・Proper torque must be applied to all bolts and screws.
・A torque wrench or a torque driver are required to set the proper torque.
・It is difficult to get the proper torque with an impact driver or electric driver even if it has

a clutch; therefore, they should not be used as they may damage the parts for the insta l la
tion.

◎Note the following points when installing the Innovator or Ultimate II Infrared Receiver/
Amplifier into a rack.

・When mounting to a rack, remove the rubber feet from the base of the unit.
・When installing near other heat-sensitive equipment, install the other equipment lower

than the receiver/amplifier system.
・Install rack in a such a manner as to provide for sufficient airflow to maintain a tempera

ture of no more than 40 in the rack.

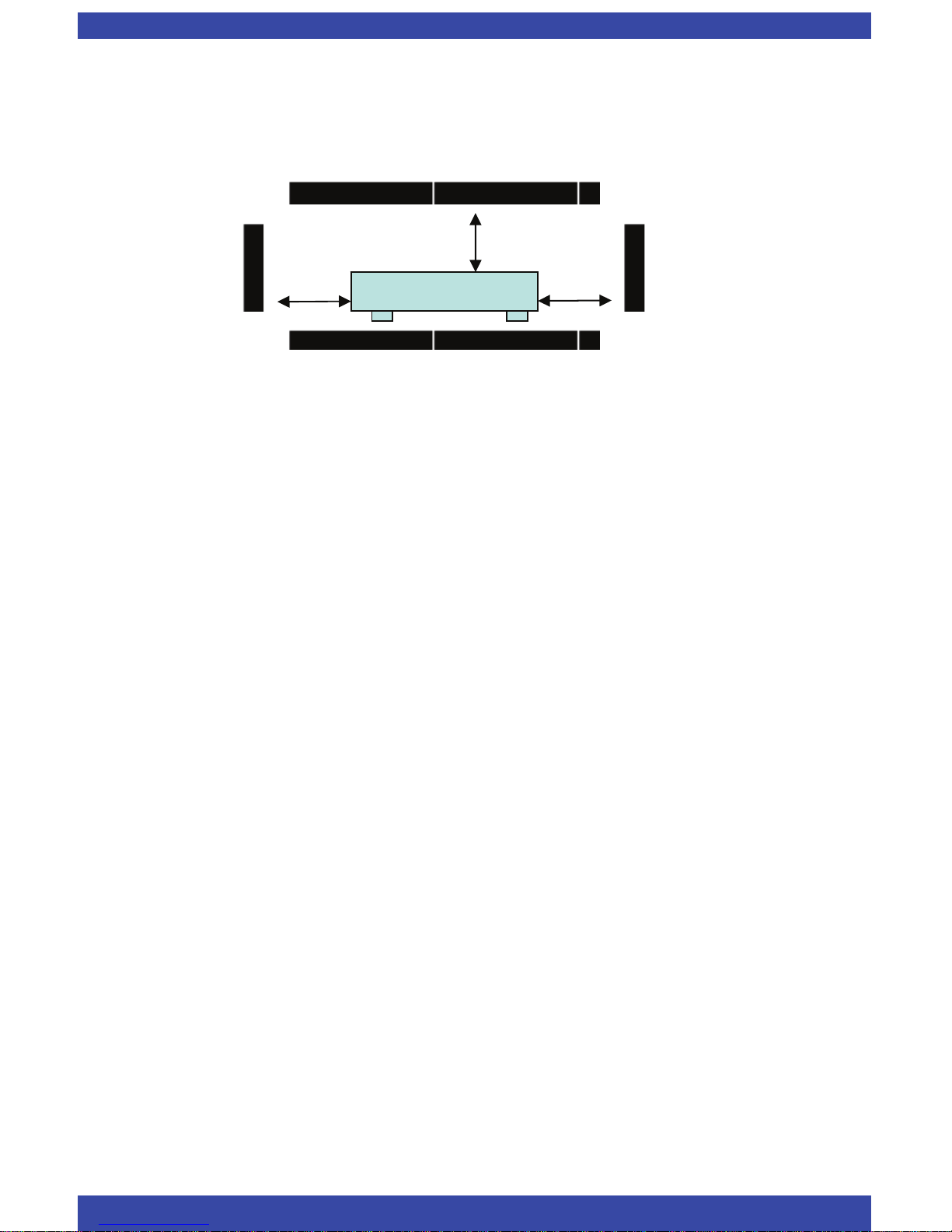

More

Than 10

cm

More
Than

10 cm

More
Than

10 cm

Front

side

50

Installing the Bracket

Installing MTBR-07L(STC-98014) for the Ultimate II and Innovator Receiver
Amplifier Please carefully read the following assembly, installation and safety
instructions before installation of MTBR-07L Bracket for Ultimate II and
Innovator Receiver Amplifier.

1. Installa tion Surface

– The enclosed accessories are suitable only for
attaching to walls made of solid concrete or wood studs. Do not
install to sheet rock or wood panel.

2. Tighten all the nuts using the wrench supplied with the mount. The

nub must be tightened until the threading of the screw passes the
plastic part of the nut.

3. Make sure that MTBR-07L Bracket is installed so the tra y is above

average head height and doesn’t disturb free movement in hallways.

4. You must test t he MTBR-07L Bracket before

setting Ultimate II or

Innovator Receiver Amplifier.

5. Calculate the maximum weight allowed on the mount by

multiplying the specified weight (this weight will be specified in
the packaging of the bracket) by 1.75. (I.e. weight x 1.75).

6. Check that Ultimate II or Innovator Receiver Amplifier is securely

fastened to the bracket so it will no t fall forward.

7. One month after installation and every six months after that, check

that MTBR-07L Bracket is securely fastened to the wall and the
screws and nuts are not loosening. In case of weakening, remove
Ultimate II or Innovator Receiver Amplifier, and strengthen all the
points that have weakened.

8. Before reinstalling MTBR-07L Bracket, remove Ultimate II or

Innovator Receiver Amplifier first and then remount according to this
manual instructions.

51

Installing the Bracket

Installing the UltimateII and Innovator Receiver Amplifier on MTBR-07L

Install the Ultimate II and Innovator Receiver/Amplifier as described
below.

1. Fix the main unit to the bracket.
Use 2 screws to fix the bracket to the side of main unit.

2. After installation, make sure nothing is loose.
Do a visual check and make sure that nothing is unsteady and the

screws are tight.

Warning for the Installation the Bracket
Fix the bracket and the wire lope to the wall.
Please secure enough strength for the installed wall.

Wire Lope Requirement
Diameter : more thanφ1/16 inches
Material : High carbon steel wire rods

Caution: Please confirm to the wall there is enough strength to support the Infra­red receiver with the bracket. 106KG is five times weight about the sensor neces­sary above. Please do not install it in plasterboard. Please reinforce it when strength
is insufficient. Please secure the AC adapter as follows when it is required to be
installed higher than 30 inch from floor.

*Use metal tie-wrap and tie up two parts with something secure, 1) the
brick of the AC adapter (make sure tie it using more than two tie-wraps apart from
each other, 2)DC side cable at the very close point to the brick.

To the wall

Wire lope

MTBR-07L (STC-98014)
Bracket

52

Installing the Bracket

Installing MTBR-07S(BT77) Bracket for Infrared Receiver RC-07 and
Achiever Receiver/Amplifier

Please carefully read the following assembly, installation and safety
instructions before insta llat ion of MT BR-07S B racket for I nfrared Receiver

RC-07 and Achiever Receiver/Amp lifier.

1. Ins tallat ion Su rface

– The enclo sed accessories are suitable on ly

for attaching to wa lls made of solid con c r e te or wood stu ds. Do not
install to sh e e t rock or wood pa nel.

2. Tighten all the nuts usin g appropriate wrench .

3. Make sure that MTBR-07S Brac ket is in stalle d so the tray is a bove

average head height and doesn’t disturb free movem ent in hallways.

4. You must test the MTBR-07S Bracket before

setting Infrared

Receiver RC- 07 o r Achiever Receiver/Amp lifier.

5. The maxim um weigh t allowe d on t he mount is 55 l bs.

6. Check that the Infrared Receiver RC-07 or Achiever

Receiver /A mplifi er is securely f a stened to the br a c ket so it w ill not
fall forward.

7. On e month after installation and every si x months afte r that, check

that MTBR-07S Bracket is sec urely fasten ed to the wall and the
screws and nuts are not loosening. In case o f weak en ing, re move

Infrared Receiver RC-07 or Achiever Receiver/Amplifier, and
strengthen all the po ints that have weakened.

8. Before reinstalling MTBR-07S Bracket, remove the Infrared

Receiver RC-07 or Achiever Receiver/Amplifier, first and then
remo unt accor ding to this man ual ins tructions.

53

Installing the Bracket

● The Infrared Receiver RC-07 and Achiever Receiver/Amplifier on MTBR-07S
Install the Infrared Receiver RC-07 and Infrared Receiver / Amplifier

Achiever as described below.

1. Fix the main unit to the bracket.
Use 2 screws to fix the bracket to the side of main unit.

The torque for the screws is 1.18 N・m±0.2 N・m (12 kgf・cm±2 kgf・cm)

2. Fix the adjustment bolts.
The torque for the screws is 1.18 N・m±0.2 N・m (12 kgf・cm±2 kgf・cm)

3. After installation, make sure nothing is loose.
Do a visual check and make sure that nothing is unsteady and the screws are tight.

4. Fix the wire lope to the wall.

Warning for the Installation the Bracket
Fix the bracket and the wire lope to the wall.
Please secure enough strength for the installed wall.

Wire Lope Requirement
Diameter : more thanφ1/16 inches
Material : High carbon steel wire rods

Caution: Please confirm to the wall there is enough strength to support the Infrared Receiver
with the bracket. 106KG is five times weight about the sensor necessary above. Please do not in­stall it in plasterboard. Please reinforce it when strength is insufficient.

Please secure the AC adapter as follows when it is required to be installed higher than 30 inch from
floor.
*Use metal tie-wrap and tie up two parts with something secure, 1) the brick of the
AC adapter (make sure tie it using more than two tie-wraps apart from each other, 2)DC side cable
at the very close point to the brick.

To the wall

Wire lope

MTBR-07S (BT77)
Bracket

54

Fuse Part Numbers

CAE-100W CAE-50W CAE-20W RC-07
F101 021806.3MX P 0218004.MX P 021802.5MX P 0218.315MX P
F401 0218002.MX P 0218002.MX P 0218002.MX P
F402 0218002.MX P 0218002.MX P 0218002.MX P
F403 0218002.MX P 0218002.MX P
F404 0218002.MX P 0218002.MX P
F701 0218002.MXP
F702 0218002.MXP
F703 0218002.MXP
F704 0218002.MXP

Manufacturer: Littelfuse, Inc.
Series: 218

TABLE: Part Number of Fuse

Innovator

Ultimate II

Achiever RC-07

55

TURN on the transmitter (green LED will indicate power, red

LED indicates that batteries need to be recharged).

POWER on the amplifier (red LED will indicate power; green

LED by teacher volume control indicates receipt of IR signal).

TRANSMITTER/MICROPHONE needs to be worn in a way as

to have a clear path to the receiving sensors.

POSITION the transmitter/microphone six inches from your

mouth.

RELAX and speak at a comfortable level. Remember, you do not

have to project your voice.

CHARGE the batteries every day. Ni-MH batteries will last for 6-

8 hours of continuous use. Recharge for at least 12 hours
(overnight). (Ni-MH-Batteries need to be replaced annually.)

HAVE ANOTHER PERSON MONITOR your amplified voice

from time to time to make sure it is not too loud.

Teacher’s Check List

56

Troubleshooting

Transmitter is not working

Is the battery light on your transmitter green?

YES – Is the red light on your external sensor on?

YES – Is there anything in the room blocking the sensor?

YES – Move the obstruction and retry. If the
problem is not fixed please contact
Audio Enhancement.
NO – Is there anything covering the transmitter?

YES – Free the transmitter

from any obstructions.

NO – Contact Audio Enhance-

ment.

NO – Contact Audio Enhancement for assistance.

NO – Have your batteries been charged overnight?

YES – Are your batteries over 1 year old?

YES – Try a new set of batteries. If the problem
persists contact Audio Enhancement.

NO – When charging, verify the charger is fully

plugged into outlet. If the problem per­sists contact Audio Enhancement.

NO – Charge the batteries overnight.

57

Troubleshooting

No Audio

Is your power supply plugged into the amplifier/receiver and the wall out­let?
YES – Is the power switch set to “On” and the indicator light red?

YES – Is the teacher transmitter turned on with a green
battery light?

YES – Is the green indicator light on the
amplifier/receiver for Teacher 1 or 2
on?

YES – Try another transmitter

in your room to determine if it
works and contact Audio En­hancement.

NO – Verify if a red light is

showing on the dome sensor
and contact Audio

Enhancement.

NO – Are your batteries fully charged?

YES – If the batteries are more

than 1 year old please replace

the batteries. If the problem

persists contact Audio En-

hancement for assistance.

NO – Charge the batteries

overnight.

NO – Will other items power up in that outlet?

YES – If available try another outlet. If the
problem persists contact Audio
Enhancement.
NO – Contact the school

NO – Plug in the amplifier/receiver to the wall outlet.

58

Repair Form

AUDIO ENHANCEMENT

Ship Equipment to:
Attn: Repairs
14241 S. Redwood Rd
PO Box 2000
Bluffdale, UT 84065
800-383-9362
RMA#____________

Repair Form

Name:_______________________________________________
School/Company:______________________________________
Shipping Address:______________________ ________________
Attn:_________________________________________________
City/State/Zip:_________________________________________
Telephone: (____)______________________

Model #/Items Serial # & Channel # Reason for Return

Billing Address:________________________ ________________
Attn:_________________________________________________
City/State/Zip:_________________________________________
Telephone: (____)______________________

Date Purchased:_______________ Invoice #_______________

*Please attach a copy of the invoice for proof of warranty. If out of

warranty, Purchase Order Number must

be provided.

Is system under a purchased extended warranty/contract?
Yes

No
Purchase Order #:____________________________________________

Credit Card # (Visa/MasterCard/Discover/American Express):
__________________________________________________________
Expiration Date:_______________ ___ Name on Card________________
Address for Card:_________________________________________
Authorized Signature:_________________________________________

Please call for RMA# before returning

product(s)

59

Power Cords for EU

Specified AC adapter
PW-150A2-1Y-240E

AC 220 - 240 V
50/60 Hz

Innovator—CAE-100W

Ultimate II—CAE-100W

Specified AC adapter

3A-901DA24-048

AC 220—240V
50/60 HZ

Achiever—CAE-20W
Receiver—RC-07

Specified AC adapter

3A-621DA24

AC 220—240V
50/60 HZ

60

Safety Instructions for EU

Power disconnection. Unit with or without ON-OFF switches have power
supplied to the unit whenever the power cord is inserted into the power
source; however, the unit is operational only when the ON-OFF switch is
in the ON position. Unplug the power cord to disconnect the main power
for all units.

FOR YOUR SAFETY PLEASE READ THE FOLLOWING TEXT
CAREFULLY

This appliance is supplied with a moulded three pin mains plug for your
safety and convenience. A 13 amp (CAE-100W) and 3 amp (CAE-50W,
CAE-20W, RC-07) fuse is fitted in this mains plug. Shall the fuse need to be
replaced, please ensure that the replacement fuse has a rating of 13 amp
(CAE-100W) and 3 amp (CAE-50W, CAE-20W, RC-07)and the it is ap­proved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the body of the fuse. If the
plug contains a removable fuse cover you must ensure that it is refitted when
the fuse is replaced. If you lose the fuse cover, the plug must not be used
until a replacement cover is obtained.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE
SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE
REMOVED AND THE PLUG CUT OFF AND DISPOSED OF
SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL
SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP
SOCKET.

If a new plug is to be fitted please observe the wiring code as shown below.
If in any doubt, please consult a qualified electrician.

WARNING: This apparatus must be earthed.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following
code:
Green and yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wire in the mains lead of this appliance may not corre­spond with the coloured markings identifying the ter minals in your plug,
proceed as follows.

61

Safety Instructions for EU

The wire which is coloured green and yellow must be connected
to the terminal in the plug which is marked with the letter E or by
the earth symbol or coloured green or green and yellow.

The wire which is coloured blue must be connected to the terminal in the
plug which marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal in the
plug which is marked with the letter L or coloured red.

How to replace the fuse

Open the fuse compartment with a screwdriver and replace the fuse and
the fuse cover.

62

WEEE Fitting

Information on Disposal for Users of Waste Electrical & Electronic
Equipment (private households)

This symbol on the products and/or accompanying documents
means that used electrical and electronic products should not be
mixed with general household waste.
For proper treatment, recovery and recycling, please take these

products to designated collection points, where they will be ac­cepted on a free of charge basis. Alternatively, in some countries you may be
able to return your products to your local retailer upon the purchase of an
equivalent new product.
Disposing of this product correctly will help to save valuable resources and
prevent any potential negative effects on human h ealth and the environment
which could otherwise arise from inappropriate waste handling. Please contact
your local authority for further details of your nearest designated collection
point.
Penalties may be applicable for incorrect disposal of this waste, in accordance
with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your
dealer or supplier for furthe r information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this
product, please contact your local authorities or dealer and ask for the correct
method of disposal.

Company Name: Alura Group BV
Address: Molenstraat 15

2513 BH The Hague
The Netherlands

Phone:

(31) (0) 70 362-4896

Fax: (31) (0) 84 838-5552

63

Audio Enhancement (“Provider”) is pleased to offer a standard Five (5) year lim-

ited manufacturers warranty (“Limited Warranty”) against malfunction due to
manufacturing defects in materials or workmanship on the teardrop microphone,
handheld microphone, receiver/amplifier systems, the external infrared sensors,
and speakers (“Provider Products”). Optional accessories are warranted under the
same terms for a period of 1 year. The ‘AA’ NiMH Batteries supplied by Audio
Enhancement carry a 90 day warranty from date of purchase.

The Limited Warranty applies only if: (1) the Provider Products are installed ac­cording to Provider’s instruction provided to Custo mer or (2) the Provider Prod­ucts are not misused or abused, and there is no evidence of mishandling, neglect,
modification or repair without the approval of Provider, or damage done to Pro­vider’s Products by anyone other than Provider.

The following is not included under this Limited Warranty: (1 ) Misuse or abuse
by the Customer; (2) normal wear and tear; and (3) physical damage to Prov ider’s
Products as a result of unreasonable use and/or negl i gence.

This Limited Warranty is provided by Provider, and it contains the only express
warranty provided to Customer by Provider. Provider does not authorize any
other person, including distributors, to give any other warranties on Provider’s
behalf.

Provider disclaims any express warranty not provided herein and any implied war­ranty, guaranty or representation as to performance, quality and absence of hidden
defects, and any remedy for breach of contract, which but for this provision, might
arise by implication, operation of law, custom of trade or course of dealing, in­cluding implied warranties of merchantability and fitness for a particular purpose.
Provider further disclaims any responsibility for losses, expenses, inconveniences,
special, indirect, secondary, or consequential, incidental, and contingent damages
whatsoever, including dam a ges arisi n g fr om ownership or use of provider ’s pr od ­ucts

Provider shall bear no responsibility or obligation with respect to the manner of
use of any equipment sold by Provider.

Provider specifically disclaims and negates any warranty of fitness for a particular
purpose of such equipment including , without limitation , any warran ty that th e use
of such equipment for any purpose will compl y with applicable laws and regula­tions or overcome any specific hearing/auditory processing deficit. When return­ing units for service, use adequate packaging to prevent shipping dam­age. Shipping damage is not covere d un der war rant y .

PLEASE DOUBLE CHECK BATTERIES BEFORE SENDING

UNITS FOR SERVICE.

14241 South Redwood Road PO Box 2000 Bluffd ale UT 84065

Toll Free: [phone] Phone: [phone] Fax: [phone]

AudioEnhancement.com

Standard 5-year Warranty
