AEA SMT-2 Stereo Microphone Template Kit

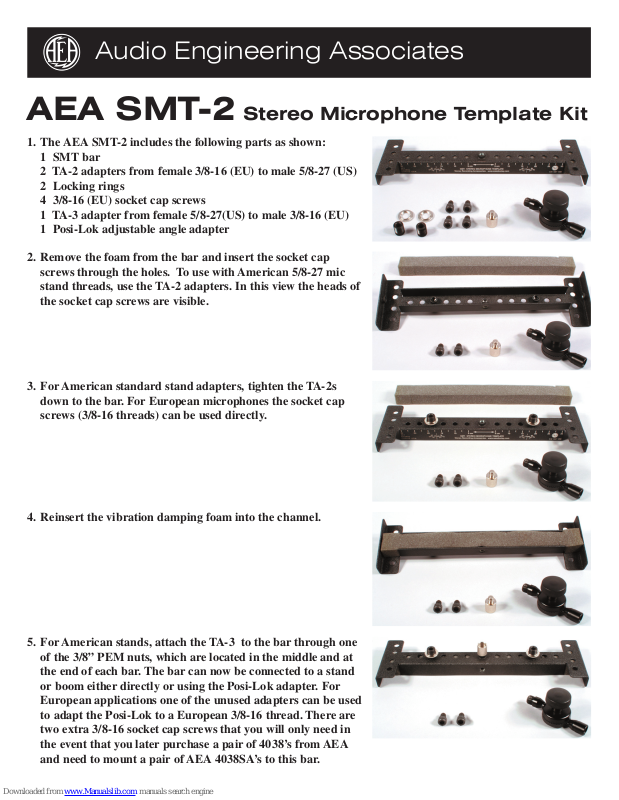

The AEA SMT-2 includes the following parts as shown:
1.
1 SMT bar
2 TA-2 adapters from female 3/8-16 (EU) to male 5/8-27 (US)
2 Locking rings
4 3/8-16 (EU) socket cap screws
1 TA-3 adapter from female 5/8-27(US) to male 3/8-16 (EU)
1 Posi-Lok adjustable angle adapter

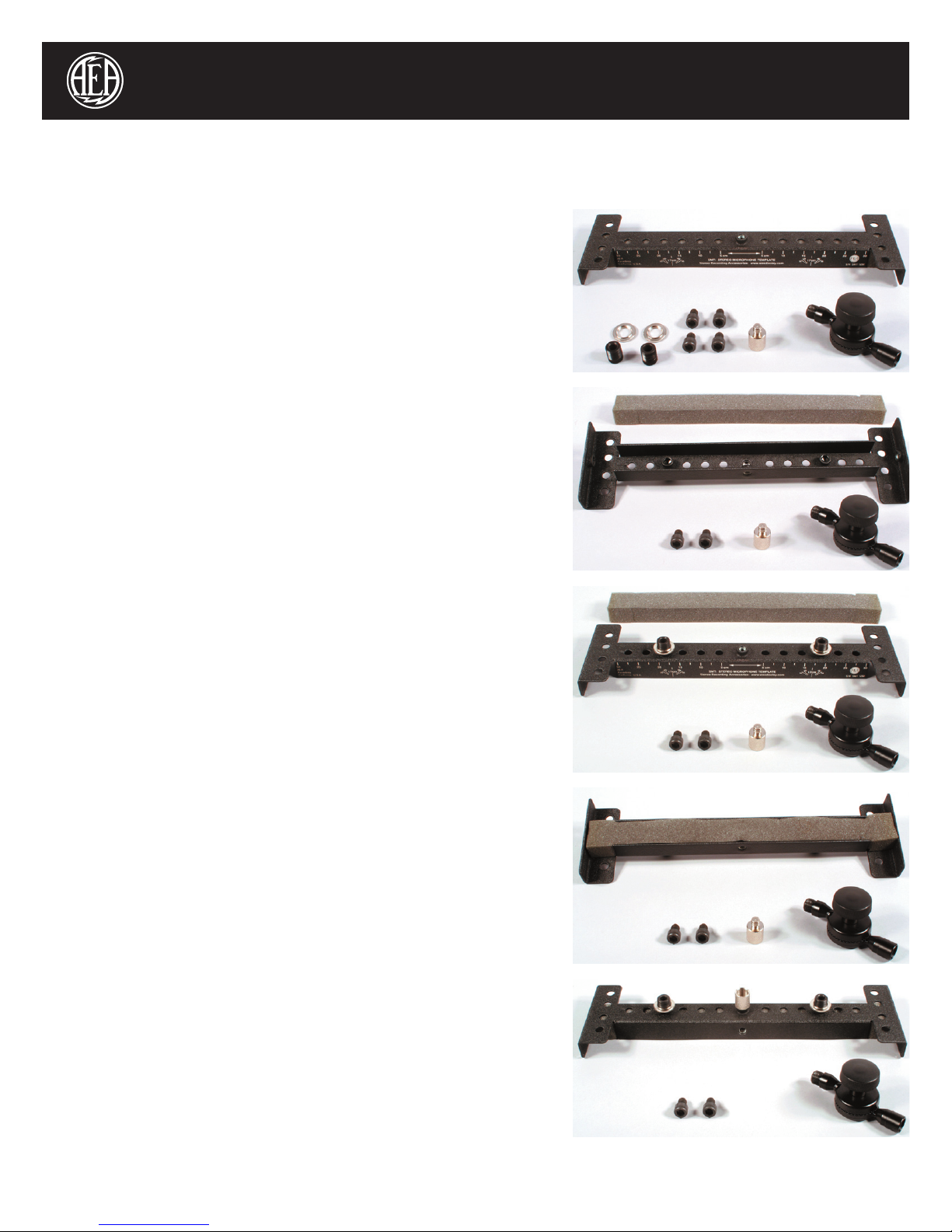

Remove the foam from the bar and insert the socket cap
2.
screws
stand threads, use the TA-2 adapters. In this view the heads of
the socket cap screws are visible.
through the holes. To use with American 5/8-27 mic
For American standard stand adapters, tighten the TA-2s
3.
down to the bar. For European microphones the socket cap
screws (3/8-16 threads) can be used directly.
4.
Reinsert the vibration damping foam into the channel.
For American stands
5.
of the 3/8” PEM nuts, which are located in the middle and at
the end of each bar. The bar can now be connected to a stand
or boom either directly or using the Posi-Lok adapter. For
European applications one of the unused adapters can be used
to adapt the Posi-Lok to a European 3/8-16 thread. There are
two extra 3/8-16 socket cap screws that you will only need in
the event that you later purchase a pair of 4038’s from AEA
and need to mount a pair of AEA 4038SA’s to this bar.
, attach the TA-3 to the bar through one
Page 2

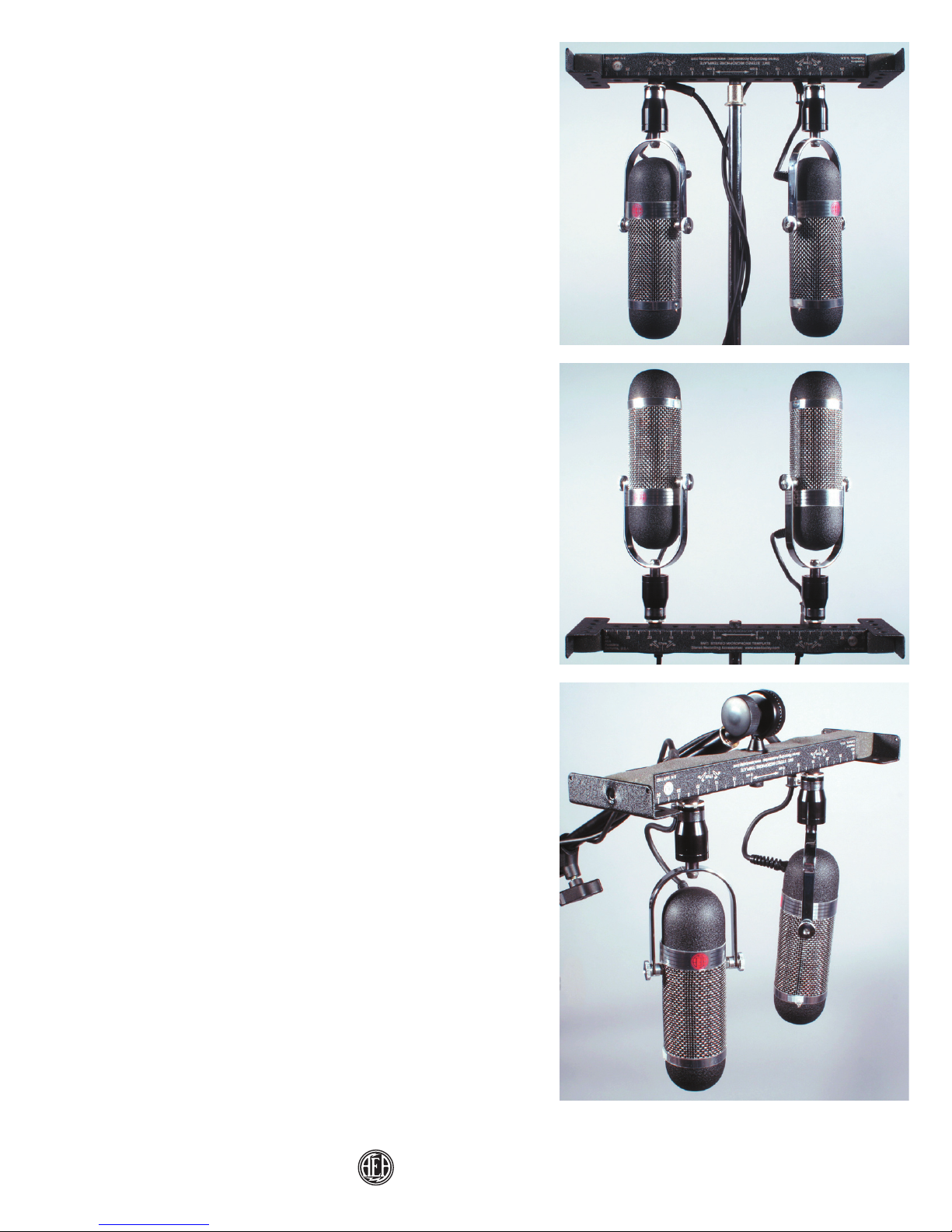

The bar can be attached directly to a vertical stand as
6.
shown. Microphones can be mounted to hang from the bar
using the 5/8-27 thread of the TA-2s.
By cutting the foam insert in two, the TA-3 can be inserted
7.
from the inside of the channel allowing the stand to be
mounted with microphones above the bar.
The bar can be mounted to a boom using the Posi-Lok
8.
adapter. The Posi-Lok is rigid enough to suspend the bar
and mics at a variety of angles, not just the hanging position
shown.
Manufactured by Audio Engineering Associates:
1029 N. Allen Ave. Pasadena, California 91104, USA
Tel: +626-798-9128 Fax: +626-798-2378 www.ribbonmics.com
