TRIO SESSION

TRIO CLUB

TRIO MASTER

Subwoofer 10” - 250 mm - VC 50 mm

Satellites 2 x 6,5” - 165 mm - VC 32 mm

Dome Tweeter- VC 30 mm

Power Max/RMS: 1000 / 500 W

SPL Max: 121 dB

Subwoofer 15” - 380 mm - VC 75 mm

Satellites 2 x 10” - 250 mm - VC 50 mm

Horn Compression Tweeter - VC 44 mm

Poower Max/RMS: 1440 / 720 W

SPL Max: 127 dB

OTHER SYSTEMS OF THE TRIO FAMILY

User Manual

Full Range Sound System

- 7 -- 2 -

Portable Full Range Sound System TRIO SESSIO Portable Full Range Sound System TRIO SESSION

Introduction

Thank you for purchasing an AudioDesign TRIO Active Sound system.
TRIO series is designed to provide an high and powerful sound quality in a compact size.
The main features are:

*

Active subwoofer cabinet with additional amplifiers for the passive satellites.

*

High sensitivity passive satellites.

*

High and precise acoustic quality also with high power.

The final result is a full, detailed and powerful sound.

*

Portability: the system is easy fit and portable by one person.

Precautions:

Caution: When using any electric product , precautions should always be taken, including the following:

1) Read carefully all instructions before using the product.

2) To reduce the risk, strict supervision is necessary when the product is used near children.

3) Don't use the product near to water sources like sinks, kitchens, wet floors, pools,
or similar or when raining.

4) In case hearing losses or buzzing occur, please contact a doctor.

5) This products should be located so that its position does not interfere or reduce its proper ventilation.

6) This product should be site away from heat sources such as radiators or any other product that
generate heat.

7) This product should be connected to a power supply line only of the type described on the operating
instructions. Check always the status of the power cable.

8) In case you need to replace the fuse, unplug power supply before replacement. The fuse is located
over the power socket and needs to be replaced with a fuse of same type and value. If the fuse blows again,
please contact our service. DON'T replace it a second time with a higher value fuse.

9) Unplug power supply when left unused for a long period of time. Don't draw the cable but pull out the
plug.

10) Make sure that power switch can always be easily reached.

11) The product needs to be inspected by authorized or qualified personnel in case:
A- The power cable or plug are damaged
B- Objects or liquids fall inside the product
C- The product has been exposed to rain
D- The product doesn't appear to operate normally or exhibits a marked change in performance.
E- The product has fallen and been damaged.

12) DON'T operate on the product, except indications on the user's manual . Please refer to authorized
and qualified personnel for any other operation.

13) Caution: Don't place objects on the product's power cable or place it in a position where it could be
damaged or cause interferences. Improper installation could cause fire risk and/or personal injury.

Service

All Audio Design PRO products have been inspected and tested before leaving the factory and , if properly
used, they will work for many years. However, in case of any problem, please proceed in the following way:
Contact your dealer and inform about the defect you found
In case it won't be possible to solve the problem with the dealer, the product needs to be returned, preferably
in its original packaging or in a proper packing to protect it during the transport. Purchase documents must
be produced too.
Your dealer will arrange the shipment to our service centre.

Conformity:

Audiodesign Pro products comply with presently existing directives and standards.

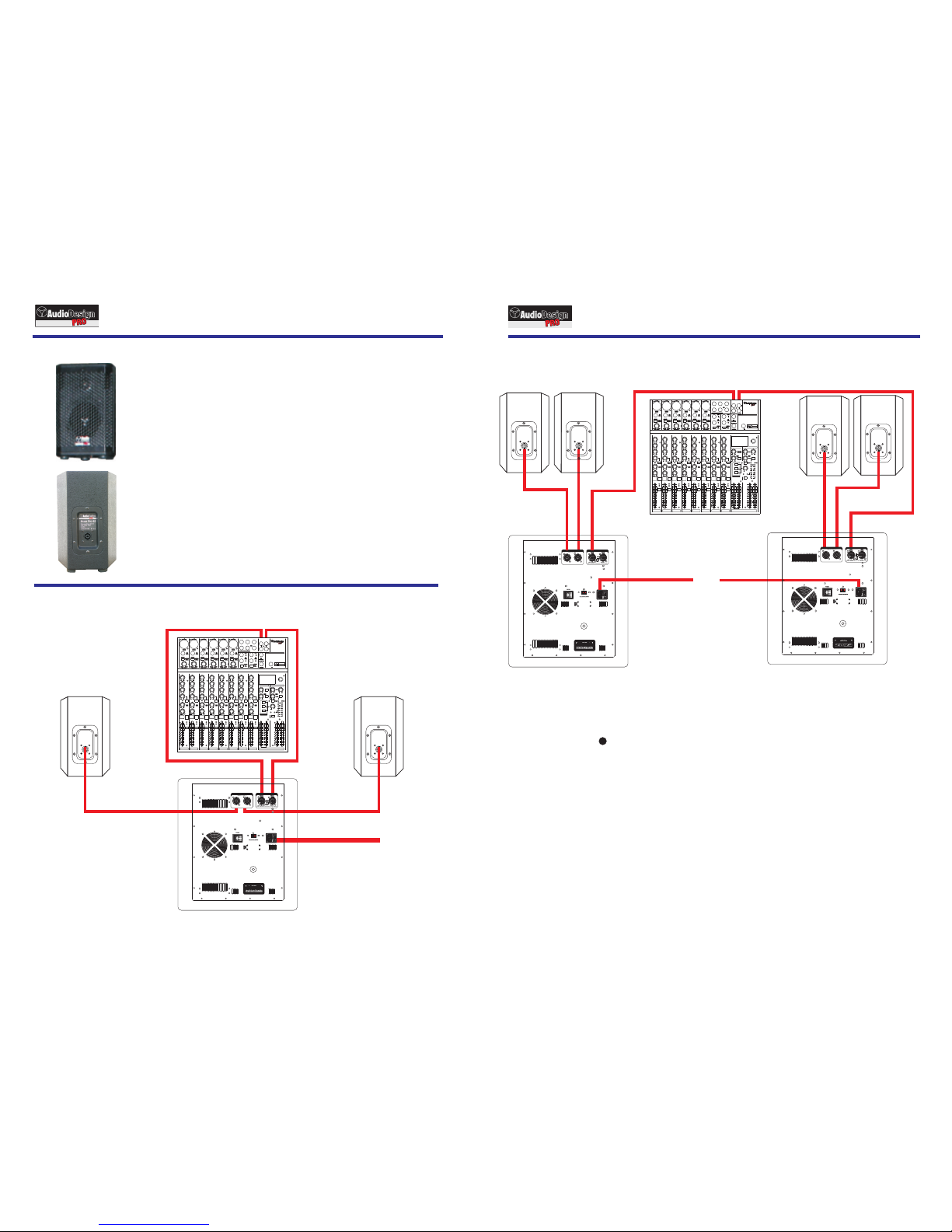

BY MEANS OF OUR ACCESSORIES, DIFFERENT CONFIGURATIONS OF THE SYSTEM ARE POSSIBLE

SATELLITE STAGE PRO 8

INPUT

SATELLITES INPUT: Speakon NL4 (pin 1+ = +, pin 1- = -)

SPEAKERS

High Sensitivity Woofer

1 x 8”

(200 mm)

Compression Horn Tweeter

VC 34 mm

VC 50 mm

MAIN FEATURES

TOTAL IMPEDANCE :

4 Ohm

TOTAL POWER :

200 W RMS

(400 W Max) with X-over 200 Hz 18 dB/oct

TOTAL SPL Max:

124 dB

Frequency Response:

75 ÷ 20000 Hz

( )± 3 dB

WEIGHT & SIZES Weight Satellite:

9 kg

Size (WxLxH) cm:

27 x 26 x 40

Tweeter :Crossover

6000 Hz

12 dB/oct

Passive

TECHNICAL SPECIFICATIONS

SUBWOOFER STAGE PRO W12

INPUT

OUTPUT

SATELLITES OUTPUT: Speakon NL4 (pin 1+ = +, pin 1- = -)

AMPLIFIERS Subwoofer Power Output: 300 W RMS (600 W Max)

Satellites Power Outputi: 2x170 W RMS (2x340 W Max)

SPEAKER

Subwoofer: 1 x 12”

(320 mm)
Frequency Response: 30 ÷ 260 Hz (± 3 dB)
SPL Max:

123 dB

WEIGHT & SIZES Weight Subwoofer:

38 kg

Sizes (WxLxH) cm:

52 x 47 x 48

VC 65 mm

@ 4 Ohm Load

LINE IN: Combo Socket XLR 3-F / Jack Stereo
INPUT: Balanced and Unbalanced

Electronic Crossover HP Satellites:

Frequency 38

- 250 Hz / 12 dB/Oct.

Electronic Crossover LP Subwoofer:

Frequency 46

- 240 Hz / 12 dB/Oct.

SPL Max:

124 dB

Application

The KPRO systems are a professional solution for every DJ or Live events where hi gh pressure and extreme
sound quality is required .

TRIO

- 6 - - 3 -

L

R

LOW PASS

-15 +15

0 10

HI PASS

GAIN

PEAK

-15 +15

0 10

GAIN

HI PASS

PEAK

LEFT speaker RIGHT speaker

0 10

GAIN

PEAK

50

260

80

120

60

Hz

PHASE
SHIFT

0 - 180°

Subwoofer

50

260

80

120

60

Hz

50

260

80

120

60

Hz

HIGH

PEAK

HIGH

3

1

2

4

7

6

58 5

6

7

8

POWER

9

L

R

LOW PASS

-15 +15

0 10

HI PASS

GAIN

PEAK

-15 +15

0 10

GAIN

HI PASS

PEAK

LEFT speaker RIGHT speaker

0 10

GAIN

PEAK

50

260

80

120

60

Hz

PHASE
SHIFT

0 - 180°

Subwoofer

50

260

80

120

60

Hz

50

260

80

120

60

Hz

HIGH

PEAK

HIGH

3

6 6

POWER

Sensitivity Magnitude

dB SPL/watt (4 ohm load)

-

log Frequency - Hz

MLSSA: Frequency Domain

M
L
S
S
A

10000.01000.0100.020.0

auto

45.0

50.0

55.0

60.0

65.0

70.0

75.0

80.0

85.0

90.0

95.0

AUDIODESIGN PRO: TRIO SESSION

@ 1W/1m

Portable Full Range Sound System TRIO SESSIO Portable Full Range Sound System TRIO SESSION

- 6 -

Satellites Volume setting

6
6

Switch power on and begin to turn clockwise the satellite GAIN knobs until the correspondent PEAK led begins

This is the optimal level being connected to a mixer sending to MAIN a signal with level peaks within 0 and +3dB.
Now listen to the satellites with this output level; if you detect distorsion or saturation of the signal (i.e of microphone) check

the possibility of reducing the level of the signal concerned at his source, otherwise try to slightly lower the mixer’s main
otput. Should this not be enough, reduce the satellites volume until you have an optimal sound.

Sub Volume setting

3

Volume setting of the system is made by means of the three LEVEL
knobs on top of the subwoofer:

- Left satellite is GAIN LEFT

- Right satellite is GAIN RIGHT

- Subwoofer is GAIN SUBWOOFER
Before switching power on and proceed to system setting, make sure that

all three knobs are completely turned counterclockwise, at level 0, and that the mixer output is set so that the peaks level

Set first the satellites volume alone and then the subwoofer volume alone.

After having memorized the knobs setting LEFT e RIGHT, take them back to 0 and begin now to turn clockwise the
SUBWOOFER GAIN knob until the correspondent PEAK led begins to flash shortly for less than 1 second.
This is the optimal level being connected to a mixer sending to MAIN a signal with level peaks within 0 and +3dB.

Now listen to the Sub with this output level; if you detect distorsion of basses, turn slightly the knob back counterclokwise.

Final system setting

Bring the three knobs at the optimal level you have checked and listen to the complete system, again at the mixer
main level peaks between 0 and +3 dB.
If you detect to much basses compared with satellites output, turn slightly back the SUB LEVEL knob.
If you detect instead not enough basses, turn slightly back the setellites LEVEL LEFT and RIGHT knobs.

stays about within 0 e +3 dB.

6

to flash shortly for less than 1 second.

3

RESPONSE DIAGRAM TRIO SESSION

Memorize the knobs setting.

As a general rule , the output level of the mixers should be set so that the sound peaks remain between 0 to +3 dB
about. When the system TRIO MASTER gets in the two Line In (10 and 11) a signal with that amplitude and it is

set as explained above, it grants the maximum performance in terms of maximum undistorted amplification (at clip

limit) and in this conditions you get the maximum possible sound pressure (SPL).

SYSTEM COMPONENTS

Thi TRIO SESSION stereo system is composed by three elements:

Active Subwoofer STAGE PRO W12

1 Active Subwoofer STAGE PRO W12
2 Passive Satellites STAGE PRO 8

The active subwoofer STAGE PRO W12 is equipped with a

The cabinet integrates all necessary electronics for amplification and system

3 amplifiersi in AB Class for a total power of 640 W RMS (12840 W Max)

12" (320 mm) woofer with 65 mm VC.

1 x 300 W RMS (600 W Max) for the Subwoofer itself

2 x 170 W RMS (340 W Max) for the two passive satellites (@ 4 Ohm load)

processing:

The Subwoofer signal is LowPass filtered, adjustable from 46 to 240 Hz 12 dB/oct.

Cabinet of high density MDF, anti-scratch embossed painting

Sizes & weight: 52 x 47 x 48 cm; 38 kg.

Practical transport handles hollowed into the wood
Integral rigid metal grill

Housing hole for ø 35 mm stand tubes

On/Off power switch - In positioe 0 the system is Off

15

16

Voltage Selector

17

Power Net Socket

Left Channel Lin In
Combo Socket XLR 3-F / Jack 6,3 mm Balanced

10

Right Channel Line In

10

11

Speakon Socket Right Satellite

12

Speakon Socket Left Satellite

13

Amplifier cooling fan; keep it clean for a correct ventilation.

14

Combo Socket XLR 3-F / Jack 6,3 mm Balanced

OUT+:1+/OUT- :1-

GND=1=SLEEVE

HOT=2=TIP COLD=3=RING

USE ONLY WITH 250V FUSE

220

OUTPUT

LEFT

RIGHT

180W@4Ù

SPEAKER OUTPUT:

LINE IN

LEFT RIGHT

15

17

16

14

11

13 12

The Satellites signals are HighPass filtered, adjustable from 38 to 250 Hz 12 dB/oct.

1

Subwoofer Clip Indicator

2

Subwoofer LOW PASS control adjustable from 46 to 250 Hz

3

Subwoofer Volume control

4

Phase Switch 0-180°

5

Satellites Clip Indicator (Separated Left and Right)

6

Satellites Volume control separated on channel LEFT and RIGHT.
it controls only the signal going respectively to left and right satellite.

High tones equalization separated for left and right channel -15 / +15 dB

7

8

Satellites HI PASS control separated LEFT and RIGHT from 38 to 250 Hz

9

ON LED indicator (Red)

ATTENTION: the HI PASS frequency should not be set under 120 Hz

ST

MONO

18

18

ST/MONO Switch (Stereo / Mono): se si seleziona STEREO,

correspondent Right and Left input signals.
When the system sends to both Right and Left channels only MONO is selected,
the LEFT input signal, so one complete system per channel can be used..

When STEREO is selected, the system sends to the Right and Left channels the

Connections and Control Panels

- 4 -

- 5 -

HIGHHIGH HIGHHIGH HIGH HIGH HIGH HIGH

EQEQ EQEQ EQ EQ EQ EQ

MIDMID MIDMID MID MID MID MID

12 kHz12 kHz 12 kHz12 kHz 12 kHz 12 kHz 12 kHz 12 kHz

2.5 kHz2.5 kHz 2.5 kHz2.5 kHz 2.5 kHz 2.5 kHz 2.5 kHz 2.5 kHz

LOWLOW LOWLOW LOW LOW LOW LOW

80 Hz80 Hz 80 Hz80 Hz 80 Hz 80 Hz 80 Hz 80 Hz

PREPREPREPREPREPRE PREPRE

AUXAUXAUXAUXAUXAUX AUXAUX

FXFXFXFXFXFX FXFX

PANPAN PANPAN PAN PAN BAL BAL

3142 5 6 7/8 9/10

MUTEMUTE MUTEMUTE MUTE MUTE MUTE MUTE

ALT 3-4ALT 3-4 ALT 3-4ALT 3-4 ALT 3-4 ALT 3-4 ALT 3-4 ALT 3-4

CLIPCLIP CLIPCLIP CLIP CLIP CLIP CLIP

SOLOSOLO SOLOSOLO SOLO SOLO SOLO SOLO

MUTEMUTE MUTEMUTE MUTE MUTE MUTE MUTEdBdB dBdB dB dB dB dB

1 2

5

6

9/10

111111 11 2 2

1 1 1

222222 22

ALT MAIN MIX

3-4

3

4

L

R

SOLO

SOLO

FX FX

TO AUX

SEND 1

MAIN MIX
ALT 3-4

AUX SENDS STEREO AUX RETURNS

PROGRAM
( PUSH )

2-TR/USB

ALT 3-4

MAIN MIX

SOURCE

MAX

2-TR/USB TO MAIN

PHONES/CTRL R

MAIN SOLOPFL

MODE

SOLO (NORMAL)
PFL (LEVEL SET)

10

5

2

0

2

5

20

MIC 3MIC 1 MIC 4MIC 2 MIC 5 MIC 6

LINE IN 5/6 LINE IN 7/8

RIGHTLEFT/MONO

AUX SENDS

212

1

FX

INPUT OUTPUT

CD/TAPE

00 SMALL HALL
03 MID HALL
06 BIG HALL
09 CHURCH
10 SMALL ROOM
13 MID ROOM
16 BIG ROOM
19 CHAPEL
20 SPRING
27 SPRING
30 GATED REV

36 REVERSE
40 EARLY REFL
44 AMBIENCE
48 STADIUM
49 AMBIENCE FX
50 DELAY
59 ECHO
60 CHORUS
66 FLANGER
70 PHASER
74 PITCH SHIFT

80 CHORUS & REVERB
82 FLANGER & REVERB
84 PHASER & REVERB
86 PITCH & REVERB
88 DELAY & REVERB
90 DELAY & GATED
91 DELAY & REVERSE
92 DELAY & CHORUS
94 DELAY & FLANGER
96 DELAY & PHASER
98 DELAY & PITCH

24-BIT MULTI-FX PROCESSOR

ULTRALOW-NOISE DESIGN

14-INPUT 2/2-BUS MIC/LINE MIXER

WITH PREMIUM MIC PREAMPLIFIERS AND

DIGITAL 24-BIT MULTI-EFFECTS PROCESSOR

USB AUDIO INTERFACE

3

4 7/8

PAM X 2.6 2

LAMP

12V
400 mA

USB

INTERFACE

NET

OUT+:1+/

OUT- :1-

OUTPUT

LEFT RIGHT

SPEAKER OUTPUT:

GND=1=SLEEVEHOT=2=TIP COLD=3=RING

LEFT(Mono)

RIGHT

ST

MONO

LINE IN

USE ONLY WITH 250V FUSE

220

LEFT CHANNEL

RIGHT CHANNEL

HIGHHIGH HIGHHIGH HIGH HIGH HIGH HIGH

EQEQ EQEQ EQ EQ EQ EQ

MIDMID MIDMID MID MID MID MID

12 kHz12 kHz 12 kHz12 kHz 12 kHz 12 kHz 12 kHz 12 kHz

2.5 kHz2.5 kHz 2.5 kHz2.5 kHz 2.5 kHz 2.5 kHz 2.5 kHz 2.5 kHz

LOWLOW LOWLOW LOW LOW LOW LOW

80 Hz80 Hz 80 Hz80 Hz 80 Hz 80 Hz 80 Hz 80 Hz

PREPREPREPREPREPRE PREPRE

AUXAUXAUXAUXAUXAUX AUXAUX

FXFXFXFXFXFX FXFX

PANPAN PANPAN PAN PAN BAL BAL

3142 5 6 7/8 9/10

MUTEMUTE MUTEMUTE MUTE MUTE MUTE MUTE

ALT 3-4ALT 3-4 ALT 3-4ALT 3-4 ALT 3-4 ALT 3-4 ALT 3-4 ALT 3-4

CLIPCLIP CLIPCLIP CLIP CLIP CLIP CLIP

SOLOSOLO SOLOSOLO SOLO SOLO SOLO SOLO

MUTEMUTE MUTEMUTE MUTE MUTE MUTE MUTEdBdB dBdB dB dB dB dB

1 2

5

6

9/10

111111 11 2 2

1 1 1

222222 22

ALT MAIN MIX

3-4

3

4

L

R

SOLO

SOLO

FX FX

TO AUX

SEND 1

MAIN MIX
ALT 3-4

AUX SENDS STEREO AUX RETURNS

PROGRAM
( PUSH )

2-TR/USB

ALT 3-4

MAIN MIX

SOURCE

MAX

2-TR/USB TO MAIN

PHONES/CTRL R

MAIN SOLOPFL

MODE

SOLO (NORMAL)
PFL (LEVEL SET)

10

5

2

0

2

5

20

MIC 3MIC 1 MIC 4MIC 2 MIC 5 MIC 6

LINE IN 5/6 LINE IN 7/8

RIGHTLEFT/MONO

AUX SENDS

212

1

FX

INPUT OUTPUT

CD/TAPE

00 SMALL HALL
03 MID HALL
06 BIG HALL
09 CHURCH
10 SMALL ROOM
13 MID ROOM
16 BIG ROOM
19 CHAPEL
20 SPRING
27 SPRING
30 GATED REV

36 REVERSE
40 EARLY REFL
44 AMBIENCE
48 STADIUM
49 AMBIENCE FX
50 DELAY
59 ECHO
60 CHORUS
66 FLANGER
70 PHASER
74 PITCH SHIFT

80 CHORUS & REVERB
82 FLANGER & REVERB
84 PHASER & REVERB
86 PITCH & REVERB
88 DELAY & REVERB
90 DELAY & GATED
91 DELAY & REVERSE
92 DELAY & CHORUS
94 DELAY & FLANGER
96 DELAY & PHASER
98 DELAY & PITCH

24-BIT MULTI-FX PROCESSOR

ULTRALOW-NOISE DESIGN

14-INPUT 2/2-BUS MIC/LINE MIXER

WITH PREMIUM MIC PREAMPLIFIERS AND

DIGITAL 24-BIT MULTI-EFFECTS PROCESSOR

USB AUDIO INTERFACE

3

4 7/8

PAM X 2.6 2

LAMP

12V
400 mA

USB

INTERFACE

OUT+:1+/

OUT- :1-

OUTPUT

LEFT RIGHT

SPEAKER OUTPUT:

GND=1=SLEEVEHOT=2=TIP COLD=3=RING

LEFT(Mono)

RIGHT

ST

MONO

LINE IN

USE ONLY WITH 250V FUSE

220

OUT+:1+/

OUT- :1-

OUTPUT

LEFT RIGHT

SPEAKER OUTPUT:

GND=1=SLEEVEHOT=2=TIP COLD=3=RING

LEFT(Mono)

RIGHT

ST

MONO

LINE IN

USE ONLY WITH 250V FUSE

220

NET

LEFT CHANNEL

RIGHT CHANNEL

Portable Full Range Sound System TRIO SESSIO Portable Full Range Sound System TRIO SESSION

High sensitivity passive satellites STAGE PRO 8

The high sensitivity passive satellite STAGE PRO 8 is a bass reflex

One 8" (200 mm) woofer with a 50 mm vented voice coil

One compression horn tweeter with a 34 mm voice coil

Cabinet in high density MDF , embossed anti-scratch painting

Housing hole for ø 35 mm stand tubes

Integral protection grill

High Pass Filter at 6000 Hz 12 dB/oct on tweeter

4 ohm Impedance

Speakon socket for connection to the subwoofer amplifier

Sizes and Weight: 27 x 26 x 40 cm; 9 kg.

cabinet equipped with:

SYSTEM CONNECTION IN STEREO CONFIGURATION

(ST/MONO Swich up)

CONNECTION OF TWO SYSTEMS IN MONO CONFIGURATION

(ST/MONO Switch down)

Depending on the choosen configuration, connect the system following the precedent wiring schemes.

.

System Volume setting

The TRIO MASTER system is provided vith clip limiters and peack level indicators separate and independent on all three

Thus the system is able to deliver excellent performances, and should be used with input signals at optimal level, starting from
kind and quality of the used cables, and the prevention of any kind of distortion.

In fact the presence of distortion doesn’t only deliver a poor performance of the system, but it is also a real risk on long periods,

We kindly invite you therefore,to strictly follow the following instructions on how to set the level of alla comonents.

channels, and doesn’t require therefore any special setting procedure.

Connection to the electric net

Check that Power switch is in position 0 and that net voltage corresponds to the one selected in the system.

.

Connect the supplied electric wire to an electric net socket equipped with a correct ground contact.

Connection to the mixer

Before making any connection to the mixer make sure the system power switch is Off in order to avoid damages.

Remember that electric net power il the last to be switced On and the first to be disconnected after use!

Satellite connection

Use wires with good quality Speakon plugs. Make sure to rotate the Speakon plugs clockwise up to the lock position.

15

to damage the system itself.
