Audio Design HP301 User Manual

ENGLISH VERSION

VERSIÓN ESPAÑOL

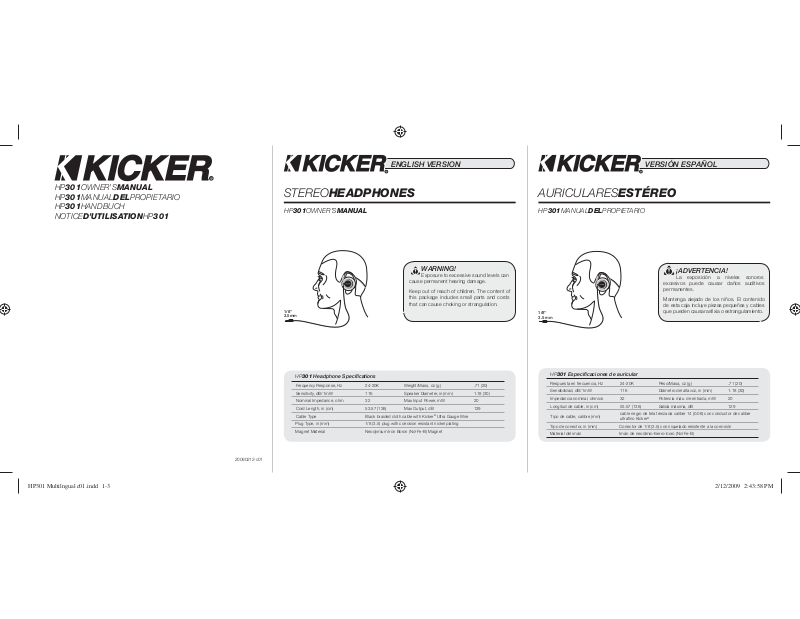

HP301OWNER’SMANUAL
HP301MANUALDELPROPIETARIO
HP301HANDBUCH
NOTICED’UTILISATIONHP301

20090212-c01

STEREOHEADPHONES

HP301OWNER’SMANUAL

WARNING!

Exposure to excessive sound levels can

cause permanent hearing damage.

Keep out of reach of children. The content of
this package includes small parts and cords

1/8”

3.5mm

HP301 Headphone Specifi cations

Frequency Response, Hz 24-20K Weight/Mass, oz (g) .71 (20)

Sensitivity, dB/1mW 116 Speaker Diameter, in (mm) 1.18 (30)

Nominal Impedance, ohm 32 Max Input Power, mW 20

Cord Length, in (cm) 53.57 (136) Max Output, dB 129

Cable Type Black braided cloth cable with Kicker

Plug Type, in (mm) 1/8 (3.5) plug with corrosion resistant nickel plating

Magnet Material Neodymium Iron Boron (Nd-Fe-B) Magnet

that can cause choking or strangulation.

®

Ultra Gauge Wire

AURICULARESESTÉREO

HP301MANUALDELPROPIETARIO

¡ADVERTENCIA!

La exposición a niveles sonoros
excesivos puede causar daños auditivos
permanentes.

Mantenga alejado de los niños. El contenido
de esta caja incluye piezas pequeñas y cables

1/8"

3.5 mm

HP301 Especificaciones de auricular

Respuesta en frecuencia, Hz 24-20K Peso/Masa, oz (g) .71 (20)

Sensibilidad, dB/1mW 116 Diámetro del altavoz, in (mm) 1.18 (30)

Impedancia nominal, ohmios 32 Potencia máx. de entrada, mW 20

Longitud de cable, in (cm) 53.57 (136) Salida máxima, dB 129

Tipo de cable, calibre (mm)

Tipo de conector, in (mm) Conector de 1/8 (3.5) con niquelado resistente a la corrosión

Material del imán Imán de neodimio-hierro-boro (Nd-Fe-B)

cable negro de tela trenzada calibre 14 (0.06) con conductor de calibre
ultrafino Kicker

que pueden causar asfixia o estrangulamiento.

®

DEUTSCHE VERSION

STEREOKopfhörer

HP301-HANDBUCH

WARNUNG!

Ohrhörer können sehr hohe Schallpegel
erzeugen, welche zu permanenten
Hörschäden führen können.

Außerhalb der Reichweite von Kindern
aufbewahren. Diese Verpackung enthält

1/8"
3,5 mm

HP301KOPFHÖRER - Technische Daten

Frequenzbereich, Hz 24 - 20 K Gewicht, oz (g) .71 (20)

Empfi ndlichkeit, dB/1 mW 116 Lautsprecherdurchmesser (mm) 1.18 (30)

Nennimpedanz, Ohm 32 Max. Eingangsleistung, mW 20

Kabellänge, Zoll (cm) 53.57 (136) Max. Ausgang, dB 129

Kabeltyp

Stecker, Zoll (mm) 1/8 (3,5) Stecker mit korrosionsbeständiger Nickelbeschichtung

Magnetisches Material Neodym-Eisen-Bor (Nd-Fe-B) Magnet

Gefl ochtenes Leinenkabel mit Kicker
Gauge

Kleinteile an denen sie ersticken und Kabel mit
denen sie sich strangulieren können.

®

AWG Amerikanische Ultra Wire

VERSION FRANÇAISE

OREILLETTESSTEREO

NOTICE D’UTILISATION HP301

AVERTISSEMENT !

Une exposition à des niveaux sonores
excessifs peut provoquer des dégâts
permanents pour l’ouïe.

Conserver hors de portée des enfants. Ce
conditionnement comprend des petites pièces

1/8"
3,5mm

Spécifi cations de l’oreillette HP301

Réponse en fréquence, Hz 24-20K Poids/masse, onces (g) .71 (20)

Sensibilité, dB/1mW 116 Diamètre de haut-parleur, pouces (mm) 1.18 (30)

Impédance nominale, ohms 32 Puissance d’entrée maximale, mW 20

Longueur de cordon, pouces (cm) 53.57 (136) Sortie maxi, dB 129

Type de câble, GA (mm) câble de tissu torsadé noir 14 (0,06) avec fi l ultra-calibré Kicker

Type de fi che, pouces (mm) Fiche 1/8 (3,5) avec placage nickel résistant à la corrosion

Matériau d’aimant Aimant néodyme-fer-bore (Nd-Fe-B)

et des cordons risquant d’étouffer ou d’étrangler
les enfants.

HomeLimitedWarranty

KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1)
YEAR from date of original purchase with the orginal receipt from an Authorized KICKER Dealer. Should service be necessary
under this warranty for any reason due to manufacturing defect or malfunction during the warranty period, KICKER will repair or
replace (at its discretion) the defective merchandise with equivalent merchandise at no charge. Warranty replacements may have
cosmetic scratches and blemishes. Discontinued products may be replaced with more current equivalent products.

This warranty is valid only for the original purchaser and is not extended to owners of the product subsequent to the original
purchaser. Any applicable implied warranties are limited in duration to a period of the express warranty as provided herein
beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this
product thereafter. Some states do not allow limitations on implied warranties; therefore these exclusions may not apply to you.
This warranty gives you specifi c legal rights; however you may have other rights that vary from state to state.

WHAT TO DO IF YOU NEED WARRANTY OR SERVICE

Defective merchandise should be returned to your local Authorized KICKER Dealer for warranty service. Assistance in locating
an Authorized Dealer can be found at www.kicker.com or by contacting KICKER directly.

If it becomes necessary for you to return defective merchandise directly to Stillwater Designs (KICKER), call the KICKER
Customer Service Department at [phone] for a Return Merchandise Authorization (RMA) number. Package all defective
items in the original container or in a package that will prevent shipping damage, and return to:

Stillwater Designs, 3100 North Husband, Stillwater, OK 74075

The RMA number must be clearly marked on the outside of the package. Include a copy of the original receipt with the purchase
date clearly visible, and a “proof-of-purchase” statement listing your name and return shipping address, the Dealer’s name and
invoice number, and product purchased. Warranty expiration on items without proof-of-purchase will be determined from the
type of sale and manufacturing date code. Freight must be prepaid; items sent freight-collect, or COD, will be refused.

WHAT IS NOT COVERED?

This warranty is valid only if the product is used for the purpose for which it was designed.

It does not cover:

o Damage due to improper use.
o Damage due to improper installation of components or audio/video devices.
o Subsequent damage to other components or audio/video devices.
o Damage caused by exposure to moisture, excessive heat, chemical cleaners, and/or UV radiation.
o Damage through negligence, misuse, fl ood, fi re, earthquake, accident, or abuse. Repeated returns for the same
damage may be considered abuse.
o Items previously repaired or modifi ed by any unauthorized repair facility or person.
o Return shipping on non-defective items.
o Products with tampered or missing barcode labels.
o Products returned without a Return Merchandise Authorization (RMA) number.
o Freight Damage.
o The cost of shipping product to KICKER.
o Service performed by anyone other than KICKER.

HOW LONG WILL IT TAKE?

Kicker strives to maintain a goal of 48-hour service for all electronics returns. Delays may be incurred if lack of replacement
inventory or parts is encountered.

Failure to follow these steps may void your warranty. Any questions can be directed to the Kicker Customer Service Department

®

at [phone].
GARANTÍA INTERNACIONAL VersiónEspañol
Comuníquese con su concesionario o distribuidor Kicker internacional para obtener infor ación sobre procedimientos

específi cos relacionados con las normas de garantía de su país.
INTERNATIONALE GARANTIE DeutscheVersion
Nehmen Sie mit Ihren internationalen Kicker-Fachhändler oder Vertrieb Kontakt auf, um Details über die Garantieleistungen in
Ihrem Land zu erfahren.
GARANTIE INTERNATIONALE VersionFrançaise
Pour connaître les procédures propres à la politique de garantie de votre pays, contactez votre revendeur ou distributeur
International Kicker.
