AudioControl SA-4100I Specifications

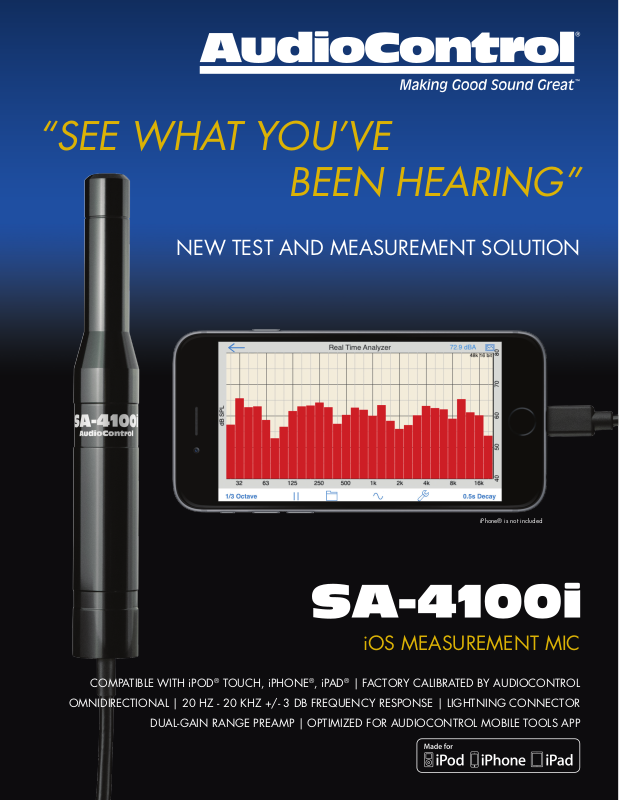

“SEE WHAT YOU’VE

BEEN HEARING”

NEW TEST AND MEASUREMENT SOLUTION

iPhone® is not included

iOS MEASUREMENT MIC

COMPATIBLE WITH iPOD® TOUCH, iPHONE®, iPAD® | FACTORY CALIBRATED BY AUDIOCONTROL

OMNIDIRECTIONAL | 20 HZ - 20 KHZ +/- 3 DB FREQUENCY RESPONSE | LIGHTNING CONNECTOR

DUAL-GAIN RANGE PREAMP | OPTIMIZED FOR AUDIOCONTROL MOBILE TOOLS APP

MOBILE AUDIO

AUDIOCONTROL iOS MEASUREMENT MICROPHONE

The SA-4100i is a full range, omnidirectional iOS measurement microphone with built-in calibration, preampliﬁer and A/D conversion. The SA-4100i is the perfect instrument for taking acoustical measurements, converting them to electrical signals and feeding into an iOS device (running iOS 5.0 or later) for analysis using AudioControl’s Mobile Tools app1. Use the SA-4100i to tune and perfect high performance audio systems in cars, boats, home or the 2 million gallon cistern at Fort Warden State Park in Washington. The AudioControl Mobile Tools app helps to visualize what your are hearing to achieve professional results in all audio system installations.

SA-4100i SPECIFICATIONS

FREQUENCY RESPONSE 20 HZ - 20 KHZ +/- 3 dB

GAIN RANGES 27 dBA - 105 dBA; 48 dBA - 120 dBA

POLAR PATTERN OMNIDIRECTIONAL

POWER CONSUMPTION <50 mA

CONNECTOR TYPE LIGHTNING

DIMENSIONS

TIP DIAMETER - 13 mm (.5 INCHES)

LENGTH - 145 mm (5.7 INCHES)

• Compatible with iPod® touch, iPhone®, iPad

• Invividually Calibrated by AudioControl

• Omnidirectional capsule

• 20 Hz - 20 kHz Frequency Response +/- 3 dB

• Built-in Lightning connector

• Dual-gain Range Preamp

• Access to AudioControl Mobile Tools App

» RTA Real Time Analyzer - Octave and 1/3 Octave » FFT Fast Fourier Transform - Up to 1/24 Octave » SPL Sound Pressure Level - Slow, Fast, Impulse or Peak » Polarity Testing » DQ-61 Signal Delay module

SA-4100i includes the full AudioControl Mobile Tools

app (downloadable from the App Store) which includes the following modules: RTA , FFT, Polarity, SPL and DQ-61.

The iOS headphone jack can be used as an output for test tones in RTA, FFT and DQ-61.

Mobile Tools RTA is a full-featured one-third octave real time analyzer Mobile Tools FFT uses Fast Fourier Transform to analyze incoming audio signals

“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect speciﬁcally to iPod, iPhone, or iPad, respectively, and has been certiﬁed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.

iPad, iPhone, and iPod touch, are trademarks of Apple Inc., registered in the U.S. and other countries. iPad Air, iPad mini, and Lightning are trademarks of Apple Inc.

AudioControl 22410 70th Ave West Mountlake Terrace, WA 98043 www.audiocontrol.com

Features, appearance and speciﬁcations subject to change without notice.
