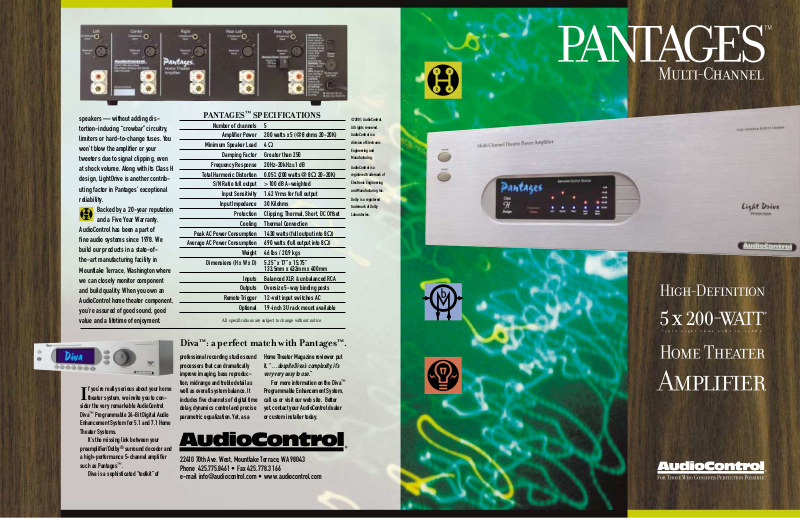

PANTAGES™ SPECIFICATIONS

Number of channels 5
Amplifi er Power 200 watts x 5 (@8 ohms 20-20K)

Minimum Speaker Load 4 Ω

Damping Factor Greater than 250
Frequency Response 20Hz-20kHz±1 dB

Total Harmonic Distortion 0.05% (200 watts @ 8Ω 20-20K)

S/N Ratio full output >100 dB A-weighted
Input Sensitivity 1.42 Vrms for full output
Input Impedance 30 Kilohms
Protection Clipping, Thermal, Short, DC Offset
Cooling Thermal Convection

Peak AC Power Consumption 1430 watts (full output into 8Ω)
Average AC Power Consumption 690 watts (full output into 8Ω)

Weight 46 lbs / 20.9 kgs
Dimensions (H x W x D) 5.25” x 17” x 15.75”

133.5mm x 432mm x 400mm
Inputs Balanced XLR & unbalanced RCA
Outputs Oversize 5-way binding posts
Remote Trigger 12-volt input switches AC
Optional 19-inch 3U rack mount available

All specifi cations are subject to change without notice.
