Audiocom SS1000, SS2000 Supplemental Information

Audiocom
®

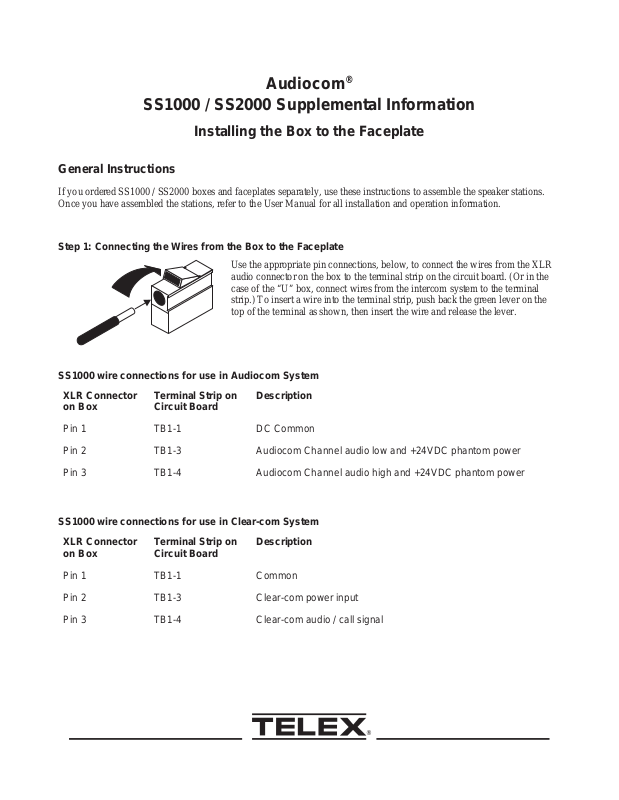

SS1000 / SS2000 Supplemental Information
Installing the Box to the Faceplate
General Instructions
If you ordered SS1000 / SS2000 boxes and faceplates separately, use these instructions to assemble the speaker stations. Once you have assembled the stations, refer to the User Manual for all installation and operation information.
Step 1: Connecting the Wires from the Box to the Faceplate
SS1000 wire connections for use in Audiocom System
XLR Connector on Box
Pin 1 TB1-1 DC Common Pin 2 TB1-3 Audiocom Channel audio low and +24VDC phantom power Pin 3 TB1-4 Audiocom Channel audio high and +24VDC phantom power
SS1000 wire connections for use in Clear-com System
XLR Connector on Box
Pin 1 TB1-1 Common Pin 2 TB1-3 Clear-com power input Pin 3 TB1-4 Clear-com audio / call signal
Terminal Strip on Circuit Board
Terminal Strip on Circuit Board
Description
Description
®
SS2000wireconnectionsforuseinAudiocomSystem
XLRConnector onBox
TerminalStripon CircuitBoard
Description
Pin1 TB1-1 Common Pin2 Noconnection Pin3 TB1-3 AudiocomChannel1audiolowand+24VDCphantompower Pin4 TB1-4 AudiocomChannel1audiohighand+24VDCphantompower Pin5 TB1-5 AudiocomChannel2audiolowand+24VDCphantompower Pin6 TB1-6 AudiocomChannel2audiohighand+24VDCphantompower
SS2000wireconnectionsforuseinClear-comSystem
XLRConnector onBox
TerminalStripon CircuitBoard
Description
Pin1 TB1-1 Common Pin2 TB1-3 Clear-compowerinput Pin3 TB1-6 Clear-comLineB* Pin4 TB1-4 Clear-comLineA* Pin5 NoConnection Pin6 NoConnection
* Whenconnectedasshown,Clear-comLineAcorrespondstoSS2000Ch1andClear-comLineBcorrespondsto
SS2000Ch2.
Step2:AssembletheFaceplatetotheBox
Usethefourscrewssuppliedwiththefaceplate.
Step3:InstalltheIntercomStation
RefertotheUserInstructionsforfurtherinformation.
9330-7627-000 Rev A 2/98
