Audiocenter TS, TS12, TS-SW, TS08, TS12P User Manual

TS/TS-SW Series

User’s Manual

TS08,TS10,TS12,TS12P,TS15,

TS-112SW,TS-118SW,TS-212SW

A1-2014-05

Page 1

TS-SW Series Operation Instruction

Installation guidance for TS and TS-SW series

Presets for TS series and TS-SW series

06

07

TS series back panel control and function

09

TS-SW series back panel control and functions

11

TS Series Operation Instruction

12

13

Product Application Samples of TS/ TS-SW series

15

Dimension of TS and TS-SW serie

17

Product Introduction

Warranty

TS / TS-SW Technical Features

TS series specification

TS-SW series specification

Trouble Shooting

02

03

05

18

19

20

Contents

02

Safety precautions

TS/TS-SW

When you set up,install and use the TS/TS-SW,please follow the following safety
measures strictly:
There can be danger in any step during hanging installation. Everyone should pay

attention to personal safety. All purchasers of Audiocenter should be professional people
qualified to conduct the work related to such equipments.
We strongly suggest the users pay full attention to local rules, regulations and laws.
Installers have the responsibility to make sure the speaker installations are subject to
local rules, regulations, and laws.
If any danger or defect is detected, measures should be taken immediately to correct it.
In touring application, please choose the installation hardware and occasion that can
sustain the weight of the equipments.
Please do not try to hang speakers over the design standard.

When connecting the cables of the products, please use cable tie to fix the cables, to
avoid actors, workers, and audience falling on the wire or brackets and affecting the
speaker system.
Please do not place the speakers near equipments sensitive to magnet fields, such as
CRT displayer, TV or data saving materials.

Please do not place the power cable near heating source. Do not over bend or damage

the power cables. Do not place heavy things on it. Please do not place the cables that

may be pressed or cause stumbling.
Only the specified rated voltage should be used for this product. Please refer to the back
panel of the product for the specified voltage.
Only the supplied power cable or plug should be used. (lf you need to use the product in a
place different from the purchase place, please consult your local Audiocenter distributor..)
Please check the power cable or plug regularly.
Please make sure to connect to proper power socket with protection grounding
connection. Wrong grounding may cause short circuits.
The product inside does not include any component that can be repaired by users. In
case of abnormal operation, please stop using immediately, and contact qualified
Audiocenter maintenance worker to repair.

Please do not use the product in the rain, or near water, or in humid environment, to

avoid liquid spilling to any opening.

Thank you for purchasing TS full range active speaker system and TS-SW series active
subwoofer from Audiocenter. They have integrated technologies of

, big power digital amplifier and DSP control, as well as speakers made of new
materials. It is the result of years of R&D effort. We hope that you can use with pleasure,
just as how we designed it.
Please finish reading the manual before usage, to make sure the best performance of
TS/TS-SW series. Please keep the manual for future reference.

switch mode power

supply

Safety precautions

Page 2

Product Introduction

TS/TS-SW

Page 3

out the power plug from the socket, and ask qualified Audiocenter maintenance worker
to repair.

-- Wear or damage of the power cable or plug.

-- Abnormal smell or smoking

--Some substance falls into the product

--Sound stops suddenly when using the product .

If the product falls or damages, please turn off the power switch immediately. Pull out the

power plug from the socket, and ask qualified Audiocenter maintenance worker to repair.
When pulling out the power plug from the power socket or the product, please make sure
to grab the plug instead of the power cable. Pulling the power cable directly may cause
damage.
If the product is not used for long time, or there is thunder storm, please pull out the plug
from the socket.

Please do not place the product in any uneven position. Otherwise, it may cause falling

off suddenly.
If the product is not fixed safely, please do not place it in a position that may cause easy
falling.
Please do not block the air hole. The product has air hole at the back to avoid internal
temperature too high. Bad ventilation may cause damage to the product or even fire.
Please do not hang or install any other component to the handle of the speaker. It may
cause damage or injure.
Please do not press the back panel of the product to the wall. Otherwise the plug may
touch the wall and separate from the cable, and cause short circuits, malfunction, or
even fire.
Before connecting the product to other equipment, please turn off the power switch of all
equipments. Before turning on or off the power switch of all equipments, please turn

down the volume to the minimum.
Please do not use the product in a very high or uncomfortable volume. Otherwise, it may
cause permanent damage to your ear.
In case of sound distortion, please do not use the product. To Continue using the product
in such status may cause fire.
Using mobile phones near the speaker may cause noise. In case of noise, please use
themobile phone far from the speaker.
If you need service, please contact Audiocenter service center, agent, or distributor in
your area.

When any of the following situations occurs, please cut the power immediately, and pull

In order to avoid to cause you or others body injury and loss on equipment or
property, please make sure to follow above basic items.

Warranty

We ensure all the Audiocenter products are high-quality and professional goods, no
matter for the performance or for the craftwork. Before delivery, each single piece of
products is checked by us for outlook and also automatically tested by equipment for

TS/TS-SW

Page 4

high standard sound quality, then QC passed.
From the date you buy our goods, you will own the service in free of charge for 6 years.

Product warranty items and Guarantee (China Mainland only)
Products warranty period is 6years (starting from the date buying the products). During
warranty period, if any damage or fault in our goods, after Audiocenter technician verified
the issue was not caused by wrong operation and usage or unexpected damage during
the transportation, Audiocenter will repair the products and exchange the spare parts in
free of charge.

Because of long distance for oversea transportation and other changeable factors,

warranty 6years is for China mainland only.

If under below conditions, Audiocenter distributor and dealers will reserve the right to

reject any repair.

a) Products were not buy from Audiocenter dealers or distributors, or it is fakery.

b) Factory serial number is invalid, damaged already, obliterated, removed or no any
sale record.
Under below-mentioned conditions, information in warranty card or website will be invalid.

1) The issue was caused by the intentionally wrong operation.

2) Problem or fault caused by wrong handling,incorrect operation,unexpected damage

3) The issue caused by inefficient outer conditions,such as oversize input voltage and
huge humidity.

4) The damage caused by the accident or natural hazard.

5) Products were repaired by other people, not by Audiocenter technicians.

6) Installation of the products in the wrong way.
Warranty and maintenance of the goods are only for Audiocenter service center or
appointed distributors.
If products damaged directly or indirectly due to the equipment defective, Audiocenter

won't take any responsibility.
If Audiocenter products are out of warranty period, reasonable fee will be charged for
repair.
Audiocenter reserve the right for explaining of above items. If any change, we will keep
you informed.
If any query, please contact us by phone: [e-mail] or visit our website:

www.ac-pro.net.

Users fill one warranty card in duplicate, (Packed with user manual inside the bag,
content is as below drawing.). Then send one of the parts to Audiocenter distributors
within 30days.
User also can login into Audiocenter official website to register the effective
warranty serial number. (Route: Home/product center/ product warranty register).
If need to repair the goods, you are required to show out the Invoice and warranty card.
Related information of goods in official website will be the support for the service.

www.ac-pro.net

Product Warranty Registration.

1、

2、

3、

4、

5、

6、

7、

8、

TS/TS-SW

TS / TS-SW Technical Features

Page 5

TS08

TS10

TS12

TS12P TS15

TS Series:

Features:

TS-SW Series:

TS- SW112

TS- SW118

TS- SW212

Package accessories:

Power cable
User’s manual
Warranty card and quality certificate
Rubber feet ( for TS12/15，TS-12P only)
Please check above items carefully. If any questions, please advise Audiocenter

representative, dealers, distributors, or contact by email box: . [e-mail]

Optional accessories:

U horizontal bracket
U vertical bracket
Joint bracket
Flight case
Cover bag
Stand
Coupling bar

1、Integrated with big power Class D amplifier technology, switch mode power supply
technology and DSP control technology.

2、With built-in DSP control technology, all functions like EQ adjustment, phase correction,
delay, limiter, etc, can be realized easily.

3、High efficiency Class D amplifier technology, light weight and more compact.

TS/TS-SW

Page 6

Presets for TS series and TS-SW series

There are 5 presets in TS series speakers for users to recall for usage in different
applications.

st

1 preset- AC

nd

2 preset-Linear

rd

3 preset-Boost

th

4 preset-Vocal

th

5 preset-W/Sub

Presets for TS series are set up by factory before shipment. Users can only recall the
presets for usage in different applications, but can't change or delete the presets.

st

1 preset- AC

This is the default preset in TS when users operate TS for the first time or reset the
preset. AC preset is with Audiocenter sound taste for smooth and natural sound.

nd

2 preset-Linear

With this preset, the frequency response of the TS between 80Hz-18KHz is special
linear response. The HF and LF are in a balance. It is the balance between high
frequency and low frequency. With Equalizer or external DSP, users can simply adjust
the frequency response of the speakers to satisfy some special application demand,

such as defective architectural space acoustics, strange sound source or personal taste
sound.

rd

3 preset-Boost

With this preset, more LF energy will be created when the gain of LF is pushed more. In
contrary, the energy of MF mid will be decreased accordingly. At the same time, the
energy of super HF will be more.

th

4 preset-Vocal

This preset can improve the clarity of human voice. Vocal preset is mainly used on the
applications of company activities, fair, and public speech.

th

5 preset-W/Sub

This preset is made to match TS with subwoofer. To work together with subwoofers, TS
can have much better sound dynamic.

get the right sound performance.
Efficient protection system
Advanced 2 channel DSP board
Advanced AD/DA converter. 96KHz signal sampling frequency and 56- bit precision
device to ensure the most clear sound
LCD at the back panel for easy display, and for users to touch and play different
functions.
Input A and Input B can either input signal individually, or input.

With 5 presets of TS Series, users can recall different presets for different applications to

5、
6、
7、

8、

9、

TS/TS-SW

4、

1

The polarity of TS-SW：

Polarity, also called as phase sometimes, means that the input voltage is positive or

negative in specific time. In most cases, the positive will drive thediaphragm of the
speaker to move forward,and the negative will drive it backward. When a specific
frequency signal or similar signal repeats, the polarity must be the same, so that the
input efficiency will be the highest. For subwoofer system, this is very important. Wrong

connection or usage will change the polarity, and lower the system's efficiency.

TS-SW series polarity can be changed according to different using conditions.
When full range speakers system and subwoofer speaker system are combined,
please change the phase according to their distance to get the best sound performance.

6

1

1

MIX OUT A

OUTPUT A

1

1

2

11

6

4

5

1

2

3

7

9

8

13

16

10

12

17

14

15

AC INPUT

(230V/5 0-60 )Hz

Page 7

TS series back panel control and function

Audiocenter subwoofers or subwoofers of other brands are recommended to work with
TS.
To match with Audiocenter TS series or third party 2-way speaker systems, TS-SW

series are designed with 3 different kinds of presets:80Hz,100Hz and 120Hz. .

power indicator

When speaker connected to power, the LED is on.

Channel A signal indicator

When decting Line A/MIC channel has input signal, the LED is on.

Channel B signal indicator

When decting Line B/AUX channel has input signal, the LED is on.

Limiter indicator

When output limiter is activated, the LED is on. If the output voltage of the amplifier is
over the maximum value, the output limiter will operate to damp the output signal of
amplifier.

Protect Indicator

When the protection system is activated, the LED is on. The protection system will
operate in the following situations:

2

3

TS/TS-SW

4

5

the amplifier over heated
DC output
overload currency
power activation voltage too high or too low
the amplifier in stand-by mode

Then the Speaker output is mute, and power supply is cut off, LCD display will be off.

When the power is turned on:

The LED is on for 3 seconds with power supply. After normal power supply, the LED is
off.

When the power is turned off:

When the power is switched off, or the power is cut accidently, the protection system will
turn off the equipment to avoid noise.
If the protection system operates when detecting problem, please wait to turn it on after
the amplifier cool down or the power is off, then the speaker will be normal again. If the
equipment can not work normal, please consult your distributor.

Menu navigation key

This is to shift among different functions and change the parameters of each different
function. Whenever there is an underline on either of the functions, users can press the
key to shift to another function. Whenever there is flash on either of the functions, users
can press the key to change the parameters of this function.

Enter key

This key is to select and confirm the functions. When the function item is underlined,
press this key, then the function item flashes, you can modify the parameters. When you
press this key again, the changed parameters are confirmed and you will exit.

LCD Display

Show the setting status of the speaker: volume/preset/LINEA B link/ stand-by.

Line/Mic Switch

According to the electric level of the input signal, set Line/Mic Switch to Mic or Line
position. For low electric level signal(such as Microphone) set the switch to Mic position.
For high electric level signal (such as electric musical instrument and audio equipment),
please set the switch position to Line position.

According to on site application,set Mix out A/Output A to Mix out A or Output A.Set the
switch to MIX OUT A position,OUTPUT Singnal of INPUT A & INPUT B offer mixing.Set
the switch to OUTPUT A position,OUTPUTS socket (12) and Inputs socket (11) in
parallel,and input signal will be by pass,without influence.

Input Socket(Line A/Mic)

Balanced XLR and phone type multi-function input socket.

Output socket(MIX OUT A/OUTPUT A)

This is balanced XLR output socket. Select “MIX OUT A”, balanced output mixed signal.

Select “OUTPUT A”, output socket in parallel with input socket (LINE A/MIC ).

MIX OUT A/OUTPUT A Switch

Page 8

6

7

8

9

10

TS/TS-SW

11

12

This is balanced XLR output socket. Parallel to INPUT socket (Line B), input signal can

be bypass, without influence.

Power switch

Turn on or off power. Slide the switch up to (1) position to turn on the power.Slide the
switch down to (0) position to turn off the power.

AC input socket

Connect the power cable here.First connect on end of the power cable to the product and
then connect the other end of the power cable to AC socket.

Inputs socket (LINE B)

Balanced XLR and phone type multi-function input socket.

OUTPUTS Socket（LINE B）

INPUTS Socket（AUX）

Unbalanced RCA input socket.

11

AC INPUT

(230V/50 -60 )Hz

1

1

7

PROTECT

LIMITER

SIGNAL A

POWER

SIGNAL B

LINE B

LINE A LINE B

LINE A

VOL A

VOL B

A BLINK/

STANDBY

PRESETPHASE

ENTER

11

1

13

13

10

12

6

4

5

2

2

3

7

9

8

14

14

TS-SW series back panel control and functions

Page 9

13

14

15

16

17

Power LED

When connected to power, the LED is on.

Signal A LED

When there is audio input signal in Line A/Mic channel, the LED is on.

Signal B LED

When there is audio input signal in LineB/AUX, the LED is on.

Limiter LED

When output limiter is used, the LED is on. If the output voltage of the amplifier is over
the maximum value, the output limiter will operate, damping the output signal of the
amplifer.

Protect LED

When system protection is activated,the LED is on.The Protection System will be
activated in following situations:

the amplifier over heated
DC output

1

2

3

4

TS/TS-SW

5

overload currency
power activation voltage too high or too low
the amplifier in stand-by mode

Then the Speaker output is mute,and power supply is cut off,LCD display will be off.

When the power is turned on:

The LED is on for 3 second. with power supply.After normal power supply,The LED is off.

When the power is turned off:

When the power is switched off,or the power is cut accidently,the protection system will
turn off the equipment to avoid noise.
If the protection system operates when detecting problem, please wait to turn it on after

the amplifier cool down or the power is off, then the speaker will be normal again. If the

equipment can not work normal, please consult your distributor.

LCD Display

Setting status of speaker: valume/phase/preset/LineA B linkage/standby”, etc...

INPUTS connector (Line A)

Balance XLR input connector

OUTPUTS connector (Line A)

Balance XLR output connector. Due to parallel connection to INPUTS connector(Line A),

the input signal can bypass, without influence.
INPUTS connector (Line B)

Balance XLR input connector.

OUTPUTS connector(Line B)

Balance XLR output connector. Due to parallel connection to INPUTS connector(Line B),

the input signal can bypass, without influence.

Menu navigation key

This is to shift among different functions and change the parameters of each different

function. Whenever there is an underline on either of the functions, users can press the

key to shift to another function. Whenever there is flash on either of the functions, users

can press the key to change the parameters of this function.

Enter key

This key is to select and confirm the functions. When the function item is underlined,
press this key, then the function item flashes, you can modify the parameters. When you

press this key again, the changed parameters are confirmed and you will exit.

Power switch

Turn on or off power. Slide the switch up to (1) position to turn on the power.Slide the
switch down to (0) position to turn off the power.

AC input socket

Connect the power cable here. First connect on end of the power cable to the product

and then connect the other end of the power cable to AC socket.

Page 10

6

7

8

9

10

11

12

13

TS/TS-SW

14

4

5

3

VOL A

When selecting from menu navigation key, there is an underline below the content.
Choose it by pressing the Enter key, and the content will flash. Now you can change its

volume by navigation key. The change is in time. Finally, you can exit by pressin Enter

key.

PRESET

When selecting from menu navigation key, there is an underline below the content.

Choose it by pressing the Enter key, and the content will flash. Now you can select the

preset by navigation key. When you chose the preset, press Enter key, a small window
will pop up to ask you if you need to download this preset,You can select No/Yes to

check,if you select Yes and press Enter key it means you choose this perset;If you select
No,it means you give up this preset.

VOL B

When selecting from menu navigation key, there is an underline below the content.

Choose it by pressing the Enter key, and the content will flash. Now you can change its

volume by navigation key. The change is in time. Finally, you can exit by pressing Enter
key.

A/B LINK

When selecting from menu navigation key, there is an underline below the content.

Chooseit by pressing the Enter key, and the content will flash. Now you can select the

linkage status by navigation key. If YES, A.B channel will input volume gain will be

adjusted at the same time. If NO, A B channel will input volume gain will be adjusted

individually. Finally, you can exit by pressing Enter key.

MIX OUT A

OUTPU T A

Page 11

TS Series Operation Instruction

2

2

2

1

Full range speaker:

1

2

3

4

TS/TS-SW

Standby

When selecting from menu navigation key, there is an underline below the content.

Choose it by pressing the Enter key, and the content will flash. Now you can select the

5

1

PROT ECT

LIMITER

SIGNA L A

POWER

SIGNA L B

LINE B

LINE A LINE B

LINE A

VOL A

VOL B

A BLINK/

STANDB Y

PRES ETPHAS E

ENTER

1

PROT ECT

LIMITER

SIGNA L A

POWER

SIGNA L B

LINE B

LINE A LINE B

LINE A

VOL A

VOL B

A BLINK/

STANDB Y

PRES ETPHAS E

ENTER

TS-SW Series Operation Instruction

Page 12

4

2

2

2

1

3

5

6

Subwoofer:

VOL A

When selecting from menu navigation key, there is an underline below the content.
Choose it by pressing the Enter key, and the content will flash. Then change the volume

by navigation key. The change is in time. Finally, you can exit by pressing Enter key

again.

PHASE

When selecting from menu navigation key, there is an underline below the content.

Choose it by pressing the Enter key, and the content will flash. Then change the phase

content by navigation key. NORM is in phase, NIVT is out of phase. The change is in

time. Finally, you can exit by pressing Enter key again.

PRESET

When selecting from menu navigation key, there is an underline below the content.

Choose it by pressing the Enter key, and the content will flash. Then select the preset by

navigation key. When you chose the preset, press Enter key, a small window will pop up
to ask you if you need to download this preset, You can select No/Yes to check,if you
select Yes and press Enter key it means you choose this perset;If you select No,it means
you give up this preset.

VOL B

When selecting from menu navigation key, there is an underline below the content.
Choose it by pressing the Enter key, and the content will flash. Now you can change its

volume by navigation key. The change is in time. Finally, you can exit by pressing Enter

key.

1

2

3

4

TS/TS-SW

standby time by navigation key. For example, 5' means standby after 5 minutes. Off

means no standby. Finally, you can exit by pressing Enter key.

-1

-2

-3

-4

MIX OUT A

OUTPUT A

7

MIX OUT A

OUTPUT A

1

PROTECT

LIMITER

SIGNAL A

POWER

SIGNAL B

LINE B

LINE A LINE B

LINE A

VOL A

VOL B

A BLINK/

STANDBY

PRESETPHASE

ENTER

Page 13

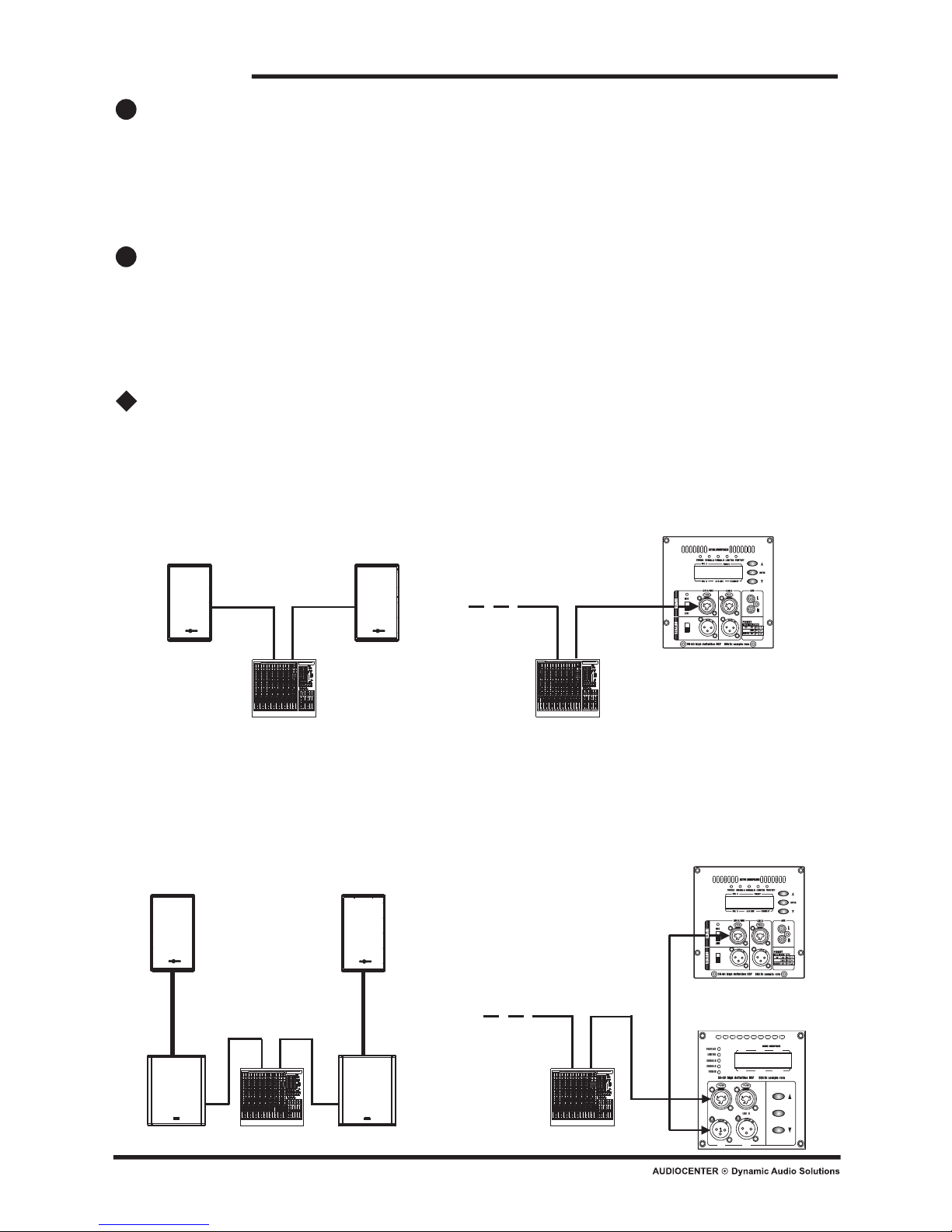

Product Application Samples of TS/ TS-SW series

Below is the basic system application with 2pcs of TS series full range speakers. This
system is ideal for small size touring performance restaurant and rehearsal etc.. 。

Basic system with subwoofer:

A/B LINK

When selecting from menu navigation key there is an underline below the content.
Choose it by pressing the Enter key, and the content will flash. Then select the linkage
status by navigation key If YES, input gain of Channel A and B can be adjusted at the
same time. If NO, input gain of Channel A and B can be adjusted individually Finally you

can exit by pressing Enter key again..

Standby

When selecting from menu navigation key there is an underline below the content
Choose it by pressing the Enter key and the content will flash. Then select the standby

time by navigation key For example, 5' means standby after minutes Off means no

standby Finally you can exit by pressing Enter key again..

Basic system application

Below is the basic system with 2pcs of TS series full range speakers and 2pcs of
subwoofers with coupling bars. This system is ideal for small size touring performance

church and small stadium,etc..

5

6

TS/TS-SW

1.

2.

-5

-6

-7

-8

-9

-10

MIX OUT A

OUTPUT A

MIX OUT A

OUTPUT A

MIX OUT A

OUTPUT A

1

PROTECT

LIMITER

SIGNAL A

POWER

SIGNAL B

LINE B

LINE A LINE B

LINE A

VOL A

VOL B

A BLINK/

STANDBY

PRESETPHASE

ENTER

MIX OUT A

OUTPUT A

1

PROTECT

LIMITER

SIGNAL A

POWER

SIGNAL B

LINE B

LINE A LINE B

LINE A

VOL A

VOL B

A BLINK/

STANDBY

PRESETPHASE

ENTER

MIX OUT A

OUTPUT A

Page 14

Below is the application of TS12/TS15 or TS12 P as stage monitor.

next

5、 Microphone：

System with

System for medium scale application:
Below is the system for medium scale application with pcs of TS series full range speakers

and pcs of subwoofers,This system is ideal for medium size touring performance, church,

etc.

4、Monitor System：

Below is the application of TS Series speakers with one microphone. In this situation,

please recall the “Vocal” preset, and set the switch at “MIX” position. This system is ideal

for seminar, product launch, etc.

TS/TS-SW

3.

326mm

326mm

633mm

626mm

295mm

325mm

292mm

322mm

517mm

545mm

Dimension of TS and TS-SW series

Page 15

358mm

326mm

326mm

355mm

633mm

626mm

295mm

292mm

322mm

517mm

545mm

TS08

TS10

TS12 TS12P

TS/TS-SW

TS15

TS- SW112

TS- SW118 TS- SW212

386mm

693mm

430mm

500mm

586mm

372mm

510mm

625mm

694mm

586mm

810mm

372mm

Page 16

TS/TS-SW

Accessories inside package: rubber feet (only for TS12, TS15, TS12P)

0 degree -10 degree adjustable according to different applications.

Installation guidance for TS and TS-SW series

Page 17

TS/TS-SW

Glob al a pp lc ation s up po rt t eam, EA SE G LL files a va il ab le

55Hz -2 0K Hz 45Hz -2 0K Hz 45Hz -2 0K Hz 40Hz -20KH z

123d B

126d B

129d B

125d B

128d B

131d B

125d B

128d B

131d B

127d B

130d B

133d B

Aner ag e H2 D is torti on

(200 Hz -1 0KH z)

Cons is te nc y

Aner ag e H3 D is torti on

(200 Hz -1 0KH z)

＜2% at 1W

＜0.5% a t 1W

±1.5 dB (1 50 Hz-10 KH z)

Inte rm od ul ation D is to rt ion

By DSP

295 x292 mmx517

14.9 kg

325 x322mmx545

15.9 kg

358 x326mmx6 33

18.3 kg

355 x326 mmx62 6

23.5 kg

430 x386 mmx69 3

26.9 kg

CNC ma de c abine t( once sh aping P P en closu re f or TS12 P)

2 base h ol es Φ 35 mm at the b ot to m

Sing le p oi nt m ounti ng b ra ck et,"U"B ra ck e, Co uplin g ba r,F li ght c as e, D ur able co ve r ba g

Specif ications

Freq ue nc y Re spons e

（-6dB a ne ch oi c cha mb er )

Driv er

HF

LF

Dire ct iv it y（-6d B)（H ° xV ° )

60Hz -2 0K Hz

Cust om iz ed B eyma HF d ri ve r，fe rrtie ,1 "e xit，1.7 "v oice co il

90° x60°

Maxi mu m
Calc ul at ed
SPL/ 1M

Cont in uo us

Prog ra m

Peak

121d B

124d B

127d B

DSP

Proc es so r

Ampli fier

Ampl if ie r Ci rcuit ry

Rate d Po we r

Freque ncy R esp onse (1W 8 2ch )

Cool in g Sy st em

Prot ec ti on

DC protect ion

Shor t ci rc ui t Prote ct io n

Over th ea t Pr otect io n

Outp ut o ve rl oad pro te ct io n

Soft s ta rt up P rotec ti on

Over vo lt ag e prote ct io n

Unde rv ol ta ge prot ec ti on

96KH z si gnal sa mp ling freq uency，5 6- bit preci sion

Low pa ss

High P as s

Cros so ve r

Dime ns io ns（W xHxD）

Net Weight

Cabi ne t

Base M ou nt

Opti on al Acce ss ories

Techni ca l Su pp ort and Af te r- sa les Ser vi ce

TS08

TS10

TS12

TS12P

TS15

HF：Cla ss A B LF：C la ss D

1200W

20Hz -2 0K Hz( ±1 dB )

＜0.1%

Heat si nk a ir -flow

±5V

√

Redu ce d ou tp ut by hal f at 6 0℃ an d sh ut off AM P at 8 0℃

Arou nd 1 s

Over vo lt ag e prote ct io n ac tivated w he n ov er 10% of A C ra te d volta ge

Unde rv ol ta ge prot ec ti on a ctivate d wh en l ess tha n of A C rated v ol ta ge 10%

By DSP

Page 18

TS series specification

TS08

TS10

TS12

TS12P TS15

Cust om iz ed B eyma
LF dri ve r，fe rr tie,
2"vo ic e co il

Cust om iz ed F aital
LF dri ve r，fe rr tie,
2"vo ic e co il

Cust om iz ed B eyma LF d ri ve r，fe rrtie ,3 "v oice co il

AUDIOCENTER Reserves the rights to change specifications without prior notice in case

TS/TS-SW

42Hz -5 00H z

35Hz -5 00H z

130d B

133d B

136d B

128d B

131d B

134d B

Cust om iz ed LF d river, f er ri te ,3.5" v oi ce c oi lAudi oc en te r

＜2% at 1W

＜0.5% at 1W

±1.5 dB (40Hz -1 50Hz)

372 x586 mmx50 0

32.0 kg

372 x586x810 mm

46.7 kg

510 x694x625 mm

51.0 kg

45Hz -5 00H z

124d B

127d B

130d B

DSP

Ampli fiter

Techni ca l Su pp ort and Af te r- sa les Ser vi ce

TS- SW112

TS- SW212

TS- SW118

Clas s D

1800W

20Hz-6 KHz(± 1d B)

＜0.1%

±5V

√

/

Page 19

TS-SW series specification

TS- SW112

TS- SW118

TS- SW212

Specif ications

Freq ue nc y Re spons e

（-6dB a ne ch oi c cha mb er )

Driv er

LF Tv ansdu ce r

Dire ct iv it y（-6d B)（H ° xV ° )

Maxi mu m
Calc ul at ed
SPL/ 1M

Cont in uo us

Prog ra m

Peak

Aner ag e H2 D is torti on

(200 Hz -1 0KH z)
Aner ag e H3 D is torti on

(200 Hz -1 0KH z)

Cons is te nc y

Proc es so r

Shor t ci rc ui t Prote ct io n

Outp ut o ve rl oad pro te ct io n

Soft s ta rt up P rotec ti on

Over vo lt ag e prote ct io n

Unde rv ol ta ge prot ec ti on

Inte rm od ul ation D is to rt ion

Ampl if ie r Ci rcuit ry

Rate d Po we r

Freque ncy R esp onse (1W 8 2ch )

Cool in g Sy st em

Prot ec ti on

DC protect io n

Over th ea t Pr otect io n

Low pa ss

High P as s

Cros so ve r

Dime ns io ns（W xHxD）

Net Weight

Cabi ne t

Base M ou nt

Opti on al Acce ss ories

96KH z si gnal sa mp ling freq uency，5 6- bit preci sion

Heat si nk a ir -flow

Redu ce d ou tp ut by hal f at 6 0℃ an d sh ut off AM P at 8 0℃

Arou nd 1 s

By DSP

By DSP

AUDIOCENTER Reserves the rights to change specifications without prior notice in case

TS/TS-SW

Over vo lt ag e prote ct io n ac tivated w he n ov er 10% of A C ra te d volta ge

Unde rv ol ta ge prot ec ti on a ctivate d wh en l ess tha n of A C rated v ol ta ge 10%

Cust om iz ed LF

driv er, fer ri te ,4 " vo ice coil

Audi oc en te r

1200W 1200W

Glob al a pp lc ation s up po rt t eam, EA SE G LL files f or f re e

CNC ma de c abine t( once sh aping P P en closu re f or TS12 P)

1 base h ol es Φ 35 mm on the t op

Coup li ng b ar, Fligh t ca se , wa terpr oo f co ve r bag

Adjust the phase of subs

Not enough SPL while full
range speakers used
together with subs

Subs might be out of phase

Adjust TS/TS-SW
speaker standby time.

TS /TS-SW series speaker
power LED shows blue
when no signal

Standby time is not set for
TS/TS-SW speakers.

Page 20

Connect the cable correctly

Connect with input socket
correctly.
Adjust speaker output gain
input bigger.

No sound

Cable not connected
correctly.
Or too small gain.

Keep speakers out of the
microphone response area.
Lower the output gain, make
microphone close to the
sound source.

If feedback for the LF, don't
use Boost preset.

Feedback in the sound

Microphone is toward to
speaker
Sound is too high.
Wrong preset used.

Put the same gain for different
speakers.
Use the same presets for

different speakers.
Make the subs in phase

Sound
different speakers .

Discrepancy from

Different gain for different
speakers
Different presets for different
speakers
Subwoofers are out phase

Reduce the input volume of
the equipments
Reduce the output gain of the
speakers, make the Limiter
LED lighted a bit

Sound distortion

Input volume is too big
Output volume too big

If the sound still distorted while
the volume is set to minimum,

make the MIC/LINK switch to
be Link.

Sep the MIC/LINK at MIC

Microphone volume is too
small

MIC/LINK switch is set at
LINK

Please consult distributor if there are still problems

Symptom

Power LED not light

Cable not connected
correctly

Possible reasons Solution

Trouble Shooting

TS/TS-SW
