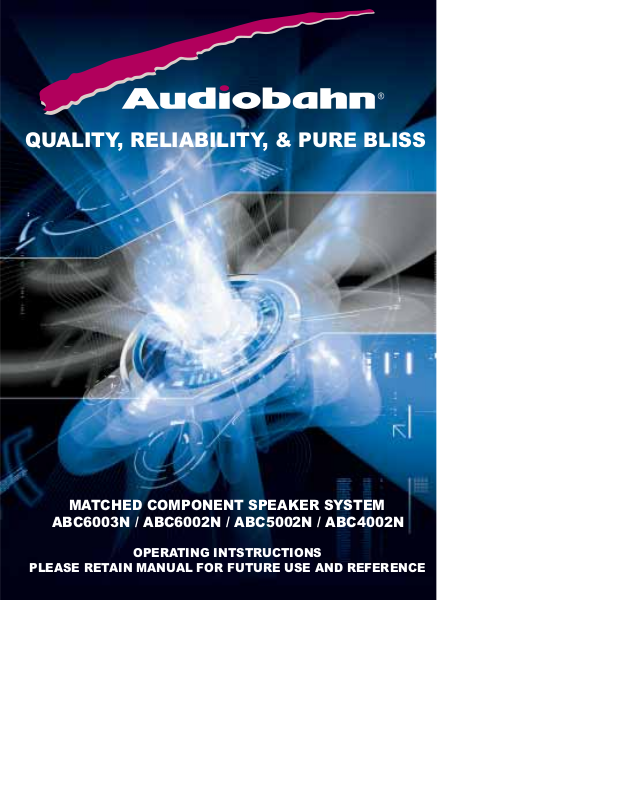

QUALITY, RELIABILITY, & PURE BLISS
MATCHED COMPONENT SPEAKER SYSTEM
ABC6003N / ABC6002N / ABC5002N / ABC4002N
OPERATING INTSTRUCTIONS
PLEASE RETAIN MANUAL FOR FUTURE USE AND REFERENCE
The Audiobahn Way
To bring the product to market that excites the consumer through
sound and vision from an orientation of integrity and customer service. We
make you look as good as you sound. We strive to take car audio to an
extreme the world has never seen, and a world that never stops evolving.
Audiobahn was established in 1997 with one long-term goal in mind,
"Build it Bigger, Badder, & Better, and the people will take notice!" We
back this statement with an engineering team that has brought home several
Innovations, Design & Engineering Showcase Awards, and a marketing team
from around the world that spends countless hours developing our no
compromise products to satisfy the most discriminating enthusiasts.
Our global manufacturing facilities feature ISO9002 ratings (the highest
level of quality control awarded in the electronics manufacturing industry), fully
robotic assembly lines and a state of the art, California basedR&D
laboratory.
Due to overwhelming response from our competitors, and our goal to
participate in even more events this year, we created *"TEAM AUDIOBAHN."
This organization is designed to create a support network along with shirts and
perks for team members. "TEAM AUDIOBAHN" is not only for the diehard
competitor, but also for anyone that loves car audio as much as we do. With
four levels of play, one is right for you to get started in the Audiobahn family.
Our Technical Department and entire staff look to strive above and
beyond the rest of the pack by going that extra mile to help you out. Whether
you happen to be a veteran competitor, or a beginner car audio enthusiast that
does not know a voice coil from a spider. We are all her to help you get the
best system you can with what you have.
Judge for yourself, and remember what it's all about, "If it's not
Bigger, Badder & Better, it's not Audiobahn." If audio is your life,
Audiobahn is the brand for you! We make you look as good as you sound.
People never stop trying to get the best product, so we will never stop making
it.
*To learn more about "TEAM AUDIOBAHN" please give us a call, see our website at
website at www.audiobahninc.com, or email us at team@audiobahninc.com to learn about all
the details.
Table of Contents
Getting Started----------------------------------------------------Introduction---------------------------------------------------------Features and Specifications------------------------------------Mounting and Setup-----------------------------------------------Choosing a Location----------------------------------------------Installation-----------------------------------------------------------Wiring-----------------------------------------------------------------Securing the Speaker---------------------------------------------Troubleshooting-----------------------------------------------------Warning and Disclaimer------------------------------------------Warranty---------------------------------------------------------------
Getting Started
2
3
4
5-8
9
10
11
12
13
14
15-16
Welcome to Audiobahn Inc.. This manual has been designed to provide information for
the owner, salesperson, and installer. For those of you who want quick information on
how to install this product, please turn to the installation section of this manual. Other
information can be located by using the table of contents. We at Audiobahn Inc. have
worked very hard to make sure that all of the information in this manual is current, but,
as we are costantly finding new ways to improve our product, this information is subject
to change without notice. All updated information can be found on our web page in the
technical support section.
2
Introduction
Dear Customer,
Congratulations on your purchase of the worlds finest brand of car audio products. Here at
Audiobahn Inc. we are devoted to making our musical reproduction the vert best, and we are
pleased you have chosen our product. Through years of engineering expertise, hand
craftsmanship, and critical testing procedures, we have created a wide range of products that
reproduce music with all the clarity and richness you deserve.
For maximum performance we recommend you have your Audiobahn product installed by an
Authorized Audiobahn Dealer, as we provide specialized training through our Audiobahn
Installer Training Programs. Please read your warranty, keep your receipt, and original carton
for possible future use.
Great products and proper installation are only a small piece of the puzzle when it comes to
your system. Make sure that your installer is using only 100% authentic installation accessories
from the Audiobahn Connections. The Audiobahn Connections line has everything ranging
from the smallest terminal, to power wires up to 0 gauge, and 4 channel RCA cables.
To get a free brochure on Audiobahn products and Audiobahn Connections in the US call
(714)988-0400 or e-mail us at sales@audiobahninc.com.
WARNING
Continuous exposure to sound pressure levels over 100 dB may cause
permanent hearing loss. High powered autosound systems may produce sound
pressure levels well over 135dB. Need we say more! Use common sense.
If after reading this manual, you still have questions regarding your product, we
recommend that you see your nearest Audiobahn Dealer. A list of Authorized
Audiobahn Dealers can be found on our web page. If you need further assistance, feel
free to call us at (800)488-8595 and ask for the Technical Department. Be sure to have
the model number, date of purchase, and invoice number available when you call.
The model number can be located on the outside of the carton. Record this in the space
provided below along with the date of purchase. It is a good idea to keep your receipt
with this, as you will need it in the case of a warranty repair or exchange.
Model Number:___________________
Date of Purchase: _____________________
3
Features and Specifications
FEATURES
CARBON HONEYCOMB CONE
BUTYL RUBBER SURROUND
CHROME PLATED CAST ALUMINUM BASKET
2-LAYER HIGH-TRMP ASV VOICE COIL
4 OHM IMPEDANCE
COMPONENT MATHED 18dB PER OCTAVE CROSSOVER NETWORK
25mm SILK DOME TWEETER (SURFACE OR FLUSH MOUNT)
COMPLETE WITH MOUNTING HARDWARE
STRONTIUM MID-WOOFER MAGNET
NEODYNIUM TWEETER MAGNET
SPECIFICATIONS
POWER HANDLING
ABC6003N: 320 RMS POWER
640 ACH POWER
ABC6002N: 200 RMS POWER
400 ACH POWER
ABC5002N: 160 RMS POWER
320 ACH POWER
ABC4002N: 120 RMS POWER
240 ACH POWER
FREQUENCY
ABC6003N: 30Hz - 25kHz
ABC6002N: 30Hz - 25kHz
ABC5002N: 35Hz - 25kHz
ABC4002N: 45Hz - 25kHz
MAGNET WEIGHT
ABC6003N: 20oz.
ABC6002N: 20oz.
ABC5002N: 18oz.
ABC4002N: 18oz.
SENSITIVITY
ABC6003N: 91dB
ABC6002N: 91dB
ABC5002N: 90dB
ABC4002N: 89dB
