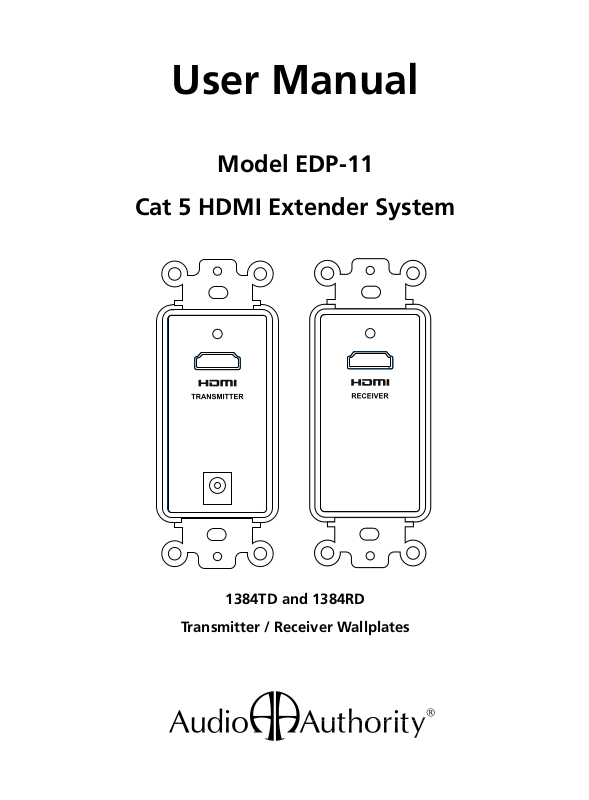

Audio Authority EDP-11 User Manual
User Manual
Model EDP-11
Cat 5 HDMI Extender System
1384TD and 1384RD
Transmitter / Receiver Wallplates
3
User Manual
Model EDP-11
Cat 5 HDMI Extender System
WARNINGS
• Read these instructions before installing or using this product.
• To reduce the risk of re or electric shock, do not expose this unit to moisture.
• This product must be installed by qualied personnel.
• Do not open the case—there are no user-serviceable parts inside.
• Do not expose this unit to excessive heat.
• Install only in dry, indoor locations.
• Clean the unit only with a dry or slightly dampened soft cloth.
LIABILITY STATEMENT
Every effort has been made to ensure that this product is free of defects. Audio
Authority cannot be held liable for the use of this hardware or any direct or indirect
consequential damages arising from its use. It is the responsibility of the user of the
hardware to check that it is suitable for his/her requirements and that it is installed
correctly. All rights are reserved. No parts of this manual may be reproduced or
transmitted by any form or means electronic or mechanical, including photocopying,
recording or by any information storage or retrieval system without the written
consent of the publisher.
Audio Authority reserves the right to revise any of its hardware and software
following its policy to modify and/or improve its products where necessary or
desirable.
Audio Authority and the Double-A Symbol are registered trademarks of Audio
Authority Corp. Copyright October, 2008. All third party trademarks and copyrights
are recognized.
2
Table Of Contents
1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . 4
2.0 Checking Package Contents . . . . . . . . . . . . . . . 4
3.0 Installation . . . . . . . . . . . . . . . . . . . . . . . . 5
4.0 Troubleshooting . . . . . . . . . . . . . . . . . . . . . 7
5.0 Specications . . . . . . . . . . . . . . . . . . . . . . 8
6.0 Limited Warranty . . . . . . . . . . . . . . . . . . . . 9
7.0 Regulatory Compliance . . . . . . . . . . . . . . . . 10
8.0 Contact Information . . . . . . . . . . . . . . . . . . 10
3
5
1.0 INTRODUCTION
Thank you for purchasing this Cat 5 HDMI extender system from Audio Authority.
The EDP-11 transmits HDMI signals digitally over Cat 5 cables. Using Cat 5e or
Cat 6 cables allows installers to use less expensive wire over longer distances,
and terminate the cables in the eld. The EDP-11 can achieve distances from 115
to 195 feet depending on the type of cable used, and the resolution and audio bit
rate of the source and sink.
Note: the EDP-11 (Models 1384TD and 1384RD) Transmitter and Receiver only
operate together, and do not function with any other Cat 5 system components,
such as the 1381T or 1381R.
Audio Authority offers an extensive line of audio and video switchers,
converters, extenders and distribution amps available for purchase online at
www.audioauthority.com or through authorized dealers.
1.1 SYSTEM FEATURES
• Maximum resolutions: 1080p @ 60Hz,1920x1200
• Supports 480i, 480p, 720p, 1080i, 1080p and multiple PC resolutions
• Requires two Cat 5e or Cat 6 UTP cables (Cat 6 is recommended)
• Maximum distance using Cat 5e cable: 115 ft (1080p) or 130 ft (1080i)
• Maximum distance using Cat 6 cable: 145 ft (1080p) or 195 ft (1080i)
• Supports up to 36 bit color depth /12 bits per color (TMDS channel)
• Supports Dolby Digital Plus, Dolby Digital TrueHD and DTS-HD: Master Audio
• HDMI version 1.3 compliant, HDCP 1.1 compliant
2.0 CHECKING PACKAGE CONTENTS
Before connecting the EDP-11, please make certain the following items are in
the shipping carton. (If you purchased the 1384TD or 1384RD separately, ignore
irrelevant items.)

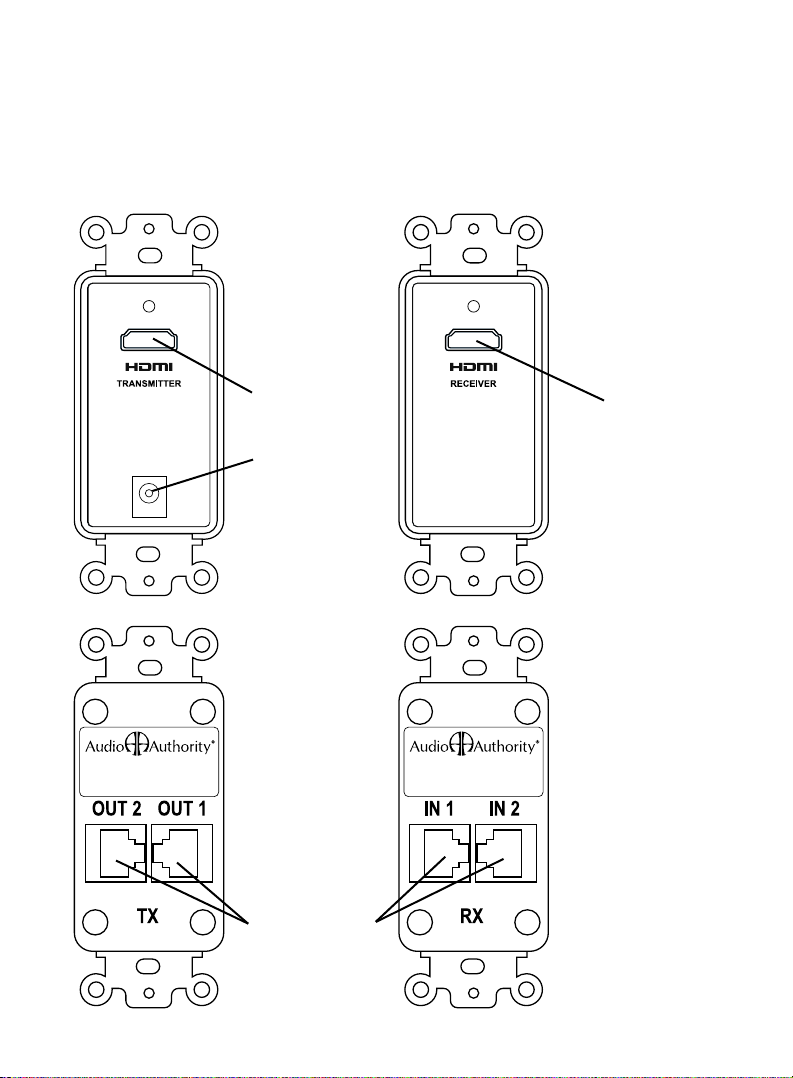

• 1384TD Transmitter with Decora® trim cover
• 1384RD Receiver with Decora® trim cover
• 5V DC Power Adapter
• User Manual
4
Note: Please retain the original
packing material in case you need
to return the unit. If you nd any
items are missing, contact Audio
Authority immediately. Have the
model number and invoice available
for reference when you call.
