Audio Authority DTV User Manual

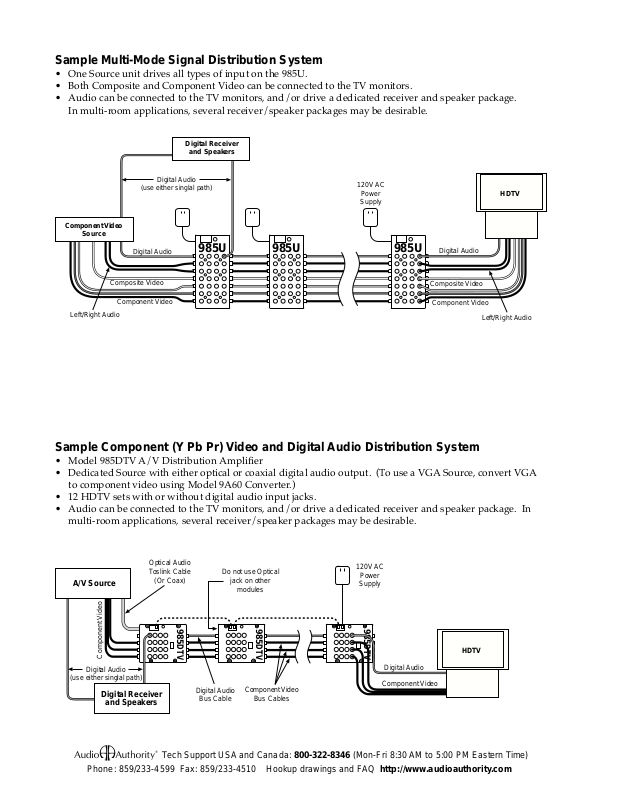

Sample Multi-Mode Signal Distribution System
• One Source unit drives all types of input on the 985U.
• Both Composite and Component Video can be connected to the TV monitors.
• Audio can be connected to the TV monitors, and/or drive a dedicated receiver and speaker package.
In multi-room applications, several receiver/speaker packages may be desirable.
Digital Receiver
and Speakers
Component Video
Source
Composite Video
Left/Right Audio
Digital Audio
(use either singlal path)
Digital Audio
Component Video
985U 985U 985U
120V AC
Power
Supply
HDTV
Digital Audio
Composite Video
Component Video
Left/Right Audio
Sample Component (Y Pb Pr) Video and Digital Audio Distribution System
• Model 985DTV A/V Distribution Amplifier
• Dedicated Source with either optical or coaxial digital audio output. (To use a VGA Source, convert VGA
to component video using Model 9A60 Converter.)
• 12 HDTV sets with or without digital audio input jacks.
• Audio can be connected to the TV monitors, and/or drive a dedicated receiver and speaker package. In
multi-room applications, several receiver/speaker packages may be desirable.
A/V Source
Component Video
Digital Audio
(use either singlal path)
Digital Receiver
and Speakers
Optical Audio
Toslink Cable
(Or Coax)
985
DTV
Do not use Optical
Digital Audio
Bus Cable
jack on other
modules
985
DTV
Component Video
Bus Cables
120V AC
Power
Supply
985
DTV
HDTV
Digital Audio
Component Video
AS D Tech Support USA and Canada: 800-322-8346 (Mon-Fri 8:30 AM to 5:00 PM Eastern Time)
Phone: 859/233-4599 Fax: 859/233-4510 Hookup drawings and FAQ http://www.audioauthority.com
