Audio Authority C-1024A User Manual

C-1024 Home

Theater Controller

Back of Music Center or MRI

SERIAL

DATA

IR SENSOR

SERIAL DATA

CABLE (TTL)

TV

POWER

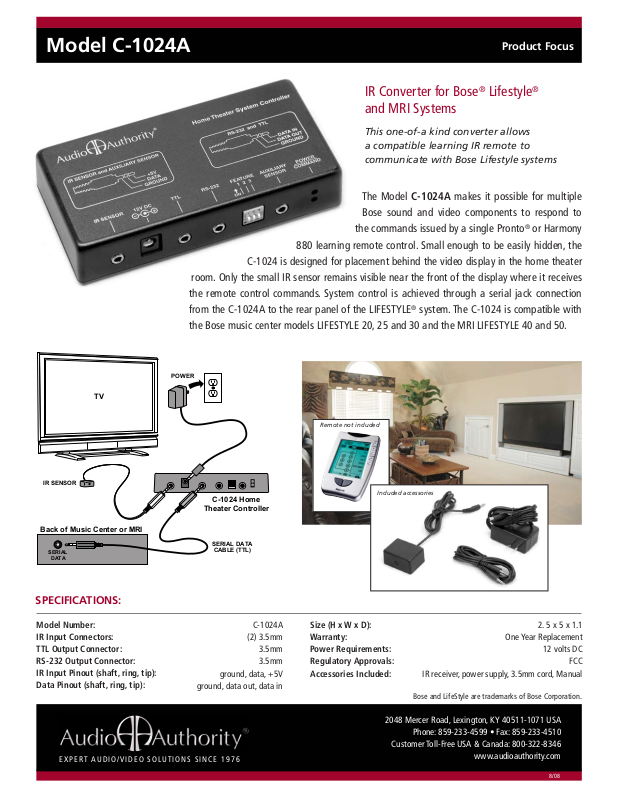

Model C-1024A

Product Focus

IR Converter for Bose® Lifestyle®
and MRI Systems

This one-of-a kind converter allows
a compatible learning IR remote to
communicate with Bose Lifestyle systems

The Model C-1024A makes it possible for multiple
Bose sound and video components to respond to

the commands issued by a single Pronto® or Harmony

880 learning remote control. Small enough to be easily hidden, the

C‑1024 is designed for placement behind the video display in the home theater

room. Only the small IR sensor remains visible near the front of the display where it receives

the remote control commands. System control is achieved through a serial jack connection

®

from the C‑1024A to the rear panel of the LIFESTYLE
the Bose music center models LIFESTYLE 20, 25 and 30 and the MRI LIFESTYLE 40 and 50.

system. The C‑1024 is compatible with

SPECIFICATIONS:

Model Number:
IR Input Connectors:
TTL Output Connector:
RS-232 Output Connector:
IR Input Pinout (shaft, ring, tip):
Data Pinout (shaft, ring, tip):

EX P ER T AU DI O/ VI DE O SO LU TI ON S SI NC E 19 76

ground, data, +5V

ground, data out, data in

C‑1024A

(2) 3.5mm

3.5mm

3.5mm

Remote not included

Included accessories

Size (H x W x D):
Warranty:
Power Requirements:
Regulatory Approvals:
Accessories Included:

2048 Mercer Road, Lexington, KY 40511‑1071 USA

2. 5 x 5 x 1.1

One Year Replacement

12 volts DC

FCC

IR receiver, power supply, 3.5mm cord, Manual

Bose and LifeStyle are trademarks of Bose Corporation.

Phone: 859‑233‑4599 • Fax: 859‑233‑4510

Customer Toll‑Free USA & Canada: 800‑322‑8346

www.audioauthority.com

8/08
