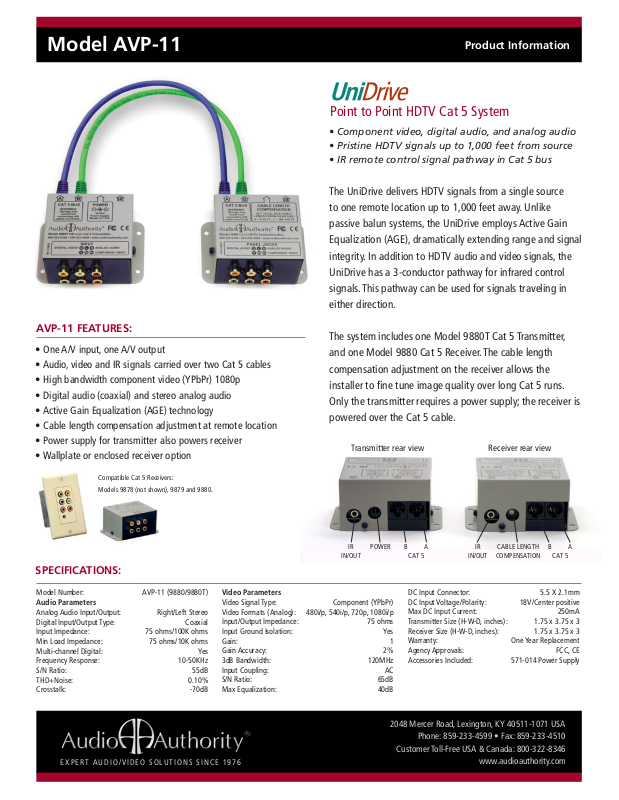

Audio Authority AVP-11 User Manual
Model AVP-11
Product Information
Point to Point HDTV Cat 5 System
• Component video, digital audio, and analog audio
• Pristine HDTV signals up to 1,000 feet from source
• IR remote control signal pathway in Cat 5 bus
The UniDrive delivers HDTV signals from a single source
to one remote location up to 1,000 feet away. Unlike
passive balun systems, the UniDrive employs Active Gain
Equalization (AGE), dramatically extending range and signal
integrity. In addition to HDTV audio and video signals, the
UniDrive has a 3-conductor pathway for infrared control
signals. This pathway can be used for signals traveling in
either direction.
AVP-11 FEATURES:
• One A/V input, one A/V output
• Audio, video and IR signals carried over two Cat 5 cables
• High bandwidth component video (YPbPr) 1080p
• Digital audio (coaxial) and stereo analog audio
• Active Gain Equalization (AGE) technology
• Cable length compensation adjustment at remote location
• Power supply for transmitter also powers receiver
• Wallplate or enclosed receiver option
Compatible Cat 5 Receivers:
Models 9878 (not shown), 9879 and 9880.
SPECIFICATIONS:
Model Number: AVP-11 (9880/9880T)
Audio Parameters
Analog Audio Input/Output: Right/Left Stereo
Digital Input/Output Type: Coaxial
Input Impedance: 75 ohms/100K ohms
Min Load Impedance: 75 ohms/10K ohms
Multi-channel Digital: Yes
Frequency Response: 10-50KHz
S/N Ratio: 55dB
THD+Noise: 0.10%
Crosstalk: -70dB
Video Parameters
Video Signal Type: Component (YPbPr)
Video Formats (Analog): 480i/p, 540i/p, 720p, 1080i/p
Input/Output Impedance: 75 ohms
Input Ground Isolation: Yes
Gain: 1
Gain Accuracy: 2%
3dB Bandwidth: 120MHz
Input Coupling: AC
S/N Ratio: 65dB
Max Equalization: 40dB
The system includes one Model 9880T Cat 5 Transmitter,
and one Model 9880 Cat 5 Receiver. The cable length
compensation adjustment on the receiver allows the
installer to fine tune image quality over long Cat 5 runs.
Only the transmitter requires a power supply; the receiver is
powered over the Cat 5 cable.
Transmitter rear view Receiver rear view
IR
IN/OUT
POWER B A
CAT 5
DC Input Connector: 5.5 X 2.1mm
DC Input Voltage/Polarity: 18V/Center positive
Max DC Input Current: 250mA
Transmitter Size (H-W-D, inches): 1.75 x 3.75 x 3
Receiver Size (H-W-D, inches): 1.75 x 3.75 x 3
Warranty: One Year Replacement
Agency Approvals: FCC, CE
Accessories Included: 571-014 Power Supply
IR
IN/OUT
CABLE LENGTH
COMPENSATION
B A
CAT 5
