Audio Authority 987, 955, 986 User Manual

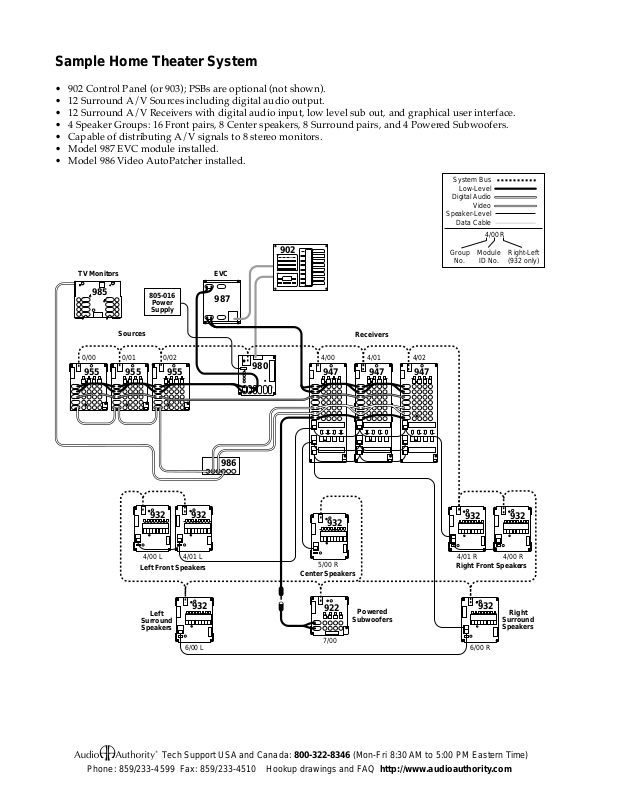

Sample Home Theater System

• 902 Control Panel (or 903); PSBs are optional (not shown).

• 12 Surround A/V Sources including digital audio output.

• 12 Surround A/V Receivers with digital audio input, low level sub out, and graphical user interface.

• 4 Speaker Groups: 16 Front pairs, 8 Center speakers, 8 Surround pairs, and 4 Powered Subwoofers.

• Capable of distributing A/V signals to 8 stereo monitors.

• Model 987 EVC module installed.

• Model 986 Video AutoPatcher installed.

System Bus

Low-Level

Digital Audio

Video

Speaker-Level

Data Cable

4/00 R

TV Monitors

902

EVC

Group

No.

Module

ID No.

Right-Left

(932 only)

985

Sources

0/00 0/01 0/02 4/00 4/01 4/02

805-016

Power

Supply

955955

955

987

980

947

Receivers

947 947

986

932

4/00 L 4/01 L 4/01 R 4/00 R

Left Front Speakers

932

932

5/00 R

Center Speakers

932

Right Front Speakers

932

Left
Surround
Speakers

932

6/00 L

922

7/00

Powered

Subwoofers

932

6/00 R

Right
Surround
Speakers
