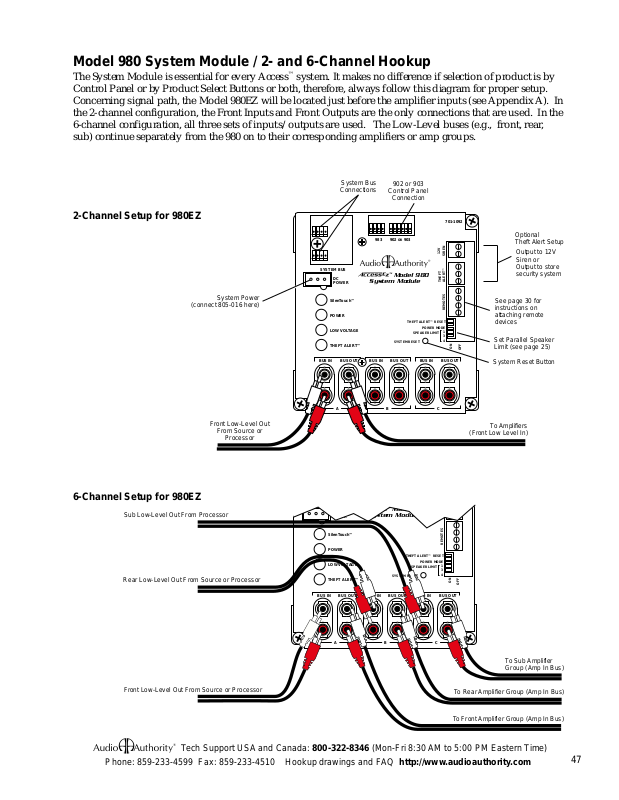

Model 980 System Module / 2- and 6-Channel Hookup
The System Module is essential for every Access™ system. It makes no difference if selection of product is by Control Panel or by Product Select Buttons or both, therefore, always follow this diagram for proper setup. Concerning signal path, the Model 980EZ will be located just before the amplifier inputs (see Appendix A). In the 2-channel configuration, the Front Inputs and Front Outputs are the only connections that are used. In the 6-channel configuration, all three sets of inputs/outputs are used. The Low-Level buses (e.g., front, rear, sub) continue separately from the 980 on to their corresponding amplifiers or amp groups.
2-Channel Setup for 980EZ
(connect 805-016 here)
6-Channel Setup for 980EZ
Sub Low-Level Out From Processor
System Power
Front Low-Level Out
From Source or
Processor
SYSTEM BUS
DC POWER
SilenTouch™
POWER
LOW VOLTAGE
THEFT ALERT™
SYSTEM BUS
DC POWER
System Bus
Connections
Control Panel
ASD
System Module
BUS IN
B
902 OR 903
ASD
System Module
902 or 903 Connection
902 OR 903
Model 980
THEFT ALERT™ RESET
SPEAKER LIMIT
SYSTEM RESET
BUS OUT BUS INCBUS OUTBUS INABUS OUT
Model 980
POWER MODE
12V
THEFT
12V
THEFT
1 3 4
SIREN
701-1092
SIREN
ALERT™
REMOTES
701-1092
ALERT™
ON
OFF
Optional Theft Alert Setup
Output to 12V Siren or Output to store security system
See page 30 for instructions on attaching remote devices
Set Parallel Speaker Limit (see page 25)
System Reset Button
T o Amplifiers
(Front Low Level In)
Rear Low-Level Out From Source or Processor
Front Low-Level Out From Source or Processor
SilenTouch™
POWER
LOW VOLTAGE
THEFT ALERT™
BUS IN
THEFT ALERT™ RESET
SPEAKER LIMIT
SYSTEM RESET
BUS OUT BUS INCBUS OUTBUS INABUS OUT
B
POWER MODE
REMOTES
1 3 4
ON
OFF
To Sub Amplifier Group (Amp In Bus)
To Rear Amplifier Group (Amp In Bus)
To Front Amplifier Group (Amp In Bus)
ASD Tech Support USA and Canada: 800-322-8346 (Mon-Fri 8:30 AM to 5:00 PM Eastern Time)
Phone: 859-233-4599 Fax: 859-233-4510 Hookup drawings and FAQ http://www.audioauthority.com
