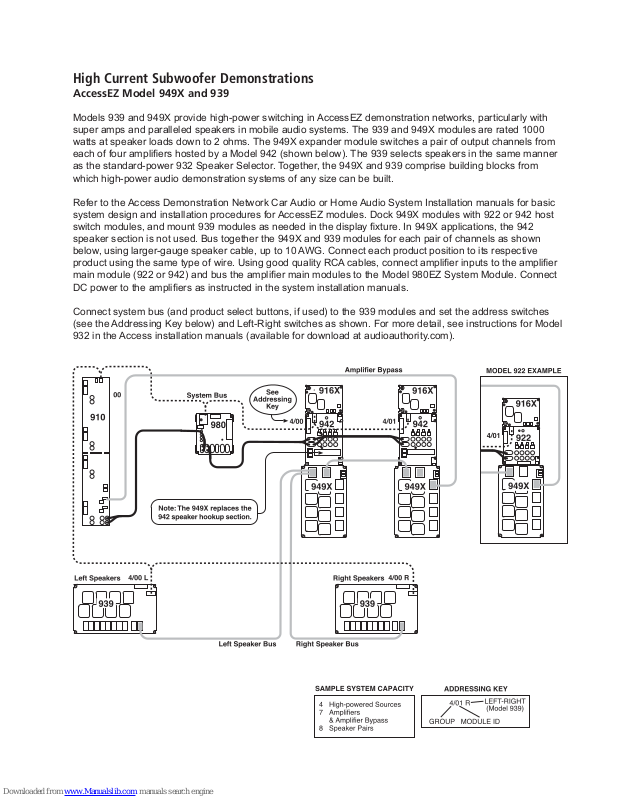

High Current Subwoofer Demonstrations

AccessEZ Model 949X and 939

Models 939 and 949X provide high-power switching in AccessEZ demonstration networks, particularly with
super amps and paralleled speakers in mobile audio systems. The 939 and 949X modules are rated 1000
watts at speaker loads down to 2 ohms. The 949X expander module switches a pair of output channels from

each of four ampliers hosted by a Model 942 (shown below). The 939 selects speakers in the same manner

as the standard-power 932 Speaker Selector. Together, the 949X and 939 comprise building blocks from
which high-power audio demonstration systems of any size can be built.

Refer to the Access Demonstration Network Car Audio or Home Audio System Installation manuals for basic
system design and installation procedures for AccessEZ modules. Dock 949X modules with 922 or 942 host

switch modules, and mount 939 modules as needed in the display xture. In 949X applications, the 942

speaker section is not used. Bus together the 949X and 939 modules for each pair of channels as shown
below, using larger-gauge speaker cable, up to 10 AWG. Connect each product position to its respective

product using the same type of wire. Using good quality RCA cables, connect amplier inputs to the amplier
main module (922 or 942) and bus the amplier main modules to the Model 980EZ System Module. Connect
DC power to the ampliers as instructed in the system installation manuals.

Connect system bus (and product select buttons, if used) to the 939 modules and set the address switches
(see the Addressing Key below) and Left-Right switches as shown. For more detail, see instructions for Model
932 in the Access installation manuals (available for download at audioauthority.com).

Mono Subwoofer Demonstrations

AccessEZ Model 949X and 939

AccessEZ demonstration systems are designed for stereo presentations, but subwoofers may be

demonstrated in mono by using mono ampliers or stereo amps with bridged outputs as shown. Connect

each sub amp output to the right channel of the 949X, and connect the right channel of the sub speaker bus
to 939 switch modules. 939 subwoofer modules are mono, so they should be connected in the standard

conguration. The diagram below accommodates four sub amps and 16 subwoofers.

12 VOLT

POWER

SUPPLY











DC POWER

9A80

USE RIGHT

CHANNEL ONLY

SUBWOOFER LOW

LEVEL BUS FROM

9A80 CROSSOVER

L+ L– R+ R–

SUB BUS

(RIGHT ONLY)

942

949X

POSITION 1

STEREO INPUT*

MONO OR BRIDGED** OUTPUT

SUBWOOFER AMPLIFIER

MONO OR STEREO**

* Use both Left and Right

inputs, or if only one input is

available, use the Left channel
or a Y adapter.

** Stereo ampliers may be

used as mono sub amps. Refer

to the amplier’s instruction

manual to bridge the stereo
output.

939

SUB OUTPUT

POSITION 1

2048 Mercer Road, Lexington, Kentucky 40511-1071 USA
Phone: [phone] • Fax: [phone]
Customer Toll-Free USA & Canada: 800-322-8346
www.audioauthority.com • [e-mail]

SUB AUDIO

BUS

939

752-446
