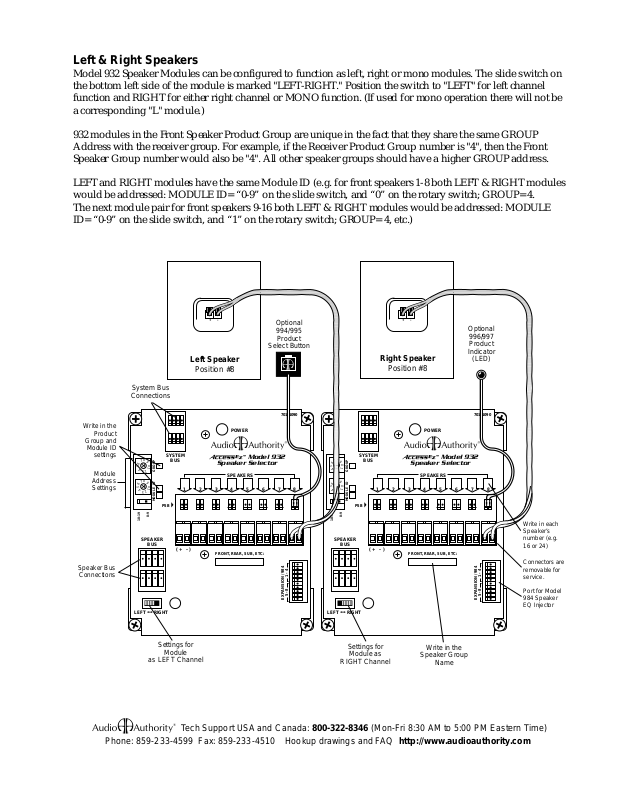

Audio Authority 932 User Manual

Left & Right Speakers
Model 932 Speaker Modules can be configured to function as left, right or mono modules. The slide switch on the bottom left side of the module is marked "LEFT-RIGHT." Position the switch to "LEFT" for left channel function and RIGHT for either right channel or MONO function. (If used for mono operation there will not be a corresponding "L" module.)
932 modules in the Front Speaker Product Group are unique in the fact that they share the same GROUP Address with the receiver group. For example, if the Receiver Product Group number is "4", then the Front Speaker Group number would also be "4". All other speaker groups should have a higher GROUP address.
LEFT and RIGHT modules have the same Module ID (e.g. for front speakers 1-8 both LEFT & RIGHT modules would be addressed: MODULE ID= “0-9” on the slide switch, and “0” on the rotary switch; GROUP= 4. The next module pair for front speakers 9-16 both LEFT & RIGHT modules would be addressed: MODULE ID= “0-9” on the slide switch, and “1” on the rotary switch; GROUP= 4, etc.)
Write in the
Product
Group and
Module ID
settings
Module Address Settings
Speaker Bus
Connections
System Bus
Connections
8
9
7
6
0
5
1
4
2
3
8
9
7
6
0
5
1
4
2
3
MODULE ID GROUP
PSB
0-9
SPEAKER
BUS
LEFT RIGHT
SYSTEM
BUS
( + – )
+ –
Left Speaker
Position #8
POWER
ASD
Speaker Selector
SPEAKERS
FRONT, REAR, SUB, ETC:
Optional 994/995
Product
Select Button
Model 932
S
701-1090
87654321
1 - 45 - 8
EXPANSION / 984
8
9
7
6
0
5
1
4
2
3
8
9
7
6
0
5
1
4
2
3
MODULE ID GROUP
0-9
SPEAKER
BUS
LEFT RIGHT
SYSTEM
PSB
BUS
( + – )
+ –
Right Speaker
Position #8
POWER
ASD
Speaker Selector
SPEAKERS
FRONT, REAR, SUB, ETC:
Optional 996/997
Product
Indicator
Model 932
(LED)
701-1090
1 - 45 - 8
EXPANSION / 984
87654321
Write in each Speaker’s number (e.g. 16 or 24)
Connectors are removable for service.
Port for Model 984 Speaker EQ Injector
Settings for
Module
as LEFT Channel
Settings for
Module as
RIGHT Channel
Write in the
Speaker Group
Name
AS D Tech Support USA and Canada: 800-322-8346 (Mon-Fri 8:30 AM to 5:00 PM Eastern Time)
Phone: 859-233-4599 Fax: 859-233-4510 Hookup drawings and FAQ http://www.audioauthority.com
