Audio MS-200 SAFE User Manual

MS-200 SAFE Setup
This document will take the reader through the process of setting up Audio Enhancement’s MS-200 Network Interface for the first time.
Contents
Getting Started
............................................................................................................................................. 7
Locating the MS-200 on the Network
Configuring the MS-200
............................................................................................................................... 8
.......................................................................................................... 7
DC-40313.02 14241 S. Redwood Rd., Bluffdale, UT 84065 • Phone 1.800.383.9362 • AudioEnhancement.com
1

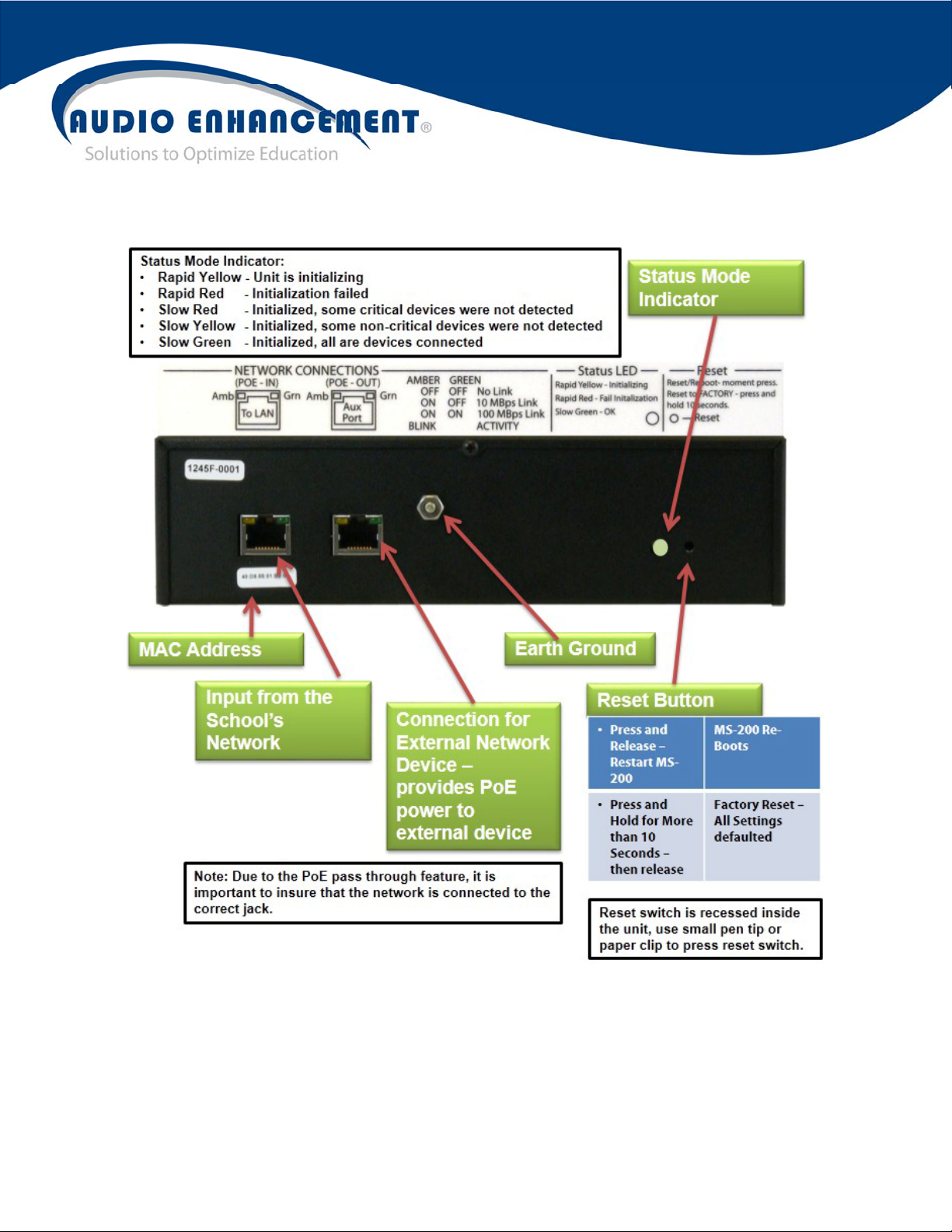

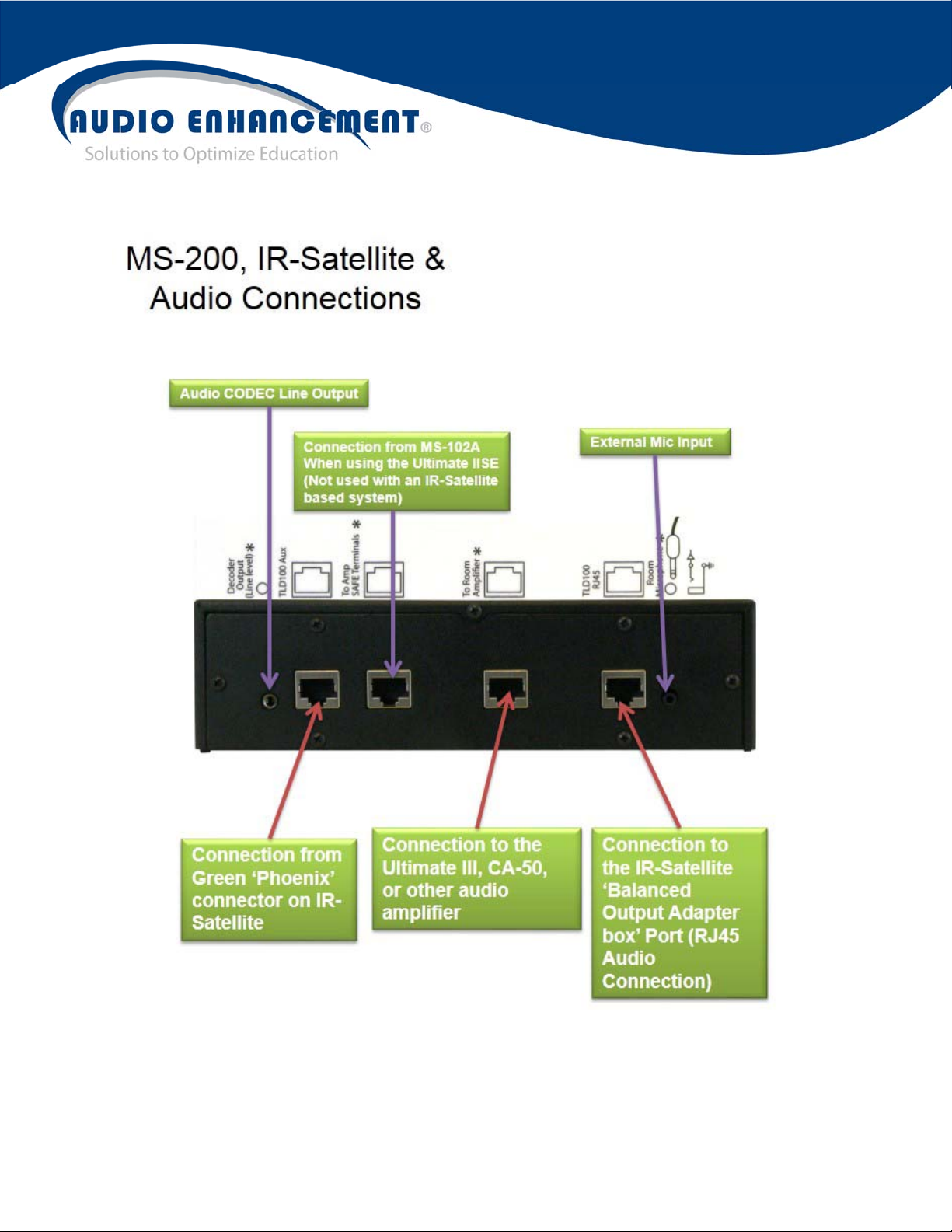

MS-200 Network Connections
DC-40313.02 14241 S. Redwood Rd., Bluffdale, UT 84065 • Phone 1.800.383.9362 • AudioEnhancement.com
2
DC-40313.02 14241 S. Redwood Rd., Bluffdale, UT 84065 • Phone 1.800.383.9362 • AudioEnhancement.com
3
DC-40313.02 14241 S. Redwood Rd., Bluffdale, UT 84065 • Phone 1.800.383.9362 • AudioEnhancement.com
4
DC-40313.02 14241 S. Redwood Rd., Bluffdale, UT 84065 • Phone 1.800.383.9362 • AudioEnhancement.com
5
DC-40313.02 14241 S. Redwood Rd., Bluffdale, UT 84065 • Phone 1.800.383.9362 • AudioEnhancement.com
6
Getting Started
To complete this task you should have the following:
MS-200 SAFE Template (Excel File)
o
Including all network information
AEDiscover.exe
Computer running Internet Explorer 9
EduCam360 Camera attached to the Network
Locating the MS-200 on the Network
1. Locate AEDiscover.exe on your local computer
2.
Double Click the exe file to launch the application NOTE: An alert warning may appear on the screen
3.
Click the Action Menu, select Scan
Note the IP address assigned to the
4. MS-200, this will be required to access the devices web interface
DC-40313.02 14241 S. Redwood Rd., Bluffdale, UT 84065 • Phone 1.800.383.9362 • AudioEnhancement.com
7
Configuring the MS-200
5. Open Internet Explorer
6.
Type in the user name and password for the MS-200
NOTE: Default user ID = Admin Default password = audioe
7.
Open the MS-200 Setup Template excel file for the job. Locate the room (location)
8. where this device will be assigned. Columns D & E
NOTE: This information will be used when programming the MS-200
DC-40313.02 14241 S. Redwood Rd., Bluffdale, UT 84065 • Phone 1.800.383.9362 • AudioEnhancement.com
8
System | Resources
Copy the MAC address
9.
MS-200 Setup Template
Paste the MAC address into
10. Column C
DC-40313.02 14241 S. Redwood Rd., Bluffdale, UT 84065 • Phone 1.800.383.9362 • AudioEnhancement.com
9
Setup | Location
Set the following:
11.
Organization Name –
a.
Column A
b.
Building – Column D Room – Column E
c. d.
Class – Column F
e.
Postal Address – Column G Time Zone – Column H
f. g.
Other – Column I
12.
Click the Submit button
Setup | Admin
If changing the Admin user
13. name and password, complete the following:
Type the New User Name
a. b.
Type the Current Password
c.
Type the New Password Re-enter the Password
d. e.
Click the Submit button
14.
Set the following:
Admin Name – Column L
a. b.
Job Title – Column M Department – Column N
c. d.
Email Address – Column O Phone – Column P
e.
Ext – Column Q
f.
DC-40313.02 14241 S. Redwood Rd., Bluffdale, UT 84065 • Phone 1.800.383.9362 • AudioEnhancement.com
10
Setup | Network
Set the following:
15.
Host Name – Column R
a. b.
Type – Column S
c.
IP Address – Column T Subnet Mask – Column U
d. e.
Gateway Address – Column V DNS Primary – Column W
f. g.
DNS Secondary – Column X
h.
Time Server – Column Y
Click the Submit button
16.
Note: The device will reboot and be available with the new IP Address
Setup | Devices
Open Internet Explorer to the
17. new IP address and log into the MS-200 Set the following:
18.
Provider (select drop down)
a.
– Column Z
b.
Email Address – Column AB Authentication – Column
c.
AC
d.
Host – Column AD Port – Column AE
e. Click the Submit button
19.
Setup | Devices
Set the following:
20. a.
Name – Column AF Type (Drop Arrow select
b.
MS-1000) – Column AG
c.
Address – Column AH
Click the Add button
21.
DC-40313.02 14241 S. Redwood Rd., Bluffdale, UT 84065 • Phone 1.800.383.9362 • AudioEnhancement.com
11
Setup | Devices
Image shown with Device added
Setup | Alerts
Set the following:
22. a.
Devices (Drop Arrow) – Column AJ Email Recipients – Column
b.
AL Email Message – Column
c.
AM
23.
Click the Add button
DC-40313.02 14241 S. Redwood Rd., Bluffdale, UT 84065 • Phone 1.800.383.9362 • AudioEnhancement.com
12
