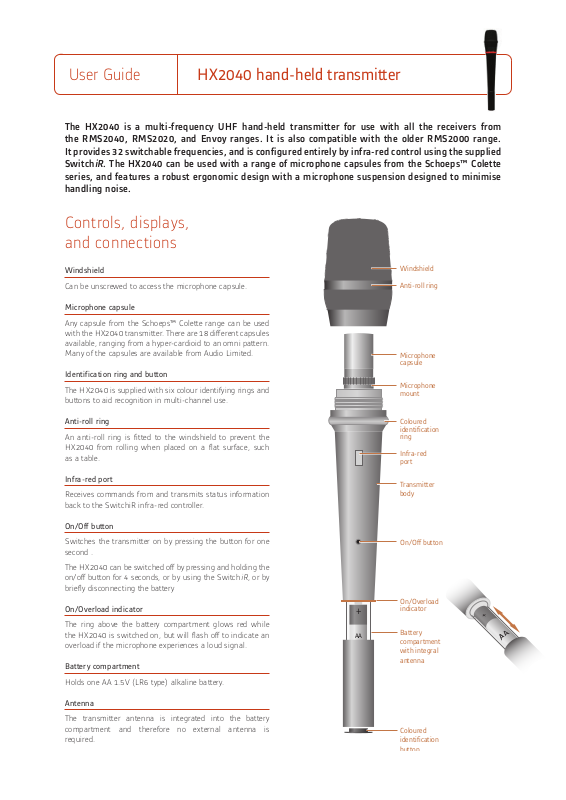

User Guide HX2040 hand-held transmitter
AA
+
Coloured
identification
Microphone
mount
Microphone
capsule
Windshield
Anti-roll ring
Transmitter
body
Coloured
identification
ring
Infra-red
port
On/Off button
On/Overload
indicator
Battery
compartment
with integral
antenna
The HX2040 is a multi-frequency UHF hand-held transmitter for use with all the receivers from
the RMS2040, RMS2020, and Envoy ranges. It is also compatible with the older RMS2000 range.
It provides 32 switchable frequencies, and is configured entirely by infra-red control using the supplied
SwitchiR. The HX2040 can be used with a range of microphone capsules from the Schoeps™ Colette
series, and features a robust ergonomic design with a microphone suspension designed to minimise
handling noise.
Controls, displays,
and connections
Windshield
Can be unscrewed to access the microphone capsule.
Microphone capsule
Any capsule from the Schoeps™ Colette range can be used
with the HX2040 transmitter. There are 18 different capsules
available, ranging from a hyper-cardioid to an omni pattern.
Many of the capsules are available from Audio Limited.
Identification ring and button
The HX2040 is supplied with six colour identifying rings and
buttons to aid recognition in multi-channel use.
Anti-roll ring
An anti-roll ring is fitted to the windshield to prevent the
HX2040 from rolling when placed on a flat surface, such
as a table.
Infra-red port
Receives commands from and transmits status information
back to the SwitchiR infra-red controller.
On/Off button
Switches the transmitter on by pressing the button for one
second .
The HX2040 can be switched off by pressing and holding the
iR
on/off button for 4 seconds, or by using the Switch
briefly disconnecting the battery
On/Overload indicator
The ring above the battery compartment glows red while
the HX2040 is switched on, but will flash off to indicate an
overload if the microphone experiences a loud signal.
Battery compartment
Holds one AA 1.5V (LR6 type) alkaline battery.
Antenna
The transmitter antenna is integrated into the battery
compartment and therefore no external antenna is
required.
, or by
FREQUENCY
MHz
Fr
CHANNEL
01
CHANNEL
32
FREQUENCY
Tx MHz
857.900
FREQUENCY
MHz
Fr
FREQUENCY
Tx MHz
854.900
CHANNEL
01
CHANNEL
32
FREQUENCY
Tx MHz
857.900
Error
CHANNEL
01
CHANNEL
01
CHANNEL
32
CHANNEL
01
CHANNEL
32
FREQUENCY
Tx MHz
857.900
CHANNEL
01
CHANNEL
32
FREQUENCY
Tx MHz
857.900
Error
AF LEVEL
TxRx
AF
AF LEVEL
TxRx
AF
AF LEVEL
Tx
0
AF LEVEL
TxRx
AF
AF LEVEL
Tx
0
Tx
LF Cut
Tx
OFF
7
AF LEVEL
TxRx
AF
AF LEVEL
Tx
0
Tx
LF Cut
Tx
OFF
7
User Guide HX2040 handheld wireless transmitter
Setting up the HX2040
To set up the HX2040 :
Fit the battery.
•
Switch on by pressing and holding the grey On button
•
below the infra-red port for one second.
Check or select the operating frequency.
•
Check or set the gain.
•
Check or set the low frequency cut filter.
•
Check the battery status.
•
These steps are explained below:
Fitting the battery
Open the battery compartment by gripping the cover and
•
sliding it gently away from the body of the HX2040.
Fit the battery with the positive terminal uppermost and
•
close the battery cover until it clicks shut.
Do not twist or turn the battery cover.
Removing the battery
The battery can easily be removed by pushing a small coin
into the slot in the compartment beneath the battery.
Switching on
Press and hold the grey ON button below the infra-
•
red port for one second until the ring above the battery
compartment glows red.
To turn HX2040 off press and hold the grey ON button for
•
4 seconds.
The transmitter can also be switched off using the
iR
Switch
can be switched off by opening the battery compartment
and briefly disconnecting the battery.
Selecting the operating frequency
You can check or change the operating frequency of the
HX2040 via infra-red control using the Switch
To check the frequency:
Press MENU. The display shows:
•
Align the front of the SwitchiR with the infra-red port on
•
the HX2040 and press OK. The display shows the current
frequency; for example:
To change the frequency:
Press OK. The display will alternately flash between
•
showing the frequency and channel number. For
example:
, as described below. Alternatively the HX2040
iR
.
Press
•
from the transmitter until the desired frequency or channel
is displayed. For example:
Point the SwitchiR at the infra-red port on the HX2040 and
•
press OK. If the command was received successfully the
display will show the new set frequency. For example:
Otherwise it will show:
Repeat the above steps if an error message is displayed,
•
moving the SwitchiR closer to the infra-red port.
Setting the gain
The steps between 0-9 gain settings are approximately 3
to 4dB. Set the gain position so that the Overload indicator
does not flash off during normal operation. A typical setting
is 6 or 7.
To check the gain setting:
Press MENU followed by . The display will indicate:
•
Align the front of the SwitchiR with the infra-red port
•
of the HX2040 and press OK. The display will show the
current transmitter gain setting:
To change the gain setting:
Press OK again. The display will flash the level setting.
•
• Press a or v to step between gain settings 0-9 until the
required gain setting is displayed. For example:
Align the front of the SwitchiR with the infra-red port
•
on the transmitter and press OK. If the command was
received correctly the display will show the new gain
setting. For example:
to scroll through the 32 frequencies read
or
AF LEVEL
TxRx
AF
AF LEVEL
Tx
0
Error
Tx
LF Cut
Tx
OFF
On
7
7
Tx
LF Cut
Tx
LF Cut
Tx
OFF
Tx
LF Cut
Tx
OFF
Tx
On
Error
TxRx
dISABLE
TxRx
Ir ?
Error
TxRx
BAtt
TxRx
dISABLE
TxRx
Ir ?
Tx
Ir OFF
Error
TxRx
BAtt
Tx
1.25v
TxRx
dISABLE
TxRx
Ir ?
Tx
Ir OFF
TxRx
dISABLE
TxRx
Ir ?
TxRx
Ir ?
Tx
Ir OFF
User Guide HX2040 handheld wireless transmitter
Otherwise the display shows:
Repeat the previous steps if an error message is displayed,
•
moving the SwitchiR closer to the infra-red port.
Setting the low frequency cut filter
The LF cut filter gives an approximately 10dB cut at 50Hz to
reduce handling and wind noise.
To check the status of the low frequency cut filter:
Press MENU
•
Press
•
Align the front of the SwitchiR with the infra-red port on
•
the transmitter and press OK. The current LF cut filter
setting is displayed; for example:
twice until the display shows:
To change the filter setting:
Press OK again. The current setting will flash.
•
Press
•
required setting is displayed.
Align the front of the SwitchiR with the infra-red port
•
on the transmitter and press OK. If the command was
received successfully the new setting will be displayed. For
example:
Otherwise the display will show:
Repeat the previous steps if an error message is displayed,
•
moving the SwitchiR closer to the infra-red port.
Checking the battery status
Press MENU.
•
Press
•
Align the front of the SwitchiR with the infra-red port on
•
the transmitter and press OK. The display will show the
current battery status:
to toggle between ON or OFF until the
or
three times until the display shows:
The battery level can also be checked from the receiver;
see the appropriate instructions for the receiver.
Infra-red disable
You can protect the HX2040 from an accidental change
of settings, such as in a live performance, by disabling
the infra-red port on the transmitter. This will prevent
all communication to the transmitter until the battery is
disconnected and reconnected.
Disabling the infra-red port
Press MENU.
•
Press
•
Align the front of the SwitchiR with the infra-red port
•
on the transmitter and press OK. If the command was
received successfully the display will show:
Note: Once the infra-red port has been disabled, any
subsequent interrogation of the transmitter will give an
Error display; this is not a fault.
twice. The display will show:
Fitting the microphone
capsule
The HX2040 transmitter uses high quality interchangeable
condensor capsules from the Schoeps™ Colette range. The
HX2040 is compatible with the full range of capsules and
accessories in this range.
The capsule mounting has a unique gel-based suspension to
minimise handling noise.
To fit a capsule
Unscrew the metal windscreen from the top of the
•
transmitter.
Screw the capsule into place taking care not to cross-
•
thread the capsule or over-tighten it.
Replace the windscreen.
•
Holding the HX2040
The HX2040 should be held above the illuminated On/
Overload indicator ring. This will enable maximum power
to be radiated from the integral antenna in the battery
compartment. Holding the HX2040 over the battery
compartment will impair the range of the transmitter and
should be avoided.
The frequency, gain, and LF status setting will be retained
even if the battery is removed from the transmitter.
An external foam windshield is available from Audio
Limited.
EC Declaration of Conformity
Déclaration de conformité pour la CEE. EG-Konformitäts-Erklärung. Certificato di conformitá comunitario
Declaración de Conformidad. EG-Conformiteitsverklaring
AUDIO LIMITED. Audio House, Progress Road High, Wycombe, HP12 4JD, U.K.
declare that these devices / déclarons que ces appareils / erklären, dass die Produkte / declaramos que estos aparatos / dichiaria che questi
apparecchi / verklaren, dat deze toestelen
HX2040 Handheld Transmitter
conform to the essential requirements of the R&TTE Directive 1999/5/EC. To demonstrate compliance with these requirements, the following
standards were consulted:
sont conformes aux prescriptions fondamentales dan la Directive R&TTE 1999/5/EC. Pour mettre en pratique dans la règle de l’art les
prescriptions,il a été tenu compte des normes suivantes:
den einschlägigen Anforderungen der R&TTE-Direktive 1999/5/EC entsprechen. Zur sachgemäßen Umsetzung der in den EG-Richtlinien
genannten Anforderungen wurden folgende Norman herangezogen:
complen los requimientos básicos de la normativa de la normativa R&TTE 1999/5/EC. Con il fin de realizar de forma adecuada los
requirimientos referidos en la normativa fueron consaltadas las siguientes normativas:
sono conformi alla normativa R&TTE 1999/5/EC. Per un’appropriato risconto nell’ambito della normativa CEE sono state consultate le
seguenti normative:
evereenkomt met de basiseisen van de EG-Richtlijn 1999/5/EC. Om de eisen, die in de EG-Richtlijnen vermeld zijn, in juiste vorm om te
zetten, zijn van volgende normen gebruik gemaakt:
Article 3.1a: EN 60065:2002 (Safety of Electrical Equipment)
Article 3.1b: EN 301 489-9:2002 (Electromagnetic Compatibility)
Article 3.2: EN 300 422-2:2000 (Radio Parameters)
Conformity assessed via Annex IV using a Technical Construction. File examined by Notified Body 0891, TRL Compliance Services Ltd.
Lee Stone, Technical Director. May 2004
Technical specification
User Guide HX2040 handheld wireless transmitter
Frequency range 470MHz–1000MHz
Number of frequencies 32 pre-programmed
Switching range Up to 24MHz
Output power 10mW nominal
Gain control range 30dB in 10 steps
Frequency response 50Hz to 18kHz ±1dB excluding capsule
THD <0.2% typical
Battery 1.5V AA cell (IEC LR6) Alkaline
Battery life Typically 5 hours with an alkaline battery
Available capsules A02S bright omni
AC4 cardioid
AC4A cardioid for vocal use and others from Schoeps™ Colette range
Indicators Red LED for on;
LED off indicates overload
Other Specially designed suspension minimises handling noise
Length 260mm including windshield
Diameter 44/36mm reducing to 22mm at base
Weight 185g
Operating temperature -20°C to +55°C range
Compliant to R&TTE Directive FCC
For further information contact Audio Ltd or your local distributor
www.audioltd.com
Loading...
