DubJr
Digital Delay with an Analog Personality
ADM01
DubJr is a simple but powerful digital delay module with full
voltage control. Using the same proprietary variable-delay
algorithm we developed for Dubstation, our best-selling delay
plug-in, DubJr accurately recreates the delightfully strange
pitch-changing effects found in hardware delays of yesteryear.
Control voltages present at the
jacks are added to the values set
with the knobs.
Positive voltages at the TIME jack
increase the delay time; negative
voltages decrease it.
Positive voltages at the REGEN
jack increase the regeneration or
feedback amount; negative
voltages decrease it.
Positive voltages at the MIX jack
increase the amount of delayed
signal in the output; negative
voltages increase the amount of
the original signal in the output.
The useful range of voltage for the
CV jacks is ±5V.
DubJr also exhibits the same changing frequency response of
analog bucket-brigade device (BBD) delays, producing bright
flanging and comb filtering with short delay times and warm,
darkening echoes at long delay times. Delay is an essential
effect; DubJr is an essential addition to any modular system.

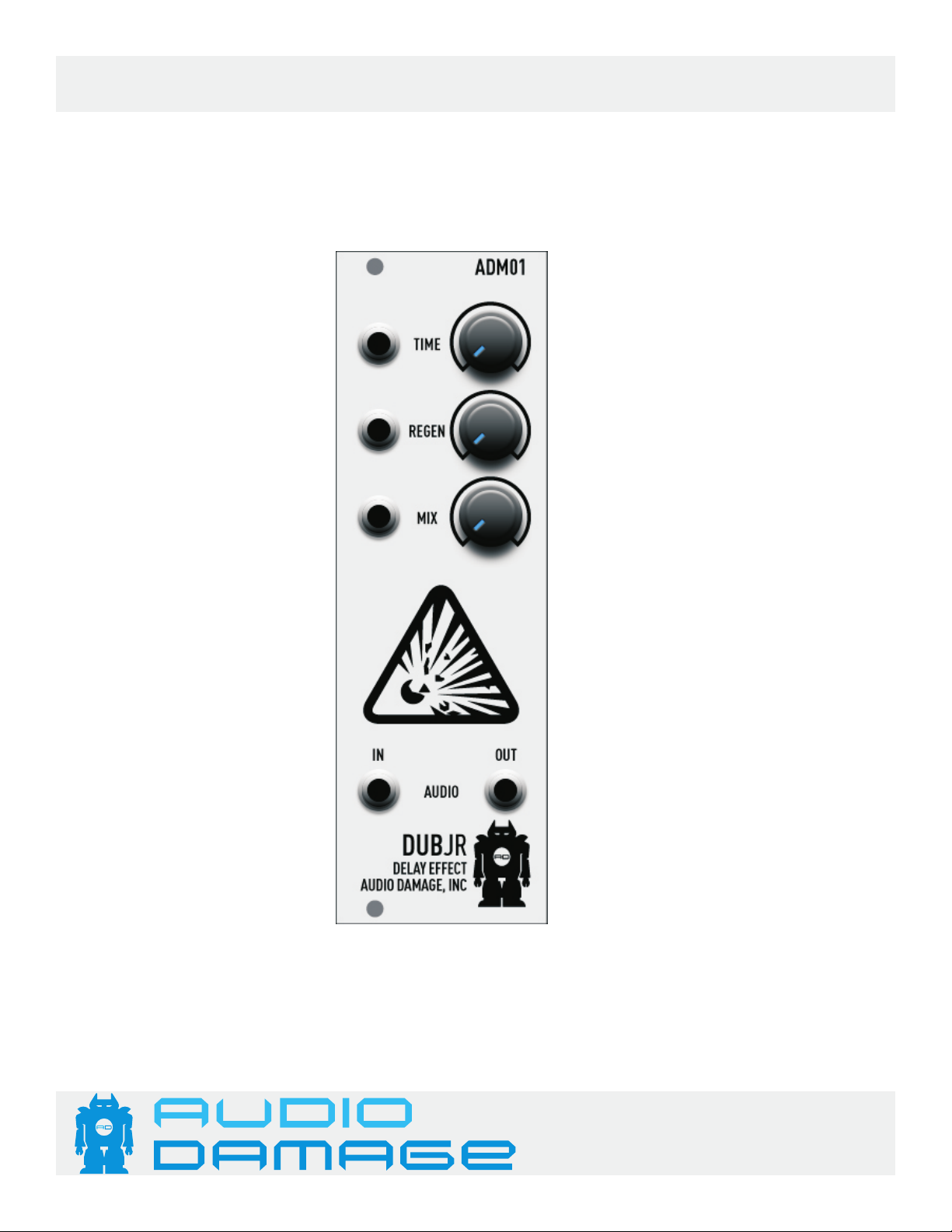

KnobsControl-Voltage Jacks
TIME sets the delay time. Turning the knob
clockwise increases the time. The maximum
delay is one second; the minimum is five
milliseconds. If you rotate this knob while
audio is entering the module, you’ll hear the
pitch of the output slide smoothly rather
than making nasty clicking noises.
REGEN controls the regeneration, or internal
feedback. If this knob is fully anti-clockwise,
you’ll hear just one delayed copy of the input
signal. Turn REGEN up and some of the
output is fed back into the input, creating a
series of fading copies. Turn this knob all the
way up and DubJr will sustain almost
indefinitely.
MIX varies the amount of the original input
signal and the delayed signal in the output.
Turn this knob all the way clockwise and
you’ll hear only the delayed signal; turn it all
the way anti-clockwise and you’ll hear only
the input signal. At the center position you’ll
hear equal amounts of both.
Audio Input Jack Audio Output Jack
The audio input signal goes in
here. The hardware will be
happiest if the signal level is
within ±7V.
• A little delay goes well with almost any sound! A small
amount of delayed signal can add depth and spaciousness, while a large delayed signal can become a counterpoint to the original.
• A small varying voltage from an LFO applied to the TIME
jack turns a short delay into a doubling or chorus effect.
The processed signal comes out here. Where
it goes next is up to you.
• Try turning down the MIX knob and setting up an external
feedback path with other modules, such as a filter or—even
better—our Grainshift granular-effect module.
• To toot our own horn just one more time: if you think one
delay is fun, two is more than twice as much fun.
Assembled in USA from US and foreign components.
Revision 1.0
©2013 Audio Damage, Inc.
www.audiodamage.com
