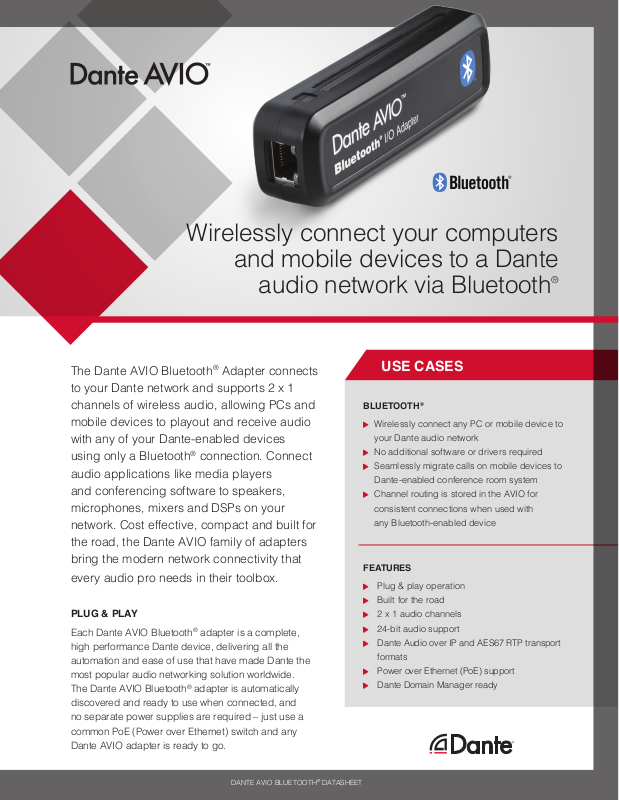

Audinate Dante AVIO Data Sheet

Wirelessly connect your computers

and mobile devices to a Dante

®

audio network via Bluetooth

The Dante AVIO Bluetooth® Adapter connects
to your Dante network and supports 2 x 1
channels of wireless audio, allowing PCs and
mobile devices to playout and receive audio
with any of your Dante-enabled devices
using only a Bluetooth® connection. Connect
audio applications like media players
and conferencing software to speakers,
microphones, mixers and DSPs on your
network. Cost effective, compact and built for
the road, the Dante AVIO family of adapters
bring the modern network connectivity that

every audio pro needs in their toolbox.

PLUG & PLAY

Each Dante AVIO Bluetooth® adapter is a complete,
high performance Dante device, delivering all the
automation and ease of use that have made Dante the
most popular audio networking solution worldwide.
The Dante AVIO Bluetooth® adapter is automatically
discovered and ready to use when connected, and
no separate power supplies are required – just use a
common PoE (Power over Ethernet) switch and any
Dante AVIO adapter is ready to go.

USE CASES

BLUETOOTH

 Wirelessly connect any PC or mobile device to

your Dante audio network

 No additional software or drivers required

 Seamlessly migrate calls on mobile devices to

Dante-enabled conference room system

 Channel routing is stored in the AVIO for

consistent connections when used with

any Bluetooth-enabled device

FEATURES

 Plug & play operation

 Built for the road

 2 x 1 audio channels

 24-bit audio support

 Dante Audio over IP and AES67 RTP transport

formats

 Power over Ethernet (PoE) support

 Dante Domain Manager ready

®

DANTE AVIO BLUETOOTH® DATASHEET

THE CONVENIENCE OF WIRELESS,

SPECIFICATION AVIO BLUETOOTH

®

Audio channels

2 in, 2 out

Connectors

RJ45

Power

Class 1 802.3af PoE

Sample Rates

48 kHz

Bit Depth

24

Dante Device Latency

1, 2, or 5ms (congurable using Dante Controller)

Part Number

ADP-BT-AU-2X1

THE POWER OF DANTE

The Dante AVIO Bluetooth® adapter
lets you leverage the audio quality
and connectivity of your Dante audio
networks while being as easy to use
as any Bluetooth® headset or speaker.
Simply pair the AVIO Bluetooth® adapter
with your phone or PC for instant
networked audio. Power is supplied via
PoE, so there are no AC adapters to
worry about.

BUILT FOR THE ROAD

We’ve made all Dante AVIO adapters
road-ready and tour-tough. Sonically
welded ABS enclosures and quality
hardware are used throughout, while
cable assemblies are stress-tested to
ensure reliable operation under grueling
conditions. Toss them in your toolbox,
show after show.

ALL DANTE

Dante AVIO adapters are all fully
functional Dante interfaces, with all the
features you’d expect from Dante audio

networking. Each one delivers bit-perfect
audio reproduction, super-low latency
and sample-accurate synchronization
across the entire network. All Dante
devices automatically discover one
another, and the entire system is
managed by our easy-to-use Dante
Controller software on any connected PC
or Mac. Most importantly, every Dante
device can connect to every other Dante
device – no questions asked.

All Dante AVIO adapters are fully
compatible with Dante Domain
Manager (DDM) for IT-level security and
management, while AES67 is supported
for connection to non-Dante networks.

COST-EFFECTIVE

We’ve worked hard to make the Dante
AVIO family of products a cost-effective
addition to any system or piece of gear,
so that everyone can enjoy the benefits of
Dante. Audio networking has never been
easier to or more affordable, no matter
how you choose to use it. 
