USER MANUAL v1.3
www.audient.com
Welcome & Thank You
ASP880 | Contents
Thank you for purchasing
this audient product!
ASP880 can be seen as the natural
progression of our classic ASP008
eight channel microphone preamplifier.
Using the same proven discrete class-a
8-transistor input stage with extended
bandwidth and a noise floor close to the
theoretical Johnson noise limit, ASP880
provides a world-class recording front end
in a convenient 1RU package.
The microphone preamplifier has been
refined over 15 years by design legend
David Dearden and is the same tried &
tested topology as featured in our consoles
and recording interfaces (iD22, ASP8024,
ASP4816).
Features include:
• 8 x superb class-a mic preamplifiers & 2
x discrete JFET instrument inputs
• Clean & stable P48 phantom power
• 60dB of clean gain with -10dB pads on
channels 1 & 2 for kick, snare etc
• Polarity reverse to enable phase
coherent recording across all tracks
• Variable input impedance providing a
“triangle-of-tone”. Lo, med and hi settings
allow you to voice your mic collection at
the flip of a switch!
Box Contents 1
ASP880 Overview 3
Safety Information 5
Declaration of Conformities 7
Hardware Features: 9
Microphone & Line Inputs 9
Instrument Inputs 10
Gain & Setting Levels 11
Input Signal Conditioning 12
Sweepable High Pass Filter 12
Variable Input Impedance 13
Analogue Line Outputs 15
Direct ADC Access & Inserts 15
AES Output 16
ADAT SMUX Output 16

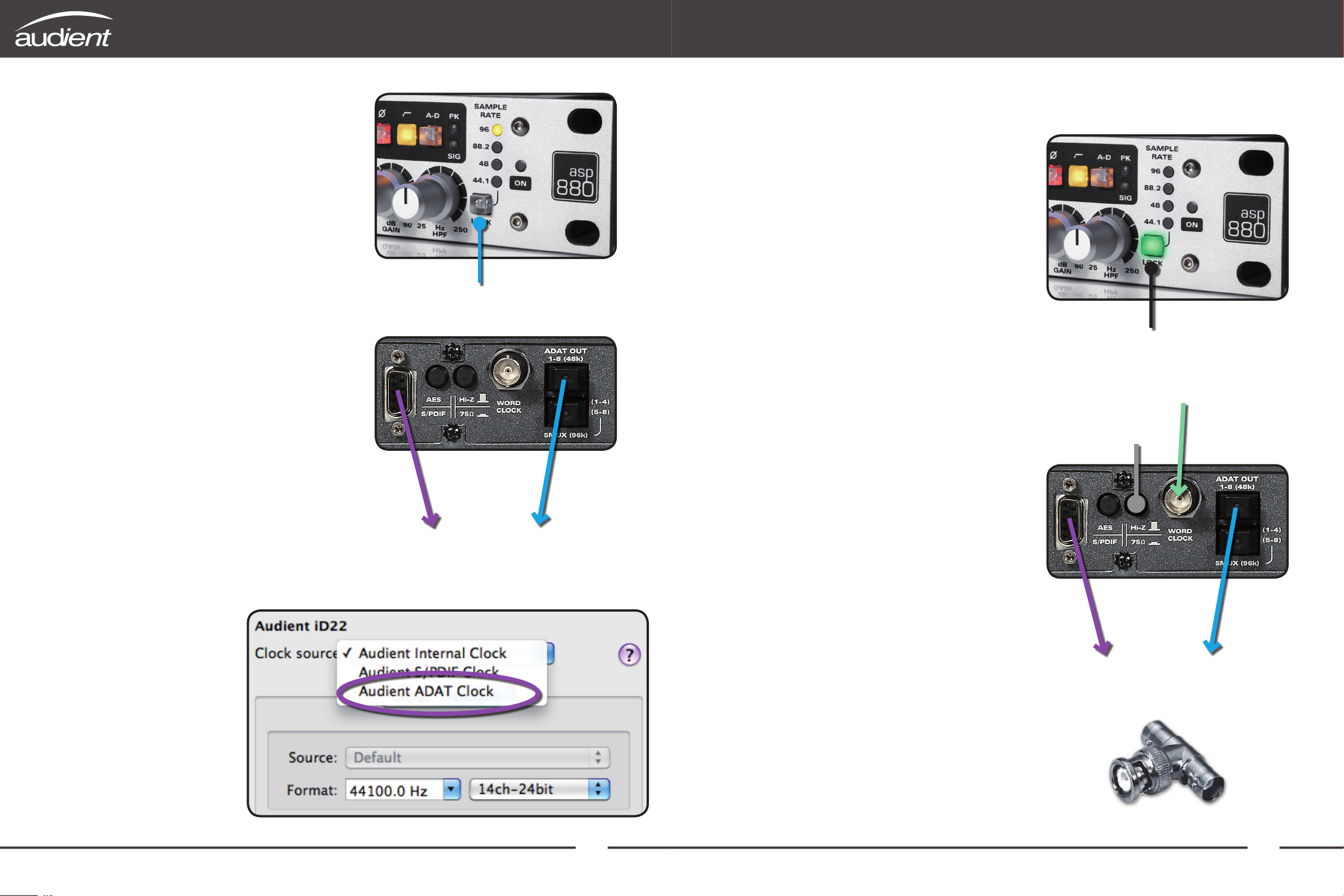

Clocking - Setup and Wiring 17
ASP880 Block Diagram 19
However we did not stop there with ASP880
- after months of refinement and an entirely
new PSU design, we have been able to lower
the noise floor in the unit and have reduced
the 50Hz mains component to vanishingly
low levels and the unit is completely silent
(fanless operation) - impressive!
On top of this we have used the cutting edge
top-of-the-line Burr-Brown converters from
our iD22 interface to heavily upgrade the
digital card which now comes as standard!
The unit is built like a tank and now features
our custom, solid aluminium control knobs
which feel great and provide excellent visual
feedback. ASP880 will last for years to come!
• Super smooth 12dB/octave sweepable
high pass filter (25 to 250Hz) to clean
up low end rumble and mess!
• New A-D insert switch provides line
level direct access to converters for
integrating outboard processing
between the mic pres and ADC
• Integrated Burr-Brown 115dB ADC with
AES and SMUX ADAT outputs
• Integrated fanless, low noise PSU with
global operation
Troubleshooting 20
FAQ 21
Specifications 22

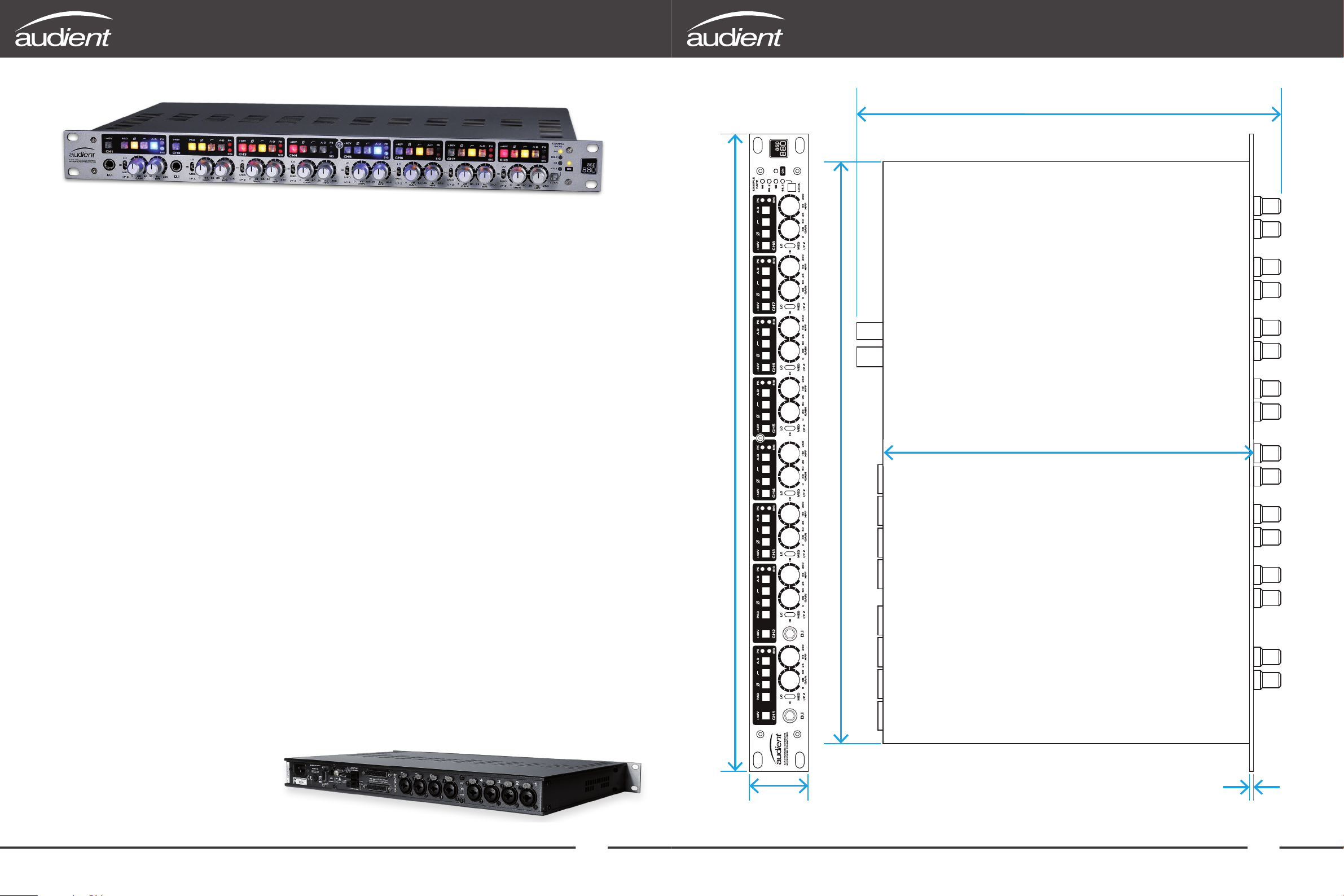

Dimensions 23
Warranty & Contact 24
Service 25
Glossary 26
Introduction
Contents
In your ASP880 packaging you should find
NOTES: ____________________
the following items:
• ASP880
• Mains IEC Cable (in rear protection tube)
• Quick Start Guide
Please visit:
www.audient.com/products/asp880/
downloads to get the latest version of the
quick start guide and this manual. Watch/
listen to our example video content and grab
Box Contents
useful things like a session recall sheet etc.
SESSION: ____________________ ARTIST: ____________________________
TITLE: ____________________ DATE: __________ TIME: __________
A
SOURCE:
MIC:
INSERT:
RECORDER
INPUT:
B
SOURCE:
MIC:
INSERT:
RECORDER
INPUT:
C
SOURCE:
MIC:
INSERT:
RECORDER
INPUT:
___________________________
___________________________
___________________________
___________________________
___________________________
SAMPLE RATE:
CLOCK SOURCE:
SAMPLE RATE:
CLOCK SOURCE:
SAMPLE RATE:
CLOCK SOURCE:
The integrated power supply in ASP880 will
accept line voltages from 90 - 264V and
can operate anywhere in the world without
re-configuration - just use the appropriate
mains IEC cable.
We hope that you enjoy using ASP880
wherever you are and may it aid you in
making great sounding music!
21
ASP880 Overview
48V PHANTOM POWER
Stable regulated supply for your mics
DISCRETE JFET D.I INPUT
Sounds fantastic on guitars & basses!
-10dB PAD
Preserve your headroom
on kick & snare drums
VARIABLE INPUT IMPEDANCE
Triangle of tone for your mics!
220,1200or2800Ω
POLARITY REVERSE
so you can be sure everything is in-phase
and as full sounding as possible
60dB of CLASS-A GAIN
Clean, quiet & punchy!
ADC DIRECT ACCESS / INSERT
Insert analogue gear between mic pre and ADC
or use ASP880 as a standalone line level ADC
SWEEPABLE HPF
Bypassable, smooth 12dB/oct variable
from 25 to 250Hz - clean up rumble and mud
SIGNAL / PEAK METERS
+18dBu = 0dBFS Clip Indicators
PEAK = -2dBFS
SIG = -28dBFS
Sample rate switch = green when using
external clock source, toggle through internal
at 4 sample rates and then external sync
SOLID ALUMINIUM KNOBS
TIP* roll them smoothly between
your fingers for easy operation
SAMPLE RATE INDICATORS
POWER ON INDICATOR
MAINS SAFETY FUSE
T1A Time Delay
(replace with same type)
MAINS IEC INPUT
90-264Va.c Operation
anywhere in the world!
BNC WORDCLOCK INPUT
Hi-Zor75ΩTermination
available on rear panel switch
AES or S/PDIF OUTPUT
9-Pin DSUB - format selected
with rear panel push switch
DB25 ANALOGUE OUTPUTS
Use to feed the mic preamps into
outboard for processing
ADAT SMUX OUTPUT
Top port 8 channels <48kHz
Both ports 4 channels split >48kHz
DB25 ADC INPUTS
Line level input direct to ADC to use as
standalone A-D converter, or return
outboard here to form an insert point
(pressing the front panel A-D switch)
XLR MIC / TRS LINE INPUTS
Line inputs are available on combi jacks
(padded into the mic pre) and have access
to all input functions (except P48)
43
Safety Information
Safety Instructions
Important Safety Instructions
Please read all of these instructions and save them for later reference before connecting
the mains IEC power cable and powering up ASP880. To prevent electrical shock and fire
hazard follow all instructions on the rear of the ASP880.
ASP880 does not contain any user serviceable parts inside the internal power supply and in
the event of a power supply failure, please contact
suitable service.
www.audient.com/support
audient support so that we can arrange
Important Safety Instructions
1. Read these instructions
2. Keep these instructions
3. Heed all warnings
4. Follow all instructions
5. Do not use this equipment near water
6. Clean only with dry cloth
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
equipment (including amplifiers) that produce heat
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
A 1RU ventilation space above the unit is recommended and it is not advised to run the unit
in a rack above hot units such as valve outboard and multichannel AD/DA converters
without suitable ventilation space around the unit.
The internal switch-mode power supply design will accept any A.C line voltage from
90v to 264v @ 47-63Hz. Therefore the unit will work happily anywhere in the world but
please ensure your A.C mains line voltage is within this specification and you use an
appropriate cable for the region. Consult a qualified technician if you suspect difficulties.
Do not attempt to tamper with the power supply or mains voltages - HAZARDOUS TO HEALTH.
! WARNING !
TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO
RAIN OR MOISTURE.
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet
10. Protect power cords from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the equipment
11. Only use attachments/accessories specified by the manufacturer
12. For products that are not rack-mountable: Use only with a cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold with the equipment. When a cart is
used, use caution when moving the cart/equipment combination to avoid injury from
tip-over
13. Unplug this equipment during lightning storms or when unused for long periods of time
14. Refer all servicing to qualified service personnel. Servicing is required when the
equipment has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the equipment, the
equipment has been exposed to rain or moisture, does not operate normally,
or has been dropped
NO USER SERVICEABLE PARTS INSIDE.
PLEASE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
15. For products that are a mains powered device: The equipment shall not be exposed
to dripping or splashing and no objects filled with liquids (such as vases) shall be
placed on the equipment
65
Declaration of Conformities
FEATURES
in depth
FEATURES
in depth
We, Audient Ltd, declare that the product, the ASP880, to which this declaration
relates, is in material conformity with the appropriate CE standards and directives
for an audio product designed for consumer use.
Audient Ltd has conformed where applicable,to the European Union’s Directive
2002/95/EC on Restrictions of Hazardous Substances (RoHS) as well as the
following sections of California law which refer to RoHS, namely sections 25214.10,
25214.10.2, and 58012, Health and Safety Code; Section 42475.2, Public Resources
7
Hardware Features
Microphone Preamplifiers
& Line Inputs
ASP880 features eight impeccably
optimised class-a micprohone preamplifiers.
Featuring a discrete 8-transistor front end,
the mic pre is optimised for 0 to 60dB gain
with an EIN (equivalent input noise) of -127.5
dB. The frontend has high-input headroom
and will be happy to accept any level from
your microphone collection, however for
situations where you reach very hot signal
levels such as drum recording, a switchable
-10dB pad is included on channels 1 & 2 to
Discrete JFET D.I
(Instrument) Inputs
ASP880 features two discrete class-a JFET
D.I inputs (Channels 1 & 2). Plugging into
these jacks will automatically select the D.I
signal over the signals present at tha rear.
Why JFET?
Junction Field Effect Transistors are known
for their sweet tone and tube-like properties
when overdriven. You will often find JFETs
used in guitar pedals and such for this very
reason. They sound good and “can” provide
CAPTURE GREAT TONE JUST BY
PLUGGING IN DIRECT!
provide a -10 to +50dB padded gain range.
Microphone inputs are provided on the rear
panel using Combi XLR connectors - here
the 1/4” Combi Jack connector provides a
padded balanced line input (input impedance
>6kΩ)directlyintothemicprestage.
These Combi Jack line inputs run through
the mic preamp, providing a slightly sweeter
tone (due to the 2nd and 3rd harmonic
distortion in the mic pre) and have access
to all input conditioning functions apart from
phantom power.
just a touch of sweetness and larger than
life tone. JFETs also have a very high input
12
impedance (often approx. 10
this makes them ideal for buffer circuits
that do not load down the source device.
In the case of electric guitars or basses with
vintage style passive pickups, the output
impedance of the instrument can often be
6,000to40,000Ω,dependinguponvolume
and tone pot positions. Typically we should
provide a load that is 10 times the source
to create a true bridging system. Therefore
we need at least a 400kΩ load to get the
most signal and tone from our instruments.
Ω)and
We designed the JFET input on ASP880 to
have a 1MegΩ input impedance and thus
match the loading effect found on classic
guitar amplifiers.
This ensures you get the most tone from
your instrument and when pushed the JFET
circuit will provide plenty of 2nd and 3rd
Please be aware that the input impedance
switch functions as a variable pad for any
line input signal (a secondary benefit!).
It should then come as no surprise that
most classic valve guitar amplifiers have a
veryhighinputimpedance-1MegΩ!
harmonic distortion (minimum 0.03% to
lots!) ensuring that your instrument has a
rich sound and some c o l o u r!
109
Setting Levels & Gain
Aim for -10dBFS peaks on the loudest sections
when setting gain & recording levels in the DAW!
Input Conditioning
Hardware Features
1. 2. 3. 4. 5.
ASP880 has plenty of analogue headroom,
running internally on +/-18V DC rails.
The unit can deliver up to +27.5dBu at the
analogue output DB25 on the rear of the
unit.
However it would be typical in modern
digital recording situations that ASP880 is
using our own internal pristine 115dB ADC
converters to produce a digital output for
recording via AES or ADAT digital output.
In this case, the ASP880 has a digital line-
up reference of +18dBu = 0dBFS (full scale),
In order to correctly condition input signals,
ASP880 provides the following functions:
• +48V Phantom Power
• -10dB Pad (channels 1 & 2)
• Polarity Reverse
• Sweepable High Pass FIlter
P48 Phantom Power
Phantom power can be supplied on a per
channel basis by pressing the +48V switch
(1). This is supplied at 48V +/-4v @ 10mA
per channel and is fully compliant with the
DIN45596 specification. This is suitable for
any phantom powered condenser mics, or
To check phase coherency on multi-mic
setups, first always use careful microphone
placement and then press the
on various combinations of channels to find
the fullest, most solid low frequency
representation of the source.
ø switch (3)
therefore the analogue circuitry will have
anywhere from 4 to 9.5dB headroom above
digital maximum (don’t worry about it!).
As a target guide, we would recommend
that you turn up the ASP880 gain pots to
produce a -10dBFS peak signal level in your
DAW when recording. This will maintain
plenty of headroom and things often sound
better in the DAW if you record with lots of
headroom.
To do this, adjust the gain knob on ASP880
whilst observing the metering in your
interface or DAW application.
The LED metering on the ASP880 will show
signal present at -48dBFS (-30dBu), slowly
ramping to -28dBFS (-10dBu) with a peak
LED warning of potential overloads at -2dBFS
(+16dBu). However please rely upon the
ribbons with on-board active head amps etc.
-10dB Pad
The 10dB pad (2) can be used in conjunction
with the gain control to adjust any hot
signals on channels 1 & 2. Please note that
the actual attenuation value of this pad will
vary with micpre input impedance (lo, med or
hi) and therefore using your ears and eyes is
the best policy here!
ø Polarity Reverse
Polarity reverse (180 degrees) can be
applied to any channel to ensure that
multi-mic setups sound as full as possible.
On drum kit recordings typically you may find
either the kick drum out of phase with the
overheads, or the underneath snare mic out
of phase with the top snare mic etc. Some-
times, one overhead is out of phase with the
kick drum, so move mics first and then use
the polarity reverse switch to find the best
compromise.
Sweepable High Pass Filter
The sweepable HPF is 2nd order 12dB per
octave and can be used to increase head-
room and clean up low frequency rumble etc.
Engage this by pressing the switch (4)
recording destination for accurate metering.
ALWAYS REMEMBER TO CHECK PHASE.
and adjusting the frequency control (5).
1211
Hardware Features
FAST
SLOW
DETAILED
GLUED
SOFT HARD
HI
LO
MED
Variable Input Impedance
One stand-out feature of the ASP880 is the
variable input impedance (Z) control.
There are three impedance load settings on
the unit, and these can be used to extract
various voicings from your mic collection by
loading the mic’s output stage differently.
Notably mics with transformer outputs such
as SM57 / SM7 dynamic mics or Coles
4038 ribbon microphones often provide
quite noticeable changes in tone when
operated into various loads.
The source (microphone) and load (mic pre-
amplifier) form a bridging voltage divider,
that contain different values of resistance
for the source at different frequencies - thus
creating a varying frequency response (or
different output levels for each part of the
SM57 impedance curve) and thus a change
in tone can be perceived.
MIC - SOURCE
310 Ω @ 1kHz
Varying at all frequencies
OUTIN
PRE - LOAD
Variable Input Impedance - Listening
When listening, this diagram may come in
helpful if trying to train your ear to hear the
differences.
Listen for the following:
1. Change in Level
2. Change in Speed (Transient Response)
3. Change in Tone (Frequency Response)
4. Change in Detail
Please be aware that some microphone
types (transformerless condensor types)
may not produce audible changes due to
their electronically buffered output stages
which have linear output impedances with
regards to frequency and therefore are less
susceptible to changes in loading.
If in doubt, consult your microphone
datasheet & manufacturer.
The three settings on ASP880 are:
• LO 220Ω
• MED 1200Ω
• HI 2800Ω
Take the dynamic output impedance of an
SM57 for example (illustration only):
2k
Typically there is some change in level,
timbre, punch and tone when changing Z.
Ribbon mics are known for liking HI-Z inputs.
-20
dB
Ω
220 Ω
1200 Ω
2800 Ω
GND
LOAD = 2800 Ω
LOAD = 1200 Ω
LOAD = 220 Ω
310 Ω
0
20 20k
Hz
∞
20 20k
Hz
1413
Analogue Line Outputs
Hardware Features
1.
Digital Outputs - AES - S/PDIF
ASP880 features 8 analogue, cross-coupled
line driver outputs on DB25. These fully
balanced outputs use the same circuitry
as our proven ASP8024 flagship console
and provide “transformer-like” differential
line drive and high headroom with a sturdy,
transparent pair of operational amplfiiers.
Use these outputs to use ASP880 as a
standalone eight channel analogue mic pre.
These outputs are wired as Tascam DB25
standardwith100Ωoutputimpedanceand
+27.5dBu maximum level.
The on-board digital card in ASP880 can
provide both double speed (96kHz) AES
and ADAT output signals.
The AES output is available on a 9-pin DSUB
connector and is fully transformer balanced
according the AES specification. The 9-pin
DB9 connector provides eight channels of
balanced AES digital output and the wiring
pinout is as shown to the right.
Pressing the AES - S/PDIF switch (1) will
switch the DB9 output stage into consumer
format (lower signal amplitude etc) for
S/PDIF operation. In most cases, you will
AD Converter Direct Access / Inserts
ADC balanced line inputs are available on a
rear panel DB25 connector (also Tascam
format). You can use these to directly
access the AD converter with +18dBu input
headroom (0dBFS = +18dBu) for line level
signals, allowing you to feed the ADC from
other sources such as alternative mic pres
etc. However this also provides a path in
which you can insert processing outboard
such as EQ & compression between the mic
pres and ADC - useful!!
To activate the direct AD access press the
likely be using the AES professional output
ASP880 & iD22 - Perfect Harmony
so this switch can remain in the out position
until required.
Combining ASP880 with our iD22 USB
recording interface via ADAT - you get 10
Digital Outputs - ADAT SMUX
audient mic preamps, 10 top-of-the-range
Burr-Brown AD converters and 6 pristine
The digital card also provides simultaneous
DAC outputs for monitoring! Nice!
ADAT optical output on the rear of the unit
with full SMUX double speed capability.
For <48kHz operation, a single optical
cable should be connected from the top
(1-4) ADAT port. This will provide 8-channels
@ 48kHz. For >48kHz operation, two optical
cables should be used, with four channels
front panel A-D switch on each channel.
carried on each for full 8ch 98kHz operation.
1615
Hardware Features
Clocking with the ASP880
There are two ways to integrate ASP880
into your system digitally:
• As a MASTER clock source - internal clock
• As a SLAVE device - external clock
Master Clock Operation - INTERNAL
Assuming that you are connecting the
ASP880 digital output to a DAW/recording
interface with either AES or ADAT inputs,
the ASP880 can be set as MASTER clock
source as follows:
Select the appropriate sample rate on the
1.
Slave Clock Operation - EXTERNAL
You may have a studio master clock source
such that all digital devices synchronise to
your session sample rate, or perhaps you
would like the ASP880 to follow your DAW/
recorder session sample rate so that you do
not have to reconfigure the unit when you flip
between sessions at different sample rates.
In order to do this, you must set the ASP880
digital card to SLAVE to an external clock
source.
Press the SAMPLE RATE switch (1) until it is
flashing green (external clock mode).
1.
MASTER CLOCK SOURCE
BNC OUTPUT
2.
3.
75ΩCOAXCABLE
front of ASP880 by pressing the SAMPLE
RATE switch (1).
Ensure that your DAW/recorder session is
set to the same sample rate and that clock
source is set to external digital
input (either AES or ADAT).
Your DAW/recorder should
automatically follow the
sample rate set on the front
of the ASP880. Note that both
the AES and ADAT output
simultaneously so you can
feed a backup recorder at the
CONNECT DIGITAL OUTPUT (AES or ADAT)
TO YOUR DAW/RECORDER
Ensure that your master clock source is
connected via a 75Ωcoaxial BNC cable to
the Word Clock input on ASP880 (3) - with
a valid clock signal present here, the green
LED in the SAMPLE RATE switch should
become solidly lit, indicating external lock.
If ASP880 is the only or last device in the clock
chain fed from the master clock, go ahead
andpressthe75Ωterminationswitch(2)to
ensure that the clock line is loaded properly
to stop any transmission line effects.
If using a BNC T-Bar to distribute clock
signals to various devices - please ensure the
CONNECT DIGITAL OUTPUT (AES or ADAT)
TO YOUR DAW/RECORDER
same time on location gigs!
lastdeviceinthechainisterminated(75Ω).
1817
ASP880 Block Diagram Troubleshooting & FAQ
Troubleshooting
• My microphones are not producing
signal?
Double check that phantom power is
turned on via the front panel switch, try
swapping XLR cables, then double check
all connections to the recorder.
• I cannot clock the ASP880 from an
external clock source, or you are
experiencing clicks & pops?
Double check that you have set the clock
FAQs
For more information and service
information / support, please search our
online Knowledge Base which can be found
here:
www.audient.com/support
For technical support please create
a ticket in our online support system,
Zendesk which can also be found in the
support section of our website
source to external by using the front
panel SAMPLE RATE switch, press it until
it is flashing green. This selects external
clock mode.
From here, double check your master clock
source, and ensure it is connected via a
75ΩBNCcoaxialcabletotheASP880BNC
wordclock input.
Providing that you have a valid clock source,
ASP880 should sync to it without issue and
the SAMPLE RATE led in the switch will turn
to solid illumination. This shows that the unit
is locked. If you experience pops & clicks -
(see link above).
Please consult the warranty statement on
double check any master/slave device
configurations and cabling. A system should
only have one master clock.
19 20
page 23 for further information regarding
service requirements and our policies.
MICROPHONE PREAMPLIFIERS:
(measured to insert send)
MIC GAIN: -10 to +60dB (-10dB Pad)
LINE GAIN: -16 to +44dB (-10dB Pad)*
PHANTOM POWER: 48v +/-4v @ 10mA/Channel
MIC EIN: <-127.5dBu
CMRR: >80dB @ 100 to 10kHz
MAXIMUM INPUT LEVEL: +22dBu (+32dBu with Pad)
INPUT IMPEDANCE
MicLO: 220ΩBalanced
MicMED: 1k2ΩBalanced
MicHI: 2k8ΩBalanced
Line(Alli/pZ): >6kΩBalanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to 100kHz
CROSSTALK: <-85dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): 0.003% (-90.5dBu)
SNR: >90dB
HPF: Sweepable from 25Hz to 250 Hz
2nd Order (12dB/Octave)
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
*Line input level at the combi jacks will be affected by the input
impedance switch position, this can be used as a second pad
control to adjust line input ranges on all channels.
Specifications
ADC LINE INPUTS (Insert Returns):
(measured at AES output under AES-17)
MAXIMUM INPUT LEVEL: +18dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu
INPUTIMPEDANCE: >10kΩBalanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to Fs/2
CROSSTALK: <-80dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.002% (-94dB)
THD+N @ -6dBFS (1kHz): <0.002% (-94dB)
DYNAMIC RANGE: 113dB un-weighted
115dB A-weighted
PEAK LED LINEUP: +16dBu (-2dBFS)
SIGNAL LED LINEUP: -10dBu (-28dBFS)
DIGITAL i/o:
ADAT 8 CHANNELS SMUX: 44.1 - 96kHz
AES | S/PDIF 8 CHANNELS: 44.1 - 96kHz
CLOCK: Internal or External
WORDCLOCKINPUT: 75ΩBNC
Optional75ΩTermination
482mm
Dimensions
321mm
280mm
440mm
DISCRETE JFET D.I (Channels 1 & 2):
(measured to line outputs / insert send)
D.I GAIN: -10 to +60 dB (-10dB Pad)
MAXIMUM INPUT LEVEL: +16dBu (typical), +22dBu
INPUTIMPEDANCE: 1MegΩUnbalanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to 50kHz
THD+N @ 0dBu (1kHz): <0.03% (-70dBu)
SNR: 89dB
1/4” JACK: TIP (Hot) & SLEEVE (Shield)
LINE OUTPUTS (Insert Sends):
MAXIMUM OUTPUT LEVEL: +27.5dBu
OUTPUTIMPEDANCE: <100ΩBalanced
POWER SUPPLY:
High stability, low noise internal SMPS
Fanless, quiet operation
Works anywhere in the world without reconfiguring
LINE VOLTAGES: 90 to 264V (a.c)
INTERNAL RAILS: +/-18VDC, +48VDC & +5VDC
FUSE: T1A (1Amp Time Delay)
CONSUMPTION: Maximum 40 Watts
WEIGHT: 4.0 kg
21 22
44.4mm
3mm
Warranty
Service
Warranty Statement
Your ASP880 comes with a manufacturer’s warranty for one year (12 months) from the
date of despatch to the end user.
The warranty covers faults due to defective materials used in manufacture and faulty
workmanship only.
During the warranty period
provided it is returned carriage paid to an authorised
provide warranty repair if in our opinion the has resulted from unauthorised modification,
misuse, negligence or accident.
We accept liability to repair or replace your ASP880 as described above. We do not accept
any additional liability. This warranty does not affect any legal rights you may have against
audient will repair at its discretion or replace the faulty unit
audient service centre. We will not
Service Information
ASP880 contains no user-serviceable components, please refer to qualified service personnel
for diagnosis and repair. Your warranty will be void if you tamper with the device at component
level. If you have any questions with regard to the repair, please contact Audient Ltd.
In the event your ASP880 needs to be repaired, it is necessary to contact Audient Ltd prior to
shipping, and a Return Materials Authorization (RMA) number will be assigned. This number
will serve as a reference for you and helps facilitate and expedite the return process. When
the unit is returned please include this RMA number along with a description of the fault inside
the packaging box. Audient requires that shipments be pre-paid (for in-warranty repairs we will
cover the return shipping).
To request an RMA, access technical support & FAQs, ask for troubleshooting assistance or
make an enquiry, please visit: www.audient.com/support
the person who supplied this product - it is additional to those rights.
Warranty Limitations
This warranty does not cover damage resulting from accident or misuse. The warranty is void
unless repairs are carried out by an authorised service centre. The warranty is void if the unit
has been modified other than at the manufacturer’s instruction. The warranty does not cover
components which have a limited life, and which are expected to be periodically replaced for
optimal performance. We do not warrant that the unit shall operate in any other way than as
described in this manual.
Audient Ltd
Aspect House
Herriard
Hampshire
RG25 2PN
United Kingdom
Tel: 0044 1256 381944
www.audient.com
23 24
Glossary
.audient.com
A Amperes
ADAT Alesis Digital Audio Tape
ADC Analogue to Digital Converter
AES Audio Engineering Society - AES Digital Audio Format
ASP Analogue Signal Processing
DAW Digital Audio Workstation
DAC Digital to Analogue Converter
dB Decibel
dBu Decibel referenced to 0.775Vrms = 0 dBu
dBFS Decibel Full Scale
DB9 9-Pin DSUB Connector - Digital AES Format
If you make it to the top then this automatically becomes the connector for your
Aston Martin key fob!
DB25 25-Pin DSUB Connector - Analogue Tascam Format
DC Direct Current
D.I Direct Injection (Instrument Input)
DoC Declaration of Conformity
EIN Equivalent Input Noise
FAQ Frequently Asked Questions
HPF High Pass Filter
HV High Voltage
Hz Hertz, cycles per second - measurement unit of frequency
i/o Input / Output
JFET Junction Field Effect Transistor
LED Light Emitting Diode
Ohm Ω,UnitofResistance
RoHS Restriction of Hazardous Substances
S/PDIF Sony Philips Digital Interconnect Format
SMUX Sample Multiplexing
THD+N Total Harmonic Distortion + Noise
TRS Tip Ring Sleeve (1/4” Jack Balanced)
TS Tip Sleeve (1/4” Jack Unbalanced)
USB Universal Serial Bus
V Volts
XLR Extra Live Return, Extremely Low Resistance,
Canon X Series, Latching, Resilient Rubber Compound... or make up your own!
Z Ohms,Ω,InputImpedance-canbevariedbyadjustingZswitch
USER MANUAL v1.3
April 2014
25
connect with us.
facebook.com/audient
twitter.com/audientworld
youtube.com/audienthampshire
www.audient.com
Loading...
