Audi S4 AVANT, S4 Quick Reference Guide

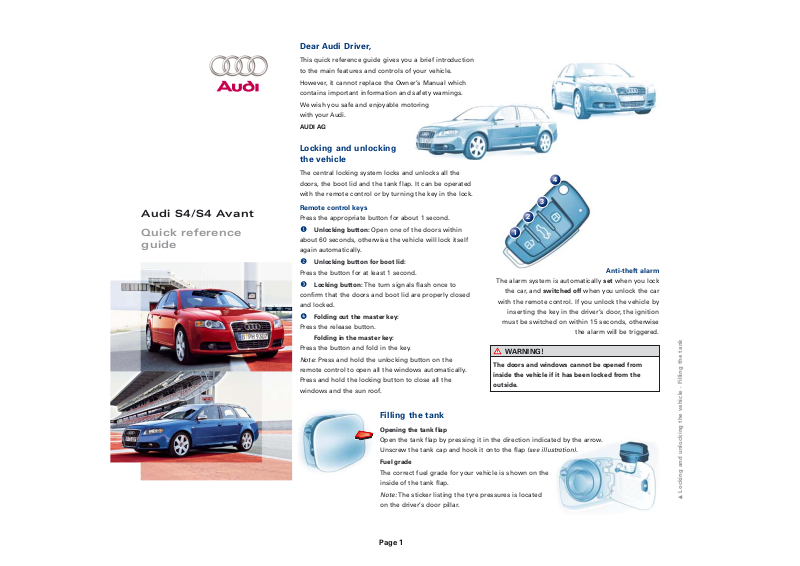

Page 1

Audi S4/S4 Avant

Quick reference
guide

1

4

2

3

1

Locking and unlocking the vehicle · Filling the tank

WARNING!

The doors and windows cannot be opened from

inside the vehicle if it has been locked from the

outside.

Dear Audi Driver,

This quick reference guide gives you a brief introduction

to the main features and controls of your vehicle.

However, it cannot replace the Owner’s Manual which

contains important information and safety warnings.

We wish you safe and enjoyable motoring

with your Audi.

AUDI AG

Filling the tank

Opening the tank flap

Open the tank flap by pressing it in the direction indicated by the arrow.

Unscrew the tank cap and hook it onto the flap (see illustration).

Fuel grade

The correct fuel grade for your vehicle is shown on the

inside of the tank flap.

Note:

The sticker listing the tyre pressures is located

on the driver’s door pillar.

Locking and unlocking
the vehicle

The central locking system locks and unlocks all the

doors, the boot lid and the tank flap. It can be operated

with the remote control or by turning the key in the lock.

Remote control keys

Press the appropriate button for about 1 second.

e Unlocking button: Open one of the doors within

about 60 seconds, otherwise the vehicle will lock itself

again automatically.

r Unlocking button for boot lid:

Press the button for at least 1 second.

t Locking button: The turn signals flash once to

confirm that the doors and boot lid are properly closed

and locked.

u Folding out the master key:

Press the release button.

Folding in the master key:

Press the button and fold in the key.

Note:

Press and hold the unlocking button on the

remote control to open all the windows automatically.

Press and hold the locking button to close all the

windows and the sun roof.

Anti-theft alarm

The alarm system is automatically set when you lock

the car, and switched off when you unlock the car

with the remote control. If you unlock the vehicle by

inserting the key in the driver’s door, the ignition

must be switched on within 15 seconds, otherwise

the alarm will be triggered.

Page 2

1

4

3

2

1

Safety · Adjusting front seats

Adjust seat and sit in correct position

The front seats should not be positioned too close

to the steering wheel or dashboard. Maintain a distance

of at least 25 cm and sit in a normal upright position.

The top of the head restraint should be at eye

level or higher. Always keep your feet in the

footwell.

Safety

Seat belts must be worn on every journey, even on short trips in town. This

applies to the front and rear seats. To ensure that the seat belts, belt

tensioners and airbags are fully effective, please note the following points:

WARNING!

Please follow the instructions in the Owner's Manual

supplied with your Audi and read the instructions

provided by the child seat manufacturer.

25 cm

Wear the seat belt correctly

Make sure that the shoulder section

of the belt is positioned over the

centre of the shoulder and move

the lap section as far down over

the hips as possible. The belts

should always be worn so that

they fit tightly (see illustration).

Safety of children in the vehicle

Children under 12 should travel on the rear

seat. They must be protected by a child restraint

system which complies with the European standard

ECE-R 44 and is suitable for the child’s height and weight.

The safest place for the child restraint system is behind the front

passenger’s seat.

Adjusting seat belt height

Take hold of the top guide fitting and

slide it up or down so that the

shoulder portion of the seat belt is

positioned roughly midway over

the shoulder. After adjusting, pull

the shoulder belt sharply to check

that the catch on the guide

fitting has engaged securely.

Adjusting front seats

e Adjusting head restraints

Raising head restraint:

Take hold of the sides

of the head restraint with both hands and

move it up as required.

Lowering head restraint:

Press the button

on the side of the head restraint and

move the head restraint as required.

r Adjusting seat height and moving

seat backwards or forwards

Press the switch in the appropriate direction

(as indicated by the arrows):

To raise/lower the seat at the front

To raise/lower the seat at the rear

To raise/lower the seat

To move the seat forwards/backwards

t Adjusting the backrest

Backrest further upright/further reclined

u Adjusting lumbar support

Press appropriate part of the switch.
