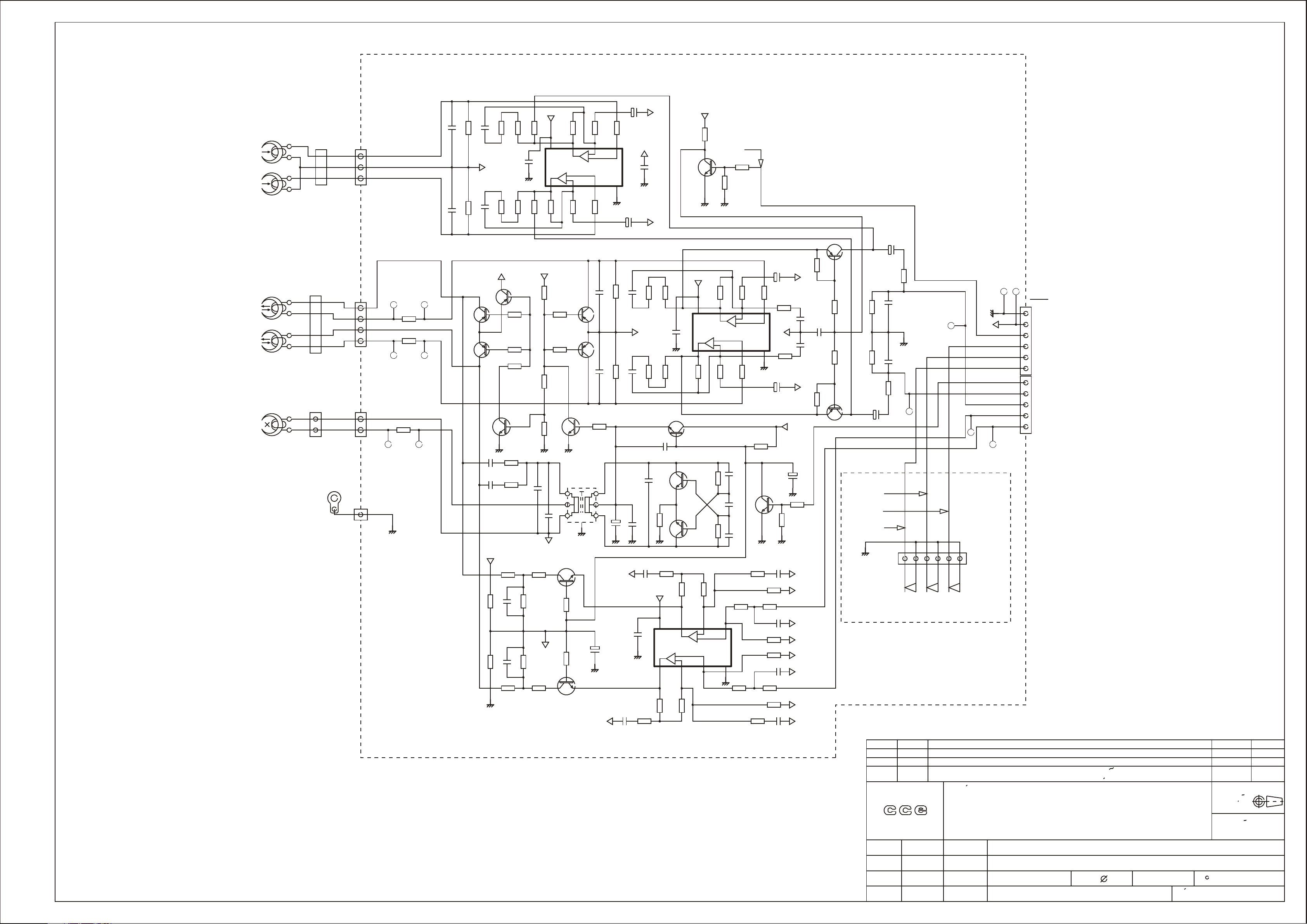

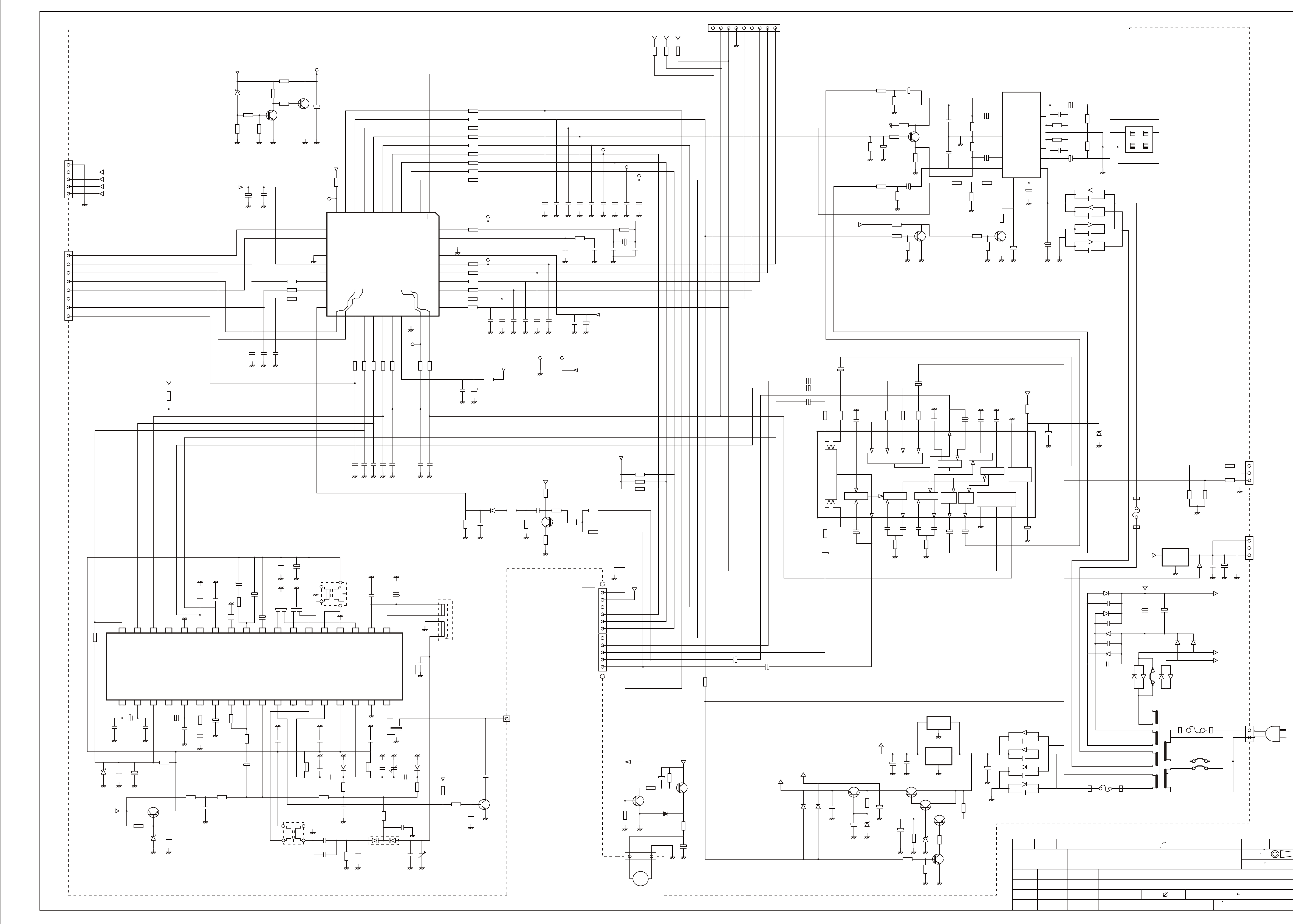

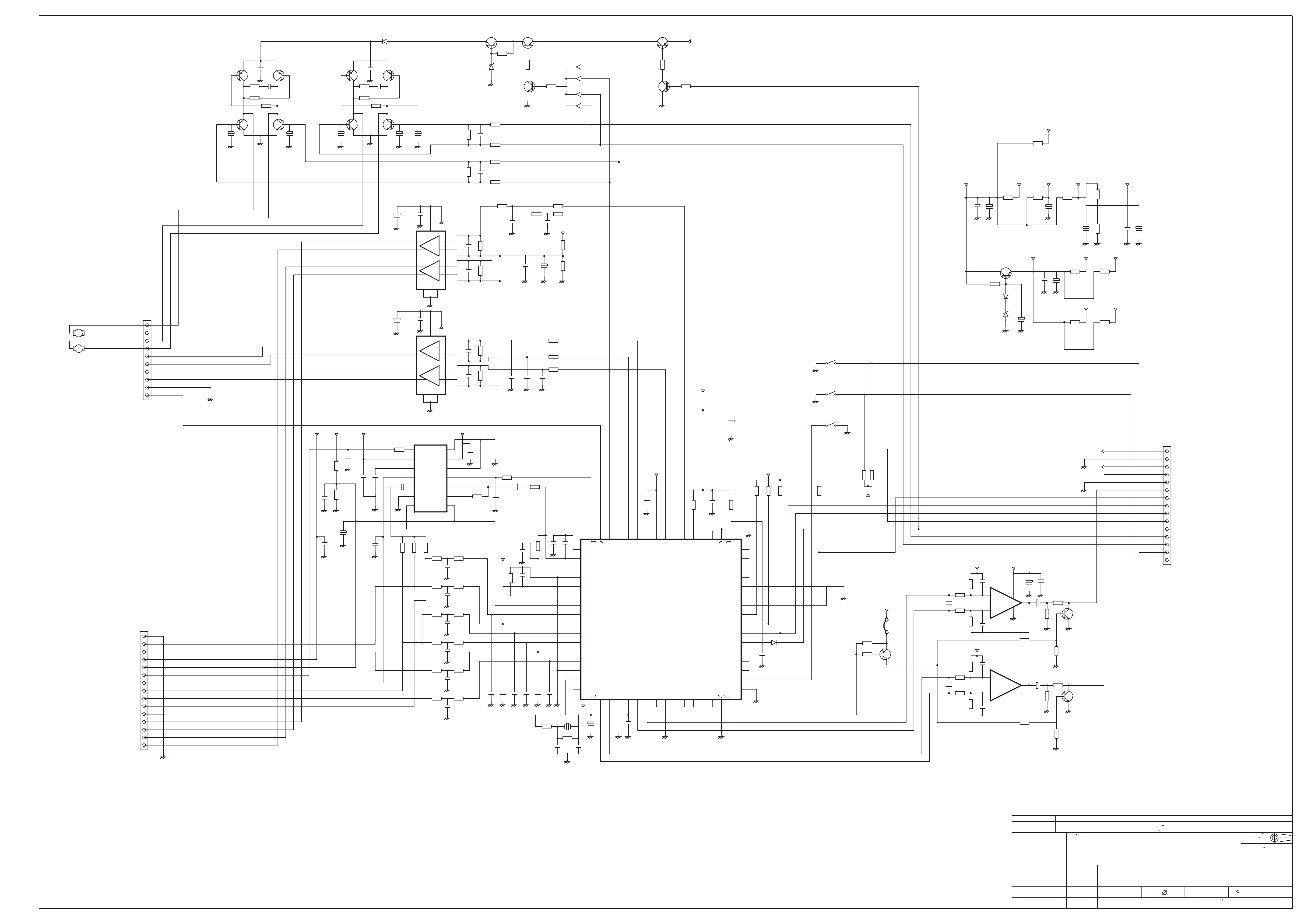

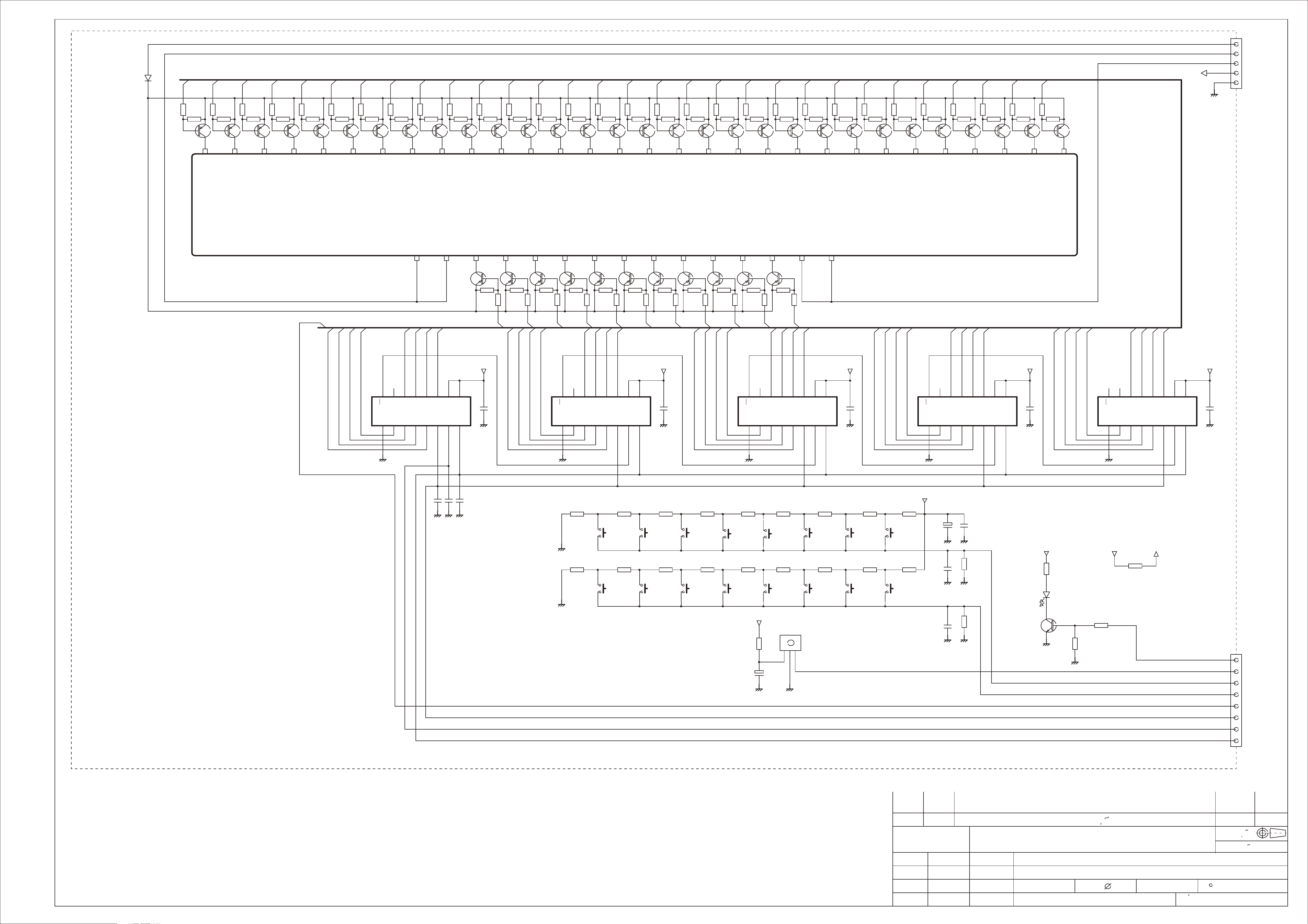

Audax MZX20AUD Schematic

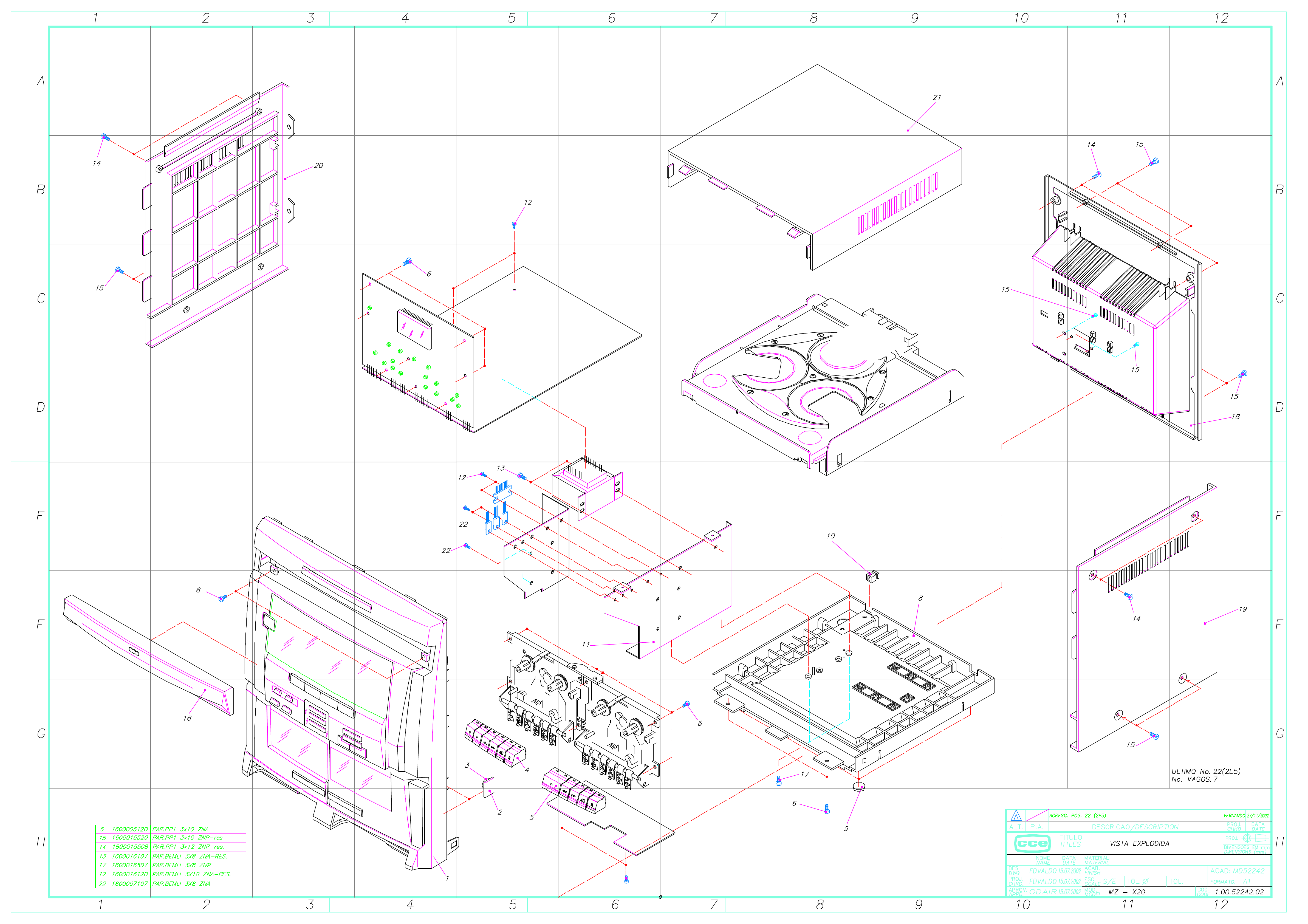

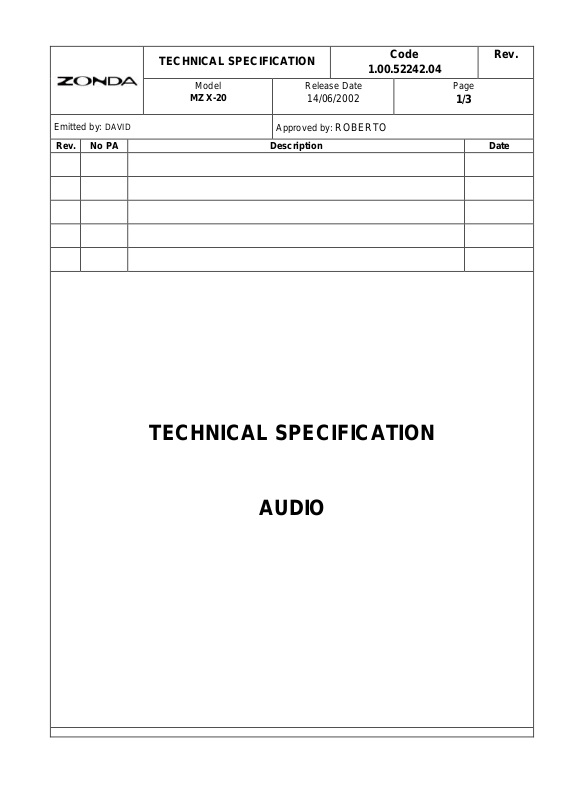

TECHNICAL SPECIFICATION
Code
1.00.52242.04
Rev.
Model
MZ X-20
Emitted by: DAVID
Rev. No PA Description Date
Release Date
14/06/2002
Approved by: ROBERTO
Page
1/3
TECHNICAL SPECIFICATION
AUDIO
TECHNICAL SPECIFICATION
Code
1.00.52242.04
Rev.
Model
MZ X-20
Release Date:
14/06/2002
Page:
2/3
POWER OUTPUT
ITEM CONDITION UNIT MINIMUM MAXIMUM
1- POWER OUTPUT 10% THD W - 10 +
10
2- DISTORTION 1W + 1W % - 1
RADIO FM
ÍTEM CONDITION MHz UNIT MiNIMUM MAXIMUM
1 - TUNNING MÍNIMUM MHz 87,5 87,5
MÁXIMUM MHz 108,1 108,1
2 - SENSIVITY 30 dB S/N 90 dB 22
98 dB 22
106 dB 22
3 – FREQUENCY RESPONSE 100Hz 98 dB -3 3
( 1 KHz = 0 dB ) 6kHz 98 dB -10 -4
4 - AFC ACTUATION UP 98 dB 100 300
DOWN 98 dB 100 300
5 - MONO DISTORTION 1 kHz 98 % 3
6 – STEREO DISTORTION 1 kHz 98 % 5
7 – CHANNEL SEPARATION 1 kHz esq. 98 dB 20
with filter 19kHz 1 kHz dir. 98 dB 20
8 – STEREO INDICATOR SENSIVITY OFF 98 dB 24
ON 98 dB 36
DUMMY :DA-V REFERENCE LEVEL :1W / 8 Ohms AC VOLTAGE :120V
RADIO AM
ITEM CONDITION kHz UNIT MINIMUM MAXIMUM
1 - TUNNING MINIMUM kHz 520 520
MAXIMUM kHz 1650 1650
2 - SENSIVITY 20 dB S/N 600 dB 70
1000 dB 70
1400 dB 70
3 - SIGNAL / NOISE 1000 dB 20
( 400Hz = 0 dB)
4 – FREQUENCY RESPONSE 100 Hz 1000 dB -3 3
( 400Hz = 0 dB) 3 kHz 1000 dB -10 -2
TECHNICAL SPECIFICATION
Code
1.00.52242.04
Rev.
Model
MZ X-20
LOOP ANTENNA REFERENCE LEVEL :1W / 8 Ohms AC VOLTAGE :120V
Release Date:
14/06/2002
Page:
3/3
DECK REC/ PLAYBACK
ITEM CONDITION Hz UNIT MINIMUM MAXIMUM
1 - WOW & FLUTTER 3K 3k % 0,3
2 – FREQUENCY RESPONSE MTT 117 125 dB -3 3
( 1 kHZ = 0 dB ) MTT 117 6,3k dB -3 3
3 – CHANNEL SEPARATION MTT 141 1 dB 20
4 – PLAYBACK NOISE MIN. VOL. mV 10
( IN PLAY ) MAX. VOL. mV 100
REFERENCE LEVEL :1W / 8 Ohms AC VOLTAGE :120V
CD PLAYER
ÍTEM CONDITION Hz UNIT MINIMUM MAXIMUM
1 – SIGNAL/NOISE TNO 24 1k dB 40
2 – CHANNEL SEPARATIION TNO 33/34 1k dB 20
3 – FREQUENCY RESPONSE TNO 04 100 dB -3 3
TNO 07 1k dB -3 3
TNO 09 10k dB -3 3
REFERENCE LEVEL :1W / 8 Ohms AC VOLTAGE :120Volts
EQUALIZATOR
ITEM CONDITION Hz UNIT MINIMUM MAXIMUM
1- LOUDNESS vol. 10 100 dB 12 16
2- H-LOUD 1 vol. 10 100 dB -1 +1
H-LOUD 2 vol. 10 100 dB 0
+3
H-LOUD 3 vol. 10 100 dB +1 +5
3- PERSON Bass= -5 100 dB -6 -10
Bass= +5 100 dB +6 +10
Treb = -5 10k dB -6 -10
Treb = +5 10k dB +6 +10
REFERENCE LEVEL :1W / 8 Ohms AC VOLTAGE :120Volts
