Audac VEXO208 User guide

User manual

VEXO208

audac.eu

Table of contents

Introduction 03

High performance loudspeaker � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 03

Precautions 04

Chapter 1 06

Overview and connecting VEXO2xx � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 06

Chapter 2 07

Installing VEXO2xx � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 07

Technical specifications 09

ADDITIONAL INFORMATION

This manual is put together with much care, and is as complete as could be on the publication date. However, updates

on the specications, functionality or software may have occurred since publication. To obtain the latest version of
both manual and software, please visit the Audac website @ www.audac.eu.

REV-1.4

VEXO208 - User manual02

Introduction

High performance loudspeaker

The VEXO208 is a high-output 3-way loudspeaker, providing a powerful and detailed signature sound of
the VEXO family with a dual 8-inch driver in a compact cabinet.

The combination of the elegant enclosure and high performance allows them to be used in installation
applications that require both a modern look and a unique audio experience from nightclubs to sports
facilities. Compression driver overload protection is provided through an internal limiting circuit. Mounting
in both horizontal and vertical directions is possible with the included wall bracket. An optional 70/100V
transformer module can be installed to use VEXO208 in Hi-Z systems. The VEXO208 loudspeaker is available
in Black (/B) or White (/W).

VEXO208 - User manual 03

Precautions

READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY

ALWAYS KEEP THESE INSTRUCTIONS. NEVER THROW THEM AWAY

ALWAYS HANDLE THIS UNIT WITH CARE

HEED ALL WARNINGS

FOLLOW ALL INSTRUCTIONS

NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING LIQUID. AND NEVER PLACE AN OBJECT

FILLED WITH LIQUID ON TOP OF THIS DEVICE

NO NAKED FLAME SOURCES, SUCH AS LIGHTED CANDLES, SHOULD BE PLACED ON THE APPARATUS

DO NOT PLACE THIS UNIT IN AN ENCLOSED ENVIRONMENT SUCH AS A BOOKSHELF OR CLOSET. ENSURE THERE IS ADEQUATE

VENTILATION TO COOL THE UNIT. DO NOT BLOCK THE VENTILATION OPENINGS.

DO NOT STICK ANY OBJECTS THROUGH THE VENTILATION OPENINGS.

DO NOT INSTALL THIS UNIT NEAR ANY HEAT SOURCES SUCH AS RADIATORS OR OTHER APPARATUS THAT PRODUCE HEAT

DO NOT PLACE THIS UNIT IN ENVIRONMENTS WHICH CONTAIN HIGH LEVELS OF DUST, HEAT, MOISTURE OR VIBRATION

THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO NOT USE IT OUTDOORS

PLACE THE UNIT ON A STABLE BASE OR MOUNT IT IN A STABLE RACK

ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY THE MANUFACTURER

UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME

ONLY CONNECT THIS UNIT TO A MAINS SOCKET OUTLET WITH PROTECTIVE EARTHING CONNECTION

THE MAINS PLUG OR APPLIANCE COUPLER IS USED AS THE DISCONNECT DEVICE, SO THE DISCONNECT DEVICE SHALL BE

READILY OPERABLE

USE THE APPARATUS ONLY IN MODERATE CLIMATES

VEXO208 - User manual04

CAUTION  SERVICING

This product contains no user serviceable parts. Refer all servicing to qualified service
personnel. Do not perform any servicing (unless you are qualified to)

EC DECLARATION OF CONFORMITY

This product conforms to all the essential requirements and further relevant specifications
described in following directives: 2014/30/EU (EMC2) & 2014/35/EU (LVD).

WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT WEEE

The WEEE marking indicates that this product should not be disposed with regular
household waste at the end of its life cycle. This regulation is created to prevent any possible
harm to the environment or human health.

This product is developed and manufactured with high quality materials and components
which can be recycled and/or reused. Please dispose this product at your local collection
point or recycling centre for electrical and electronic waste. This will make sure that it will be
recycled in an environmentally friendly manner, and will help to protect the environment
in which we all live.

VEXO208 - User manual 05

Chapter 1

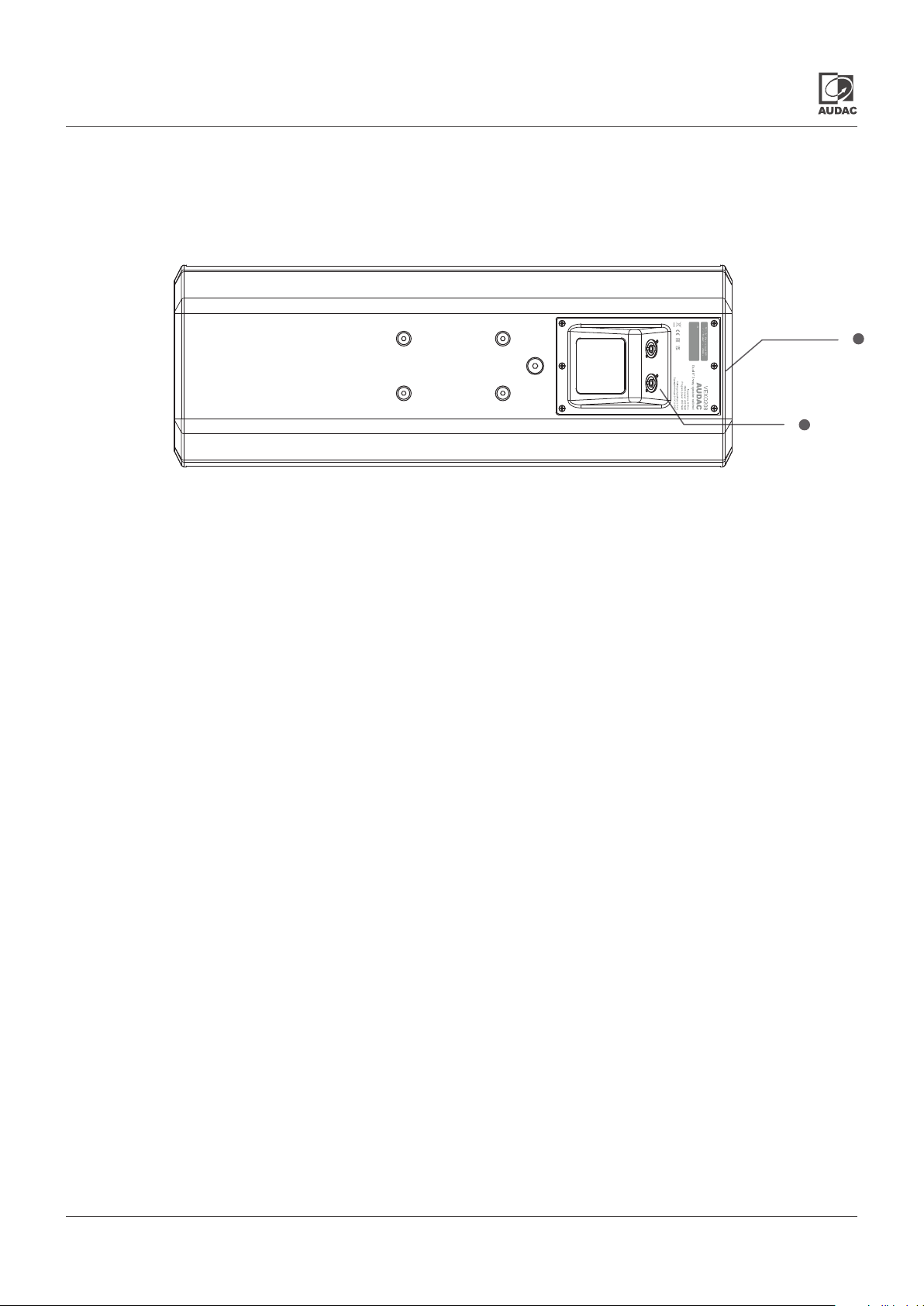

Overview and connecting VEXO208

1) Rigging points

1

2

The VEXO208 is equipped with two M10 and M6 rigging points on the sides for the included U bracket. At
the back of the unit, you will find a M8 mounting pattern. This universal pattern serves as a mounting point
for various mounting arrangements.

2) SpeakON compatible

The wires coming from the amplifier should be connected to the speakON on the back of the loudspeaker.
The used speaker connectors are 4-pin models where to the full range signal should be connected to +1/-1
terminals.

The second connector can be used for linking the signal coming from the amplifier to other loudspeakers,
resulting in a parallel network of multiple loudspeakers.

VEXO208 - User manual06

Chapter 2

Installing VEXO208

The VEXO208 comes with a U bracket for horizontal and vertical installation.

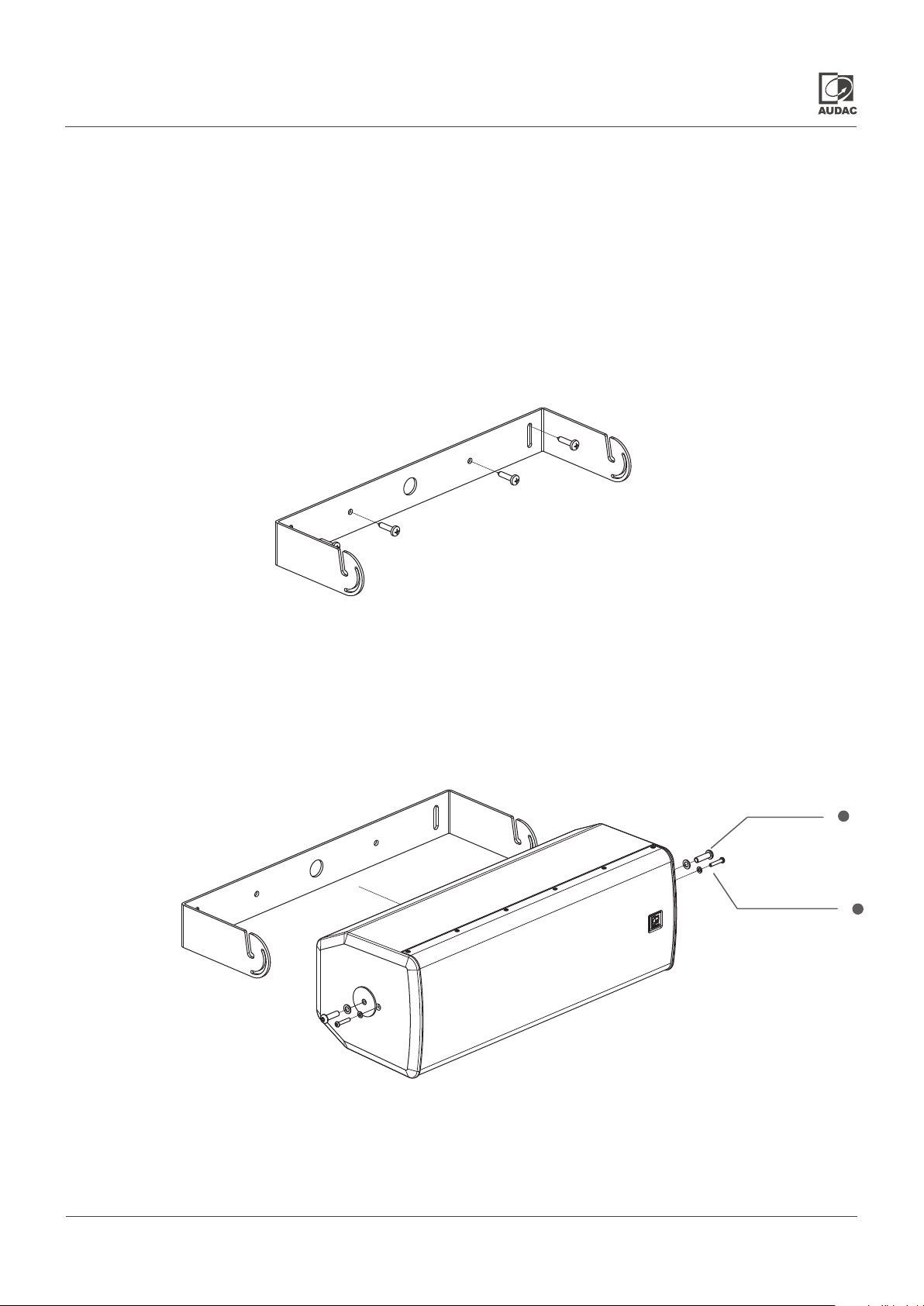

1) Install the U bracket

The VEXO208 is equipped with two M10 and M6 rigging points on the sides for the included U bracket. The
first step is mounting the supplied U bracket to the desired location on the wall. The wall mount has to be
fixed by four screws. The used fasteners should be chosen depending to the mounting surface (brick, concrete,
wood, ... )

2) Install M10 rigging screws

The VEXO208 is equipped with two M10 (1) and M6 (2) rigging points on the sides for the included U bracket.

To place the speaker on the bracket, first place the M10 screws on the sides.

1

2

VEXO208 - User manual 07

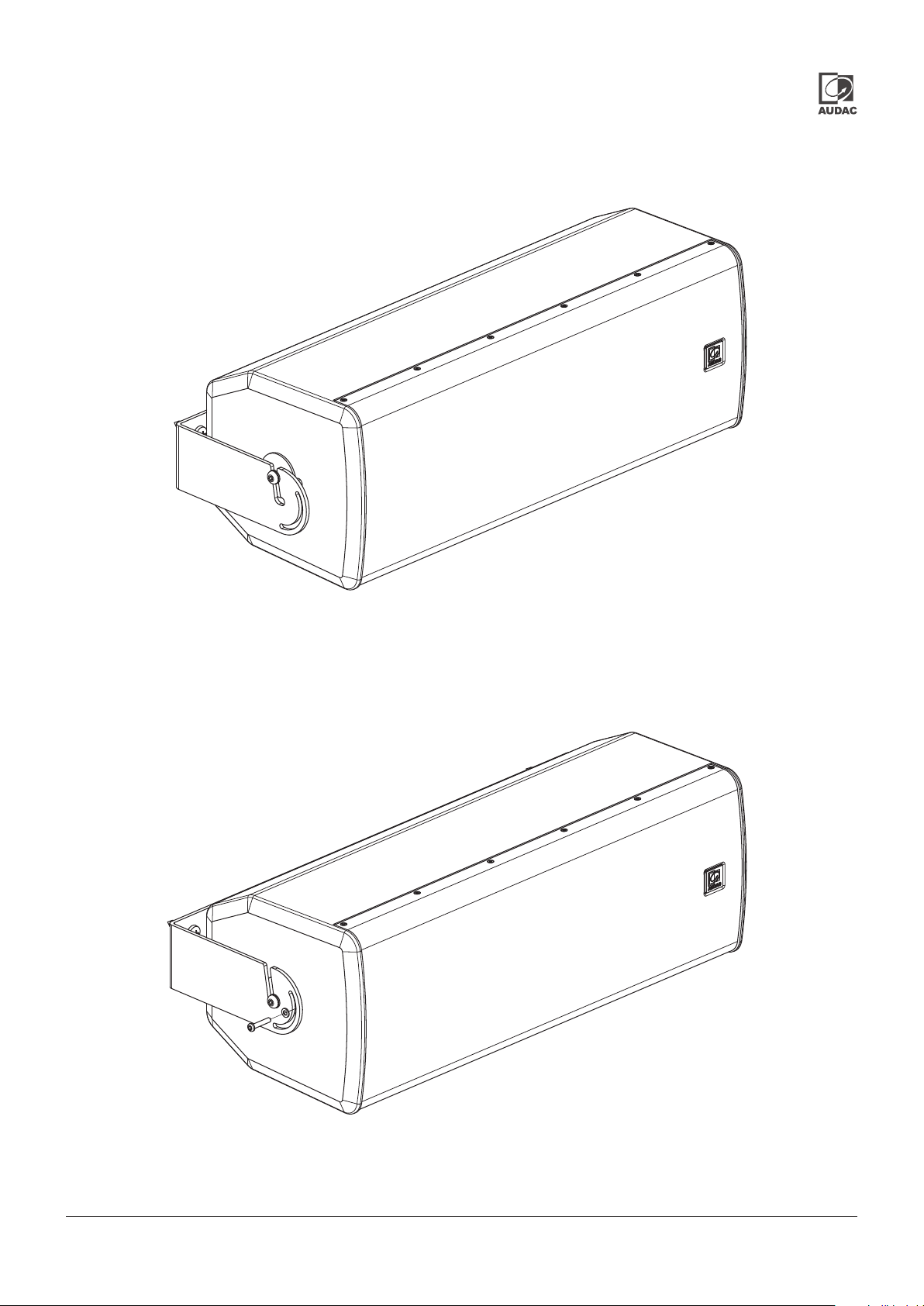

3) Placing the VEXO 208 into the U bracket

The U-bracket has two slides and an angle adjustment point on the sides. Carefully place the VEXO208 into
the U-bracket with the M10 fixing screws aligned with the slides.

4) Aiming the VEXO208

The last step in the installation procedure of the VEXO208 is pointing it at the aiming angle (-90° - 35°). Once
the desired angle is set M6 rigging screws can be placed on the sides and both M10 and M6 rigging screws
can be tightened.

VEXO208 - User manual08

Technical specifications

VEXO208

Peak Power handling 1600 Watt

Program Power handling 800 Watt

RMS/AES power handling 400 Watt

Nominal impedance 4 Ohm

Sensitivity 1W/1m 94 dB

Sound pressure Max W/1m 121 dB

Frequency response - 3dB 62Hz - 20 kHz

Drivers Coaxilal compression driver with 1.4” voice coil and 1” throat

1 x 8” Coaxial LF with 2” voice coil, 1x8” LF with 1.8” voice coil

Coverage 95° x 95° (1 kHz – 10 kHz Avg 1/3 oct)

Connectors 2 x speaker connectors (linkthrough) Speakon compatible

Construction Plywood with Polyurethane coating

Front finish Powder coated steel grill witch acoustical foam

Rigging points 2 x M10+M6 (bracket)

Stand fitting None

Handle None

Mounting pattern At the back of the device (108 x 50.8 mm)

Colour White (RAL9003)

Black (RAL9004)

Dimensions (w x h x d) 710 x 260 x 290 mm

Weight 17 Kg

Included accessories U bracket

Drop safety wire

Optional accessories 70/100V transformer module

VEXO208 - User manual 09
