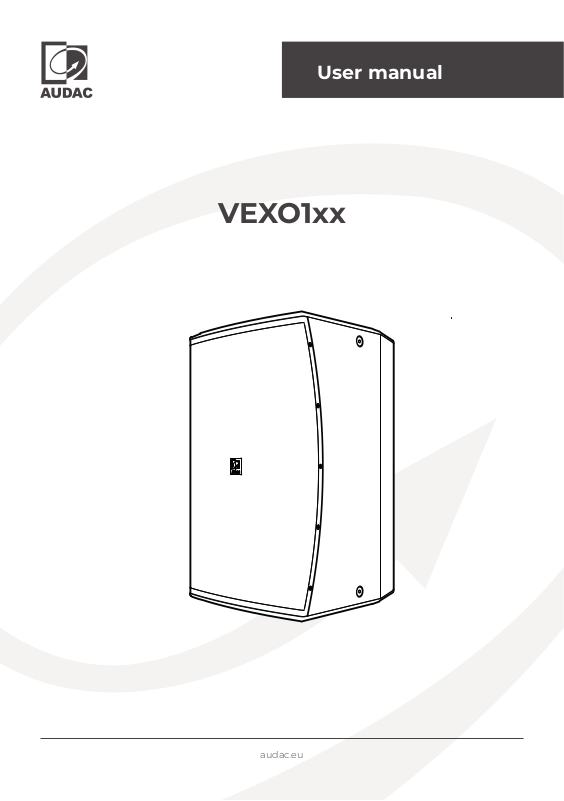

Page 1
User manual
VEXO1xx
audac.eu
Page 2
Table of contents
Introduction 03
High performance loudspeaker � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 03
Precautions 04
Chapter 1 06
Overview and connecting VEXO1xx � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 06
Chapter 2
Horizontal mounting - rotate the horn � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 07
Technical specifications 08
ADDITIONAL INFORMATION
This manual is put together with much care, and is as complete as could be on the publication date. However, updates
on the specications, functionality or software may have occurred since publication. To obtain the latest version of
both manual and software, please visit the Audac website @ www.audac.eu.
REV-1.3
VEXO1xx - User manual02
Page 3
Introduction
High performance loudspeaker
The VEXO1xx is a high-output loudspeaker cabinet, providing a powerful and detailed sound in a compact
cabinet. Their elegant enclosure allows them to be used in modern and trendy installation applications
such as bars and nightclubs, while their functional features make them perfect for use in compact mobile
systems. It delivers a powerful sound. Compression driver overload protection is provided through an
internal limiting circuit. Mounting in both horizontal and vertical directions is possible with the optional
wall bracket and the rotatable horn. A standard 35mm pole adapter can be installed when used in mobile
applications. The VEXO1xx loudspeaker is available in Black (/B) or White (/W).
VEXO1xx - User manual 03
Page 4
Precautions
READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY
ALWAYS KEEP THESE INSTRUCTIONS. NEVER THROW THEM AWAY
ALWAYS HANDLE THIS UNIT WITH CARE
HEED ALL WARNINGS
FOLLOW ALL INSTRUCTIONS
NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING LIQUID. AND NEVER PLACE AN OBJECT
FILLED WITH LIQUID ON TOP OF THIS DEVICE
NO NAKED FLAME SOURCES, SUCH AS LIGHTED CANDLES, SHOULD BE PLACED ON THE APPARATUS
DO NOT PLACE THIS UNIT IN AN ENCLOSED ENVIRONMENT SUCH AS A BOOKSHELF OR CLOSET. ENSURE THERE IS ADEQUATE
VENTILATION TO COOL THE UNIT. DO NOT BLOCK THE VENTILATION OPENINGS.
DO NOT STICK ANY OBJECTS THROUGH THE VENTILATION OPENINGS.
DO NOT INSTALL THIS UNIT NEAR ANY HEAT SOURCES SUCH AS RADIATORS OR OTHER APPARATUS THAT PRODUCE HEAT
DO NOT PLACE THIS UNIT IN ENVIRONMENTS WHICH CONTAIN HIGH LEVELS OF DUST, HEAT, MOISTURE OR VIBRATION
THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO NOT USE IT OUTDOORS
PLACE THE UNIT ON A STABLE BASE OR MOUNT IT IN A STABLE RACK
ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY THE MANUFACTURER
UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME
ONLY CONNECT THIS UNIT TO A MAINS SOCKET OUTLET WITH PROTECTIVE EARTHING CONNECTION
THE MAINS PLUG OR APPLIANCE COUPLER IS USED AS THE DISCONNECT DEVICE, SO THE DISCONNECT DEVICE SHALL BE
READILY OPERABLE
USE THE APPARATUS ONLY IN MODERATE CLIMATES
VEXO1xx - User manual04
Page 5
CAUTION SERVICING
This product contains no user serviceable parts. Refer all servicing to qualified service
personnel. Do not perform any servicing (unless you are qualified to)
EC DECLARATION OF CONFORMITY
This product conforms to all the essential requirements and further relevant specifications
described in following directives: 2014/30/EU (EMC2) & 2014/35/EU (LVD).
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT WEEE
The WEEE marking indicates that this product should not be disposed with regular
household waste at the end of its life cycle. This regulation is created to prevent any possible
harm to the environment or human health.
This product is developed and manufactured with high quality materials and components
which can be recycled and/or reused. Please dispose this product at your local collection
point or recycling centre for electrical and electronic waste. This will make sure that it will be
recycled in an environmentally friendly manner, and will help to protect the environment
in which we all live.
VEXO1xx - User manual 05
Page 6

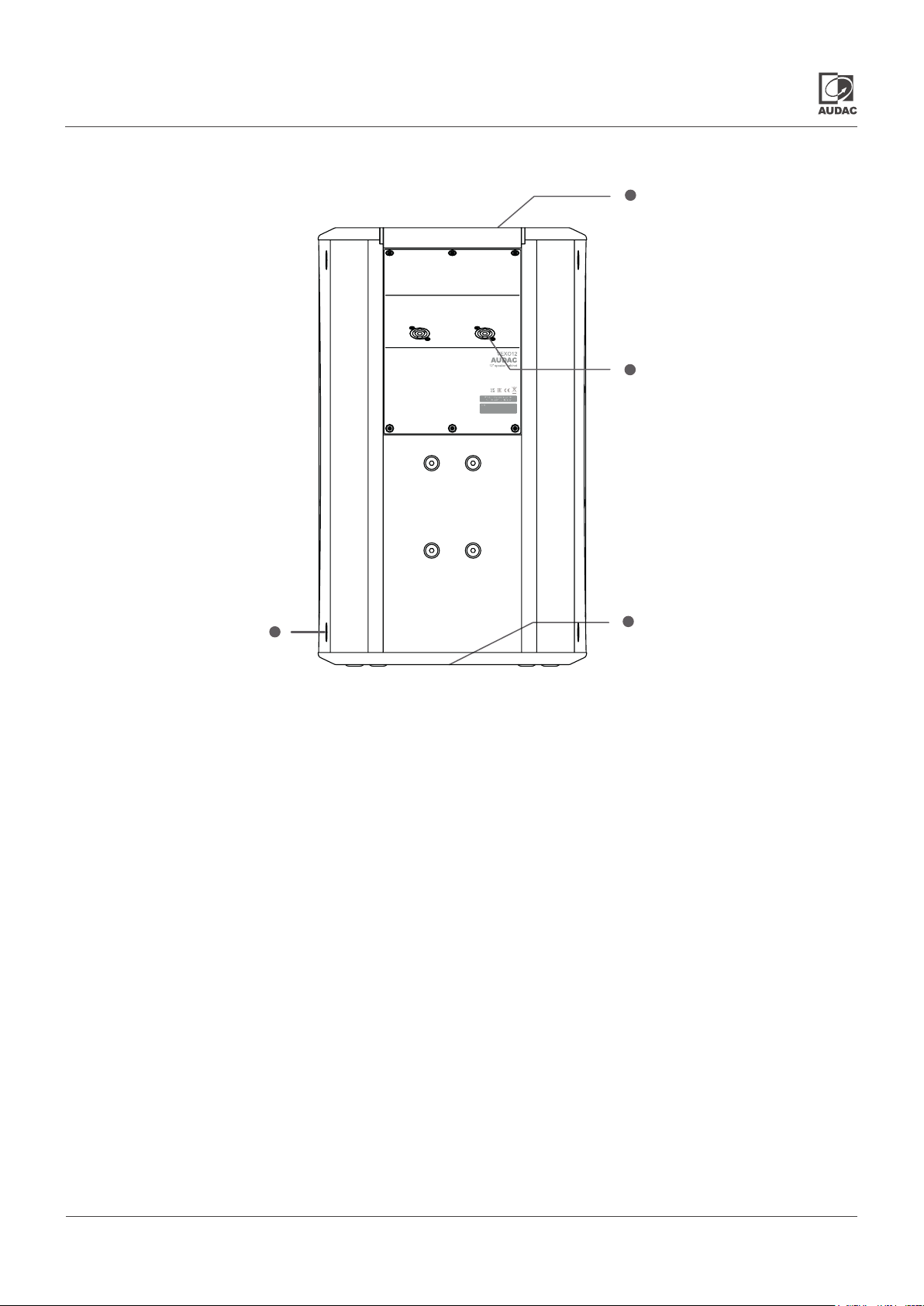

Chapter 1
Overview and connecting VEXO1xx
2
Impedance: 8 Ohm
RMS power: 400 Watt
Peak power: 800 Watt
Full range signal input (+1/-1)
Signal link-through (+1/-1) (+2/-2)
1
4
3
1) Integrated carry handle
The integrated handle allows easy movement and
handling of the speaker. This feature is available on
all VEXO series loudspeakers but not onVEXO 108.
2) Rigging points
The VEXO1xx is equipped with ten M10 rigging
points, except VEXO 108. The VEXO 108 is equiped
with single M10 and M6 rigging points on the top
and four M8 and four M6 rigging point on the rear.
At these points, the VEXO1xx can be mounted to
various rigging applications.
At the back of the unit, you will find a M8 mounting
pattern. This universal pattern serves as mounting
point for various mounting arrangements.
3) Integrated 35 mm pole adapter:
The pole adapter makes it possible to install the VEXO
quickly and conveniently on speaker stands with a
tube diameter of 35 mm.
4) SpeakON compatible
The wires coming from the amplifier should be
connected to the speakON on the back of the
loudspeaker. The used speaker connectors are 4-pin
models where to the full range signal should be
connected to +1/-1 terminals.
The second connector can be used for linking
the signal coming from the amplifier to other
loudspeakers, resulting in a parallel network of
multiple loudspeakers.
VEXO1xx - User manual06
Page 7
Chapter 2

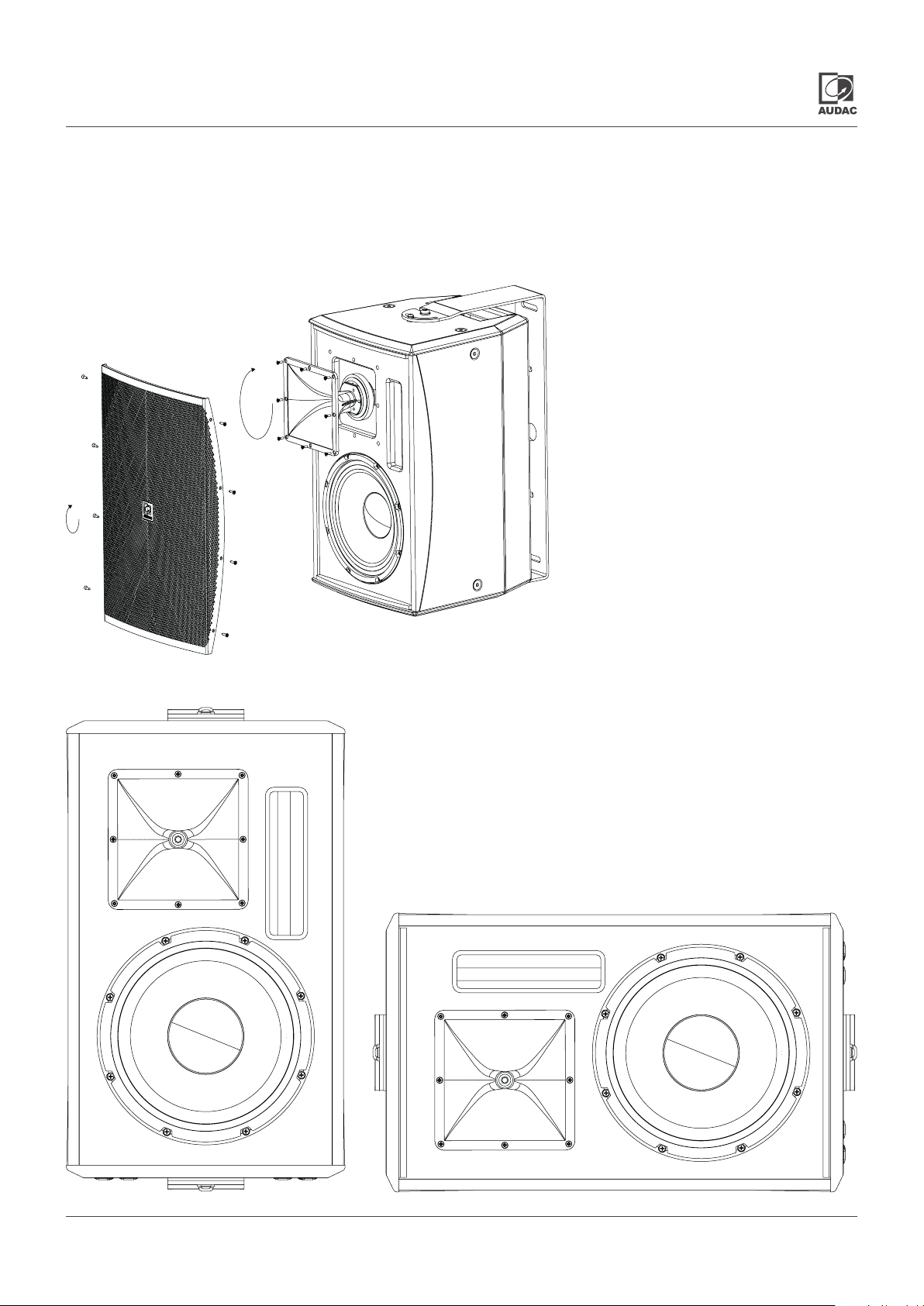

Horizontal mounting - rotate the horn
By default, on vertical mounting, the horn coverage pattern is 90° vertical and 70° horizontal. If the speaker is
mounted horizontally, the horn must be rotated 90°. This is needed to maintain the correct coverage pattern
(90° x 70°).
To rotate the VEXO1xx’s horn, the
grille must be removed first. To do
this, the eight screws on the sides
must be unscrewed.
Once the grille is removed, the
eight screws that holds the horn
must be unscrewed. Once these are
unscrewes, the horn can be rotated
90°.
After the horn is rotated, the horn
and the grill can be reattached using
the same screws respectevly.
The AUDAC logo can be also rotated.
No tools are required for this. Simply,
pull the logo out slightly and rotate it.
In case of uncertainty, check the rotation of the horn to
ensure the best sound experience.
Compare the position of the horn with the corresponding
drawings.
VEXO1xx - User manual 07
Page 8
Technical specifications
VEXO108 VEXO110 VEXO112 VEXO115
Peak Power handling 800 Watt 1200 Watt 1600 Watt 2000 Watt
Program Power handling 400 Watt 600 Watt 800 Watt 1000 Watt
RMS/AES power handling 200 Watt 300 Watt 400 Watt 500 Watt
Nominal impedance 8 Ohm 8 Ohm 8 Ohm 8 Ohm
Sensitivity 1W/1m 95 dB 96 dB 99 dB 100 dB
Sound pressure Max W/1m 118 dB 121 dB 125 dB 127 dB
Frequency response - 3dB 70 Hz - 20 kHz 65 Hz - 20 kHz 58 Hz - 20 kHz 50 Hz - 20 kHz
Drivers
Coverage 90° x 70° (rotatable)
Connectors 2 x speaker connectors (linkthrough) Speakon compatible
Construction Plywood with Polyurethane coating
Front finish Powder coated steel grill witch acoustical foam
Rigging points
Stand fitting 35 mm pole adapter on bottom
1.4” HF compression horn
tweeter
8” MF / LF woofer 10” MF / LF woofer 12” MF / LF woofer 15” MF / LF woofer
4 x M8 & 4 x M6 (rear),
1 x M10 & 1 x M6 (top)
10 x M10 (2 x top, 3 x bottom, 2 x each side, 1 x rear)
1.7” HF compression horn tweeter
Handle None 1 x on top
Mounting pattern
Colour White (RAL9003)
Dimensions (w x h x d) 244 x 425 x 256 mm 329 x 540 x 345 mm 369 x 610 x 390 mm 429 x 690 x 450 mm
Weight 9.4 Kg 17.7 Kg 23.3 Kg 28.9 Kg
Optional accessories Wall & ceiling mounting bracket (MBK series)
108 x 50.8 mm 108 x 50.8 mm 127 x 70 mm 127 x 70 mm
Black (RAL9004)
70/100V transformer module
VEXO1xx - User manual08
