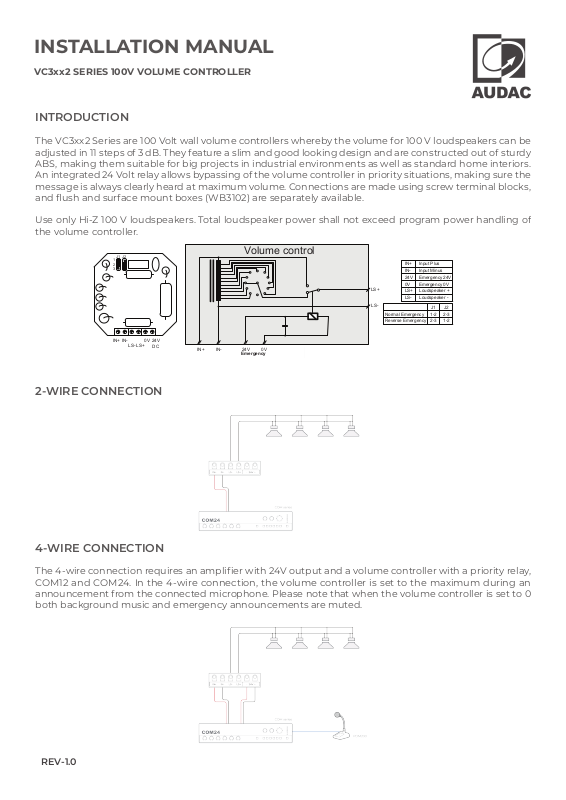

INSTALLATION MANUAL
Volume control
0V
24V
DC
LS-
IN+ IN-
LS+
J1 J2
1
2
3
LS+
LS-
0V
24V
DC
VC3xx2 SERIES 100V VOLUME CONTROLLER
INTRODUCTION
The VC3xx2 Series are 100 Volt wall volume controllers whereby the volume for 100 V loudspeakers can be
adjusted in 11 steps of 3 dB. They feature a slim and good looking design and are constructed out of sturdy
ABS, making them suitable for big projects in industrial environments as well as standard home interiors.
An integrated 24 Volt relay allows bypassing of the volume controller in priority situations, making sure the
message is always clearly heard at maximum volume. Connections are made using screw terminal blocks,
and flush and surface mount boxes (WB3102) are separately available.
Use only Hi-Z 100 V loudspeakers. Total loudspeaker power shall not exceed program power handling of
the volume controller.
J1 J2
1
2
3
LS+
LS-
IN+ Input Plus
IN-
Input Minus
24V
Emergency 24V
0V
Emergency 0V
LS+
Loudspeaker +
LS-
Loudspeaker -
Normal Emergency 1-2
Reverse Emergency
J1 J2
2-3 1-2
2-3
IN+ IN-
0V
24V
LS-
LS+
DC
IN+ IN-
24V 0V
Emergency
IN+ Input Plus

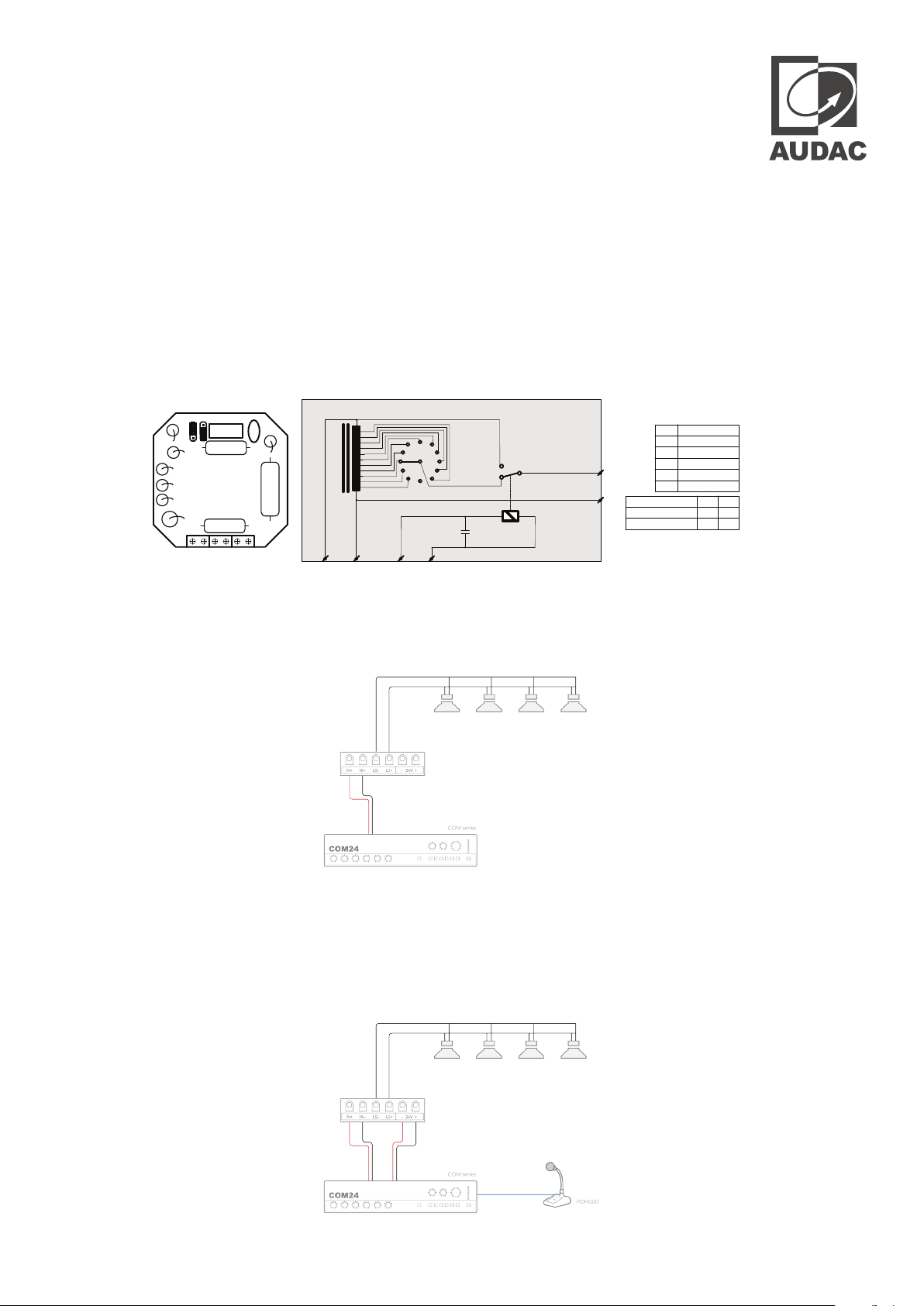

2-WIRE CONNECTION
4-WIRE CONNECTION
The 4-wire connection requires an amplifier with 24V output and a volume controller with a priority relay,
COM12 and COM24. In the 4-wire connection, the volume controller is set to the maximum during an
announcement from the connected microphone. Please note that when the volume controller is set to 0
both background music and emergency announcements are muted.
REV-1.0
Page 2
INSTALLATION MANUAL
VC3xx2 SERIES 100V VOLUME CONTROLLER
Model
Program Power
Handling
Attenuation Priority Relay Dimensions Built-in Depth
VC3022 20 Watt 11 x 3dB 24V / 25mA 80 x 80 x 50 mm 40 mm
VC3062 60 Watt 11 x 3dB 24V / 25mA 80 x 80 x 50 mm 43 mm
VC3102 100 Watt 11 x 3dB 24V / 25mA 80 x 80 x 50 mm 46 mm
PRECAUTIONS
•
•
ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE
REFERENCE. NEVER THROW THEM AWAY
• ALWAYS HANDLE THIS UNIT WITH CARE
• CLEAN ONLY WITH DRY CLOTH
• HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS
•
NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE,
ANY DRIPPING OR SPLASHING LIQUID.
•
DO NOT INSTALL THIS UNIT NEAR ANY HEAT SOURCES
SUCH AS RADIATORS OR OTHER APPARATUS THAT
PROD UCE HE AT
•
DO NOT PLACE THIS UNIT IN ENVIRONMENTS WITH A HIGH
LEVEL OF DUST, HEAT, MOISTURE OR VIBRATION
•
THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO NOT
USE IT OUTDOORS
• ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY
THE MANUFACTURER.
CAREFULLY CHECK THE UNIT’S CONDITION AFTER
UNPACKING.
•
IF THERE IS ANY DAMAGE TO THE CARTON BOX OR THE
UNIT ITSELF, INFORM YOUR VENDOR IMMEDIATELY.
•
USE CABLES OF THE RIGHT GAUGE TO CONNECT THE
LOUDSPEAKER
•
USE CABLES WITH CLEAR COLOR CODING INDICATING
THE POLARITY AND MAINTAIN THE SAME POLARITY
THROUGHOUT THE WHOLE SYSTEM.
•
ONLY USE THE CORRECT AMPLIFIER OUTPUT VOLTAGE
AND IMPEDANCE. EXCEEDING THESE LIMITS COULD
CAUSE FIRE OR OTHER FAILURES.
•
AVOID ELECTRIC SHOCKS: SWITCH OFF THE AMPLIFIER
WHEN CONNECTING THE VOLUME CONTROLLER.
CAUTION SERVICING
This product contains no user serviceable parts. Refer all
servicing to qualified service personnel. Do not perform any
servicing (unless you are qualified to do so.)
