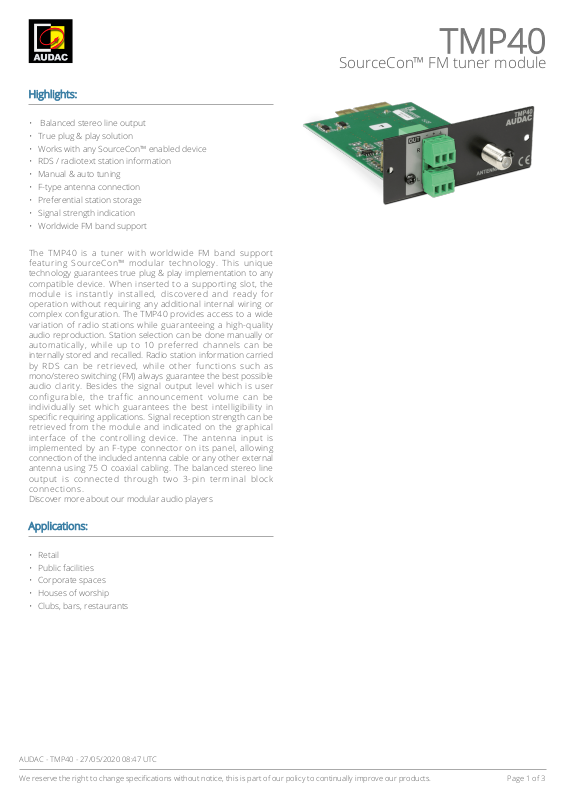

Page 1
Highlights:
3
Balanced stereo line output•
True plug & play solution•
Works with any SourceCon™ enabled device•
RDS / radiotext station information•
Manual & auto tuning•
F-type antenna connection•
Preferential station storage•
Signal strength indication•
Worldwide FM band support•

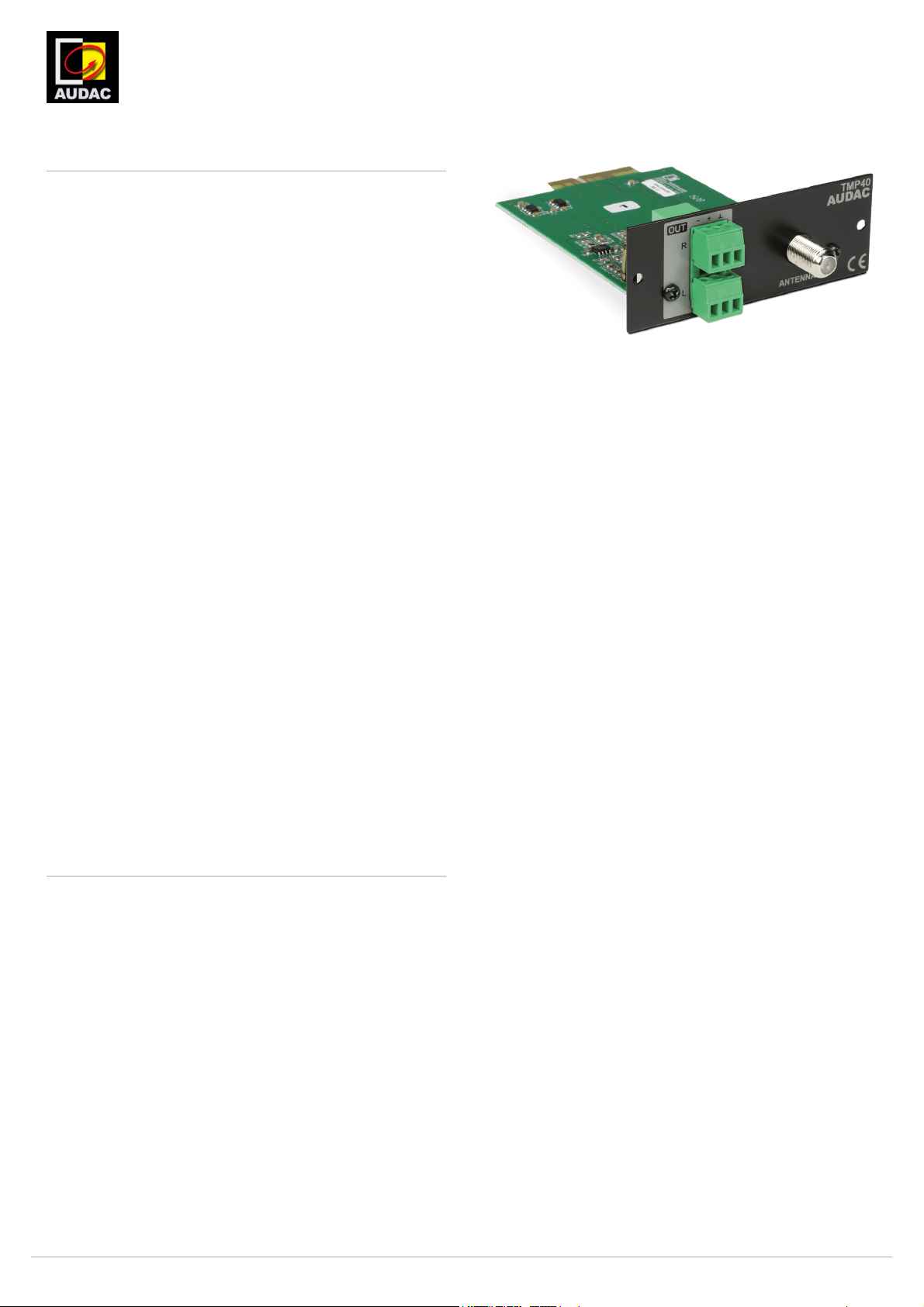

The TMP40 is a tuner with worldwide FM band support
featuring SourceCon™ modular technology. This unique
technology guarantees true plug & play implementation to any
compatible device. When inserted to a supporting slot, the
module is instantly installed, discovered and ready for
operation without requiring any additional internal wiring or
complex configuration. The TMP40 provides access to a wide
variation of radio stations while guaranteeing a high-quality
audio reproduction. Station selection can be done manually or
automatically, while up to 10 preferred channels can be
internally stored and recalled. Radio station information carried
by RDS can be retrieved, while other functions such as
mono/stereo switching (FM) always guarantee the best possible
audio clarity. Besides the signal output level which is user
configurable, the traffic announcement volume can be
individually set which guarantees the best intelligibility in
specific requiring applications. Signal reception strength can be
retrieved from the module and indicated on the graphical
interface of the controlling device. The antenna input is
implemented by an F-type connector on its panel, allowing
connection of the included antenna cable or any other external
antenna using 75 O coaxial cabling. The balanced stereo line
output is connected through two 3-pin terminal block
connections.
Discover more about our modular audio players
TMP40
SourceCon™ FM tuner module
Applications:
Retail•
Public facilities•
Corporate spaces•
Houses of worship•
Clubs, bars, restaurants•
AUDAC - TMP40 - 27/05/2020 08:47 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 1 of
Page 2
System specifications:
3
Connection SourceCon™ interface card slot
Inputs F-type antenna connection (75 Ω)
FM Tuning Range (-10 dB) 64 ~ 108 MHz
87.5 ~ 108 MHz
Sensitivity (1W/1m) -100 dBm
Signal / Noise 42 dB
THD+N (@ 1 kHz) < 0.1%
Frequency Response (± 3 dB) 30 Hz - 15 kHz
Crosstalk (@ 1 kHz) 42 dB
Outputs Type Balanced stereo line outputs (3-pin Euro Terminal Block
Level +8 dB ~ -55 dB
Power Consumption 0.5 W
(Pitch - 3.81 mm))
Product Features:
Dimensions 87 x 34.5 x 114 mm (W x H x D)
Weight 0.071 kg
Mounting SourceCon™ interface card slot
Accessories Included Antenna cable
Optional ASK40S 4-way antenna splitter kit
Shipping & Ordering:
Packaging Cardboard box
Shipping weight & volume 0.280 kg - 0.028 Cbm
Compatible with XMP44 modular audio system
AUDAC - TMP40 - 27/05/2020 08:47 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 2 of
Page 3
Architects’ and Engineers’ Specifications:
3
The audio source module shall be a FM tuner module featuring SourceCon™ modular technology, allowing flexible and plug & play
integration to any compatible modular system. The radio tuner shall be capable for a worldwide reception to a wide variation of radio
stations with high-quality audio. The FM reception shall be tuneable within a range from 64 MHz up to 108 MHz or 87.5 MHz up to
108 MHz. The selection / tuning for the radio stations shall be possible using both manual or automatic search functionalities. An
internal memory shall allow storage up to 10 preferred audio channels which are easy to be recalled. Additionally carried radio
station information (RDS) and signal reception strength shall be available from the module, allowing it to be retrieved and displayed
through the modular system installed to. The signal output level shall be user (software) configurable within a range of +8 dB and 55 dB while the traffic announcement (TA) announcement output level can be individually configured for improving intelligibility in
specific requiring applications. The antenna input connection shall be implemented using an F-type (75 Ω) antenna connection on its
panel, while the audio output is a balanced stereo line output connected through two 3-pin terminal block connectors. The FM tuner
shall be implementable in a total system control application which is compatible with Android and iOS devices, allowing combining its
controls together with other audio&video equipment from one single dashboard.
