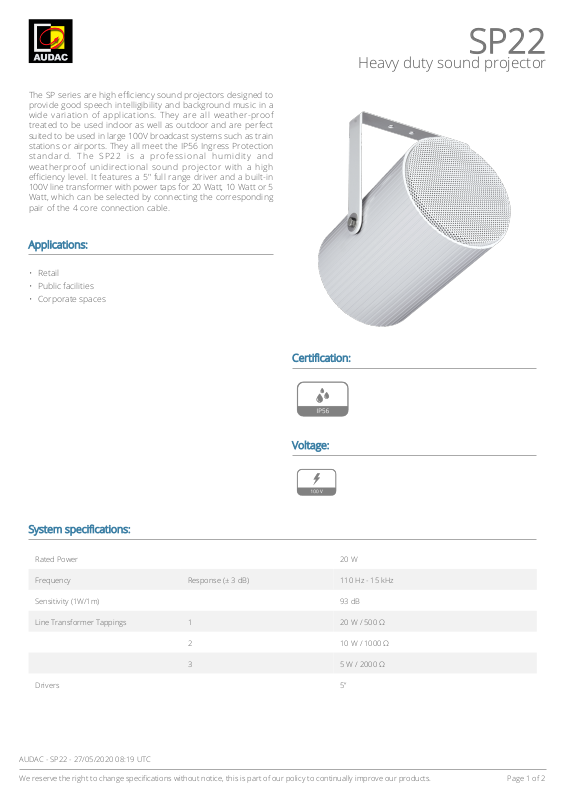

Page 1
The SP series are high efficiency sound projectors designed to
2
provide good speech intelligibility and background music in a
wide variation of applications. They are all weather-proof
treated to be used indoor as well as outdoor and are perfect
suited to be used in large 100V broadcast systems such as train
stations or airports. They all meet the IP56 Ingress Protection
standard. The SP22 is a professional humidity and
weatherproof unidirectional sound projector with a high
efficiency level. It features a 5" full range driver and a built-in
100V line transformer with power taps for 20 Watt, 10 Watt or 5
Watt, which can be selected by connecting the corresponding
pair of the 4 core connection cable.
Applications:
Retail•
Public facilities•
Corporate spaces•
SP22
Heavy duty sound projector
Certification:
Voltage:
System specifications:
Rated Power 20 W
Frequency Response (± 3 dB) 110 Hz - 15 kHz
Sensitivity (1W/1m) 93 dB
Line Transformer Tappings 1 20 W / 500 Ω
2 10 W / 1000 Ω
3 5 W / 2000 Ω
Drivers 5”
AUDAC - SP22 - 27/05/2020 08:19 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 1 of
Page 2
Product Features:
2
Dimensions 138 x 205 mm (Ø x D)
Weight 2.200 kg
Operating temperature -20 °C ~ 60 °C
Construction Aluminum
Front finish Aluminium grill
Colours White
Projector way 1
Connection cable length 3 m
Shipping & Ordering:
Packaging Cardboard box
Shipping weight & volume 3.000 kg - 0.0094 Cbm
AUDAC - SP22 - 27/05/2020 08:19 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 2 of
