Page 1
PROFESSIONAL AUDIO EQUIPMENT
Transformer Unit Q2TR – Q4TR
User Manual &
Installation Guide
Transformer
Unit Q2TR-Q4TR
AUDAC
Page 2
A U D AC PRO FE S SI O NA L A UD I O E QU IP ME NT
User Manual & Installation Guide
AUDAC
http://www.audac.be
Page 3
2222
INTRODUCTION............................................................................................................................................................................................................................3
ENVIRONMENT.............................................................................................................................................................................................................................4
SAFETY REQUIREMENTS..........................................................................................................................................................................................................5
CAUTION – SERVICING ............................................................................................................................................................................................................5
OVERVIEW FRONT AND REAR PANEL OF Q2TR – Q4TR..............................................................................................................................................6
FRONT ...........................................................................................................................................................................................................................................6
REAR ..............................................................................................................................................................................................................................................7
APPLICATIONS..............................................................................................................................................................................................................................8
ADDITIONAL INFORMATION Q2TR – Q4TR.......................................................................................................................................................................9
T
ECHNICAL SPECIFICATIONS
..........................................................................................................................................................................................................9
PERSONAL NOTES .....................................................................................................................................................................................................................10
Index
Page 4
3333
Introduction
This section briefly describes the possibilities of the Q2TR – Q4TR transformer unit.
he Q2TR – Q4TR transformer unit is developed as an easy to use, flexible solution.
During the development of the Q2TR – Q4TR transformer unit, the AUDAC-engineers wanted
to achieve three goals:
- Easy to use
- Excellent sound quality
- Modern and advanced design
This transformer unit is designed to work in combination with the AUDAC Q2 or Q4 for the
Q2TR respectively Q4TR. The unit transforms the 4Ω output of your AUDAC Q2 or Q4
amplifier to a 50V, 70V or 100V output level for use in a system with high impedance speakers.
This transformer unit gives you the possibility to attach four mono zones or two stereo zones.
T
Page 5
4444
Environment
Do not place this unit in an enclosed environment such as a bookshelf or closet. Ensure
there is adequate ventilation to cool the unit.
Do not place the unit in environments which contain high levels of dust, heat, moisture or
vibration.
Do not use the unit near water or other liquids. Make sure no water or other liquids can be
spilled, dripped or splashed on the unit.
The unit is developed for indoor use only. Do not use the unit outdoors.
Do not place objects (books, vases, …) on top of the unit.
Place the unit on a stable base.
Chapter
1
Page 6
5555
Safety Requirements
Always handle the unit with care.
This unit is not a toy. Is should not be operated by children.
Do not stick objects through the openings of the Q2TR – Q4TR.
Do not open the unit.
Always read the user manual before you getting started.
CAUTION – SERVICING
This unit contains no user serviceable parts. Refer all servicing to qualified
service personnel. Do not perform any servicing unless you are qualified to do
so.
Note
This product conforms to the following European Standards: EN 50081-1: 1992, EN
50082-1: 1992, EN 60065: 1994
Page 7
6666

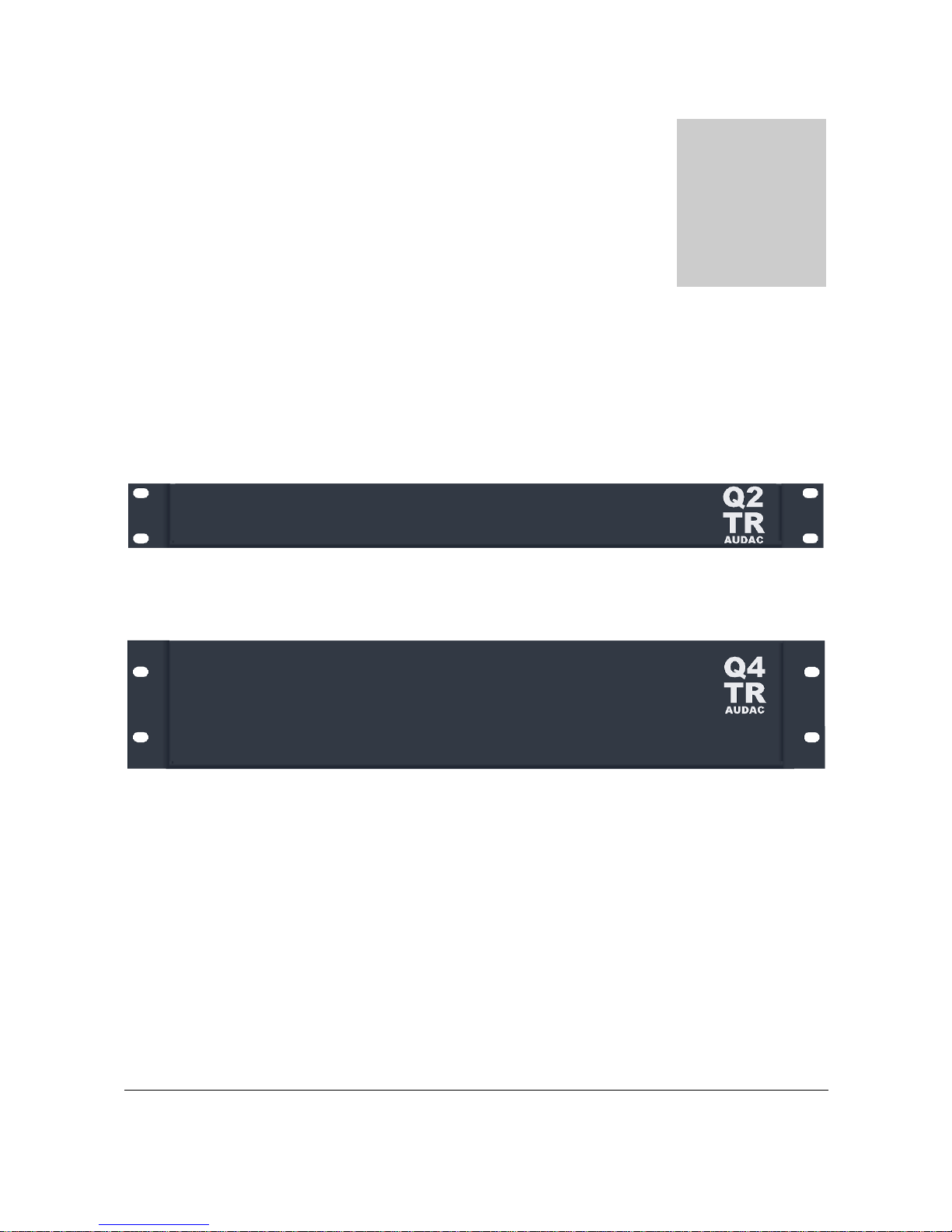

Overview front and rear panel of Q2TR – Q4TR
FRONT
Q2TR
Q4TR
Chapter
2
Page 8
7777

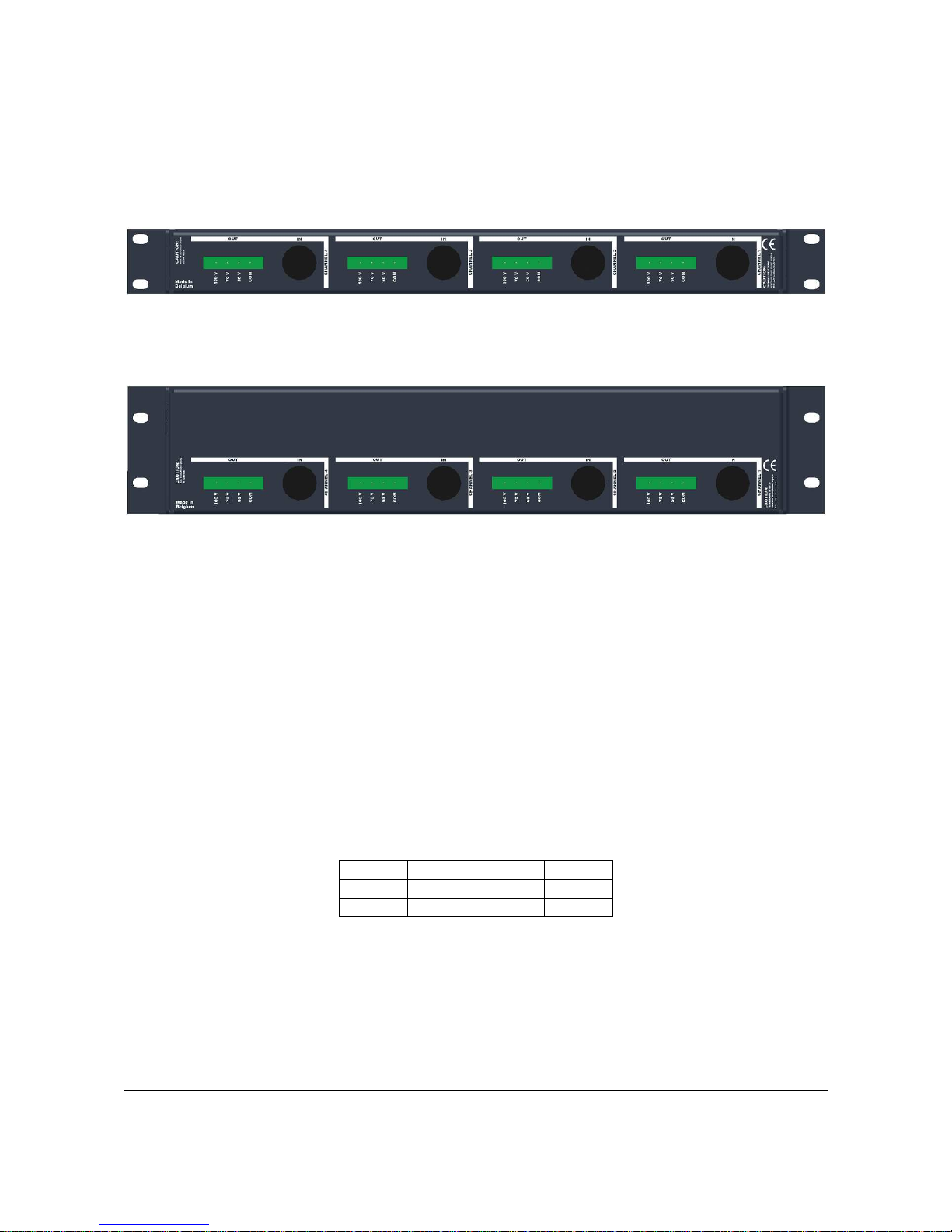

REAR
Q2TR
Q4TR
AMPLIFIER INPUT CONNECTOR
These connectors are connected to the output of the amplifier (low-impedance output) like the Q2
for the Q2TR and the Q4 for the Q4TR.
SPEAKER OUTPUT TERMINALS
These terminals are connected to the high-impedance loudspeakers.
You can find a brief overview of the minimum impedances that must be connected to the
transformer units.
100V 70V 50V
Q2TR
33,33Ω 16,33Ω 8,33Ω
Q4TR
16,66Ω 8,16Ω 4,16Ω
Page 9
8888

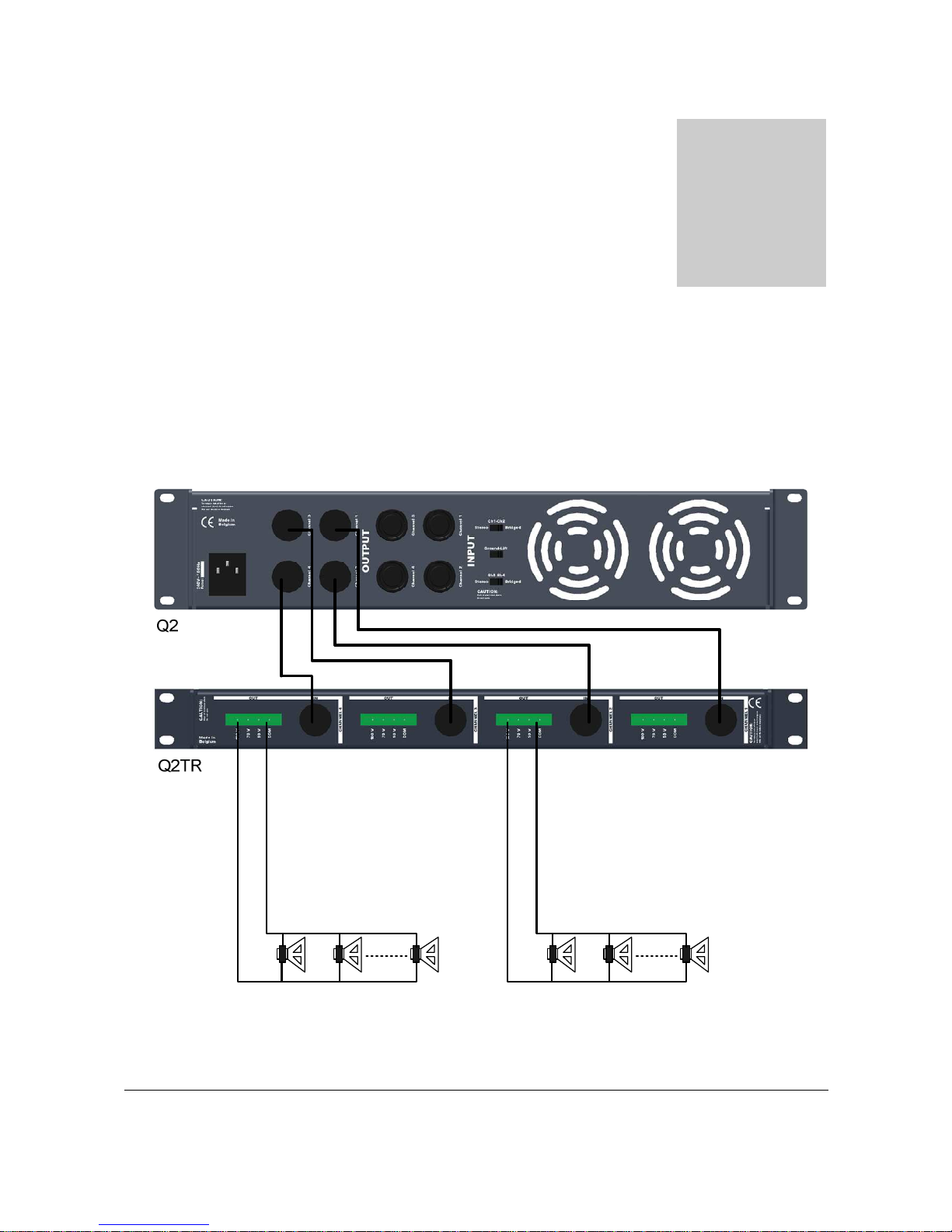

Applications
Chapter
3
Page 10
9999
Additional Information Q2TR – Q4TR
Technical specifications
Rated Output
Q2TR 50V-70V-100V
Q4TR 50V-70V-100V
Input/channel
Q2TR 4Ω/300 W
Q4TR 4Ω/600W
Frequency response 20Hz-20kHz
Weight Q2TR 20 kg
Weight Q4TR 32 kg
Dimensions Q2TR (W x D) 483 mm x 380 mm
Dimensions Q4TR (W x D) 483 mm x 380 mm
Unit height Q2TR 1HE
Unit height Q4TR 2HE
Chapter
4
Page 11
10
1010
10
Personal Notes
