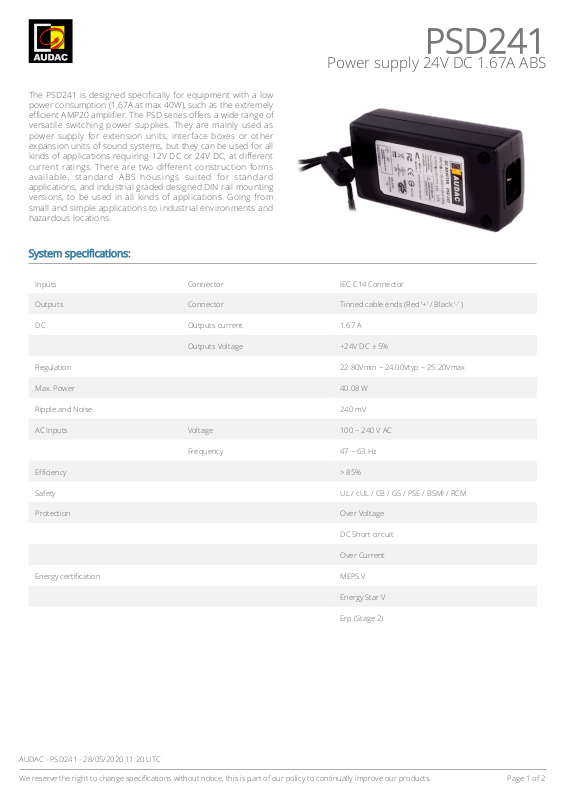

PSD241
2
Power supply 24V DC 1.67A ABS
The PSD241 is designed specifically for equipment with a low
power consumption (1,67A at max 40W), such as the extremely
efficient AMP20 amplifier. The PSD series offers a wide range of
versatile switching power supplies. They are mainly used as
power supply for extension units, interface boxes or other
expansion units of sound systems, but they can be used for all
kinds of applications requiring 12V DC or 24V DC, at different
current ratings. There are two different construction forms
available, standard ABS housings suited for standard
applications, and industrial graded designed DIN rail mounting
versions, to be used in all kinds of applications. Going from
small and simple applications to industrial environments and
hazardous locations.
System specifications:
Inputs Connector IEC C14 Connector
Outputs Connector Tinned cable ends (Red ‘+’ / Black ‘-’ )
DC Outputs current 1.67 A
Outputs Voltage +24V DC ± 5%
Regulation 22.80Vmin ~ 24.00Vtyp ~ 25.20Vmax
Max. Power 40.08 W
Ripple and Noise 240 mV
AC Inputs Voltage 100 ~ 240 V AC
Frequency 47 ~ 63 Hz
Efficiency > 85%
Safety UL / cUL / CB / GS / PSE / BSMI / RCM
Protection Over Voltage
DC Short circuit
Over Current
Energy certification MEPS V
Energy Star V
Erp (Stage 2)
AUDAC - PSD241 - 28/05/2020 11:20 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 1 of
Page 2
Product Features:
2
Dimensions 100 x 50 x 33 mm (W x H x D)
Weight 0.190 kg
Construction ABS
Connection cable length 1.5 m
Material Flammability UL 94V-0
Colours Black
Shipping & Ordering:
Packaging Cardboard box
Shipping weight & volume 0.230 kg - 0.00022 Cbm
