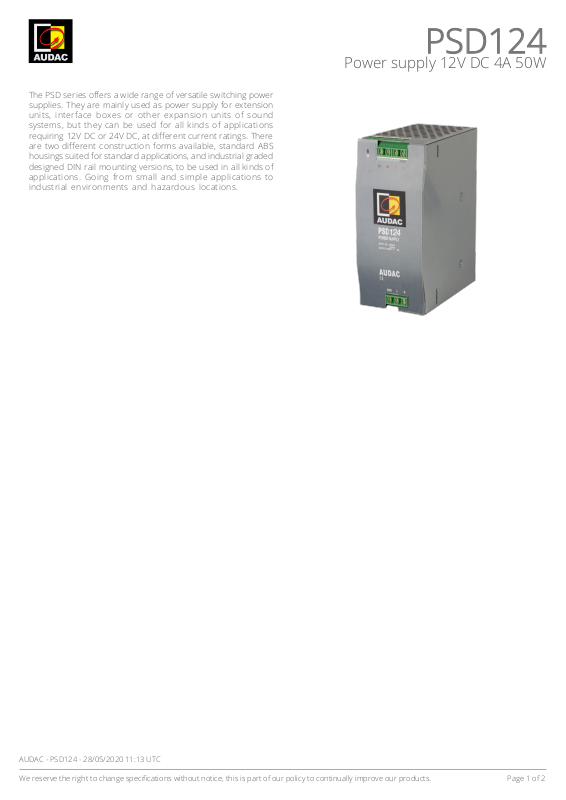

Page 1
The PSD series offers a wide range of versatile switching power
2
supplies. They are mainly used as power supply for extension
units, interface boxes or other expansion units of sound
systems, but they can be used for all kinds of applications
requiring 12V DC or 24V DC, at different current ratings. There
are two different construction forms available, standard ABS
housings suited for standard applications, and industrial graded
designed DIN rail mounting versions, to be used in all kinds of
applications. Going from small and simple applications to
industrial environments and hazardous locations.
PSD124
Power supply 12V DC 4A 50W
AUDAC - PSD124 - 28/05/2020 11:13 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 1 of
Page 2
System specifications:
2
Inputs Connector 3 pole screw DIN terminal
Outputs Power 12 V DC ± 2%
Connector 4 pole screw DIN terminal
DC Outputs current 4 A
Adjustment Range (-10 dB) 10.5 ~ 13.5 V DC
Max. Power 48 W
Ripple and Noise 100 mV
Efficiency 83%
Inrush current full load cold start 35 Amp @ 230 VAC
Protection Overload 105% ~ 150% rated output Power
Over Voltage 115% ~ 135% rated output Voltage
Set-up, Rise, Hold up time 100 ms, 60 ms, 50 ms @ full load and 230 V AC
Temperature Operating -10 - 70 °C
Storage -40 - 85 °C
Safety standard EN60950
EN61000-3-2
EN61000-4-2, 3, 4, 5, 6
Mean Time Between Failures 1.000.000 H @ 25 °C
Power Supply Normal 100 ~ 240 V AC / 50 ~ 60 Hz
Operating 90 ~ 264 V AC / 47 ~ 63 Hz
Product Features:
Dimensions 32 x 125 x 100 mm (W x H x D)
Weight 0.310 kg
Construction DIN rail
Shipping & Ordering:
Packaging Cardboard box
Shipping weight 0.310 kg
AUDAC - PSD124 - 28/05/2020 11:13 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 2 of
