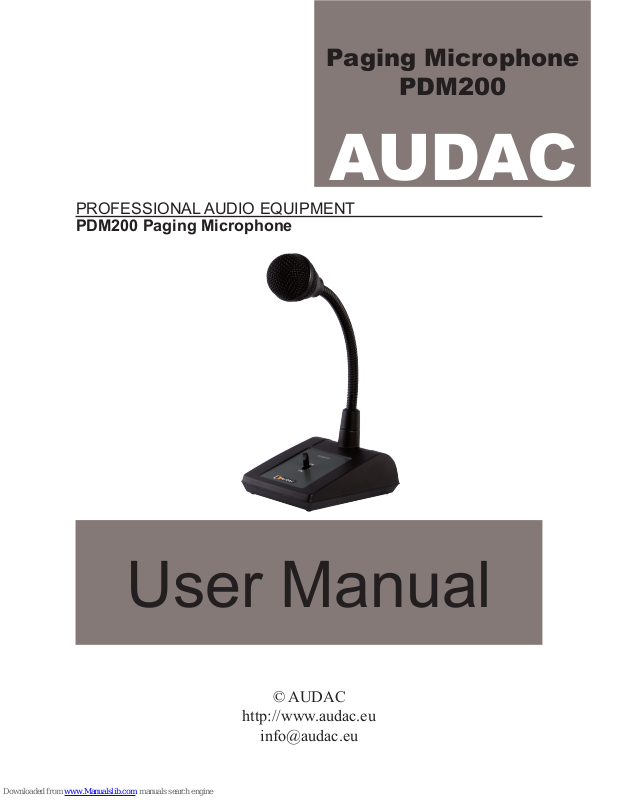

Page 1
PROFESSIONAL AUDIO EQUIPMENT
User Manual
© AUDAC
http://www.audac.eu
AUDAC
Paging Microphone
PDM200
PDM200 Paging Microphone
Page 2
General

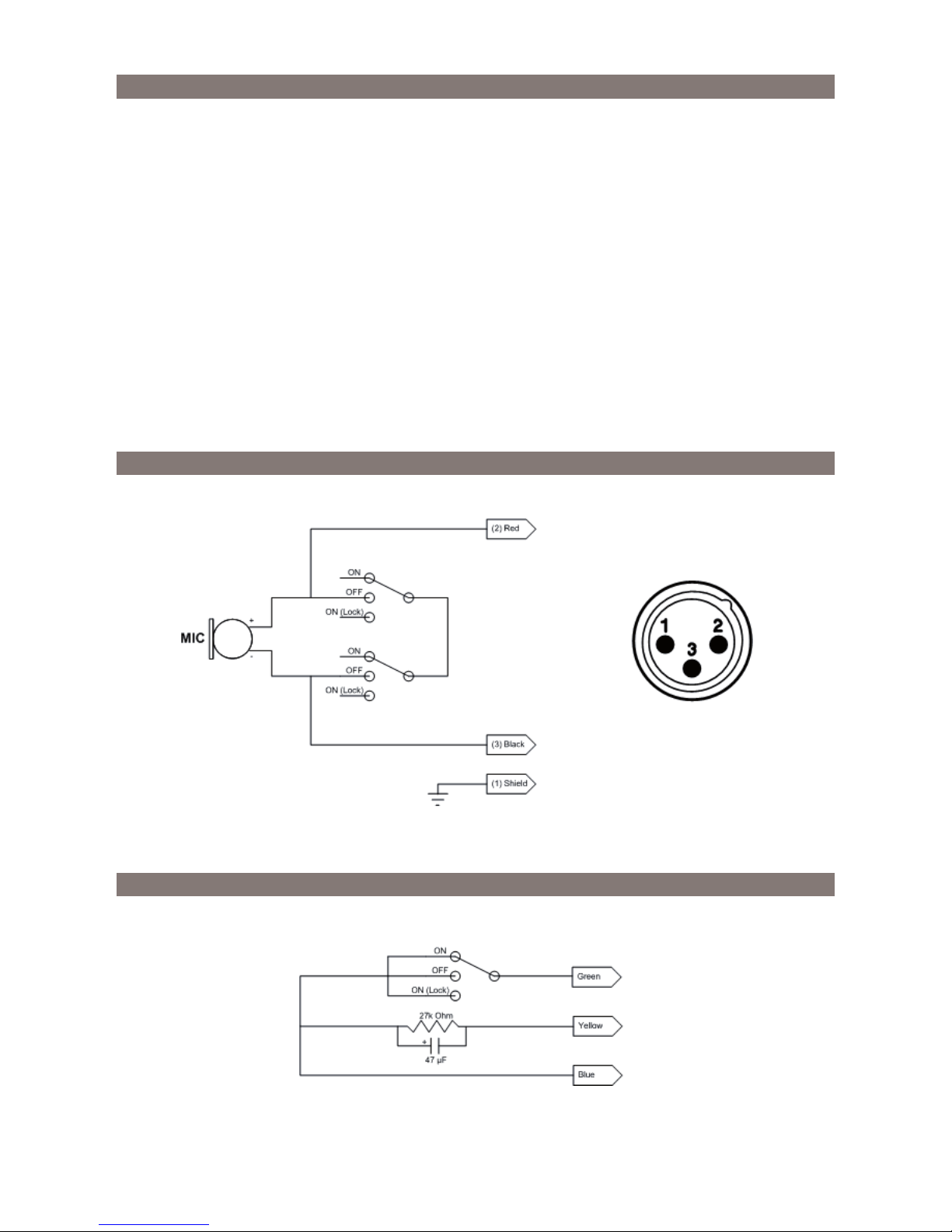

Microphone Circuit
Chime Circuit
The PDM200 is a polyvalent dynamic gooseneck microphone, mounted on a
solid, very stable base and tted with a three function switch.
The functions are: - Permanently on
- Momentary on
- Off
It is also equipped with a RC network for the operation of chime modules.
Due to its uni-directional charactristics, it is suitable for making announcements in big area’s like conference places, warehouses, professional ofces,
shops, ...
A connection cable with a length of 1.5m is attached to the base of the unit.
Page 3
Specications
Microphone type Dynamic
Polar pattern Cardioid
Frequency response 80 Hz - 12 kHz
Sensitivity -72 dB ± 3 dB
Impedance 600 Ohm
Output connections 3-pin XLR
3 connection leads (Chime)
Connection cable 1.5 meter
Dimensions 162 x 122 x 368 mm
Weight 960g
Connecting the PDM200

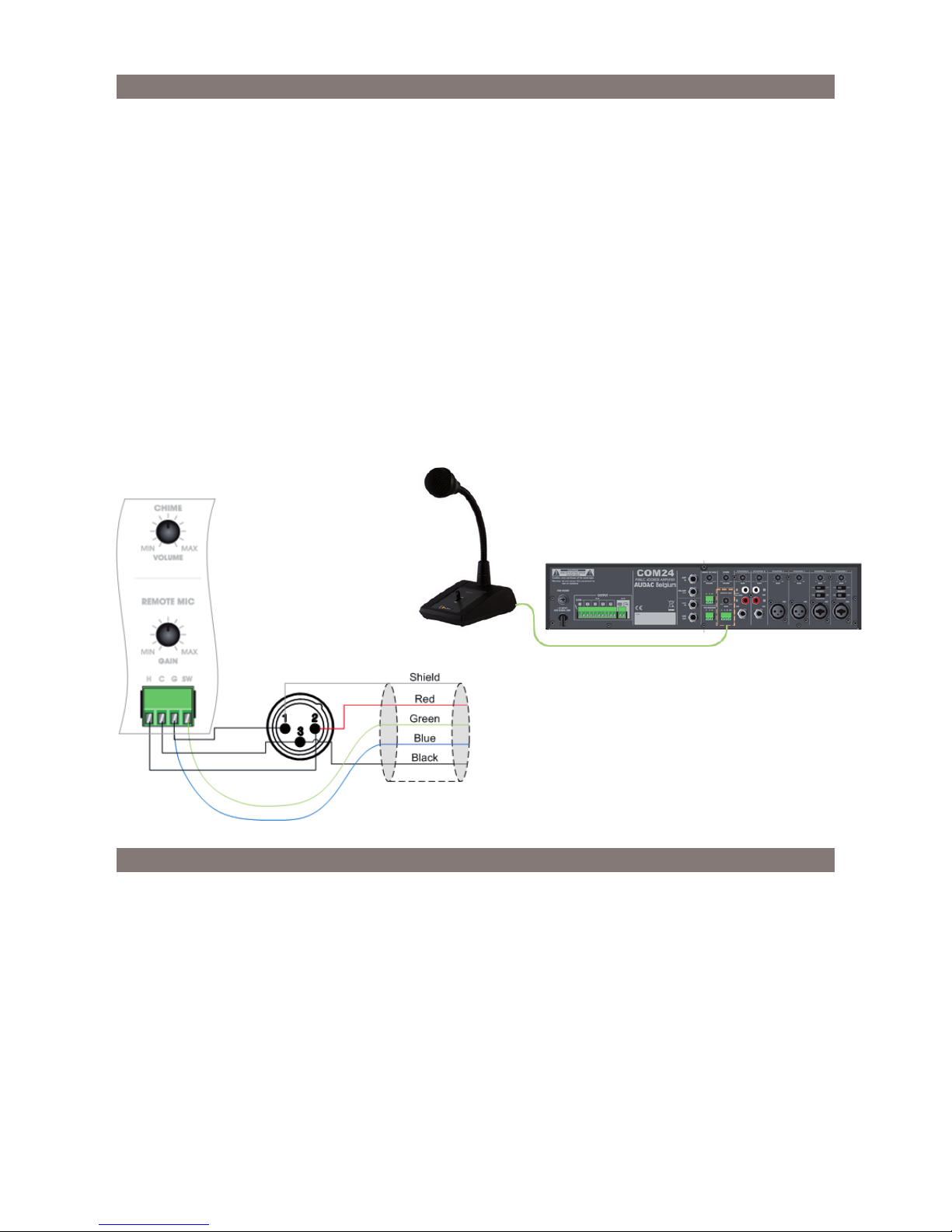

When connecting the PDM200 to an AUDAC COM12/24 Public Address
amplier using the integrated chime module of the COM12/24, the microphone should be connected to the “Remote Mic” input according to the diagram
shown below:
Connect the
1) Shield (Pin 1 of XLR) to the G (Ground) terminal
2) Red wire (Pin 2 of XLR) to the H (Hot) terminal
3) Black wire (Pin 3 of XLR) to the C (Cold) terminal
4) Blue wire of the chime circuit to the G (Ground) terminal
5) Green wire of the chime circuit to the SW (Switch) terminal
Page 4
Eligible to bear CE marking. Conforms to European EMC Directive 89/336/
EEC. Meets applicable tests and performance criteria in European standard
EN 55103 (1996) parts 1 and 2, for residential (E1) and light industrial (E2)
environments.
