Highlights:
6
Minimalistics and elegant housing•
With or without volume controller•
High intelligibility and sound accuracy•
Connection through SnapConnect™ terminals•
Diverse mounting possibilities•
Optional suspension kit (CSK100)•
Product information:

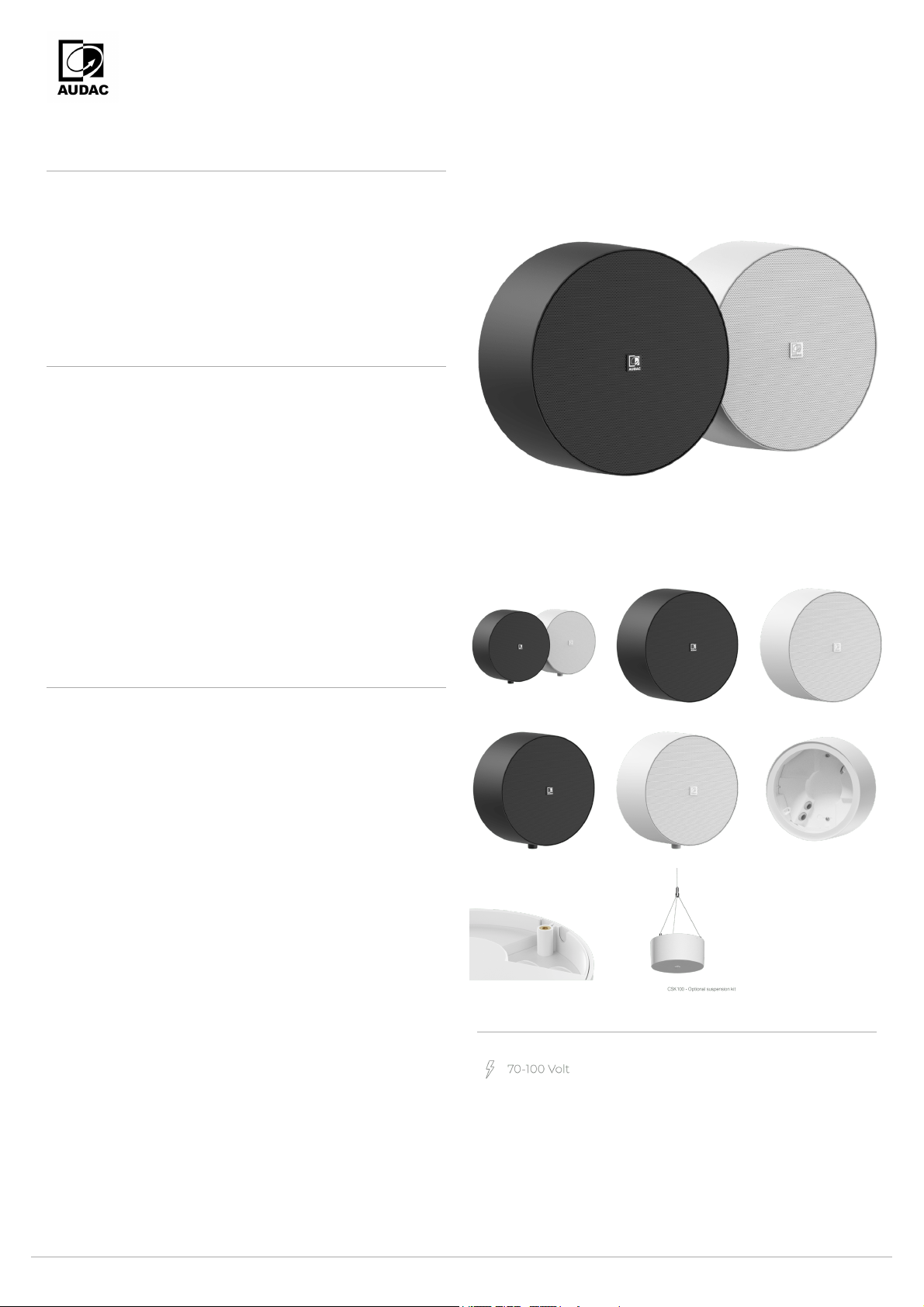

The NELO706 surface-mount loudspeakers allow installation to
any wall or ceiling where functional and cost-efficient
reproduction for music & speech is required. It features a
6.5” broadband loudspeaker with a continuous power handling
of 10 Watt (RMS) and is fitted with a line transformer for use in
70V/100V public address systems with power tappings for 6W
and 3W. The housing is minimalistic and elegant designed with
a very narrow border and a finely perforated steel grill on the
front. Connections are made through SnapConnect™ terminals,
offering a faster, more reliable and safer choice for fixed
installations. The NELO706 are available in various models with
(NELO706V) and without (NELO706) individual volume
controller on its side while being available in two different
colours (Black /B & White /W) to blend in with any
residential, commercial or industrial environment.
NELO706
Surface mount speaker
Applications:
Residential•
Retail•
Hotels•
Corporate•
Voltage:
AUDAC - NELO706 - 20/09/2024 11:51 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 1 of
Page 2
System specifications:
6
Peak power handling 40 W
Program power handling 20 W
RMS/AES power handling 10 W
Sensitivity (1W/1m) 96 dB
Sound Pressure (Max. W/1m) @ 100 V 106 dB
Speaker type Broadband
Connection SnapConnect™
Drivers 6.5” Full Range
Volume control Integrated rotary volume controller (only NELO706V)
Frequency Response (± 3 dB) 100 Hz - 15 kHz
Range (-10 dB) 70 Hz - 18 kHz
Line Transformer Tappings 1 833 Ω - 100 V / Not used - 70 V / 6 W
2 1667 Ω - 100 V / 6 W - 70 V / 3 W
3 3333 Ω - 100 V / 3 W - 70 V / 1.5 W
Dispersion Conical 140°
Product Features:
Colours Black & White
Front finish Steel grill
Construction ABS
Mounting Wall/Ceiling mounting (two screw holes)
CSK100 ceiling suspension kit (optional)
Colours White (RAL9003) (NELO706/W)
White (RAL9003) (NELO706V/W)
White (RAL9016 grill + RAL9003 housing) (NELO706I/W)
White (RAL9016 grill + RAL9003 housing) (NELO706VI/W)
Black (RAL9005) (NELO706/B)
Dimensions 206.5 x 95 mm (Ø x D)
Operating temperature -25 °C ~ 70 °C
AUDAC - NELO706 - 20/09/2024 11:51 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 2 of
Page 3
Variants:
6
NELO706/B - Black version without volume controller•
NELO706I/W - White version (RAL9016) without volume
•
controller
NELO706V/B - Black version with volume controller•
NELO706VI/W - White version (RAL9016) with volume
•
controller
Architects’ and Engineers’ Specifications:
The surface-mount loudspeaker shall be a full-range type equipped with a 6.5” driver and fitted with a line transformer allowing it to
be used on 100 Volt distributed line systems. It shall have an RMS power handling of 10 Watt with a maximum power handling of 20
Watt and the frequency response (±3 dB) shall range from 100 Hz to 15 kHz. The sensitivity shall be 96 dB when measuring with an
input signal of 1 Watt at a distance of 1 meter, while the maximum continuous sound pressure level shall be 106 dB. The nominal
dispersion shall be a 140° conical coverage pattern at -6dB (average 100 Hz - 10 kHz). The loudspeaker shall fitted with a
multitapping line transformer with tappings for 6 Watt and 3 Watt. Fast and safe connection of the system shall be possible using
SnapConnect™. The speakers frame shall be constructed in high quality ABS material and the front shall be finished through a
borderless and finely perforated steel grill. It shall come available in both white (RAL9003) and black (RAL9005) colours and custom
painting shall make it blend-in with any environment. The speaker shall have a diameter of 206,5mm, a depth of 95 mm and the
weight shall not exceed 1,08 kg. The speaker shall be fixed to the wall with two screws spaced 130 mm apart.
AUDAC - NELO706 - 20/09/2024 11:51 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 3 of
Page 4

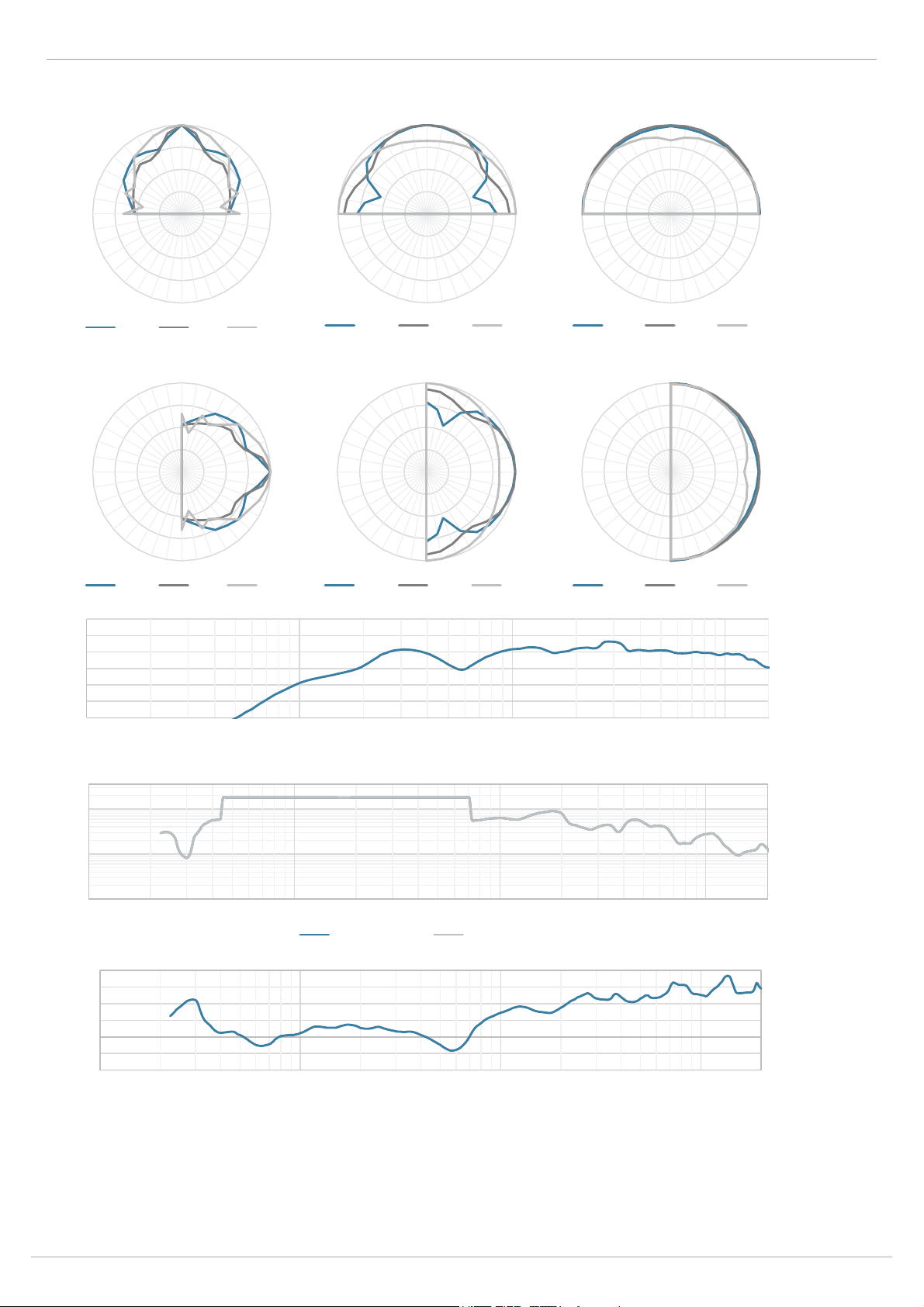

Acoustical data graphs:
Horizontal Polars:
Vertical Polars:
Sensitivity:
Beamwidth (-3dB):
Directivity index:
-40
-30
-20
-10
0
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
250 Hz 125 Hz 63 Hz
-40
-30
-20
-10
0
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
2000 Hz 1000 Hz 500 Hz
-40
-30
-20
-10
0
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
16 kHz 8 kHz 4 kHz
-40
-30
-20
-10
0
90°
60°
30°
0°
-30°
-60°
-90°
-120°
-150°
(-) 180°
150°
120°
16 kHz 8 kHz 4 kHz
-40
-30
-20
-10
0
90°
60°
30°
0°
-30°
-60°
-90°
-120°
-150°
(-) 180°
150°
120°
2000 Hz 1000 Hz 500 Hz
-40
-30
-20
-10
0
90°
60°
30°
0°
-30°
-60°
-90°
-120°
-150°
(-) 180°
150°
120°
250 Hz 125 Hz 63 Hz
1
10
100
10 100 1000 10000
Angle (Degrees)
Frequency (Hz)
Horizontal Beamwidth Vertical Beamwidth
360
30
40
50
60
70
80
90
10 100 1000 10000
Level (dB- SPL/1W @ 1m)
Frequency (Hz)
-10
-5
0
5
10
15
20
10 100 1000 10000
Directivity Index (dB)
Frequenty (Hz)
6
AUDAC - NELO706 - 20/09/2024 11:51 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 4 of
Page 5

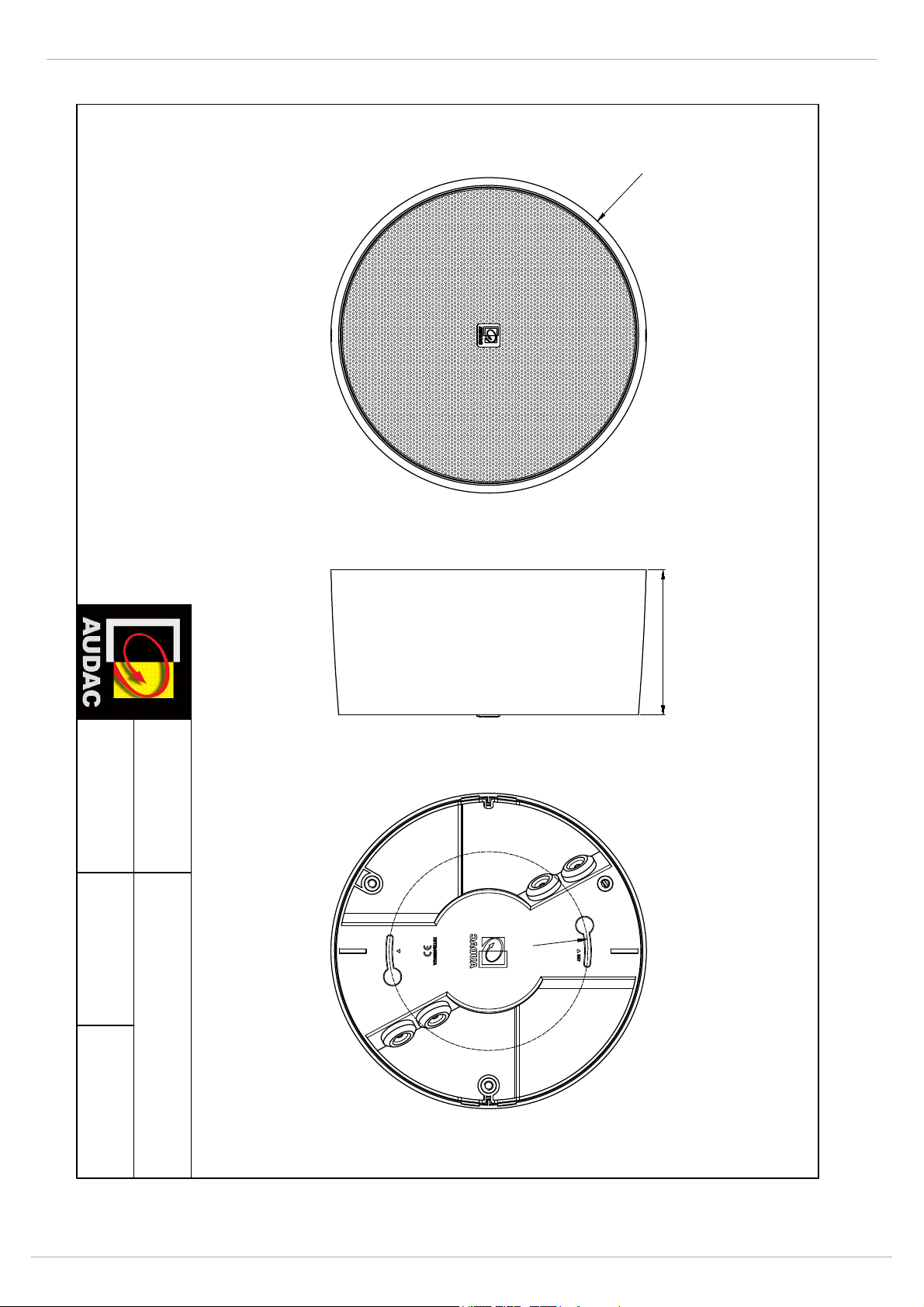

Technical drawings:

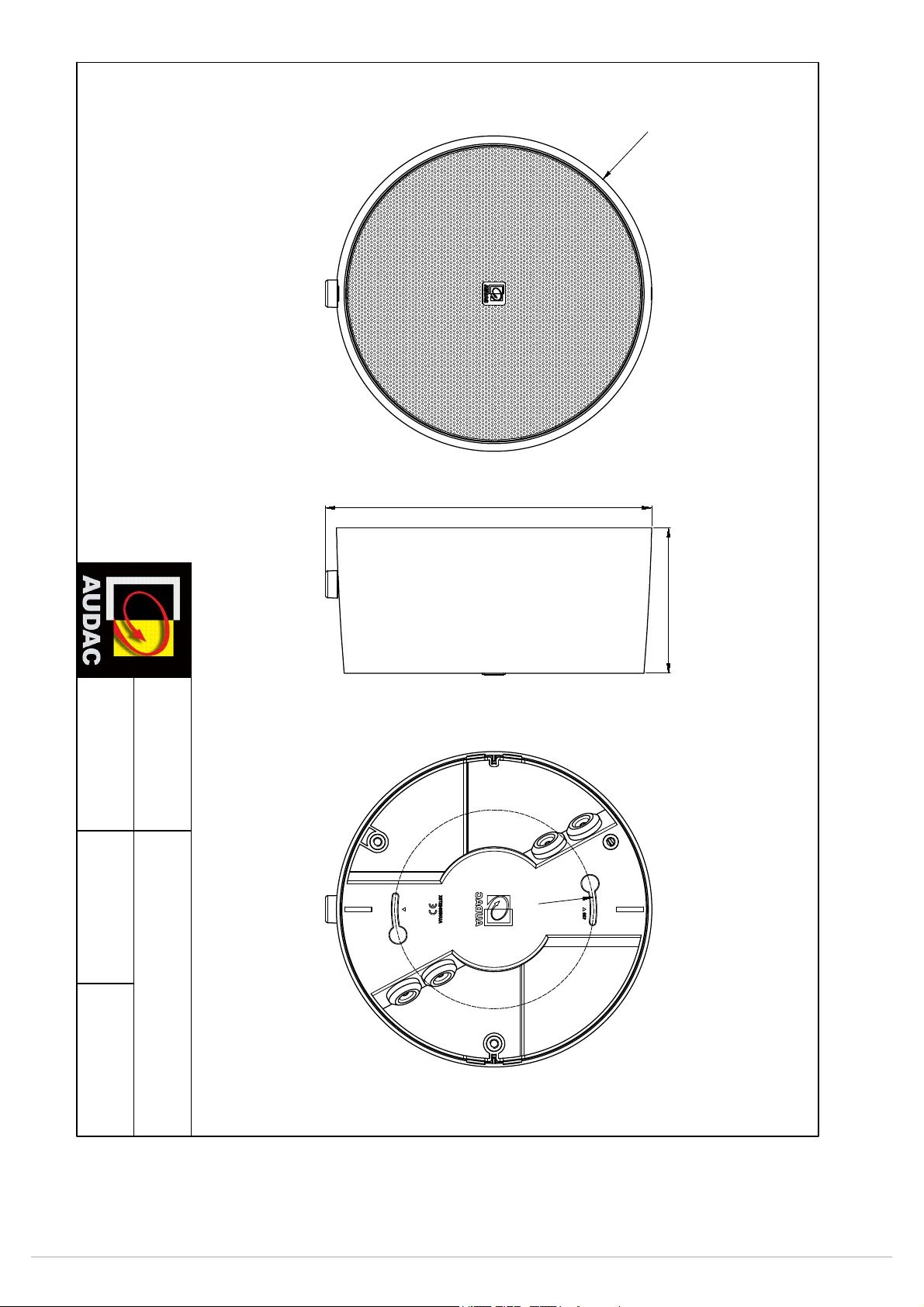

Ø206,2
95,1
Ø130
Product description:
Weight: Outer dimensions: Unit height:
(w x h x d)
NELO706
TBA Ø206,2 x 95,1 N/A
SURFACE MOUNT 6.5" SPEAKER 6W
6
AUDAC - NELO706 - 20/09/2024 11:51 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 5 of
Page 6
Ø206,2
95,1
213,4
Ø130
Product description:
Weight: Outer dimensions: Unit height:
(w x h x d)
NELO706V
TBA 206,2 x 213,4 x 95,1 N/A
SURFACE MOUNT 6.5" SPEAKER 6W WITH
VOLUME CONTROL
6
AUDAC - NELO706 - 20/09/2024 11:51 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 6 of
