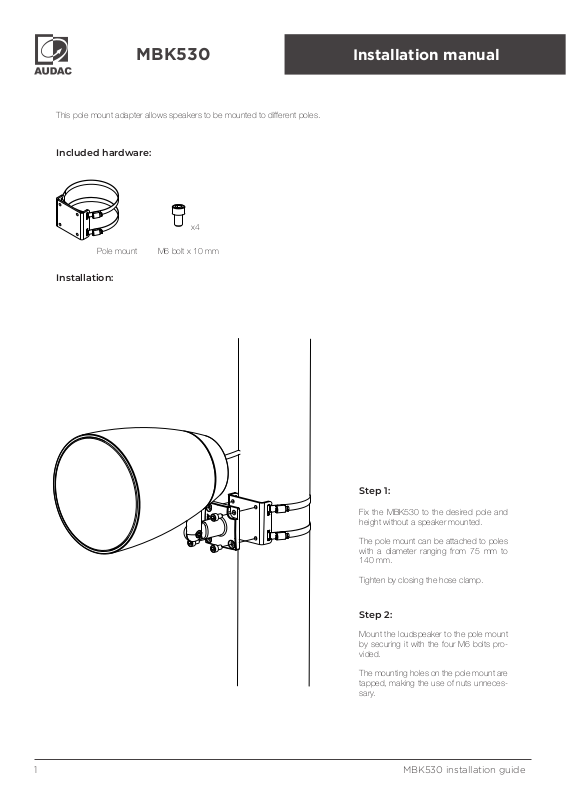

MBK530
This pole mount adapter allows speakers to be mounted to different poles.
Included hardware:
x4
M6 bolt x 10 mmPole mount
Installation:
Installation manual

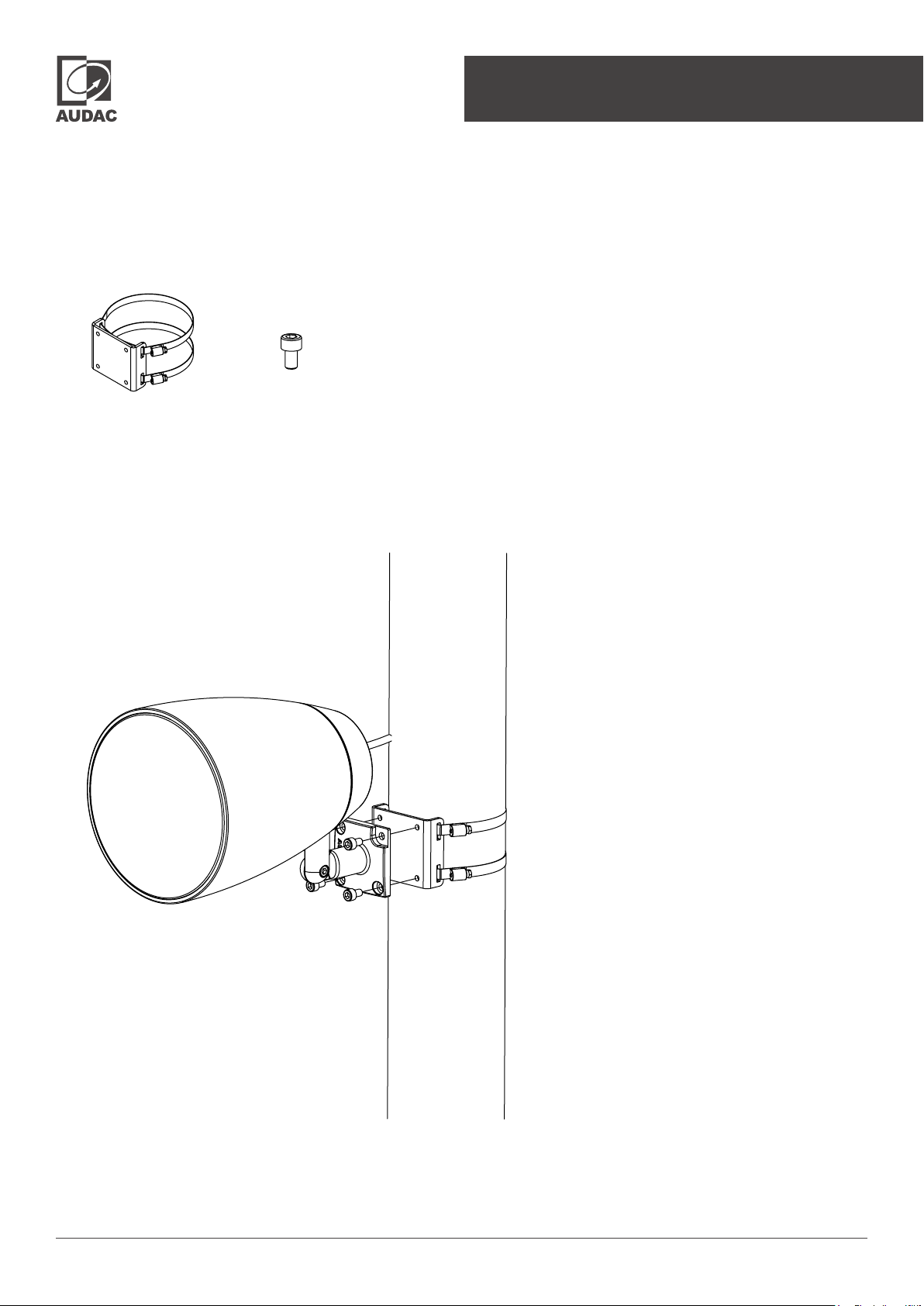

Step 1:
Fix the MBK530 to the desired pole and
height without a speaker mounted.
The pole mount can be attached to poles
with a diameter ranging from 75 mm to
140 mm.
Tighten by closing the hose clamp.
Step 2:
Mount the loudspeaker to the pole mount
by securing it with the four M6 bolts provided.
The mounting holes on the pole mount are
tapped, making the use of nuts unnecessary.
MBK530 installation guide1
Page 2

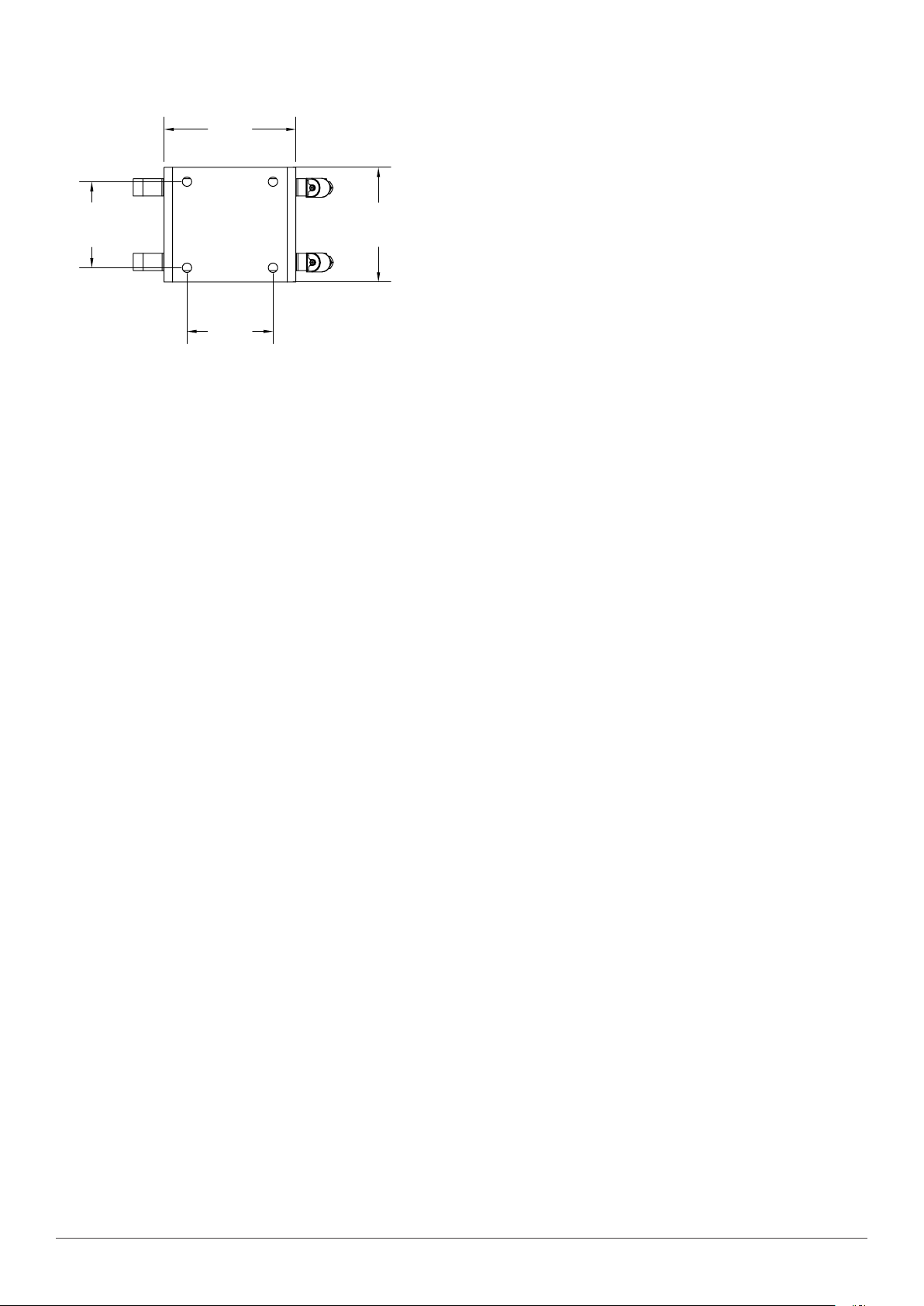

Dimensions:
69.00
45.00
60.00
45.00
PRECAUTIONS
•
KEEP THESE INSTRUCTIONS FOR FUTUR E REFERENCE. NE VER
THROW THEM AWAY
• ALWAYS HANDLE THIS UNIT WITH CARE
• CLEAN ONLY WITH DRY CLOTH
• HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS
•
DO NOT USE HYDROCARBON BASED SOLVENTS, LUBRICANTS
OR CLEANING AGENTS OF ANY TYPE ON OR AROUND
THE DEVICE AND MOUNTING HARDWARE DURING THE
INSTALL ATION. THE USE OF TH ESE PRODUCTS ON OR AR OUND
THE MOUNTING ANCHORS AND SCREWS CAN LEAD TO
DEGRADATION OF THE MATERIAL, POSSIBLY RESULTING IN
CRACKING AND PREMATURE FAILURE OF THE PRODUCT.
•
ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY THE
MANUFACTURER.
•
ONLY INSTALL THE SPEAKER IN LOCATIONS THAT CAN
STRUCTURALLY SUPPORT THE WEIGHT OF THE SPEAKER.
IGNORING THIS CAN BRING THE SPEAKER DOWN.
•
DO NOT USE ANY OTHER METHOD THAN SPECIFIED TO
MOUNT THE SPEAKER. IF EXTREME FORCE IS APPLIED TO THE
SPEAKER, IT COULD FALL DOWN
•
CAREFULLY CHECK THE UNIT’S CONDITION AFTER UNPACKING.
• IF THERE IS ANY DAMAGE TO THE CARTON BOX OR THE UNIT
ITSELF, INFORM YOUR VENDOR IMMEDIATELY.
•
ALWAYS FOLLOW THE LOCAL REGULATIONS AND
REQUIREMENTS REGARDING INSTALLATION, SUSPENSION
AND CONNECTION OF THIS LOUDSPEAKER. EVEN WHEN
OTHERWISE SPECIFIED IN THIS DOCUMENT.
•
IT’S THE INSTALLERS RESPONSIBILITY TO ENSURE
INSTALLATION OF THE LOUDSPEAKERS AND MOUNTING
SYSTEMS IS PERFORMED IN ACCORDANCE WITH ALL
APPLICABLE CODES
•
UNSAFE MOUNTING OR OVERHE AD SUSPENSION ON ANY
HE AVY LOAD CAN RESULT IN SERIOUS INJ URY OR DEATH, AND
PRO PERT Y DAMAGE. IT’S THE INSTALLERS RESPONSIBILIT Y TO
EVALUATE THE RELIABILITY OF ANY MOUNTING METHOD USED
FOR THEIR APPLICATIONS
•
THE INSTALLATION OF THIS LOUDSPEAKER SHALL BE DONE
BY QUALIFIED PERSONNEL ONLY.
•
DO NOT MAKE UNAUTHORIZED ALTERATIONS TO THE
PRODU CT.
CAUTION - SERVICING
This product contains no user serviceable parts. Refer all
servicing to qualied service personnel. Do not perform any
servicing (unless you are qualied to do so).
EC DECLARATION OF CONFORMITY
This product conforms to all the essential requirements and
further relevant specications described in following directives:
2011/65/EU (RoHS2) and 1907/2006 (REACH)
MBK530 installation guide2
