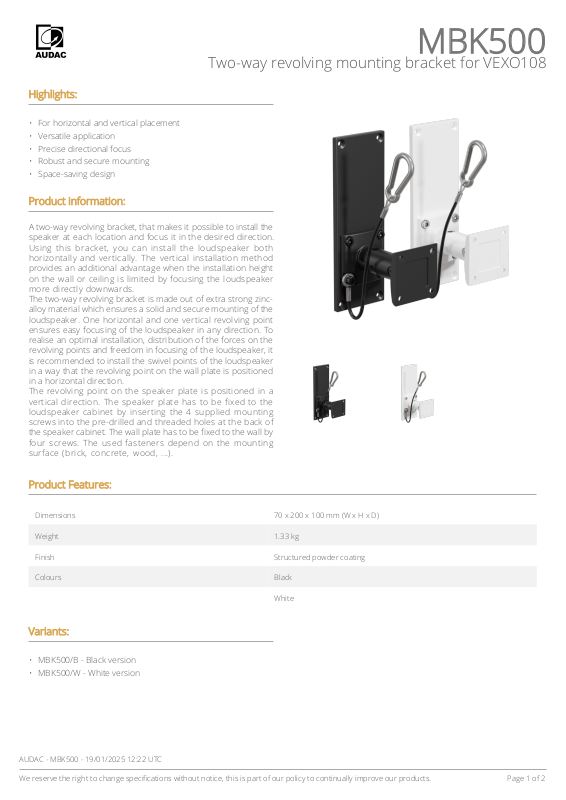

Two-way revolving mounting bracket for VEXO108
2
Highlights:
For horizontal and vertical placement•
Versatile application•
Precise directional focus•
Robust and secure mounting•
Space-saving design•
Product information:

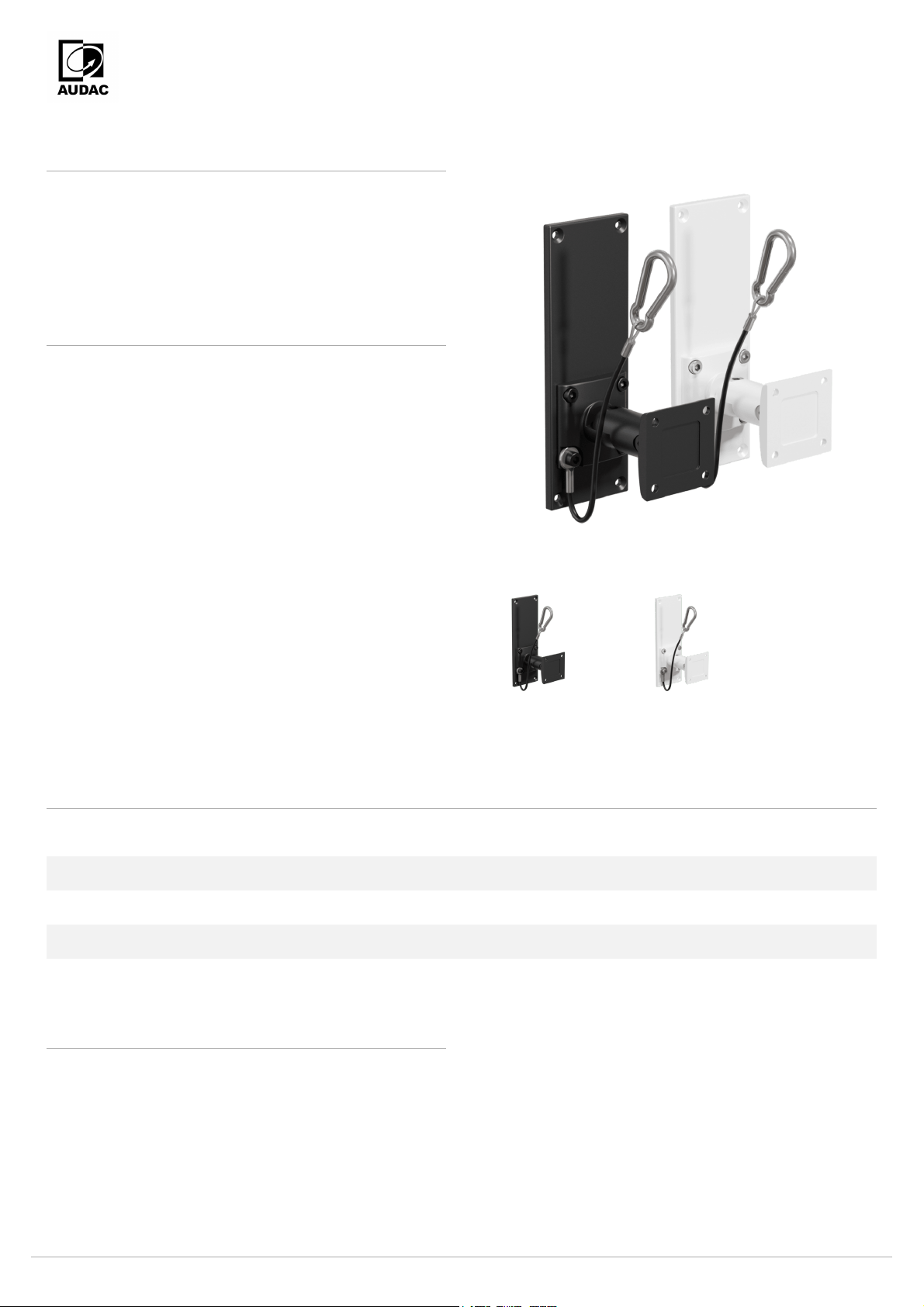

A two-way revolving bracket, that makes it possible to install the
speaker at each location and focus it in the desired direction.
Using this bracket, you can install the loudspeaker both
horizontally and vertically. The vertical installation method
provides an additional advantage when the installation height
on the wall or ceiling is limited by focusing the loudspeaker
more directly downwards.
The two-way revolving bracket is made out of extra strong zincalloy material which ensures a solid and secure mounting of the
loudspeaker. One horizontal and one vertical revolving point
ensures easy focusing of the loudspeaker in any direction. To
realise an optimal installation, distribution of the forces on the
revolving points and freedom in focusing of the loudspeaker, it
is recommended to install the swivel points of the loudspeaker
in a way that the revolving point on the wall plate is positioned
in a horizontal direction.
The revolving point on the speaker plate is positioned in a
vertical direction. The speaker plate has to be fixed to the
loudspeaker cabinet by inserting the 4 supplied mounting
screws into the pre-drilled and threaded holes at the back of
the speaker cabinet. The wall plate has to be fixed to the wall by
four screws. The used fasteners depend on the mounting
surface (brick, concrete, wood, ...).
MBK500
Product Features:
Dimensions 70 x 200 x 100 mm (W x H x D)
Weight 1.33 kg
Finish Structured powder coating
Colours Black
White
Variants:
MBK500/B - Black version•
MBK500/W - White version•
AUDAC - MBK500 - 19/01/2025 12:22 UTC
We reserve the right to change specifications without notice, this is part of our policy to continually improve our products.
Page 1 of
Page 2

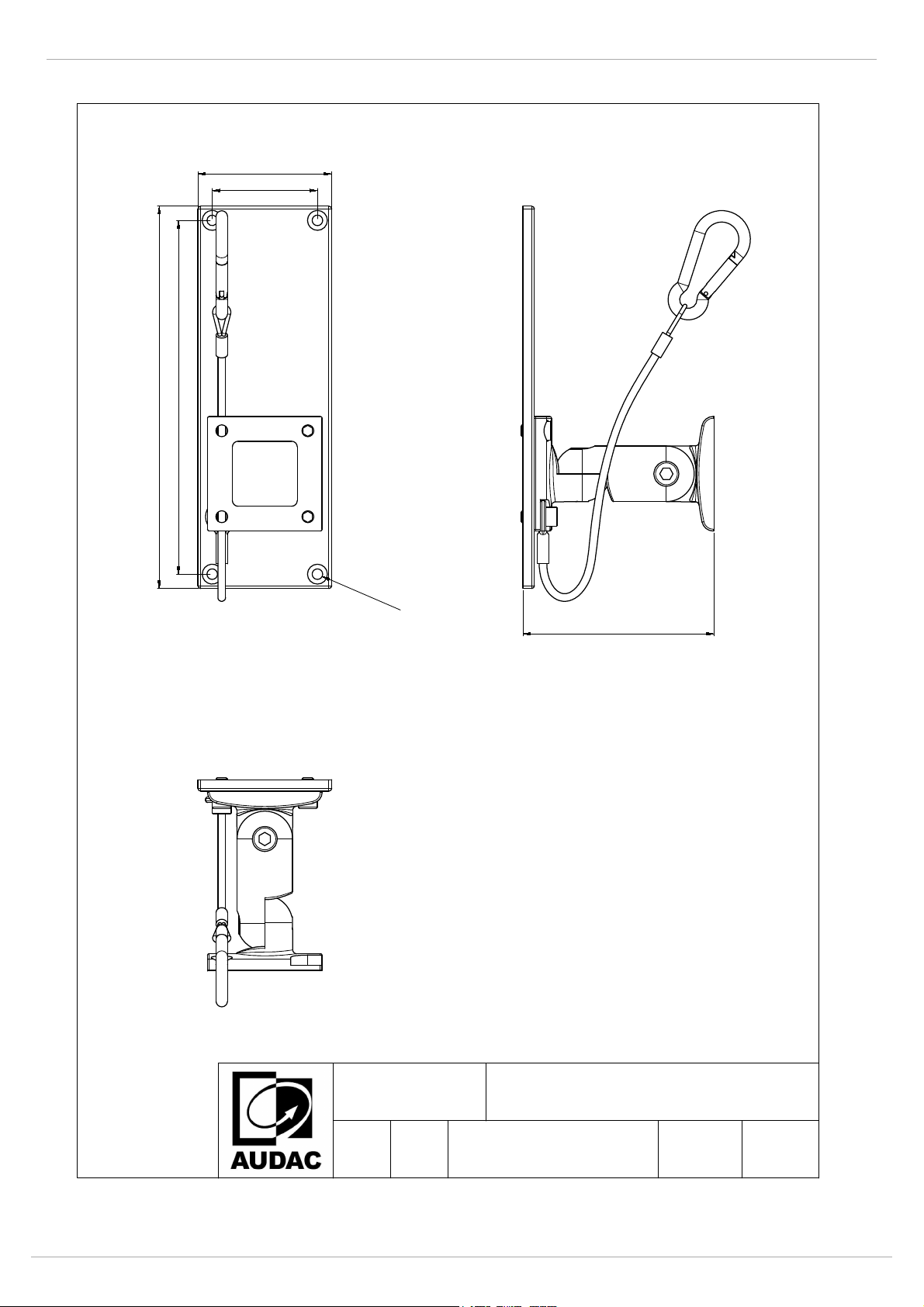

Technical drawings:
70 [2,756]
55 [2,165]
200 [7,874]
185 [7,283]
100 [3,937]
Ø5,5 [Ø0,217]
Product description
WeightOuter dimensions Unit height
MM
[INCH]
(w x h x d)Scale
MBK500
TWO-WAY REVOLVING MOUNTING BRACKET
- 45x45xM6 MOUNT
1 : 2
70 x 200 x 100 mm
2,756 x 7,874 x 3,937 " N/A
1,33 kg
2,93 lbs
2
