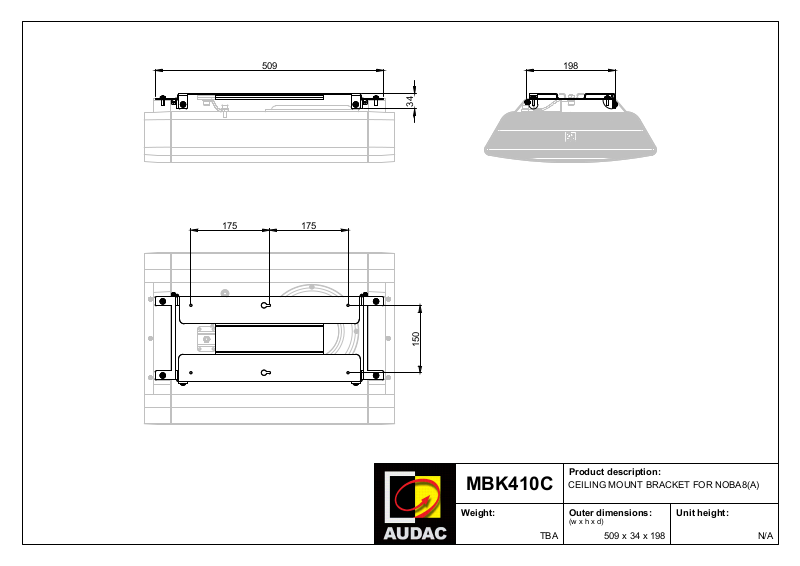

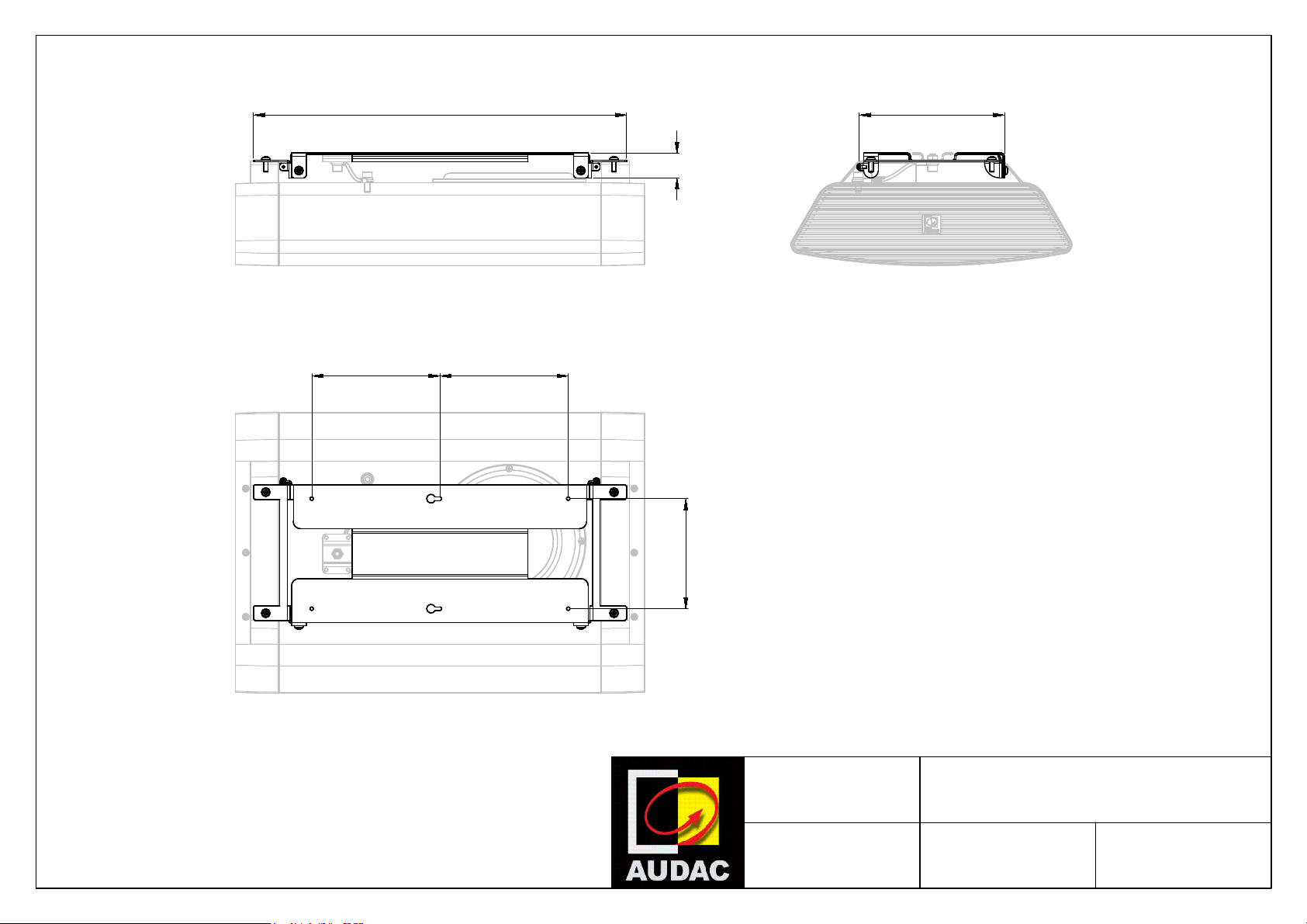

Product description:
Weight: Outer dimensions: Unit height:
(w x h x d)
MBK410C
TBA 509 x 34 x 198 N/A
CEILING MOUNT BRACKET FOR NOBA8(A)
Page 2
INSTALLATION MANUAL
MBK410C CEILING MOUNTING BRACKET FOR NOBA8(A)

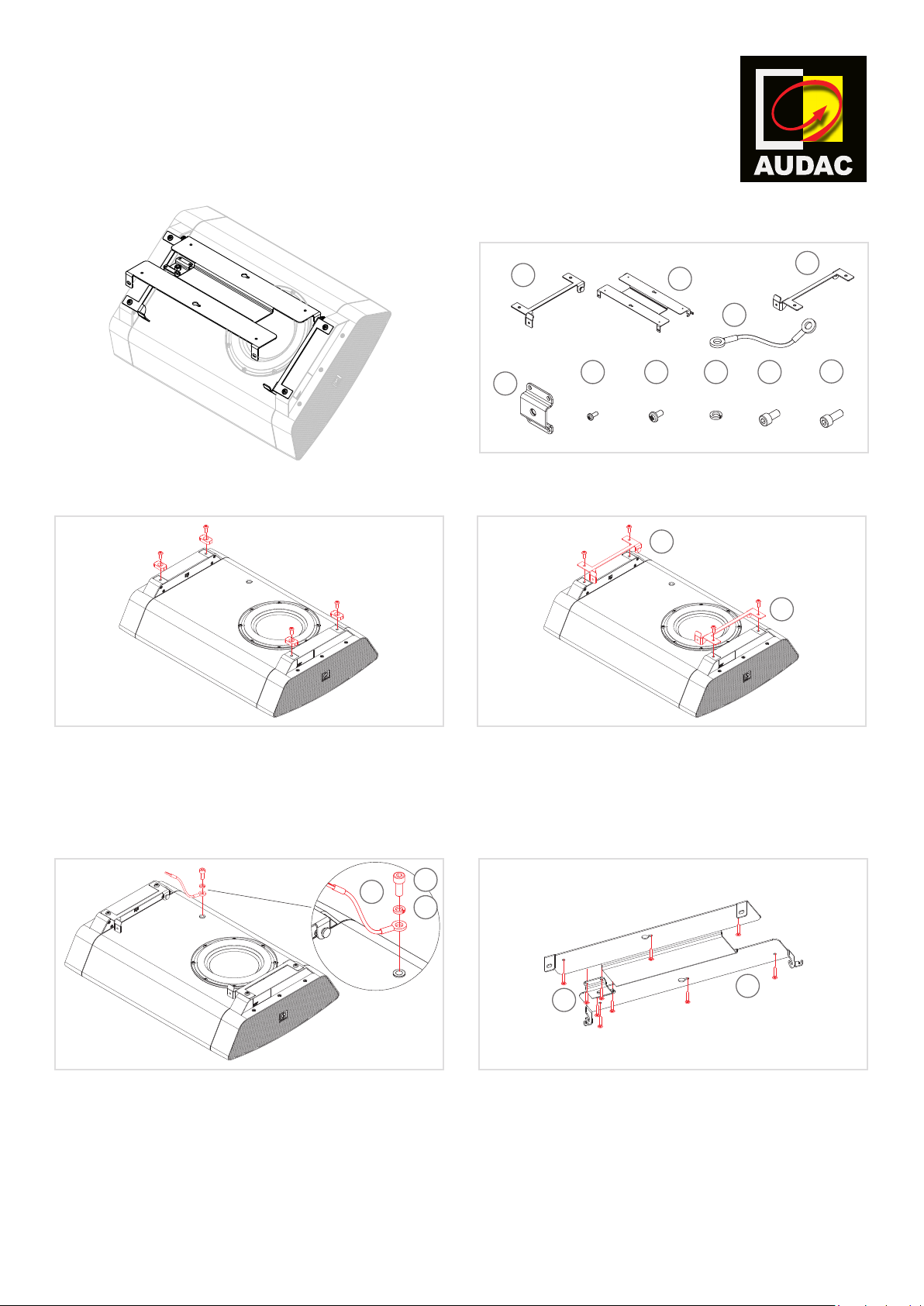

PARTS AND ACCESSORIES
A
E
STEP 1 STEP 2
B
1 3
M4x6
x2
2
M6x12
x2
A
x2
D
M8x16
4
C
5
M8x20
C
Remove the rubber feet by unscrewing the mounting
screws
STEP 3
D
Attach the safety cable to the NOBA8(A) chassis
5
3
Attach the mounting brackets with the screws removed
in step 1.
STEP 4
B
E
Attach the ceiling plate and the safety cable bracket in
the desired location using the appropriate screws for
your mounting surface.
Note:
A cable guide channel is provided on the ceiling
plate. We recommend using it to prevent cables from
touching the woofer.
Page 3
INSTALLATION MANUAL
MBK410C CEILING MOUNTING BRACKET FOR NOBA8(A)

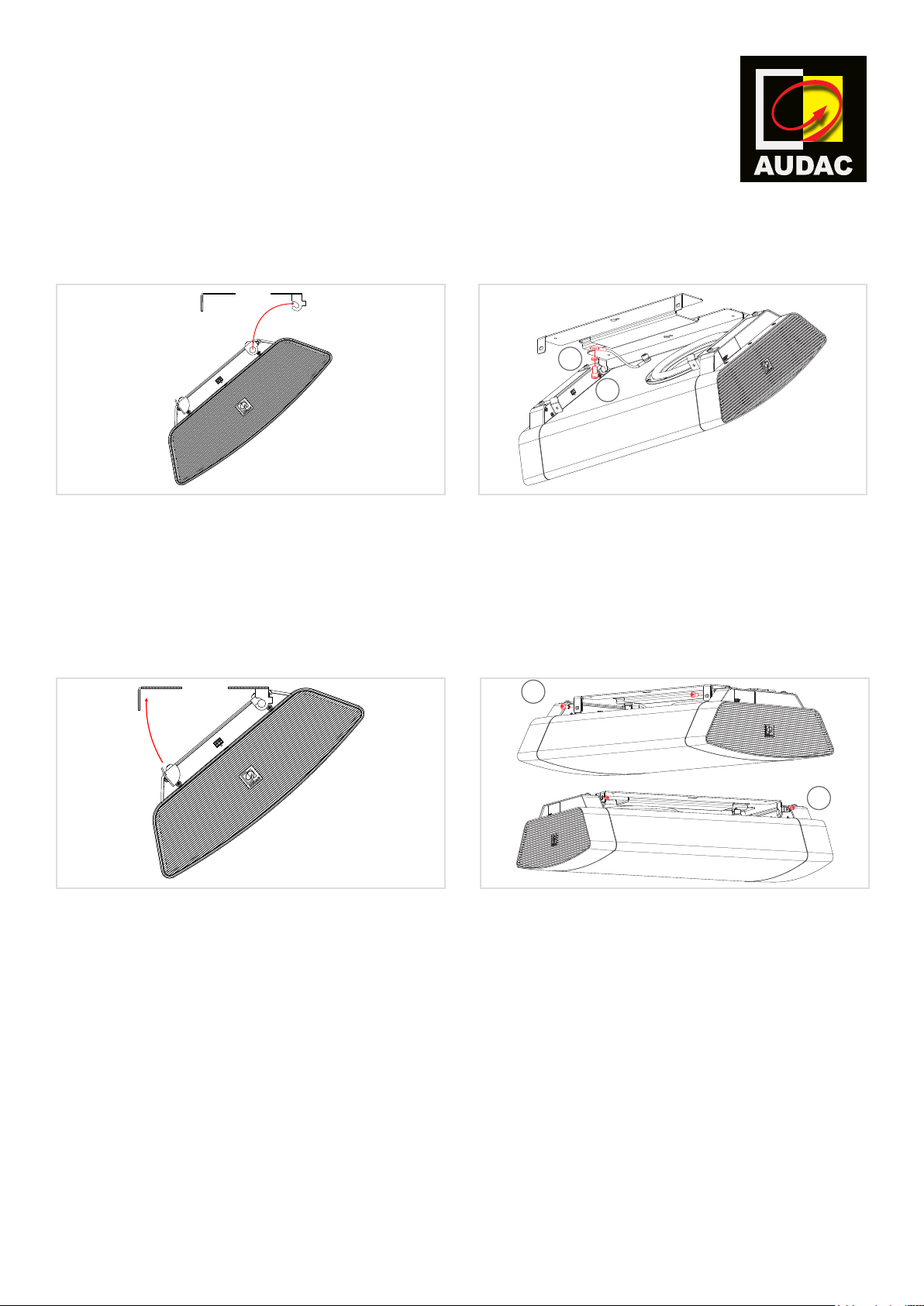

STEP 5 STEP 6
3
4
Hang the NOBA8(A) into the ceiling plate, making sure
the mounting pins are tted into the hooks on the
ceiling plate
The ceiling plate is labelled side A and side B, make
sure these labels match the labels on the NOBA8(A)
mounting brackets
STEP 7
Rotate the other end of the NOBA8(A) up until the
holes of the ceiling bracket line up with the holes on
the NOBA8(A) bracket.
Mount the loose end of the safety wire to the safety
bracket and make all electrical connections
STEP 8
2 x2
1 x2
Keep the screw holes lined up and secure the screws
in place. You can now release the NOBA8(A) and also
secure the screws on the other side of the NOBA8(A).
Page 4
INSTALLATION MANUAL
MBK410C CEILING MOUNTING BRACKET FOR NOBA8(A)
PRECAUTIONS
•
•
ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE
REFERENCE. NEVER THROW THEM AWAY
• ALWAYS HANDLE THIS UNIT WITH CARE
• CLEAN ONLY WITH DRY CLOTH
•
HEED ALL WARNINGS AND FOLLOW ALL
INSTRUCTIONS
•
NEVER EXPOSE THIS EQUIPMENT TO RAIN,
MOISTURE, ANY DRIPPING OR SPLASHING LIQUID.
•
DO NOT INSTALL THIS UNIT NEAR ANY HEAT
SOURCES SUCH AS RADIATORS OR OTHER
APPAR ATUS THAT PRODUCE HEAT
•
DO NOT PLACE THIS UNIT IN ENVIRONMENTS
WITH A HIGH LEVEL OF DUST, HEAT, MOISTURE OR
VIBR AT ION
• THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY.
DO NOT USE IT OUTDOORS
•
ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED
BY THE MANUFACTURER.
•
ONLY INSTALL THE SPEAKER IN LOCATIONS THAT
CAN STRUCTURALLY SUPPORT THE WEIGHT OF THE
SPEAKER. IGNORING THIS CAN BRING THE SPEAKER
DOWN.
•
DO NOT USE ANY OTHER METHOD THAN SPECIFIED
TO MOUNT THE SPEAKER. IF EXTREME FORCE IS
APPLIED TO THE SPEAKER, IT COULD FALL DOWN
•
ATTACH A SAFETY WIRE TO THE SPEAKER WHEN
IT IS MOUNTED HIGH UP. ONLY USE INDUSTRYACCEPTED RIGGING TOOLS AND METHODS
• CAREFULLY CHECK THE UNIT’S CONDITION AFTER
UNPACKING.
IF THERE IS ANY DAMAGE TO THE CARTON BOX
OR THE UNIT ITSELF, INFORM YOUR VENDOR
IMMEDIATELY.
•
ALWAYS FOLLOW THE LOCAL REGULATIONS AND
REQUIREMENTS REGARDING INSTALLATION,
SUSPENSION AND CONNECTION OF THIS
LOUDSPEAKER. EVEN WHEN OTHERWISE SPECIFIED
IN THIS DOCUMENT.
• THE INSTALLATION OF THIS LOUDSPEAKER SHALL
BE DONE BY QUALIFIED PERSONNEL ONLY.
CAUTION - SERVICING
This product contains no user serviceable parts.
Refer all servicing to qualied service personnel. Do
not perform any servicing (unless you are qualied
to do so.)
EC DECLARATION OF CONFORMIT Y
This product conforms to all the essential
requirements and further relevant specications
described in following directives: 2011/65/EU
(RoHS2) and 1907/2006 (REACH)
WASTE OF ELECTRICAL AND ELECTRONIC
EQUIPMENT (WEEE)
The WEEE marking indicates that this product
should not be disposed with regular household
waste at the end of its product life. This regulation
is created to protect both the environment and
human health.
This product is developed and manufactured with
high quality materials and components which can
be recycled and/or reused. Please dispose of this
product at your local collection point or recycling
center for electrical and electronic waste. Do this
to make sure that the product is recycled in an
environmental friendly way, and help to protect
the environment in which we all live.
